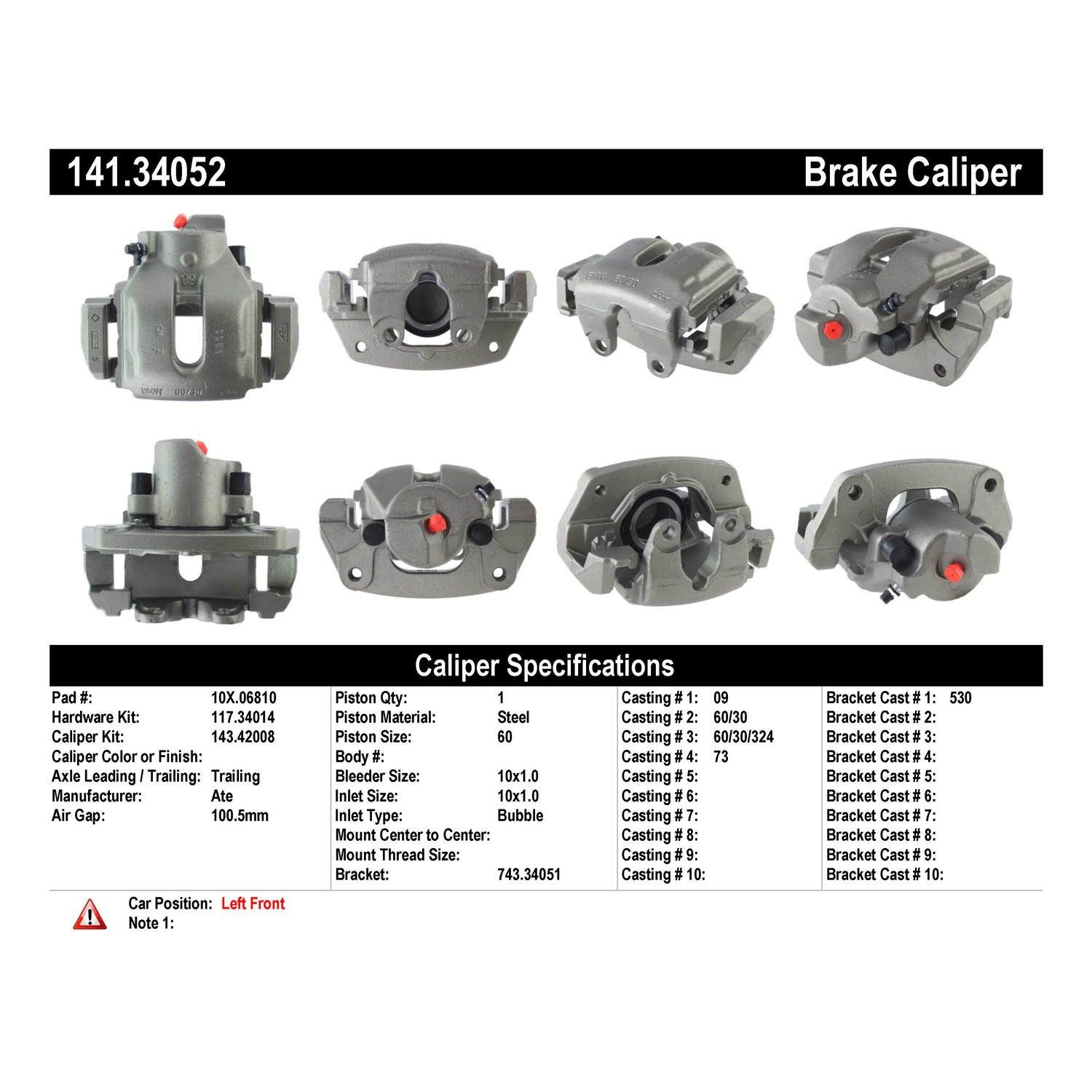

| Attribute | Value |
|---|---|
| Abutment Clips Included | Yes |
| Air Gap [orely] | 100.5mm |
| Attribute ID (Type) | California Proposition 65 |
| Axle Leading/Trailing [cntrc] | Trailing |
| Bleeder Install Thread Count [cntrc] In | 4.5 |
| Bleeder Screw Included | Yes |
| Bleeder Screw Included [cntrc] | Yes |
| Bleeder Screw Thread Diameter | 10.000, 10x1.0 |
| Bleeder Screw Thread Size | M10-1.00 |
| Bore Size(s) Millimeters | 60 |
| Bracket # [cntrc] | 743.34051 |
| Bracket Included | Yes |
| Bracket Mounting Bolts Include | No |
| Bracket Required (Y/N) | Yes |
| Bracket Required [cntrc] | Yes |

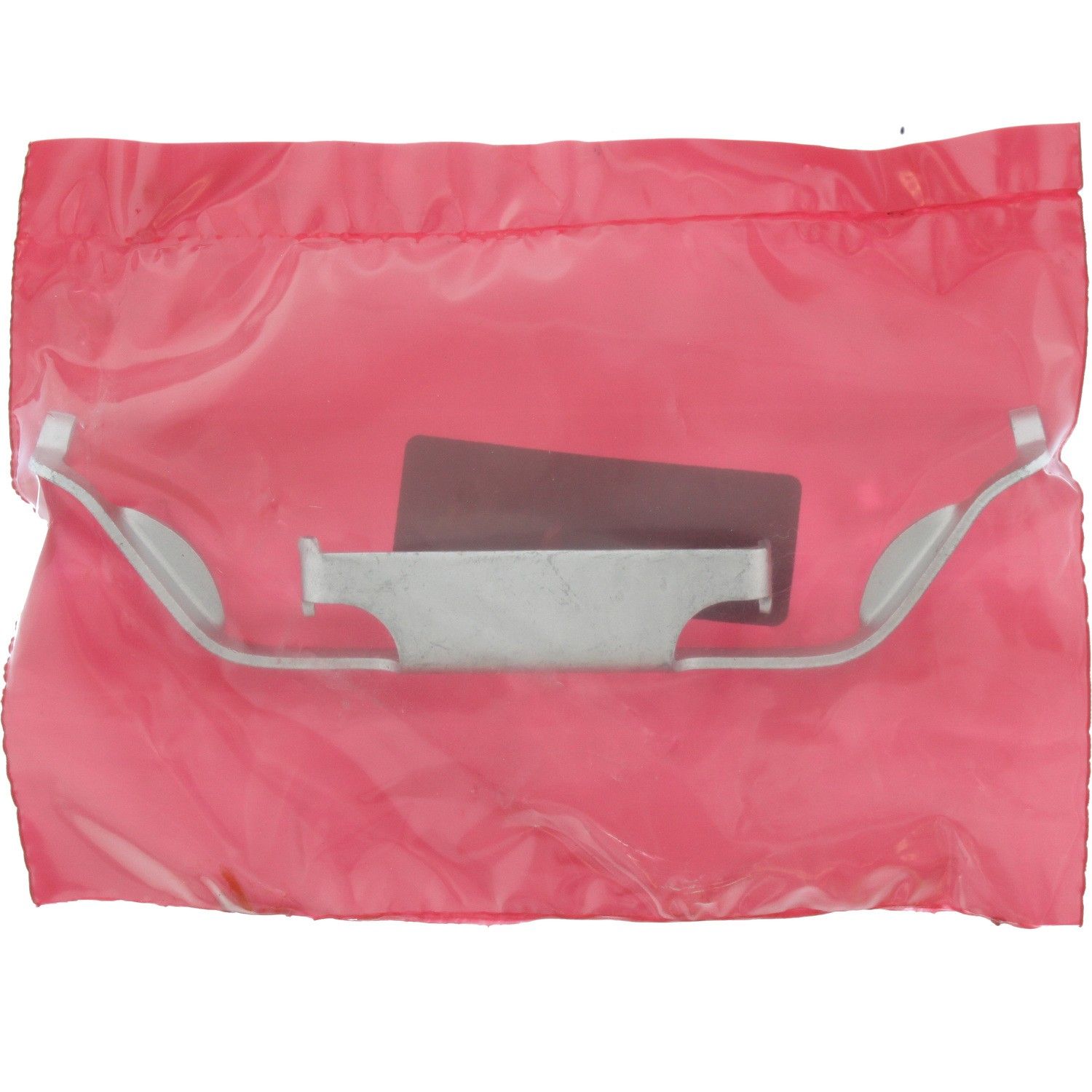

| Caliper & Pad Hardware Include | Yes |
| Caliper Boot & Seal Kit# [cntrc] | 143.42008 |
| Caliper Color | Gray |
| Caliper Manufacturer [cntrc] | Ate |
| Caliper Type | Floating |
| Car Position [cntrc] | Left Front |
| Casting Material | Cast Iron |
| Casting Number | 09; 60/30; 60/30/324; 73; |
| Color | Gray |
| Disc Brake Caliper Casting Material | Cast Iron |
| Finish | Rust Preventative |
| Finish [cntrc] | Rust Preventative |
| Friction Materials Standards Institute Pad Number | 10x.06810 |
| Hardware Kit# [cntrc] | 117.34014 |
| Inlet Fitting Type | Bubble |
| Inlet Thread Diameter | 10.000, M10x1.0 |
| Inlet Thread Size | M10-1.00 |
| Mount Thread Size [cntrc] Mm | M12-1.50 |
| Mounting Hardware Included | No |
| New Or Ramanufactured [cntrc] | Remanufactured |
| New Or Remanufactured | Remanufactured |
| Pad Wear Sensor Included | No |
| Pads Included | No |
| Piston Diameter | 2.362, 60.000 |
| Piston Material | Steel |
| Piston Quantity | 1 |
| Product Grade [cntrc] | Premium |
| Published Bore Size [cntrc] | 60 |
| Root Core# [cntrc] | 34052 |
| Rust Preventative Coating | Yes |
| Rust Preventative Coating [cntrc] | Yes |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| 3.0i | SUV | 2001 - 2006 | L6 3.0L | AWD Automatic & Manual |
| 4.4i | SUV | 2000 - 2006 | V8 4.4L | AWD Automatic |
| 4.4i Formula 1 | SUV | 2003 - 2006 | V8 4.4L | AWD Automatic & Manual |
| 4.4i Lujo | SUV | 2000, 2002 - 2006 | V8 4.4L | AWD Automatic & Manual |
| 4.4i Top Line | SUV | 2000, 2002 - 2006 | V8 4.4L | AWD Automatic & Manual |
| 4.6is | SUV | 2002 - 2003 | V8 4.6L | AWD Automatic |
| 4.8is | SUV | 2005 - 2006 | V8 4.8L | AWD Manual |
| 4.8is | SUV | 2004 - 2006 | V8 4.8L | AWD Automatic |
We offer fast, reliable shipping on all orders:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
We want you to be 100% satisfied with your purchase. That's why we offer:
| Brand | Part Number |
|---|---|
| ATE | 11960198092 |
| ATE | 220449 |
| Autospecialty | 4004052 |
| Autospecialty | 4004060 |
| Autospecialty | 4004062 |
| BBB Industries | 89-02339B |
| Beck/Arnley | 0771855S |
| Bendix | L47264 |
| Bendix | L47264M |
| CARDONE Reman | 1841 |
| CARDONE Reman | 191841 |
| CARDONE Reman | 19B1841B |
| Casting Numbers | 09 |
| Casting Numbers | 34111166233 |
| Casting Numbers | 34116768437 |
| Casting Numbers | 530 |
| Casting Numbers | 60/30 |
| Casting Numbers | 60/30/324 |
| Casting Numbers | 73 |
| Casting Numbers | SYH000090 |
| Dana Auto-tech | DAT9459 |
| Dana Auto-tech | DAT9587 |
| Delco-Remy | 18FR2293 |
| Delta | 9459 |
| Delta | 9587 |
| Fenco | C9257 |
| Fenco | SLC9257 |
| Formula Blue Hydraulic Brake Parts | E146-39-057 |
| Formula Blue Hydraulic Brake Parts | E14639057 |
| IMC | 61206524 |
| Mid Illinois | CR134014 |
| NAPA Brake Calipers | 24271392C |
| Nastra | 122873 |
| Nugeon | 2202339L |
| OEM Part Number | 34111163643 |
| OEM Part Number | 34111166231 |
| OEM Part Number | 34116752425 |
| OEM Part Number | 34116768429 |
| OEM Part Number | 34116773131 |
| OEM Part Number | SEB000280 |
| Quality Rebuilders Corporation | 63494 |
| Raybestos Brakes | FRC10780 |
| Raybestos Brakes | RC10780 |
| UCX | 102408S |
| Wagner Brake | CRB134014B |
| Wagner Brake | L133919 |
Fits Years: 2000 2001 2002 2003 2004 2005 2006
Fits Models: X5
