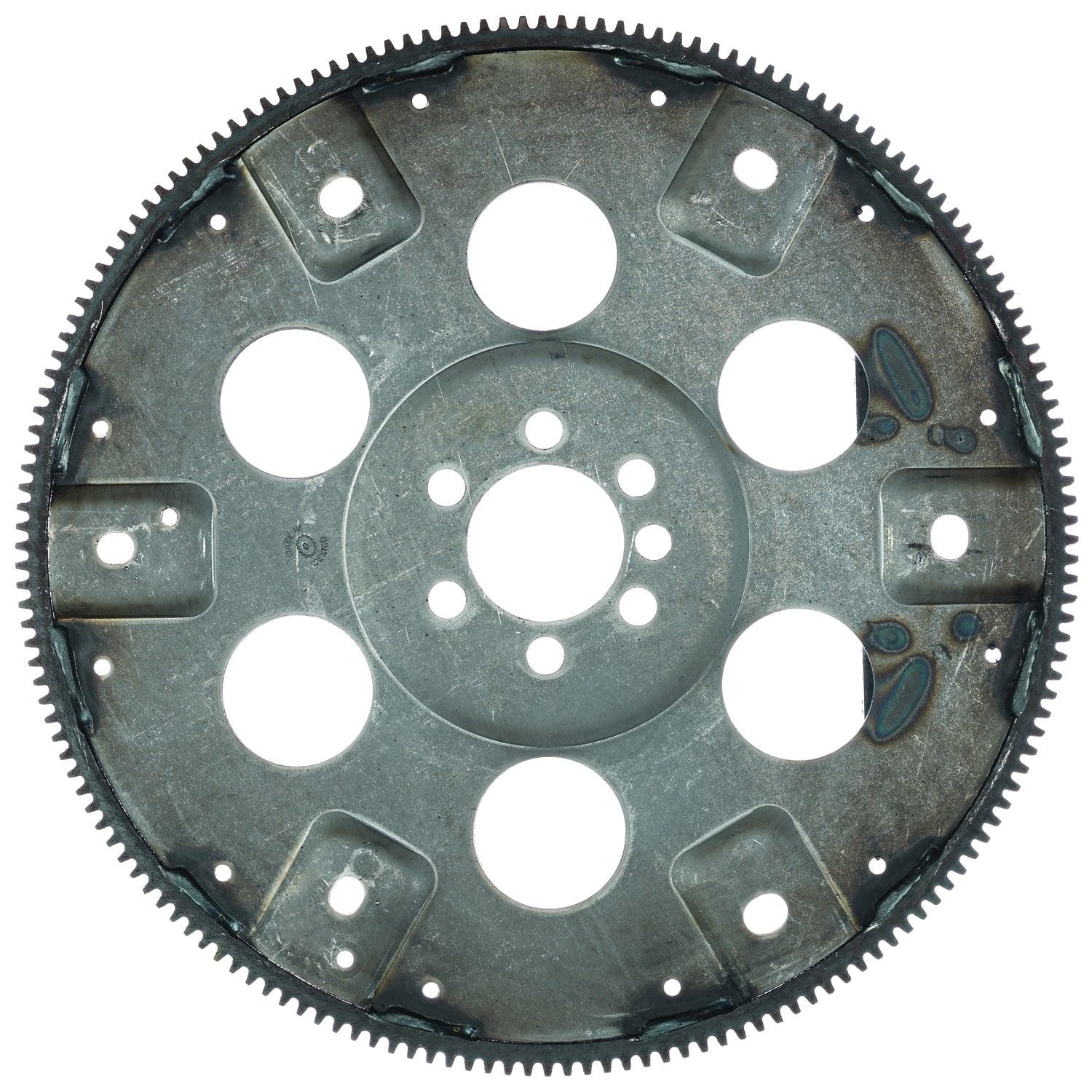

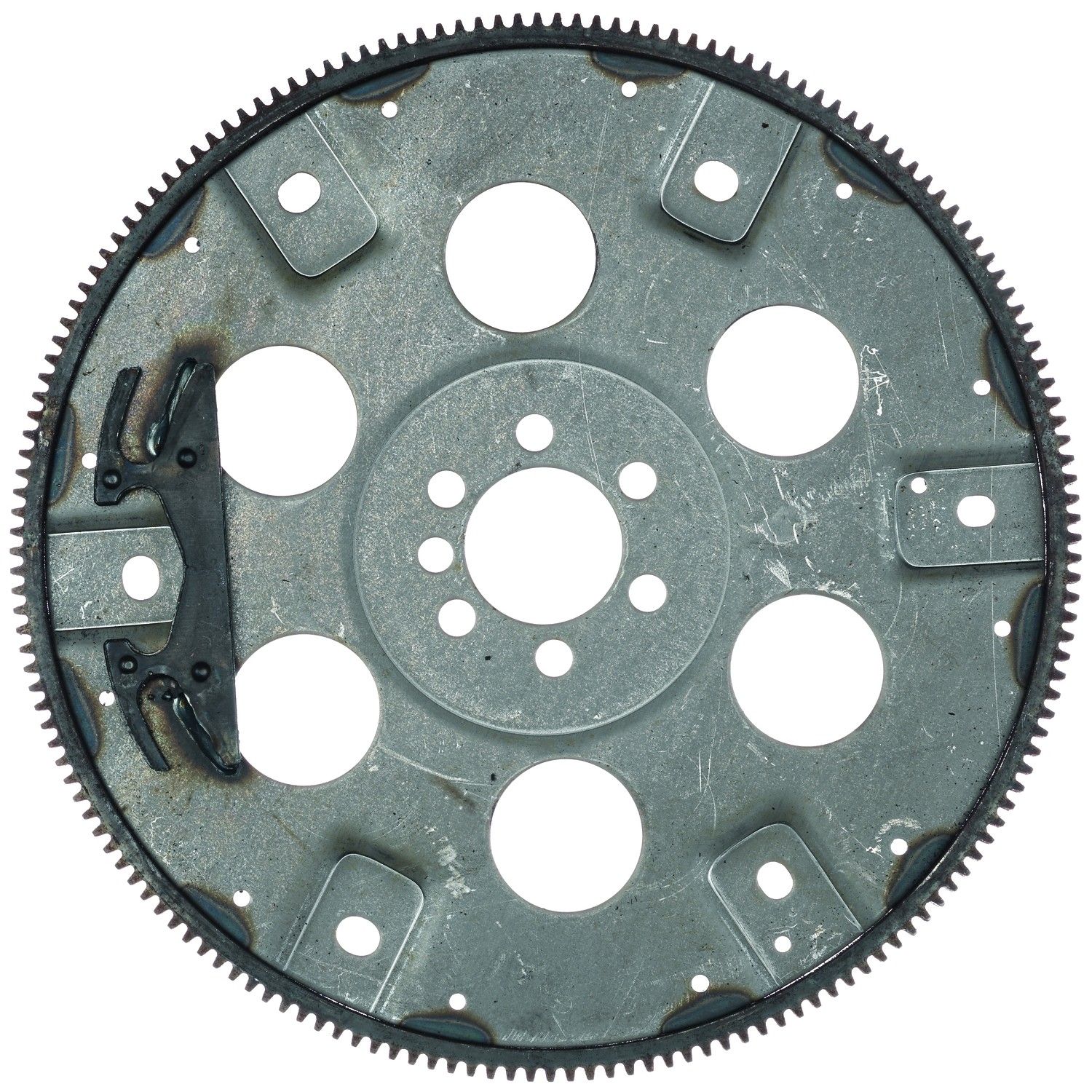

1998, 1997, 1996, 1995, 1994, 1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986 Chevrolet Astro Automatic Transmission Flexplate
View 1
View 2
View 3
View 4

1986 - 1998 Chevrolet Astro Automatic Transmission Flexplate (ATP) NEW

$ 63 .75

Product Notes

OE Replacement; with Weight; For one-piece crank seal engine. 11.25" Torque converter mounting hole spread Teeth: 168 Outer Diameter: 14.13" Inner Diameter: 2.07"

Vehicles with automatic transmissions have a flex plate. Flex plates connect the engine and transmission. Most flex plates are made of a thick piece of sheet metal with bolt holes for the torque converter and teeth for the starter. The job of a flex plate is to allow for expansion of the torque converter as engine RPM increases. The constant expansion and contraction of a flex plate over time can result cracks and/or shearing of the flex plate. A damaged flex plate can create serious (expensive) damage. Broken flex plates can not be repaired, they must be replaced. ATP flex plates are made of high quality steel and contain the correct bolt hole spacing and ring gear teeth just like the original part to ensure long life and durability
Brand: ATP
Condition: New
See Other Chevrolet Astro Automatic Transmission Flexplates
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Contents Or Additional Details For One-piece Crank Seal Engine.
Diameter (mm) 358.775
Inside Diameter 2.07
LineCode Atp4
Mounting Hole Diameter 11.25
Pitch Flywheels 12 To 14
SFI Approved N
SFI Certification Sticker Included N
Safety Rating N/a
Teeth 168
Tooth Quantity 168
Weight Added Y

Vehicle Fitment Guide

This part fits the following vehicles:

Chevrolet 1 model (tapclick to expand)(tapclick to hide)
Astro 1986-1998 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Extended Cargo Van 1990 L4 2.5L AWD/RWD Automatic
Base Extended Cargo Van 1990 - 1998 V6 4.3L AWD/RWD Automatic
Base Extended Passenger Van 1997 - 1998 V6 4.3L AWD/RWD Automatic
Base Standard Cargo Van 1990 L4 2.5L AWD Automatic
Base Standard Cargo Van 1990 - 1998 V6 4.3L AWD Automatic
Base Standard Cargo Van 1986 - 1990 L4 2.5L RWD Automatic
Base Standard Cargo Van 1986 - 1989 L4 2.5L RWD Manual
Base Standard Cargo Van 1986 - 1998 V6 4.3L RWD Automatic
Base Standard Cargo Van 1986 - 1989 V6 4.3L RWD Manual
Base Standard Passenger Van 1997 - 1998 V6 4.3L AWD Automatic
Base Standard Passenger Van 1986 - 1987 L4 2.5L RWD Automatic & Manual
Base Standard Passenger Van 1986 - 1987, 1997 - 1998 V6 4.3L RWD Automatic
Base Standard Passenger Van 1986 - 1987 V6 4.3L RWD Manual
CL Extended Passenger Van 1990 - 1995 V6 4.3L AWD/RWD Automatic
CL Standard Passenger Van 1990 - 1995 V6 4.3L AWD Automatic
CL Standard Passenger Van 1986 - 1995 V6 4.3L RWD Automatic
CL Standard Passenger Van 1986 - 1989 V6 4.3L RWD Manual
CS Extended Passenger Van 1990 - 1995 V6 4.3L AWD/RWD Automatic
CS Standard Passenger Van 1990 - 1995 V6 4.3L AWD Automatic
CS Standard Passenger Van 1986 - 1995 V6 4.3L RWD Automatic
CS Standard Passenger Van 1986 - 1989 V6 4.3L RWD Manual
LS Extended Passenger Van 1996 - 1998 V6 4.3L AWD/RWD Automatic
LS Standard Passenger Van 1996 - 1998 V6 4.3L AWD/RWD Automatic
LT Extended Passenger Van 1990 - 1998 V6 4.3L AWD/RWD Automatic
LT Standard Passenger Van 1990 - 1998 V6 4.3L AWD Automatic
LT Standard Passenger Van 1987 - 1998 V6 4.3L RWD Automatic
LT Standard Passenger Van 1987 - 1989 V6 4.3L RWD Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Vehicles with automatic transmissions have a flex plate. Flex plates connect the engine and transmission. Most flex plates are made of a thick piece of sheet metal with bolt holes for the torque converter and teeth for the starter. The job of a flex plate is to allow for expansion of the torque converter as engine RPM increases. The constant expansion and contraction of a flex plate over time can result cracks and/or shearing of the flex plate. A damaged flex plate can create serious (expensive) damage. Broken flex plates can not be repaired, they must be replaced. ATP flex plates are made of high quality steel and contain the correct bolt hole spacing and ring gear teeth just like the original part to ensure long life and durability

Interchange Parts

Brand Part Number
Anchor FA101
Anchor FA101HD
ATC FW96860
ATP Z-166
Autocraft G142
Big A XF73
Bryco 33636
Chromite GM142
Chromite GM183
Dorman - OE Solutions 4310
General Motors 10128414
General Motors 14088761
Hollander 409780
Pioneer FRA-159
Pioneer FRA159
PTC FY71
Sealed Power 4161047
Transtar Industries 99761
Venture Products V508

Fits Years: 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998

Fits Models: Astro
