2005, 2004, 2003, 2002, 2001, 2000, 1999, 1998, 1997, 1996, 1995, 1994, 1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985 Chevrolet Astro Suspension Ball Joint
View 1

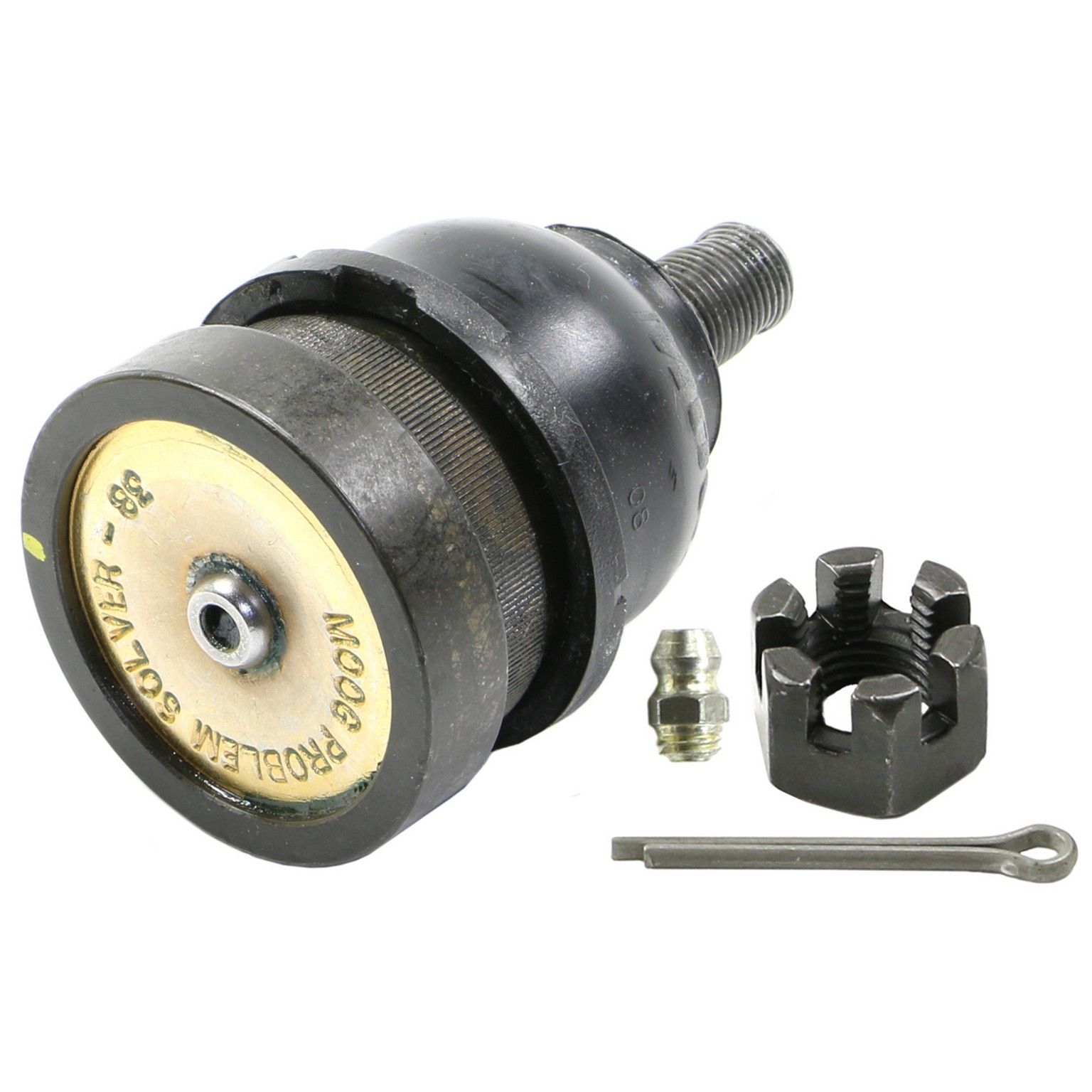

View 2

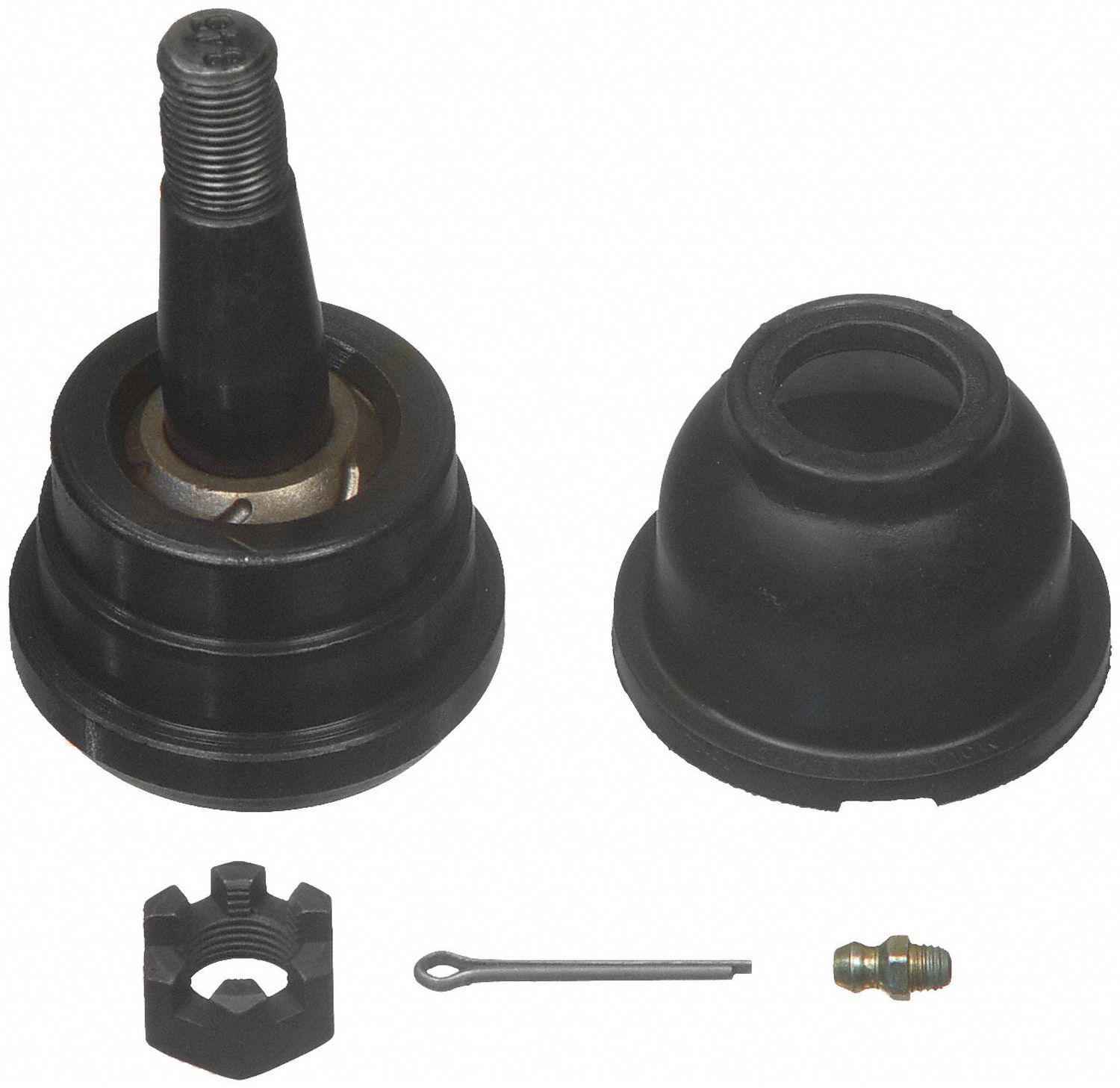

View 3

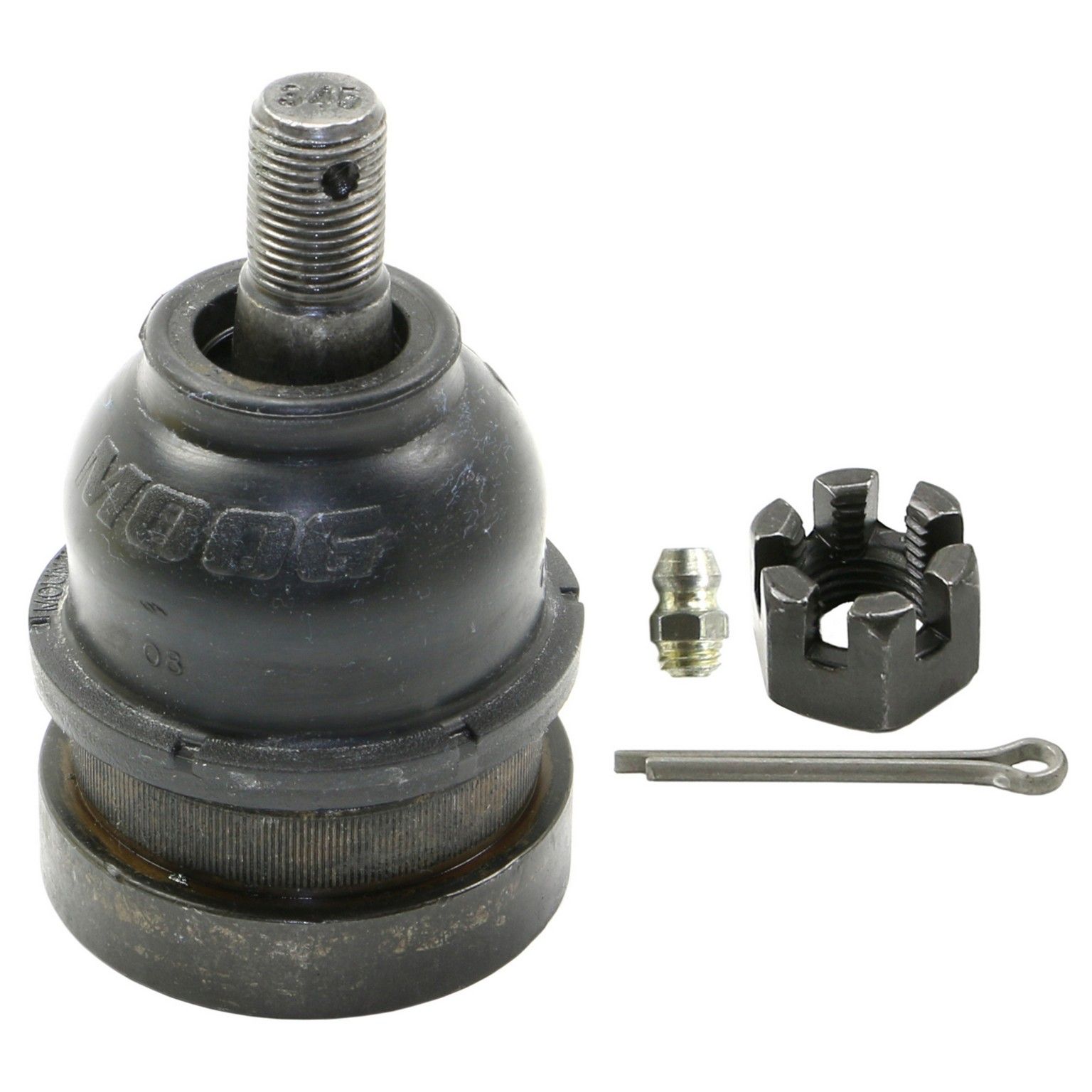

1985 - 2005 Chevrolet Astro Suspension Ball Joint - Front Lower (Moog) NEW

$ 55 .59

Product Notes

Position: Front Lower
⚠️ Most jobs typically require 2 of this item.
Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces

Backed by superior materials and rigorous testing, MOOG® ball joints deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.
Brand: Moog
Condition: New
See Other Chevrolet Astro Suspension Ball Joints
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Adjustable No
Cotter Pin Hole Yes
Greaseable Yes
Material Neoprene
Maximum Outside Diameter 2.500
Mounting Hardware Included Yes
Mounting Hole Quantity 0
Mounting Type Press-in
Part Description Suspension Ball Joint
Suspension Grade Type Standard

Vehicle Fitment Guide

This part fits the following vehicles:

Chevrolet 1 model (tapclick to expand)(tapclick to hide)
Astro 1985-2005 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Extended Cargo Van 1990 L4 2.5L AWD/RWD Automatic
Base Extended Cargo Van 1990 - 2005 V6 4.3L AWD/RWD Automatic
Base Extended Passenger Van 1997 - 2005 V6 4.3L AWD/RWD Automatic
Base Standard Cargo Van 1990 L4 2.5L AWD Automatic
Base Standard Cargo Van 1990 - 2005 V6 4.3L AWD Automatic
Base Standard Cargo Van 1985 - 1990 L4 2.5L RWD Automatic
Base Standard Cargo Van 1985 - 1989 L4 2.5L RWD Manual
Base Standard Cargo Van 1985 - 2005 V6 4.3L RWD Automatic
Base Standard Cargo Van 1985 - 1989 V6 4.3L RWD Manual
Base Standard Passenger Van 1997 - 2005 V6 4.3L AWD Automatic
Base Standard Passenger Van 1985 - 1987 L4 2.5L RWD Automatic & Manual
Base Standard Passenger Van 1985 - 1987, 1997 - 2005 V6 4.3L RWD Automatic
Base Standard Passenger Van 1985 - 1987 V6 4.3L RWD Manual
CL Extended Passenger Van 1990 - 1995 V6 4.3L AWD/RWD Automatic
CL Standard Passenger Van 1990 - 1995 V6 4.3L AWD Automatic
CL Standard Passenger Van 1985 L4 2.5L RWD Automatic & Manual
CL Standard Passenger Van 1985 - 1995 V6 4.3L RWD Automatic
CL Standard Passenger Van 1985 - 1989 V6 4.3L RWD Manual
CS Extended Passenger Van 1990 - 1995 V6 4.3L AWD/RWD Automatic
CS Standard Passenger Van 1990 - 1995 V6 4.3L AWD Automatic
CS Standard Passenger Van 1985 L4 2.5L RWD Automatic & Manual
CS Standard Passenger Van 1985 - 1995 V6 4.3L RWD Automatic
CS Standard Passenger Van 1985 - 1989 V6 4.3L RWD Manual
LS Extended Passenger Van 1996 - 2005 V6 4.3L AWD/RWD Automatic
LS Standard Passenger Van 1996 - 2005 V6 4.3L AWD/RWD Automatic
LT Extended Passenger Van 1990 - 2005 V6 4.3L AWD/RWD Automatic
LT Standard Passenger Van 1990 - 2005 V6 4.3L AWD Automatic
LT Standard Passenger Van 1987 - 2005 V6 4.3L RWD Automatic
LT Standard Passenger Van 1987 - 1989 V6 4.3L RWD Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Backed by superior materials and rigorous testing, MOOG® ball joints deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.

Interchange Parts

Brand Part Number
ACDelco 45D2024
Autospecialty 02-82016
Autospecialty 282016
Barcap A1-174
Coni-Seal XK6141
Coni-Seal XK6141T
Dayton Parts 305136
Delphi TC1637
Dorman B6141XL
Duralast FA692
Elgin 1267K
Euclid E-6234-TU
Euclid E6234
Firestone 52285674
Flagg Suspension Parts SP9016
General Motors 7808865
General Motors 7814131
General Motors 9754378
General Motors 9761498
General Motors 9766421
MAS Industries B6141
Mcquay-Norris FA692E
Mevotech MK6141
Mevotech MK6141T
Mevotech Original Grade GK6141
NAPA Chassis Parts 2601124
Perfect Circle 260-1093
Raybestos Brakes 505-1024
Raybestos Brakes 505-1024B
Sealed Power 801-10267
TRW Steering and Suspension Parts 10236
TRW Steering and Suspension Parts 10267
TRW Steering and Suspension Parts JBJ903
Unimotive BJ-1267
Western Auto 8061418
Xactfit 5051024B

Fits Years: 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005

Fits Models: Astro
