| Attribute | Value |
|---|---|
| 127 | |
| ABS Tone Ring Included | No |
| Attribute ID (Type) | California Proposition 65 |
| Bearings Included | No |
| Bolt Hole Quantity | 5 |
| California Proposition 65 Site [basic] | Https://www.p65warnings.ca.gov/ |
| California Proposition 65 Text [basic] | Warning: Cancer And Reproductive Harm |
| California Proposition 65 Text [cntrc] | Warning: Cancer And Reproductive Harm |

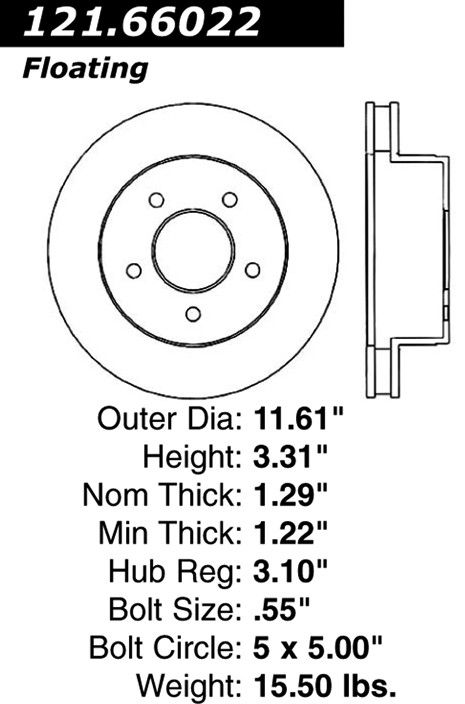

| Center Hole Diameter | 3.102, 78.800 |
| Disc Mounting [cntrc] | Floating |
| Discard Thickness | 1.215, 30.86, 30.860 |
| Hub Hole/Whl Reg Mm | 78.8 |
| Misc Holes [cntrc] | 0 |
| Mounting Bolt Hole Circle Diameter | 127.000, 5.000 |
| Mounting Type | Floating |
| Nominal Thickness | 1.288, 32.72, 32.720 |
| Overall Height | 3.307, 84.000 |
| Product Grade [cntrc] | Standard |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Diameter | 0.551, 14.000 |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| Vane Style | Straight |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 8.400 |
| Weight [cntrc] Lbs | 18.500 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | Extended Cargo Van | 1990 | L4 2.5L | AWD/RWD Automatic |
| Base | Extended Cargo Van | 1990 - 2002 | V6 4.3L | AWD/RWD Automatic |
| Base | Extended Passenger Van | 1997 - 2002 | V6 4.3L | AWD/RWD Automatic |
| Base | Standard Cargo Van | 1990 | L4 2.5L | AWD/RWD Automatic |
| Base | Standard Cargo Van | 1990 - 2002 | V6 4.3L | AWD/RWD Automatic |
| Base | Standard Passenger Van | 1997 - 2002 | V6 4.3L | AWD/RWD Automatic |
| CL | Extended Passenger Van | 1990 - 1995 | V6 4.3L | AWD/RWD Automatic |
| CL | Standard Passenger Van | 1990 - 1995 | V6 4.3L | AWD/RWD Automatic |
| CS | Extended Passenger Van | 1990 - 1995 | V6 4.3L | AWD/RWD Automatic |
| CS | Standard Passenger Van | 1990 - 1995 | V6 4.3L | AWD/RWD Automatic |
| LS | Extended Passenger Van | 1996 - 2002 | V6 4.3L | AWD/RWD Automatic |
| LS | Standard Passenger Van | 1996 - 2002 | V6 4.3L | AWD/RWD Automatic |
| LT | Extended Passenger Van | 1990 - 2002 | V6 4.3L | AWD/RWD Automatic |
| LT | Standard Passenger Van | 1990 - 2002 | V6 4.3L | AWD/RWD Automatic |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| Aimco | 55015 |
| Aimco | 65635 |
| Autospecialty | AR8622E |
| Bendix | 141745 |
| Bendix | PRT1745FC |
| Brembo | 27080 |
| Delco-Remy | 177732 |
| Delta | 78-44022 |
| Delta | 7844022 |
| Delta | 78944022 |
| EIS Brakes | D17790 |
| Formula Blue Hydraulic Brake Parts | E126-71-027 |
| Formula Blue Hydraulic Brake Parts | E12671027 |
| GWB | 86132 |
| IAP/Kuhltek Motorwerks | BR55015 |
| Midas | BR1989 |
| Mighty Distributing System | 55138 |
| Neotek Drums and Rotors | 107241 |
| OEM Part Number | 15622781 |
| OEM Part Number | 15679711 |
| Pep Boys | 55015G |
| Qualitee International | R93 930 |
| Raybestos Brakes | 1056132 |
| Raybestos Brakes | 56132 |
| Raybestos Brakes | 56132R |
| Raybestos Brakes | 580442R |
| Sears | 19746 |
| Universal | 101932 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X51017 |
| Wagner Brake | 52-125050 |
| Wagner Brake | 52125050 |
| Wagner Brake | BD125050 |
Fits Years: 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002
Fits Models: Astro
