1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985 Chevrolet Astro Automatic Transmission Mount
View 1
View 2
View 3
View 4
View 5

1985 - 1993 Chevrolet Astro Automatic Transmission Mount - Rear (Anchor) NEW

$ 15 .07

Product Notes

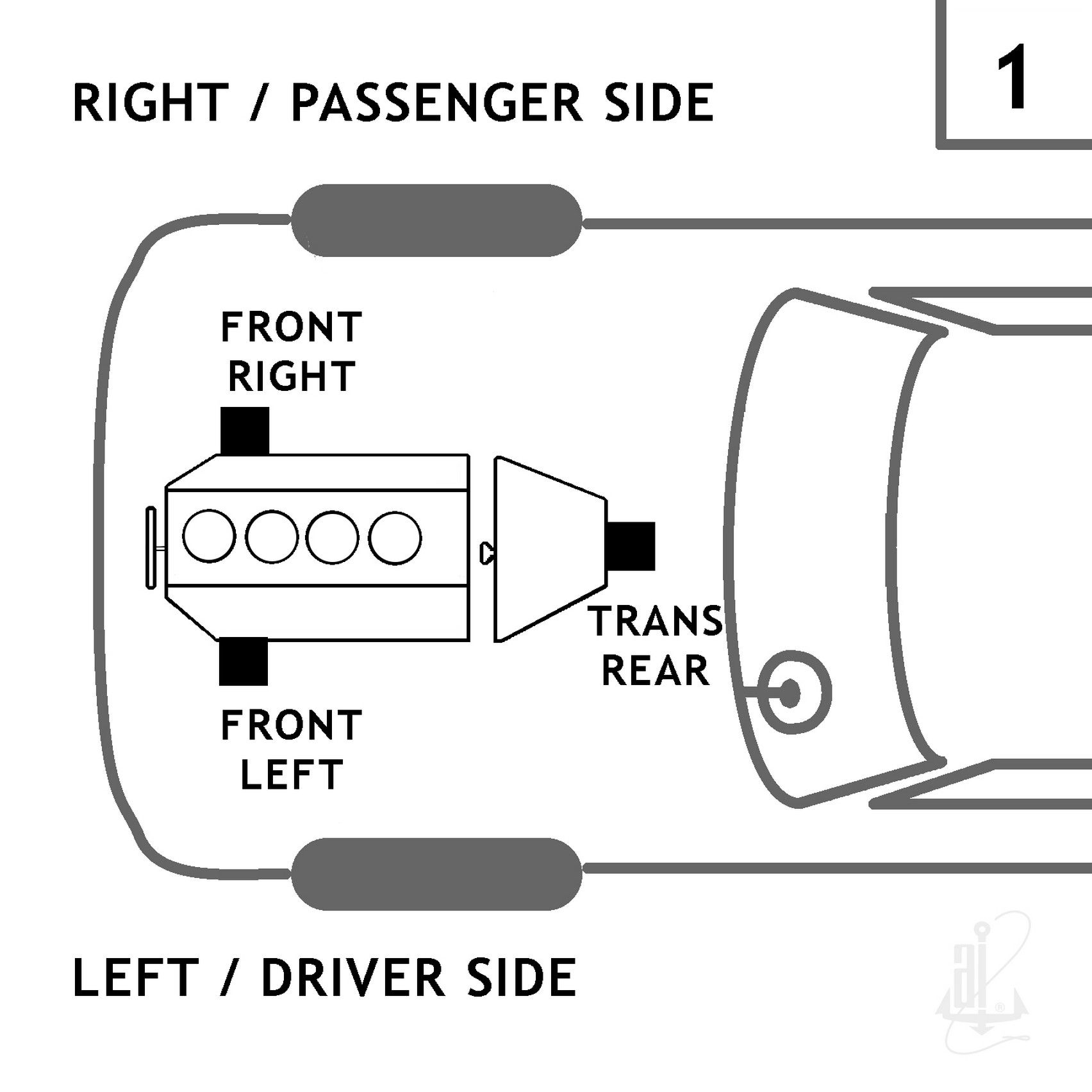

Position: Rear
with M10-1.50mm Studs 3.75in Center to Center Bolt Holes 95.25mm Center to Center Bolt Holes 1.95in / 49.53mm Thickness

  • Anchor 2392
  • TRANSMISSION MNT REAR
  • This mount supports the transmission and dampens vibration.
  • All mounts are engineered and designed to OEM standards using the latest CAD/CAM engineering process ensuring the highest consistency and quality.
  • Only natural and Styrene Butadiene rubber is used to provide premium abrasion resistance, aging stability to ensure maximum life, and performance.
  • Any included fasteners are hardened steel with heat treated Grade 5 bolts.
  • Chemlock® bonding agent is used to ensure a superior rubber-to-metal bond.
  • All Rubber material is manufactured to specific Durometer (hardness) measurements based on vehicle application requirements.
  • Hydraulic Mounts, applicable where OE, are engineered for high vibration and torque applications and filled with special hydraulic fluid to dampen excess noise and vibration.

Brand: Anchor
Condition: New
See Other Chevrolet Astro Automatic Transmission Mounts
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
HEIGHT 1.95 Inch / 49.53 Mm Without Stud
MOUNT HOLES 3.75 Inch / 95.25 Mm
NOTE Stud And Bolt Holes Inline
STUD M10-1.50

Vehicle Fitment Guide

This part fits the following vehicles:

Chevrolet 1 model (tapclick to expand)(tapclick to hide)
Astro 1985-1993 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Extended Cargo Van 1990 L4 2.5L AWD/RWD Automatic
Base Extended Cargo Van 1990 - 1993 V6 4.3L AWD/RWD Automatic
Base Standard Cargo Van 1990 L4 2.5L AWD Automatic
Base Standard Cargo Van 1990 - 1993 V6 4.3L AWD Automatic
Base Standard Cargo Van 1985 - 1990 L4 2.5L RWD Automatic
Base Standard Cargo Van 1985 - 1989 L4 2.5L RWD Manual
Base Standard Cargo Van 1985 - 1993 V6 4.3L RWD Automatic
Base Standard Cargo Van 1985 - 1989 V6 4.3L RWD Manual
Base Standard Passenger Van 1985 - 1987 L4 2.5L RWD Automatic & Manual
Base Standard Passenger Van 1985 - 1987 V6 4.3L RWD Automatic & Manual
CL Extended Passenger Van 1990 - 1993 V6 4.3L AWD/RWD Automatic
CL Standard Passenger Van 1990 - 1993 V6 4.3L AWD Automatic
CL Standard Passenger Van 1985 L4 2.5L RWD Automatic & Manual
CL Standard Passenger Van 1985 - 1993 V6 4.3L RWD Automatic
CL Standard Passenger Van 1985 - 1989 V6 4.3L RWD Manual
CS Extended Passenger Van 1990 - 1993 V6 4.3L AWD/RWD Automatic
CS Standard Passenger Van 1990 - 1993 V6 4.3L AWD Automatic
CS Standard Passenger Van 1985 L4 2.5L RWD Automatic & Manual
CS Standard Passenger Van 1985 - 1993 V6 4.3L RWD Automatic
CS Standard Passenger Van 1985 - 1989 V6 4.3L RWD Manual
LT Extended Passenger Van 1990 - 1993 V6 4.3L AWD/RWD Automatic
LT Standard Passenger Van 1990 - 1993 V6 4.3L AWD Automatic
LT Standard Passenger Van 1987 - 1993 V6 4.3L RWD Automatic
LT Standard Passenger Van 1987 - 1989 V6 4.3L RWD Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
<ul><li>Anchor 2392</li><li>TRANSMISSION MNT REAR</li><li>This mount supports the transmission and dampens vibration.</li><li>All mounts are engineered and designed to OEM standards using the latest CAD/CAM engineering process ensuring the highest consistency and quality.</li><li>Only natural and Styrene Butadiene rubber is used to provide premium abrasion resistance, aging stability to ensure maximum life, and performance.</li><li>Any included fasteners are hardened steel with heat treated Grade 5 bolts.</li><li>Chemlock® bonding agent is used to ensure a superior rubber-to-metal bond.</li><li>All Rubber material is manufactured to specific Durometer (hardness) measurements based on vehicle application requirements.</li><li>Hydraulic Mounts, applicable where OE, are engineered for high vibration and torque applications and filled with special hydraulic fluid to dampen excess noise and vibration.</li></ul>

Fits Years: 1985 1986 1987 1988 1989 1990 1991 1992 1993

Fits Models: Astro
