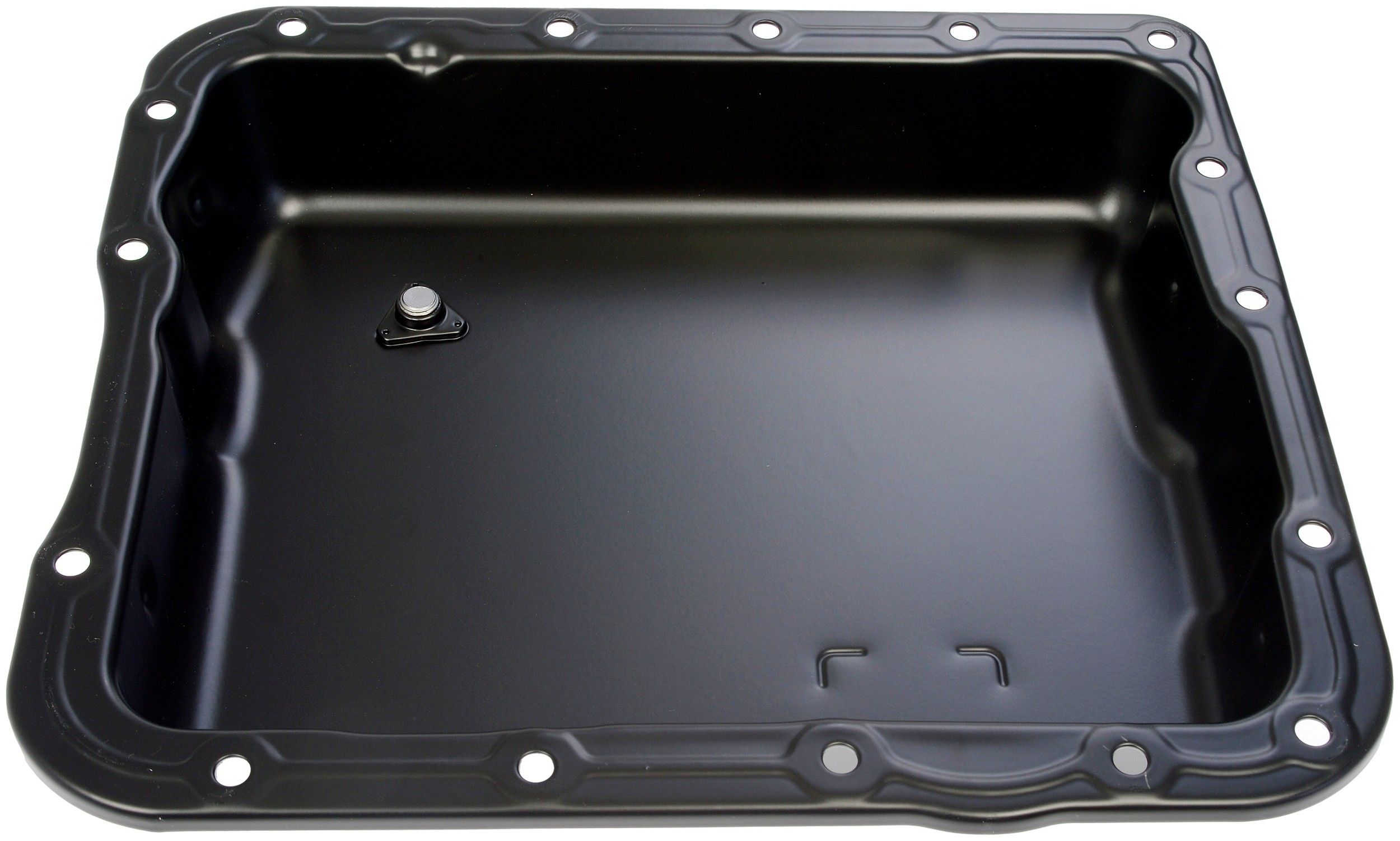

1998, 1997, 1996, 1995, 1994, 1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985 Chevrolet Astro Transmission Oil Pan
View 1

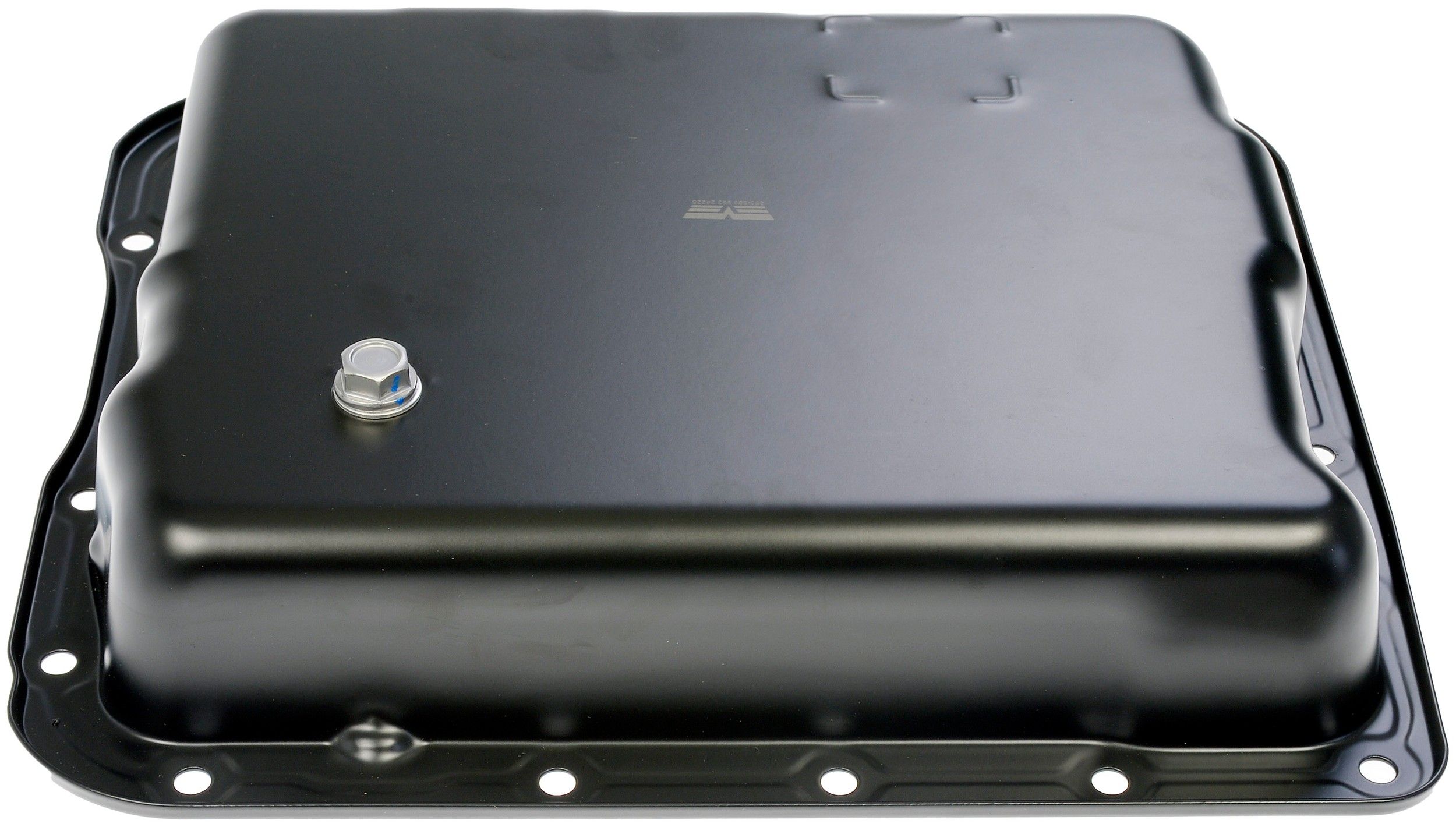

View 2

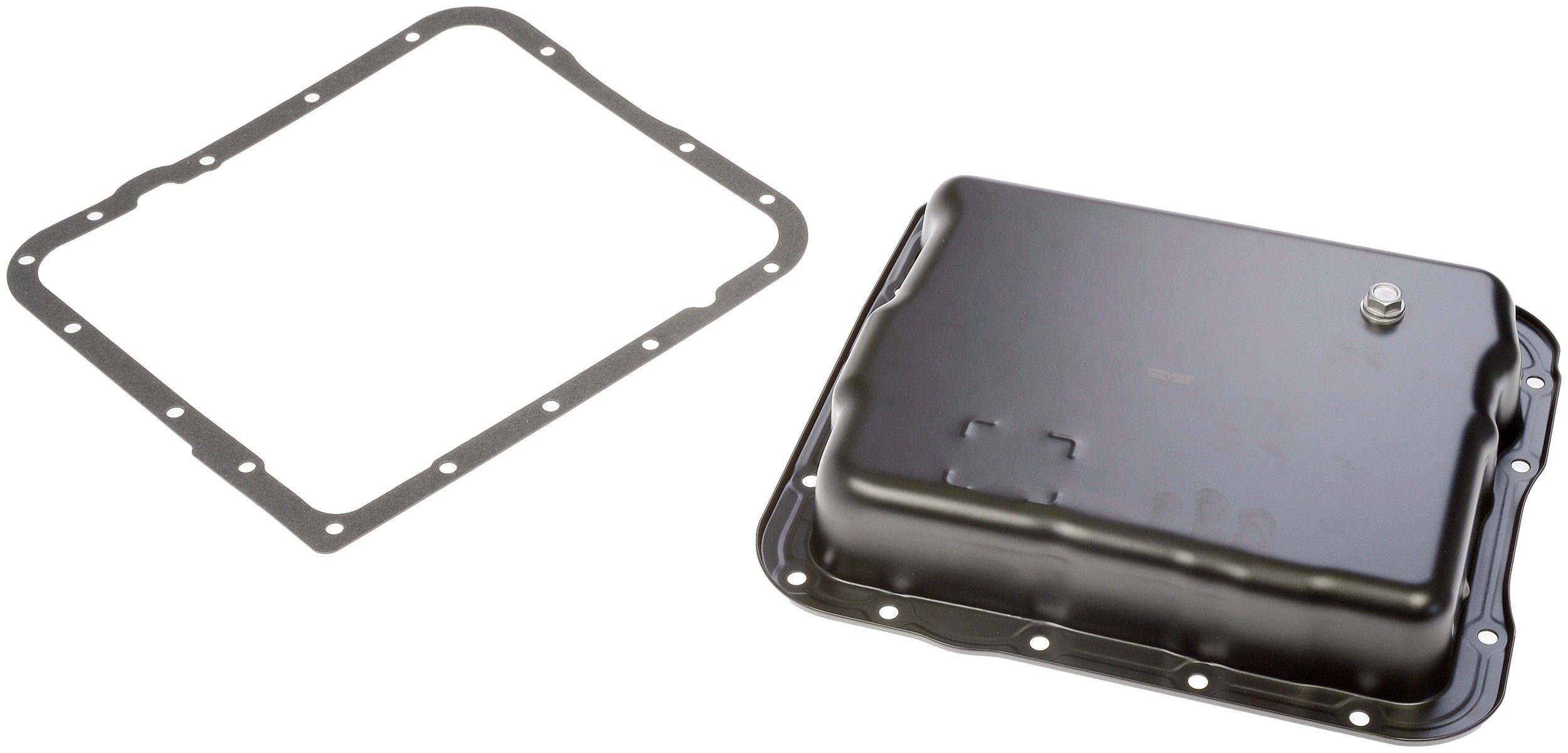

View 3

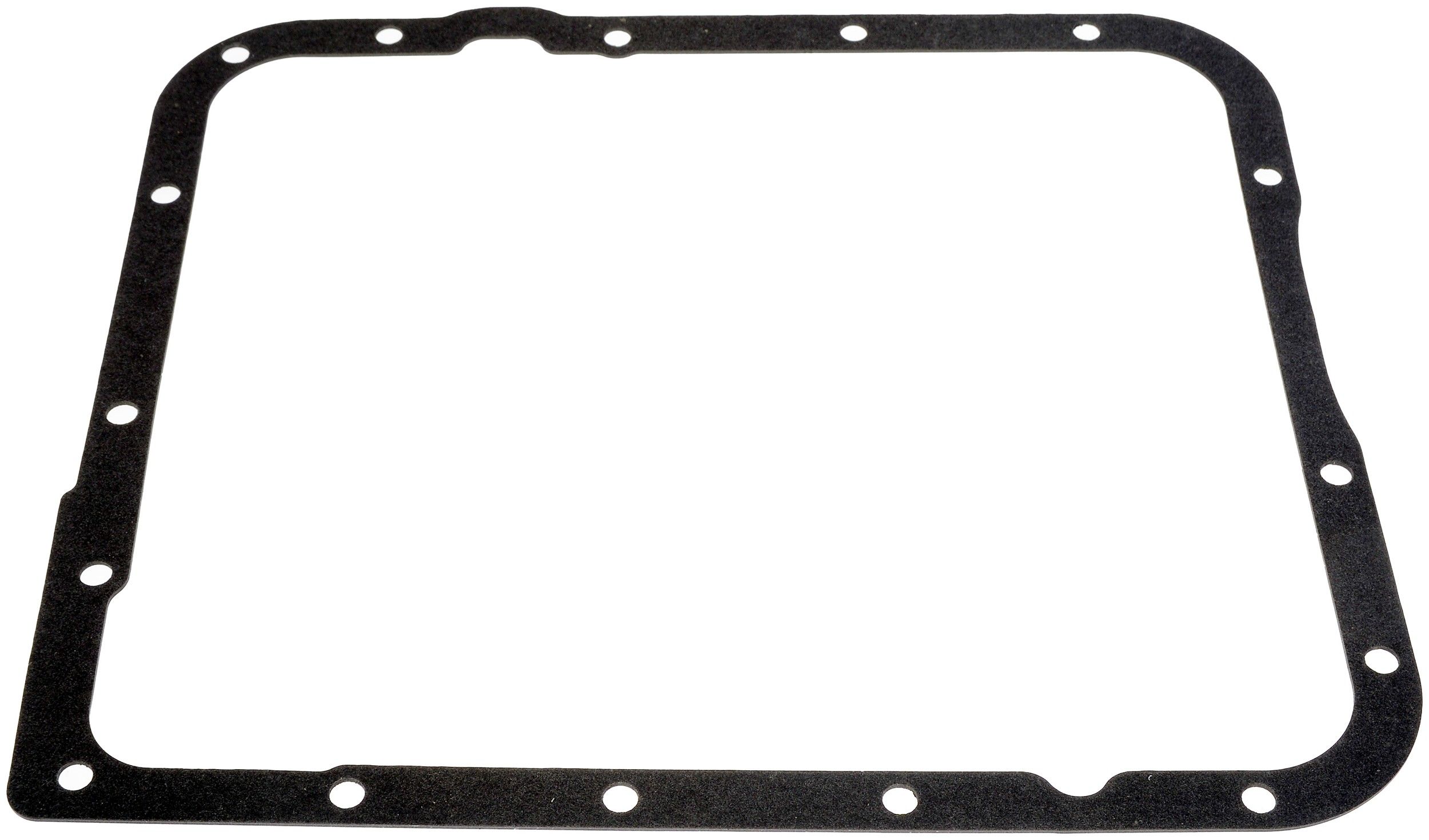

View 4

1985 - 1998 Chevrolet Astro Transmission Oil Pan (Dorman) NEW

$ 86 .36

Product Notes

On certain GM vehicles, routine transmission services are a messy process due to the design of the original equipment transmission pan, which must be lowered carefully to avoid spilling the fluid it holds. This Dorman OE FIX transmission pan is designed with a drain plug to make draining the fluid a less precarious job. Our rugged, precision-engineered replacement pan includes a new drain plug and crush washer to help ensure a predictable and straightforward initial installation. Replacing the factory pan with this innovative solution encourages regular service to help prevent costly transmission repair, and can help protect the transmission from harmful contaminants and fluid leaks. Best of all? Future service is a lot less messy.
Brand: Dorman
Condition: New
See Other Chevrolet Astro Transmission Oil Pans
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Capacity 11.2
Color Black, Negro, Noir
Configuration One Piece, Una Pieza
Contenidos Del Paquete 1 Bandeja De Transmisión, 1 Junta, 1 Tapón De Drenaje
Dipstick Port No, Non
Drain Plug Included Oui, Sí, Yes
Drain Thread Diameter 14
Gasket Configuration One Piece, Una Pieza
Gasket Or Seal Included Oui, Sí, Yes
Grade Type Regular
Material Acero, Steel
Maximum Depth 62
Maximum Width 381
Minimum Depth 64
Mounting Hardware Included No, Non
Mounting Hole Diameter 9.2
Mounting Hole Quantity 14
Oil Pan Gaskets Included Oui, Sí, Yes
Transmission Filter Included No, Non

Vehicle Fitment Guide

This part fits the following vehicles:

Chevrolet 1 model (tapclick to expand)(tapclick to hide)
Astro 1985-1998 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Extended Cargo Van 1990 L4 2.5L AWD/RWD Automatic
Base Extended Cargo Van 1990 - 1998 V6 4.3L AWD/RWD Automatic
Base Extended Passenger Van 1997 - 1998 V6 4.3L AWD/RWD Automatic
Base Standard Cargo Van 1990 L4 2.5L AWD Automatic
Base Standard Cargo Van 1990 - 1998 V6 4.3L AWD Automatic
Base Standard Cargo Van 1985 - 1990 L4 2.5L RWD Automatic
Base Standard Cargo Van 1985 - 1989 L4 2.5L RWD Manual
Base Standard Cargo Van 1985 - 1998 V6 4.3L RWD Automatic
Base Standard Cargo Van 1985 - 1989 V6 4.3L RWD Manual
Base Standard Passenger Van 1997 - 1998 V6 4.3L AWD Automatic
Base Standard Passenger Van 1985 - 1987 L4 2.5L RWD Automatic & Manual
Base Standard Passenger Van 1985 - 1987, 1997 - 1998 V6 4.3L RWD Automatic
Base Standard Passenger Van 1985 - 1987 V6 4.3L RWD Manual
CL Extended Passenger Van 1990 - 1995 V6 4.3L AWD/RWD Automatic
CL Standard Passenger Van 1990 - 1995 V6 4.3L AWD Automatic
CL Standard Passenger Van 1985 L4 2.5L RWD Automatic & Manual
CL Standard Passenger Van 1985 - 1995 V6 4.3L RWD Automatic
CL Standard Passenger Van 1985 - 1989 V6 4.3L RWD Manual
CS Extended Passenger Van 1990 - 1995 V6 4.3L AWD/RWD Automatic
CS Standard Passenger Van 1990 - 1995 V6 4.3L AWD Automatic
CS Standard Passenger Van 1985 L4 2.5L RWD Automatic & Manual
CS Standard Passenger Van 1985 - 1995 V6 4.3L RWD Automatic
CS Standard Passenger Van 1985 - 1989 V6 4.3L RWD Manual
LS Extended Passenger Van 1996 - 1998 V6 4.3L AWD/RWD Automatic
LS Standard Passenger Van 1996 - 1998 V6 4.3L AWD/RWD Automatic
LT Extended Passenger Van 1990 - 1998 V6 4.3L AWD/RWD Automatic
LT Standard Passenger Van 1990 - 1998 V6 4.3L AWD Automatic
LT Standard Passenger Van 1987 - 1998 V6 4.3L RWD Automatic
LT Standard Passenger Van 1987 - 1989 V6 4.3L RWD Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
On certain GM vehicles, routine transmission services are a messy process due to the design of the original equipment transmission pan, which must be lowered carefully to avoid spilling the fluid it holds. This Dorman OE FIX transmission pan is designed with a drain plug to make draining the fluid a less precarious job. Our rugged, precision-engineered replacement pan includes a new drain plug and crush washer to help ensure a predictable and straightforward initial installation. Replacing the factory pan with this innovative solution encourages regular service to help prevent costly transmission repair, and can help protect the transmission from harmful contaminants and fluid leaks. Best of all? Future service is a lot less messy.

Interchange Parts

Brand Part Number
General Motors 8086675450
General Motors 8667545

Fits Years: 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998

Fits Models: Astro
