1994, 1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986 Chevrolet Astro Engine Intake Manifold
View 1
View 2

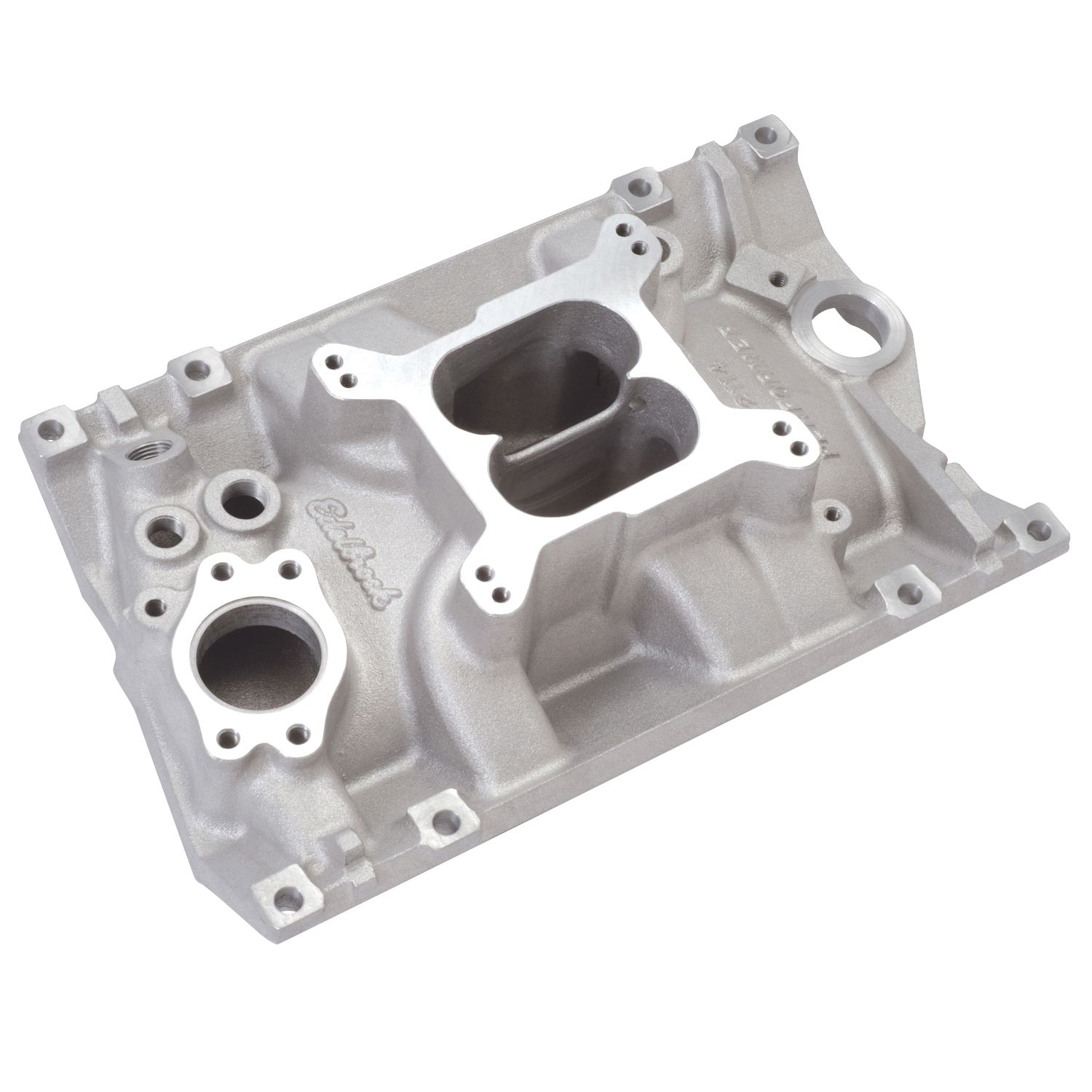

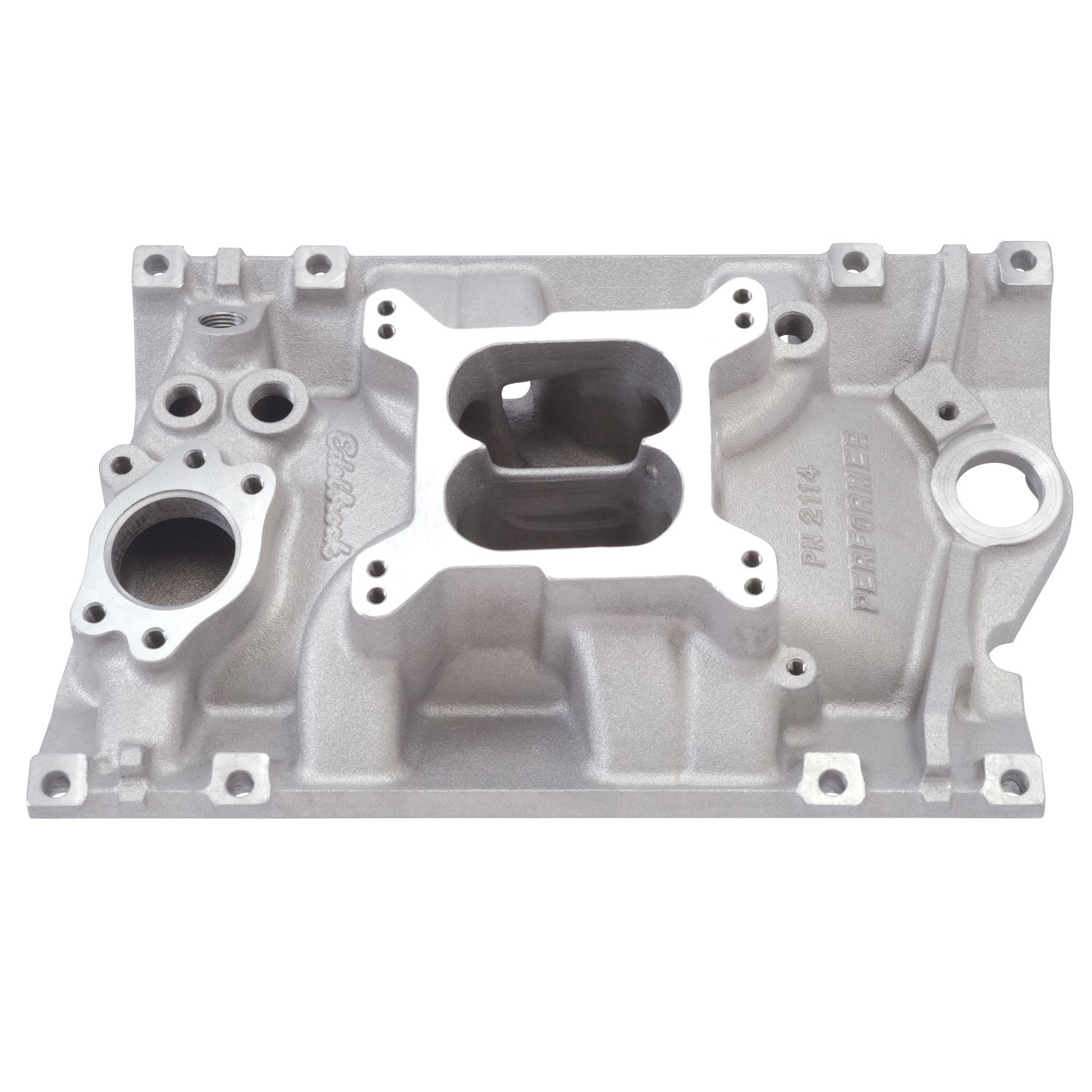

1986 - 1994 Chevrolet Astro Engine Intake Manifold (Edelbrock) NEW

Out of Stock
$ 423 .95

Product Notes

Dual Plane Non-EGR Idle-5500rpm Designed For The Engine Swap Market Designed For The Engine Swap Market~ Not Legal For Use On Pollution Controlled Vehicles
Performer Series Intake Manifold
Edelbrock part #2114 Performer Vortec V6 intake manifold is based on the powerful Edelbrock #2111, this dual-plane intake is designed for the engine swap market utilizing 1985 and later Chevy 200-229-262 c.i.d. (3.8L and 4.3L) V6 engines with Vortec heads. With this manifold, rodders can take advantage of the higher flow available with the Vortec head design. This Performer Vortec intake manifold has provisions for external water bypass and may be used on either Vortec blocks or 1995 and earlier blocks. Designed for use with Edelbrock Thunder Series AVS or Performer Series 500 cfm carbs, it accepts late model water neck, alternator, HEI and air conditioning.
Brand: Edelbrock
Condition: New
See Other Chevrolet Astro Engine Intake Manifolds
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Basic Operating RPM Range Idle-5500
CNC Ported No
Center Maximum Height 3.840
EGR Port No
Flange Type 4150
Front Maximum Height 3.500
Grade Type Performance
RGL Warning: This Product Can Expose You To Lead, Which Is Known To The State Of California To Cause Cancer Or Birth Defects Or Other Reproductive Harm. For More Information, Visit Www.p65warnings.ca.gov.
Rear Maximum Height 4.180
Single Or Dual Plane Type Dual
Vehicle Model Chevrolet

Vehicle Fitment Guide

This part fits the following vehicles:

Chevrolet 1 model (tapclick to expand)(tapclick to hide)
Astro 1986-1994 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Extended Cargo Van 1990 L4 2.5L AWD/RWD Automatic
Base Extended Cargo Van 1990 - 1994 V6 4.3L AWD/RWD Automatic
Base Standard Cargo Van 1990 L4 2.5L AWD Automatic
Base Standard Cargo Van 1990 - 1994 V6 4.3L AWD Automatic
Base Standard Cargo Van 1986 - 1990 L4 2.5L RWD Automatic
Base Standard Cargo Van 1986 - 1989 L4 2.5L RWD Manual
Base Standard Cargo Van 1986 - 1994 V6 4.3L RWD Automatic
Base Standard Cargo Van 1986 - 1989 V6 4.3L RWD Manual
Base Standard Passenger Van 1986 - 1987 L4 2.5L RWD Automatic & Manual
Base Standard Passenger Van 1986 - 1987 V6 4.3L RWD Automatic & Manual
CL Extended Passenger Van 1990 - 1994 V6 4.3L AWD/RWD Automatic
CL Standard Passenger Van 1990 - 1994 V6 4.3L AWD Automatic
CL Standard Passenger Van 1986 - 1994 V6 4.3L RWD Automatic
CL Standard Passenger Van 1986 - 1989 V6 4.3L RWD Manual
CS Extended Passenger Van 1990 - 1994 V6 4.3L AWD/RWD Automatic
CS Standard Passenger Van 1990 - 1994 V6 4.3L AWD Automatic
CS Standard Passenger Van 1986 - 1994 V6 4.3L RWD Automatic
CS Standard Passenger Van 1986 - 1989 V6 4.3L RWD Manual
LT Extended Passenger Van 1990 - 1994 V6 4.3L AWD/RWD Automatic
LT Standard Passenger Van 1990 - 1994 V6 4.3L AWD Automatic
LT Standard Passenger Van 1987 - 1994 V6 4.3L RWD Automatic
LT Standard Passenger Van 1987 - 1989 V6 4.3L RWD Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Edelbrock part #2114 Performer Vortec V6 intake manifold is based on the powerful Edelbrock #2111, this dual-plane intake is designed for the engine swap market utilizing 1985 and later Chevy 200-229-262 c.i.d. (3.8L and 4.3L) V6 engines with Vortec heads. With this manifold, rodders can take advantage of the higher flow available with the Vortec head design. This Performer Vortec intake manifold has provisions for external water bypass and may be used on either Vortec blocks or 1995 and earlier blocks. Designed for use with Edelbrock Thunder Series AVS or Performer Series 500 cfm carbs, it accepts late model water neck, alternator, HEI and air conditioning.

Fits Years: 1986 1987 1988 1989 1990 1991 1992 1993 1994

Fits Models: Astro
