2005, 2004, 2003, 2002, 2001, 2000, 1999, 1998, 1997, 1996, 1995, 1994, 1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985 Chevrolet Astro Suspension Ball Joint

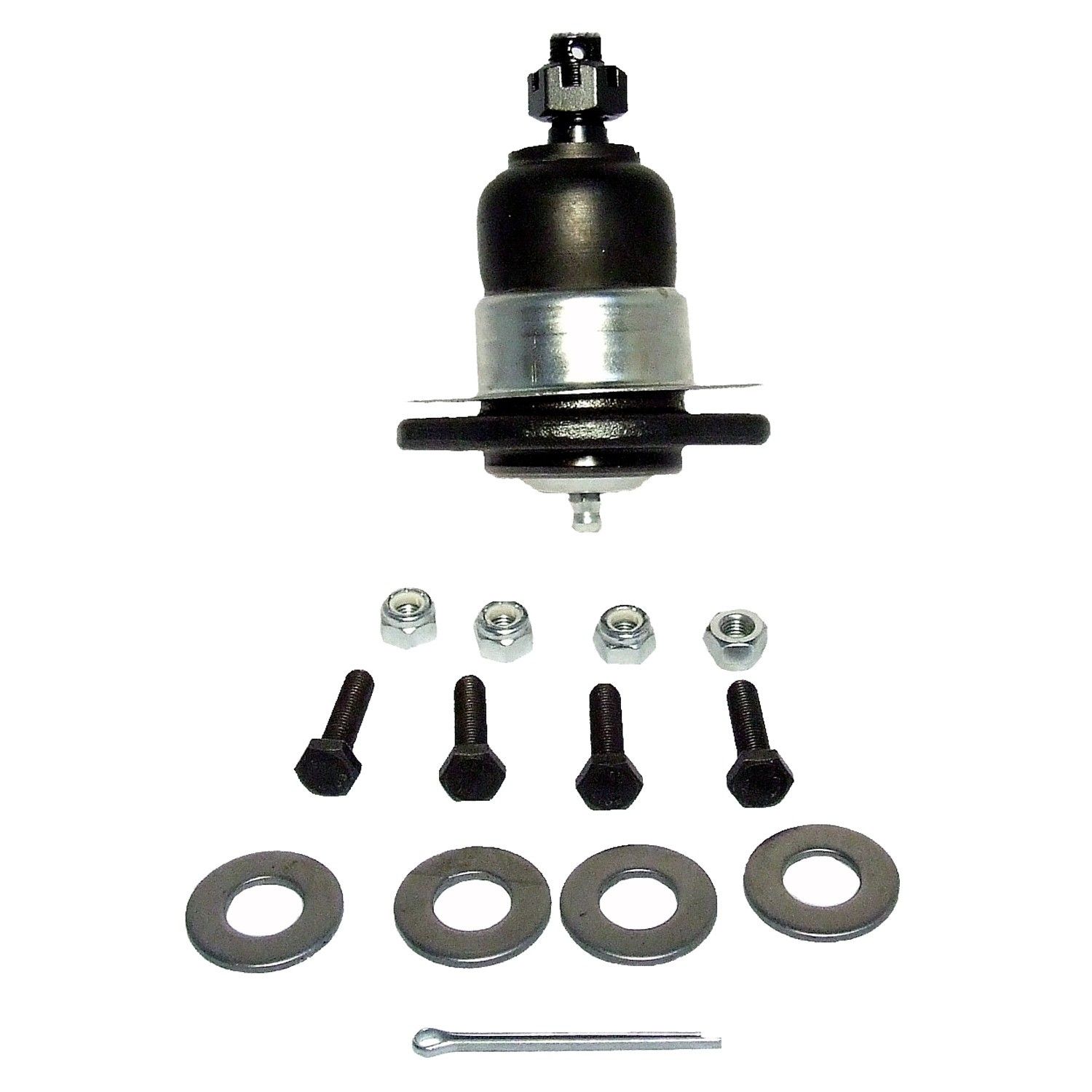

1985 - 2005 Chevrolet Astro Suspension Ball Joint - Front Upper (Delphi) NEW

$ 33 .58

Product Notes

Position: Front Upper
⚠️ Most jobs typically require 2 of this item.

Delphi's OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi's OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi's extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.
Brand: Delphi
Condition: New
See Other Chevrolet Astro Suspension Ball Joints
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Adjustable No
Ball Joint Assembly Yes
Bushings Included No
Castle Nut Included Yes
Color Gray
Cotter Pin Hole Yes
Cotter Pin Included Yes
Distance Between Mounting Holes 27.00
Dust Boot Included Yes
Dust Boot Material Rubber
Grease Fitting Included Yes
Greaseable Yes
Material Steel
Maximum Outside Diameter 3.752, 95.30
Mount Plate Included No
Mounting Bolt Head Diameter 0.571, 14.50
Mounting Bolt Length 1.587, 40.30
Mounting Bolt Shank Diameter 0.315, 8.00
Mounting Bolt Thread Diameter 0.310, 8.00
Mounting Bolt Thread Length 1.299, 33.00
Mounting Bolt Thread Pitch 1.25
Mounting Bolts Included Yes
Mounting Hardware Included Yes
Mounting Hole Quantity 4
Nuts Included Yes
Position(s) Front Upper
Stud Tapered End 1 Diameter 0.591, 15
Stud Tapered End 2 Diameter 0.768, 19.5
Stud Thread Diameter 0.551, 14
Stud Thread Length 0.768, 19.5
Stud Thread Pitch 1.5
Stud Type Threaded
Suspension Grade Type Standard Replacement
Tapered Stud Yes
Washers Included No
Wrench Size 13mm

Vehicle Fitment Guide

This part fits the following vehicles:

Chevrolet 1 model (tapclick to expand)(tapclick to hide)
Astro 1985-2005 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Extended Cargo Van 1990 L4 2.5L AWD/RWD Automatic
Base Extended Cargo Van 1990 - 2005 V6 4.3L AWD/RWD Automatic
Base Extended Passenger Van 1997 - 2005 V6 4.3L AWD/RWD Automatic
Base Standard Cargo Van 1990 L4 2.5L AWD Automatic
Base Standard Cargo Van 1990 - 2005 V6 4.3L AWD Automatic
Base Standard Cargo Van 1985 - 1990 L4 2.5L RWD Automatic
Base Standard Cargo Van 1985 - 1989 L4 2.5L RWD Manual
Base Standard Cargo Van 1985 - 2005 V6 4.3L RWD Automatic
Base Standard Cargo Van 1985 - 1989 V6 4.3L RWD Manual
Base Standard Passenger Van 1997 - 2005 V6 4.3L AWD Automatic
Base Standard Passenger Van 1985 - 1987 L4 2.5L RWD Automatic & Manual
Base Standard Passenger Van 1985 - 1987, 1997 - 2005 V6 4.3L RWD Automatic
Base Standard Passenger Van 1985 - 1987 V6 4.3L RWD Manual
CL Extended Passenger Van 1990 - 1995 V6 4.3L AWD/RWD Automatic
CL Standard Passenger Van 1990 - 1995 V6 4.3L AWD Automatic
CL Standard Passenger Van 1985 L4 2.5L RWD Automatic & Manual
CL Standard Passenger Van 1985 - 1995 V6 4.3L RWD Automatic
CL Standard Passenger Van 1985 - 1989 V6 4.3L RWD Manual
CS Extended Passenger Van 1990 - 1995 V6 4.3L AWD/RWD Automatic
CS Standard Passenger Van 1990 - 1995 V6 4.3L AWD Automatic
CS Standard Passenger Van 1985 L4 2.5L RWD Automatic & Manual
CS Standard Passenger Van 1985 - 1995 V6 4.3L RWD Automatic
CS Standard Passenger Van 1985 - 1989 V6 4.3L RWD Manual
LS Extended Passenger Van 1996 - 2005 V6 4.3L AWD/RWD Automatic
LS Standard Passenger Van 1996 - 2005 V6 4.3L AWD/RWD Automatic
LT Extended Passenger Van 1990 - 2005 V6 4.3L AWD/RWD Automatic
LT Standard Passenger Van 1990 - 2005 V6 4.3L AWD Automatic
LT Standard Passenger Van 1987 - 2005 V6 4.3L RWD Automatic
LT Standard Passenger Van 1987 - 1989 V6 4.3L RWD Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Delphi's OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi's OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi's extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Interchange Parts

Brand Part Number
Mevotech GK5208
Mevotech TXK5208
TRW JBJ7023

Fits Years: 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005

Fits Models: Astro
