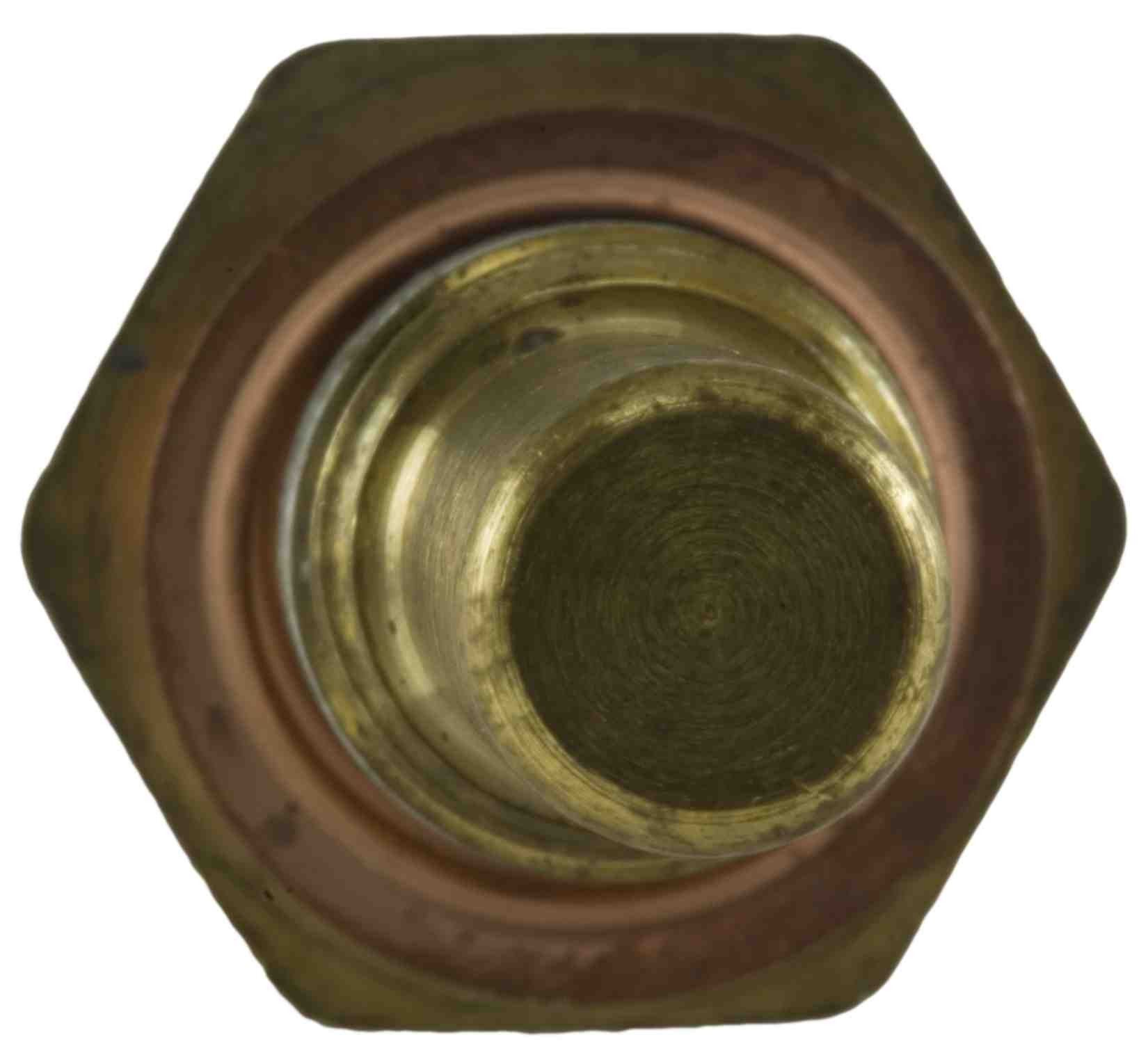

2015, 2014, 2013, 2012, 2011, 2010 Chevrolet Equinox Engine Coolant Temperature Sensor
View 1

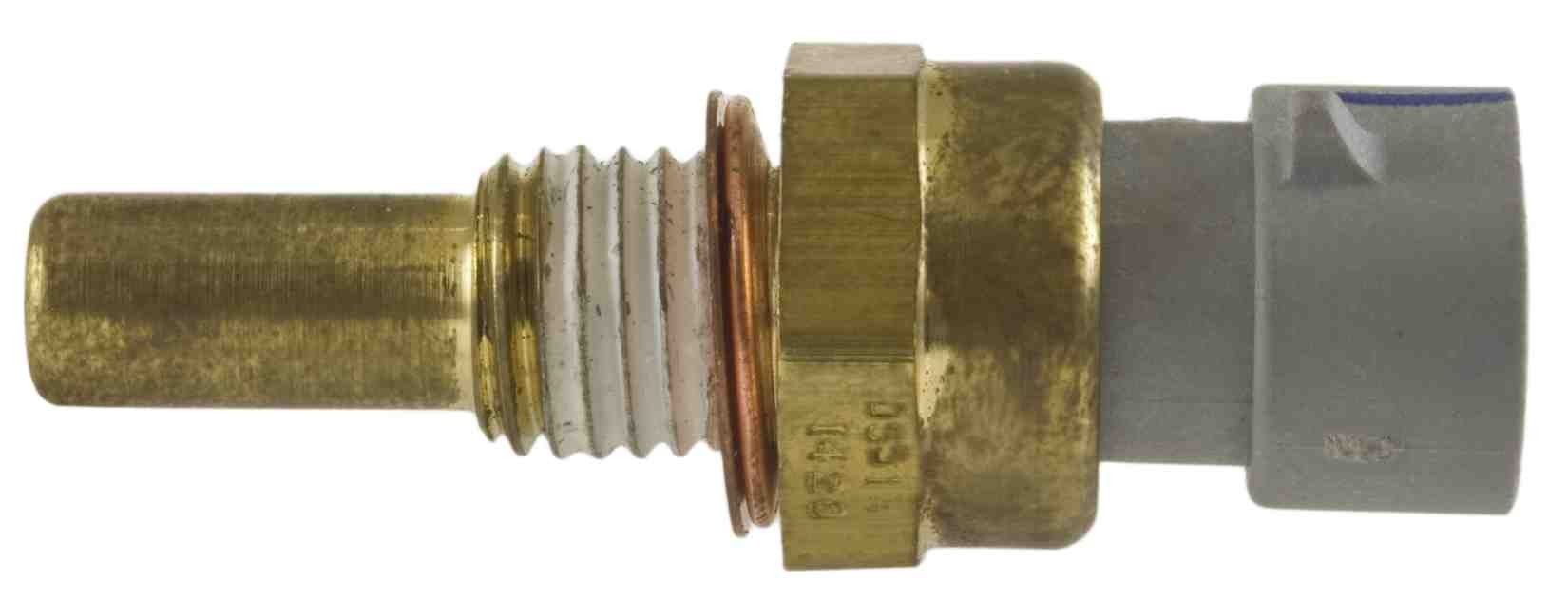

View 2

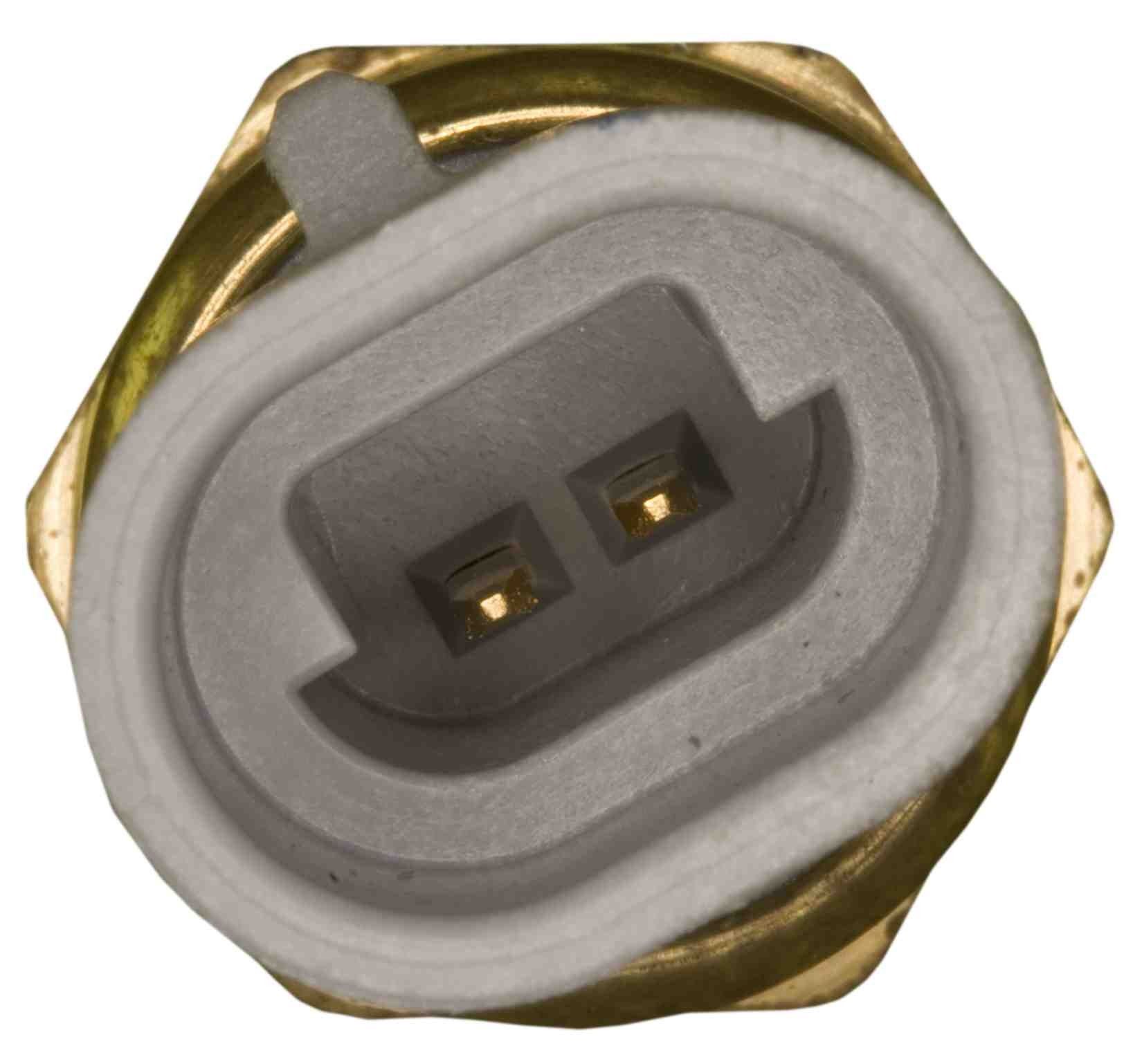

View 3

2010 - 2015 Chevrolet Equinox Engine Coolant Temperature Sensor (NGK) NEW

$ 19 .16

Product Notes

NTK Engine Coolant Temperature Sensor
The Engine Coolant Temperature Sensor determines the exact temperature of the engine coolant by sending an analog signal to the ECM to sensure prpoer air/fuel ratio along with proper operation of the cooling fan(s) and temperature gauge. The Engine Coolant Temperature Sensor may be located on the cylinder head, engine block, thermostat housing or intake manifold. Reasons for replacement include: check engine light illumination, erratic or no temperature gauge operation, erratic or no cooling fan operation, and engine overheating.
Brand: NGK
Condition: New
See Other Chevrolet Equinox Engine Coolant Temperature Sensors
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Color Grey, Gold
Connector Gender Female
Connector Quantity 1
Connector Shape Oblong
Gasket Or Seal Included Yes
Grade Type Standard Replacement
Head Tool Size 19.05
Material Brass
Mounting Hardware Included No
Mounting Hole Quantity 0
Mounting Type Threaded
Terminal Gender Male
Terminal Quantity 2
Terminal Type Blade
Thread Sealer Included Yes
Wire Quantity 0
Wiring Harness Included No

Vehicle Fitment Guide

This part fits the following vehicles:

Chevrolet 1 model (tapclick to expand)(tapclick to hide)
Equinox 2010-2015 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
L SUV 2015 L4 2.4L FWD Automatic
L SUV 2015 L4 2.4L FLEX FWD Automatic
LS SUV 2012 - 2015 L4 2.4L FLEX AWD/FWD Automatic
LS SUV 2010 - 2015 L4 2.4L AWD/FWD Automatic
LT SUV 2013 - 2015 V6 3.6L AWD/FWD Automatic
LT SUV 2013 - 2015 V6 3.6L FLEX AWD/FWD Automatic
LT SUV 2012 - 2015 L4 2.4L FLEX AWD/FWD Automatic
LT SUV 2011 - 2012 V6 3.0L FLEX AWD/FWD Automatic
LT SUV 2010 - 2015 L4 2.4L AWD/FWD Automatic
LT SUV 2010, 2012 V6 3.0L AWD/FWD Automatic
LTZ SUV 2013 - 2015 V6 3.6L AWD/FWD Automatic
LTZ SUV 2013 - 2015 V6 3.6L FLEX AWD/FWD Automatic
LTZ SUV 2012 - 2015 L4 2.4L FLEX AWD/FWD Automatic
LTZ SUV 2011 - 2012 V6 3.0L FLEX AWD/FWD Automatic
LTZ SUV 2010 - 2015 L4 2.4L AWD/FWD Automatic
LTZ SUV 2010, 2012 V6 3.0L AWD/FWD Automatic
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
The Engine Coolant Temperature Sensor determines the exact temperature of the engine coolant by sending an analog signal to the ECM to sensure prpoer air/fuel ratio along with proper operation of the cooling fan(s) and temperature gauge. The Engine Coolant Temperature Sensor may be located on the cylinder head, engine block, thermostat housing or intake manifold. Reasons for replacement include: check engine light illumination, erratic or no temperature gauge operation, erratic or no cooling fan operation, and engine overheating.

Interchange Parts

Brand Part Number
ACDelco 213-4232
ACDelco 213-4332
BWD WT5189
Echlin TS5789
General Motors 12611420
Standard Motor Products TX179

Fits Years: 2010 2011 2012 2013 2014 2015

Fits Models: Equinox
