| Attribute | Value |
|---|---|
| Bracket? | W/o Bracket |
| Discharge End IN | 0.46 |
| Discharge End MM | 11.71 |
| Discharge End Style | P-nut Fitting |
| Discharge End Type | P-nut Fitting |
| Gasket / Seals? | Included |
| Manifold? | Yes |
| Material | Aluminum / Rubber |
| Muffler? | W/ Muffler |
| O Ring A Number/Desc | 24402 / Slimline Washer |
| O Ring A Quantity | 2 |
| O Ring B Number/Desc | 24404 / Slimline Washer |
| O Ring B Quantity | 2 |
| O Ring C Number/Desc | 24606 / Green O-ring |
| O Ring C Quantity | 1 |
| O Rings Included? | Included |
| O.E. Replacement? | Yes |
| Refrigerant Type | R134a |
| Service Port? | W/o Service Port |
| Suction End IN | 0.69 |
| Suction End MM | 17.59 |
| Suction End Style | P-nut Fitting |
| Suction End Type | P-nut Fitting |
| Switch Included? | Not Included |
| Switch Port Valve Core | 56346 |
| Switch Port? | W/o Switch Port |

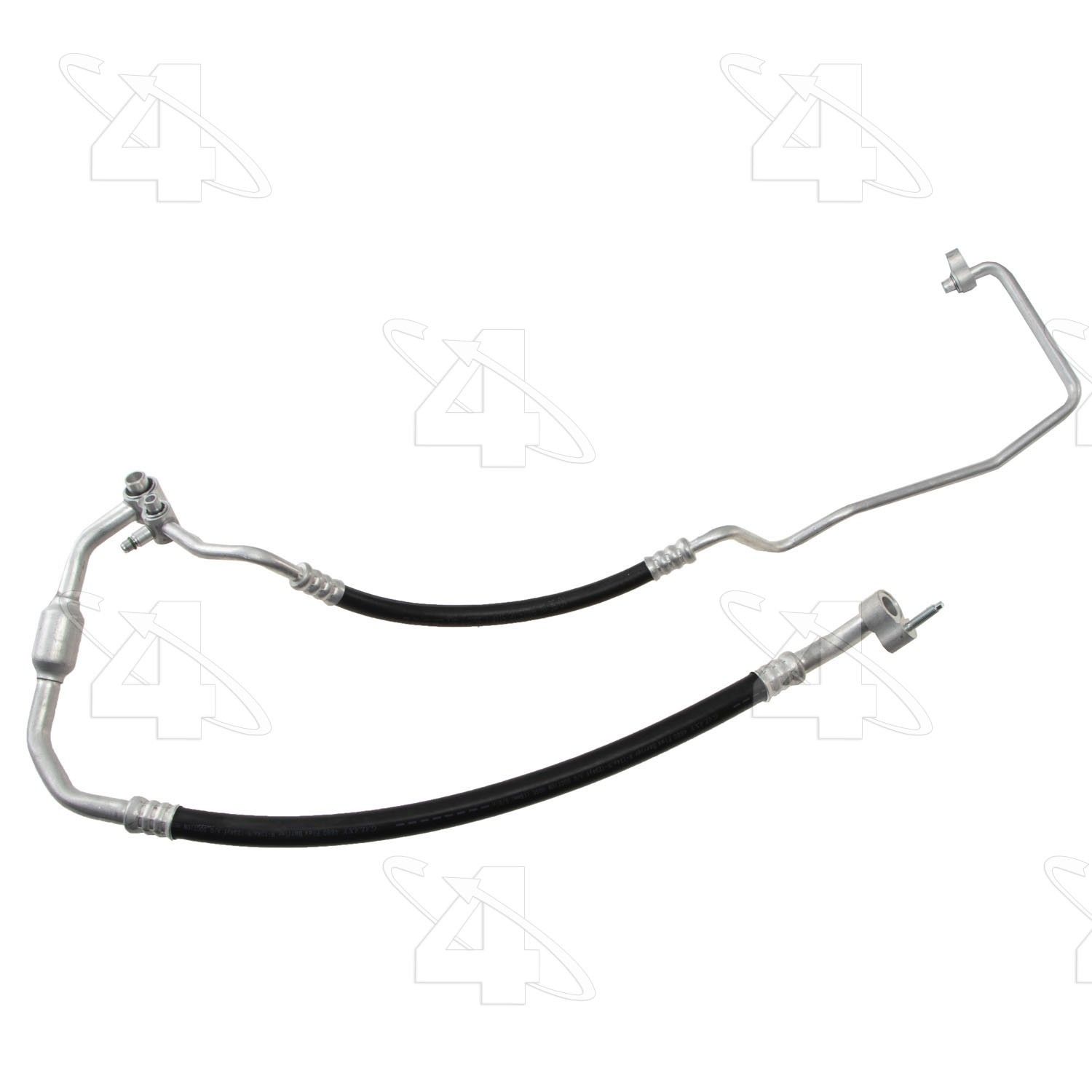

| Type | Discharge & Suction Line |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| L | SUV | 2016 - 2017 | L4 2.4L | FWD Automatic |
| L | SUV | 2016 - 2017 | L4 2.4L FLEX | FWD Automatic |
| LS | SUV | 2016 - 2017 | L4 2.4L | AWD/FWD Automatic |
| LS | SUV | 2016 - 2017 | L4 2.4L FLEX | AWD/FWD Automatic |
| LT | SUV | 2016 - 2017 | L4 2.4L | AWD/FWD Automatic |
| LT | SUV | 2016 - 2017 | L4 2.4L FLEX | AWD/FWD Automatic |
| LT | SUV | 2016 - 2017 | V6 3.6L | AWD/FWD Automatic |
| LT | SUV | 2016 - 2017 | V6 3.6L FLEX | AWD/FWD Automatic |
| LTZ | SUV | 2016 | L4 2.4L | AWD/FWD Automatic |
| LTZ | SUV | 2016 | L4 2.4L FLEX | AWD/FWD Automatic |
| LTZ | SUV | 2016 | V6 3.6L | AWD/FWD Automatic |
| LTZ | SUV | 2016 | V6 3.6L FLEX | AWD/FWD Automatic |
| Premier | SUV | 2017 | L4 2.4L | AWD/FWD Automatic |
| Premier | SUV | 2017 | L4 2.4L FLEX | AWD/FWD Automatic |
| Premier | SUV | 2017 | V6 3.6L | AWD/FWD Automatic |
| Premier | SUV | 2017 | V6 3.6L FLEX | AWD/FWD Automatic |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| ACDelco | 1534689 |
| Compressor Works | 797037 |
| Four Seasons | 211549 |
| Four Seasons | 66638 |
| Four Seasons | A83156 |
| General Motors | 23213211 |
| General Motors | 23372177 |
| General Motors | 23482928 |
| Gilmore Products | 703211 |
| Global Parts Distributors LLC | 4813155 |
| UAC | HA111988C |
Fits Years: 2016 2017
Fits Models: Equinox
