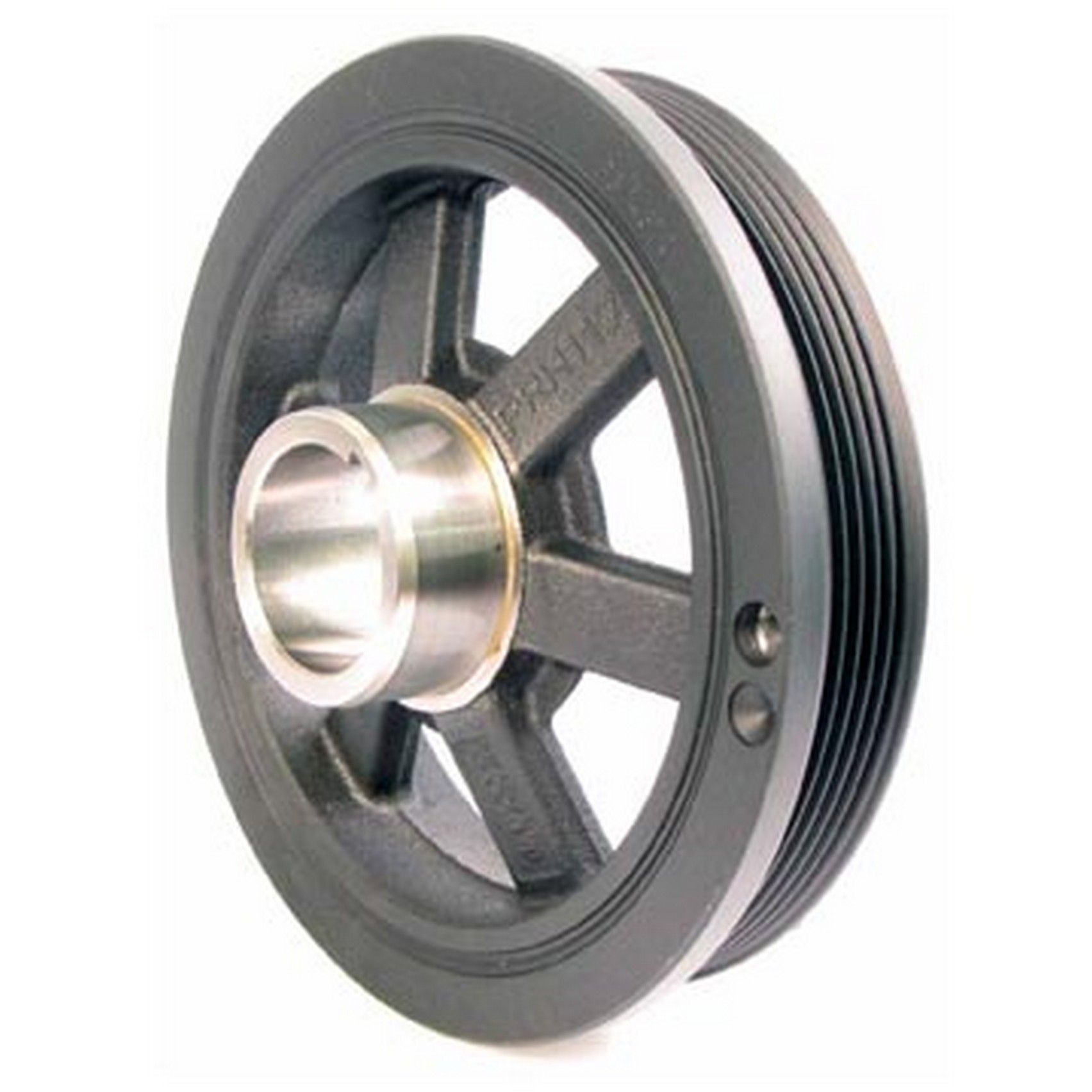

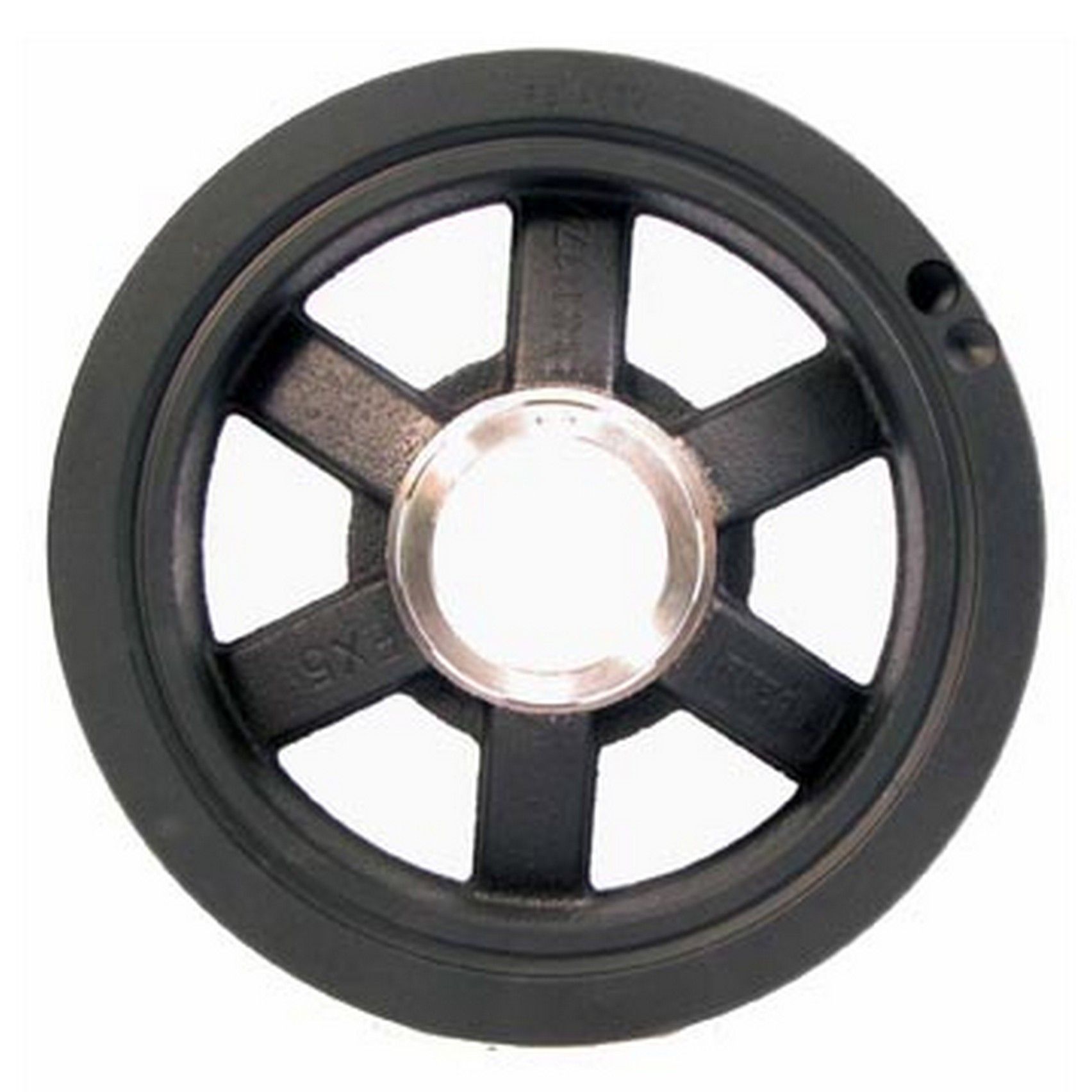

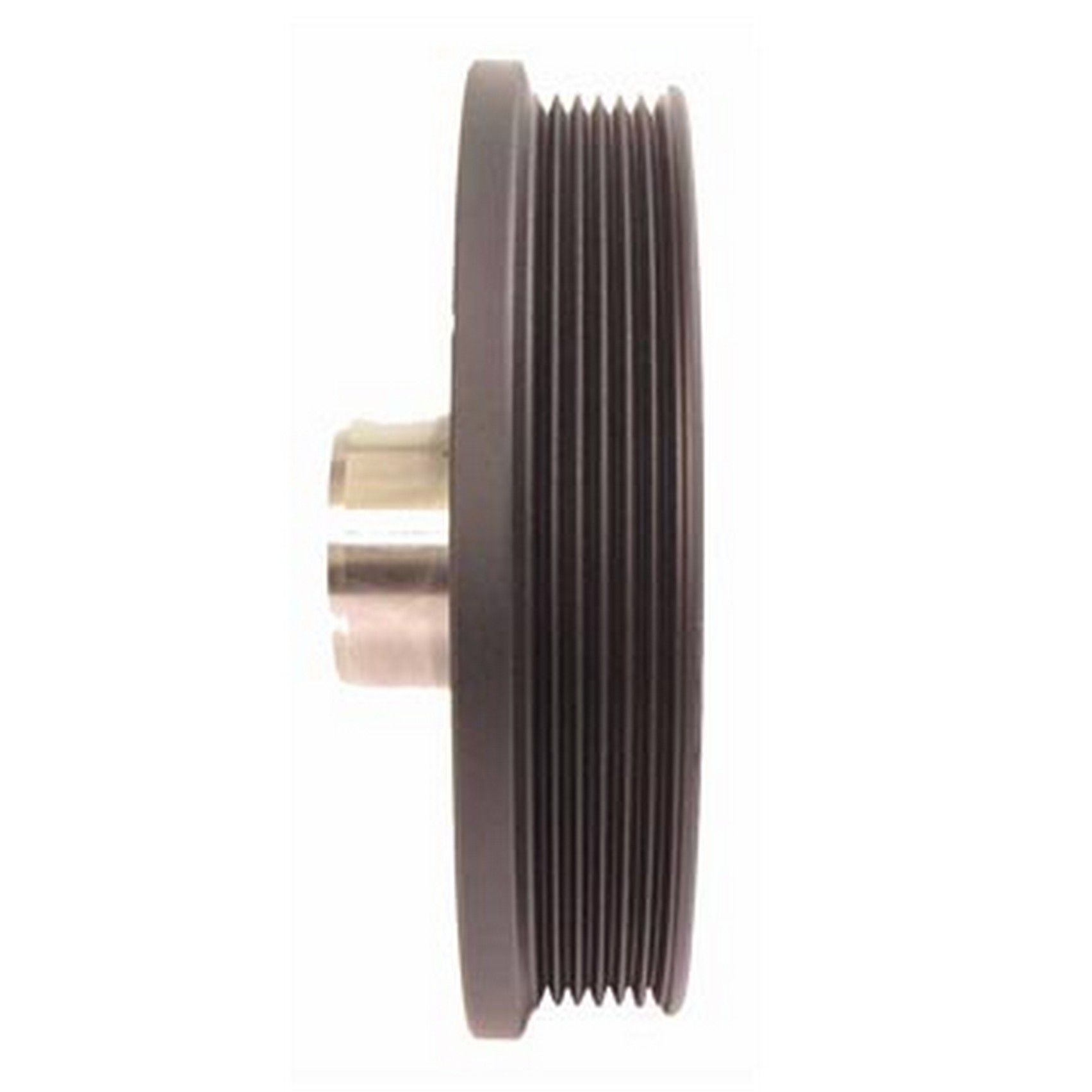

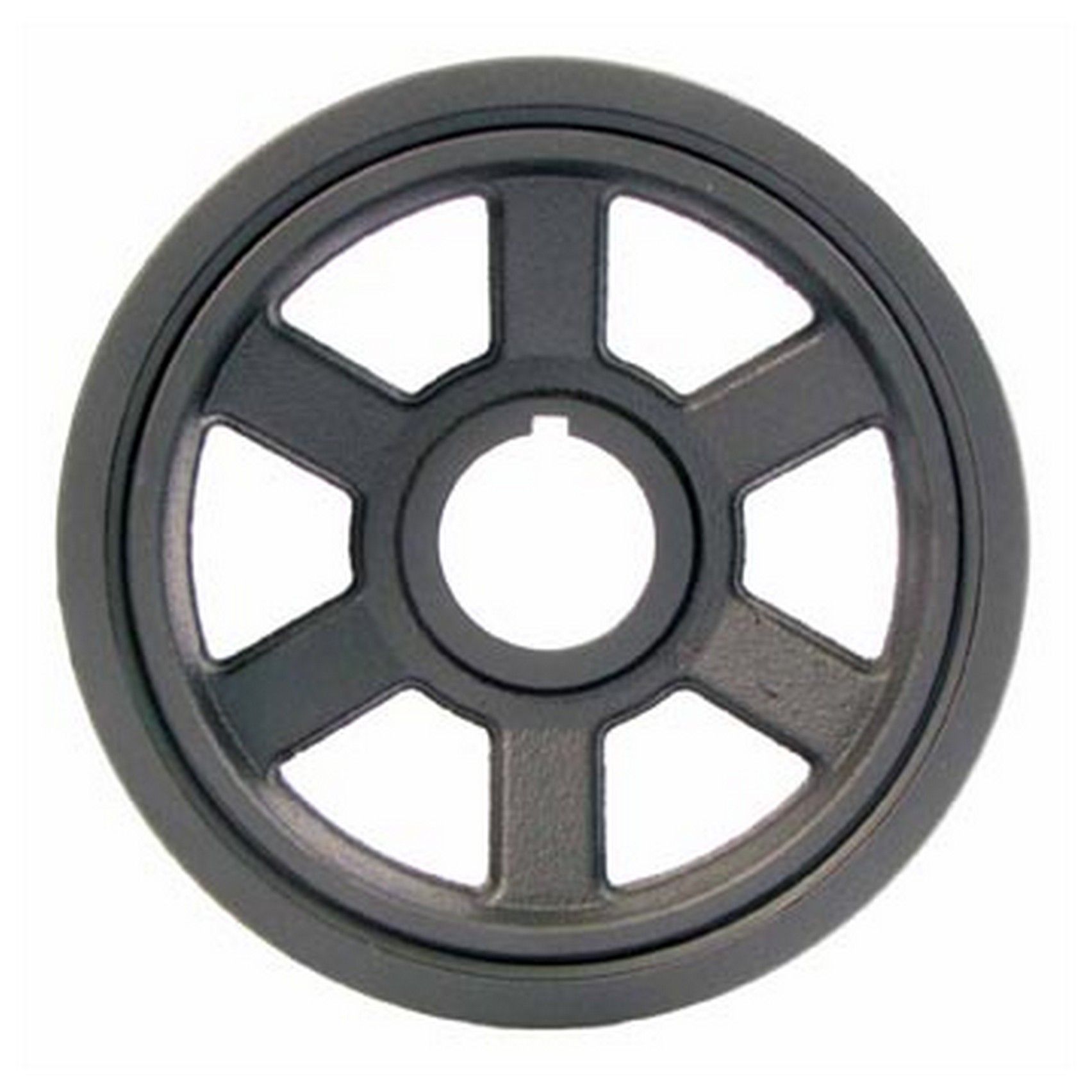

| Attribute | Value |
|---|---|
| Bolt Hole Quantity | 0 |
| Counterweight Balance | Neutral, No Counterweight |
| Crank Bore | 1.496, 37.98 |
| Crank Trigger/Exciter Plate | No |
| Installation Instructions Included | No |
| Nose Outside Diameter | 1.971, 50.05 |
| Number Of Integrated Pulleys | 1 |
| Outer Ring Material | Cast Iron |
| Overall Outside Diameter | 161.16, 6.345 |
| Pulley 1 Number Of Grooves | 6 |
| Pulley 1 Outside Diameter | 161.000, 6.339 |
| Pulley 1 Type | Serpentine |
| Ring Width | 1.417, 35.99 |
| Timing Marks | No |
| Woodruff Key Included | No |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| L | SUV | 2015 - 2017 | L4 2.4L | FWD Automatic |
| L | SUV | 2015 - 2017 | L4 2.4L FLEX | FWD Automatic |
| LS | SUV | 2012 - 2017 | L4 2.4L FLEX | AWD/FWD Automatic |
| LS | SUV | 2010 - 2017 | L4 2.4L | AWD/FWD Automatic |
| LS | SUV | 2008 - 2009 | V6 3.4L | AWD/FWD Automatic |
| LT | SUV | 2013 - 2017 | V6 3.6L | AWD/FWD Automatic |
| LT | SUV | 2013 - 2017 | V6 3.6L FLEX | AWD/FWD Automatic |
| LT | SUV | 2012 - 2017 | L4 2.4L FLEX | AWD/FWD Automatic |
| LT | SUV | 2011 - 2012 | V6 3.0L FLEX | AWD/FWD Automatic |
| LT | SUV | 2010 - 2017 | L4 2.4L | AWD/FWD Automatic |
| LT | SUV | 2010, 2012 | V6 3.0L | AWD/FWD Automatic |
| LT | SUV | 2008 - 2009 | V6 3.4L | AWD/FWD Automatic |
| LTZ | SUV | 2013 - 2016 | V6 3.6L | AWD/FWD Automatic |
| LTZ | SUV | 2013 - 2016 | V6 3.6L FLEX | AWD/FWD Automatic |
| LTZ | SUV | 2012 - 2016 | L4 2.4L FLEX | AWD/FWD Automatic |
| LTZ | SUV | 2011 - 2012 | V6 3.0L FLEX | AWD/FWD Automatic |
| LTZ | SUV | 2010 - 2016 | L4 2.4L | AWD/FWD Automatic |
| LTZ | SUV | 2010, 2012 | V6 3.0L | AWD/FWD Automatic |
| LTZ | SUV | 2008 - 2009 | V6 3.4L | AWD/FWD Automatic |
| Premier | SUV | 2017 | L4 2.4L | AWD/FWD Automatic |
| Premier | SUV | 2017 | L4 2.4L FLEX | AWD/FWD Automatic |
| Premier | SUV | 2017 | V6 3.6L | AWD/FWD Automatic |
| Premier | SUV | 2017 | V6 3.6L FLEX | AWD/FWD Automatic |
| Sport | SUV | 2008 - 2009 | V6 3.6L | AWD/FWD Automatic |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| Dorman | 594-420 |
Fits Years: 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017
Fits Models: Equinox
