Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.
| Attribute | Value |
|---|---|
| Color | Aluminum |

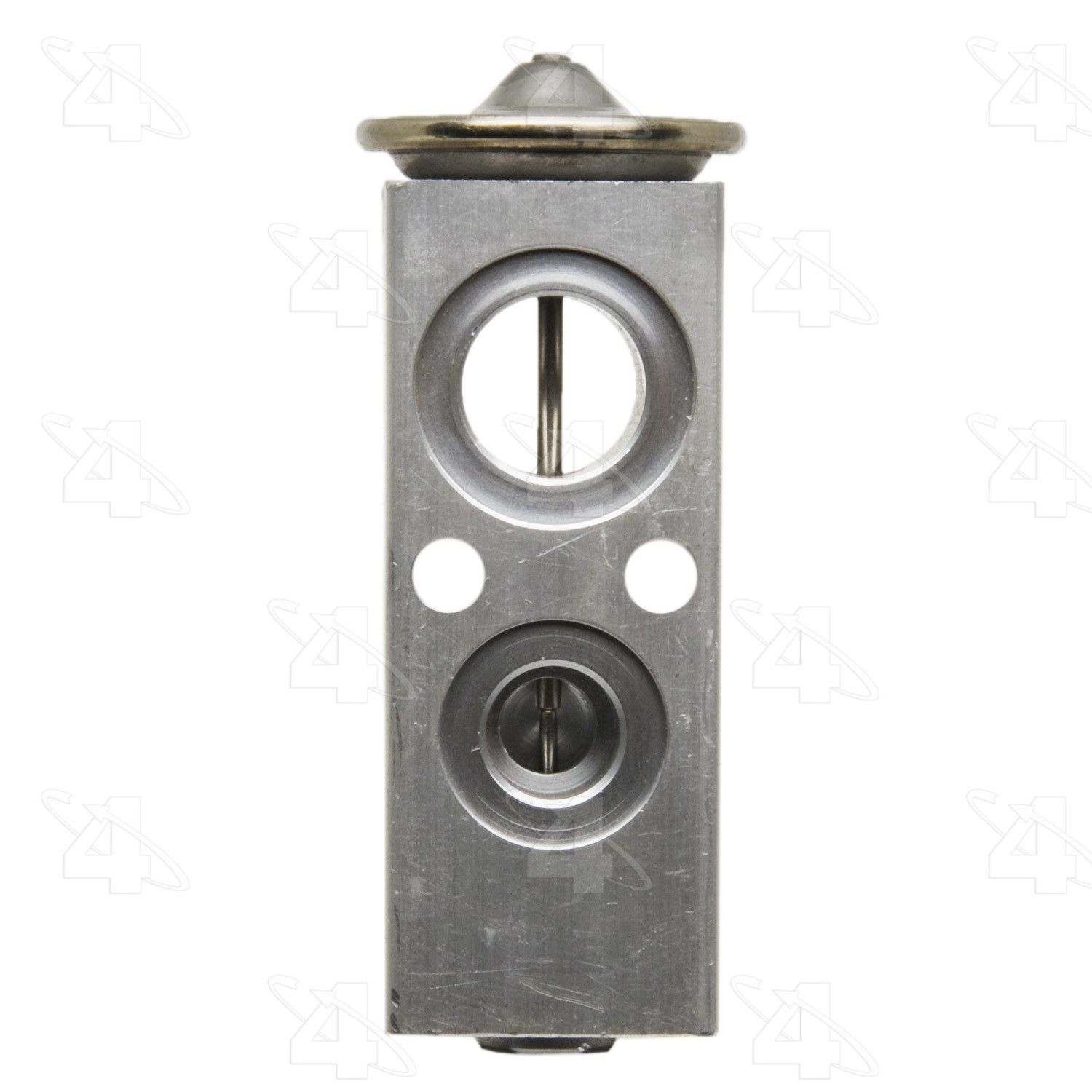

| Description | Expansion Valves |
| Liquid Inlet Gender | Female |
| Liquid Inlet Size | No. 8 |
| Liquid Inlet Size IN | 0.47 |
| Liquid Inlet Size MM | 11.84 |
| Liquid Inlet Style | Sealing Washer |
| Liquid Inlet Thread | Not Threaded |
| Liquid Inlet Type | Sealing Washer |
| Liquid Outlet Gender | Female |
| Liquid Outlet Size | No. 8 |
| Liquid Outlet Style | Sealing Washer |
| Liquid Outlet Thread | Not Threaded |
| Liquid Outlet Type | Sealing Washer |
| Lqd Out Size IN | 0.47 |
| Lqd Out Size MM | 11.84 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mount Hole Qty | 2 |
| O Ring A Number/Desc | 24402 / Slimline Washer |
| O Ring A Quantity | 2 |
| O Ring B Number/Desc | 24403 / Slimline Washer |
| O Ring B Quantity | 1 |
| O Ring C Number/Desc | 24404 / Slimline Washer |
| O Ring C Quantity | 1 |
| Suc In Size IN | 0.63 |
| Suc In Size MM | 16.08 |
| Suc Out Gender | Female |
| Suc Out Size IN | 0.700 |
| Suc Out Size MM | 17.73 |
| Suc Out Trd | Not Threaded |
| Suction Inlet Gender | Female |
| Suction Inlet Size | No. 10 |
| Suction Inlet Style | Sealing Washer |
| Suction Inlet Thread | Not Threaded |
| Suction Inlet Type | Sealing Washer |
| Suction Outlet Size | No. 12 |
| Suction Outlet Style | Sealing Washer |
| Suction Outlet Type | Sealing Washer |
| Super Heat | 5.000 |
| Switch Included? | Not Included |
| Tonnage | 1.000 |
| Type | Block Type |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| LS | SUV | 2006 - 2009 | V6 3.4L | AWD/FWD Automatic |
| LT | SUV | 2006 - 2009 | V6 3.4L | AWD/FWD Automatic |
| LTZ | SUV | 2008 - 2009 | V6 3.4L | AWD/FWD Automatic |
| Sport | SUV | 2008 - 2009 | V6 3.6L | AWD/FWD Automatic |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
Fits Years: 2006 2007 2008 2009
Fits Models: Equinox
