2013, 2012, 2011, 2010, 2009, 2008, 2007, 2006, 2005, 2004, 2003, 2002, 2001, 2000 Chevrolet Impala Coil Spring Set
View 1

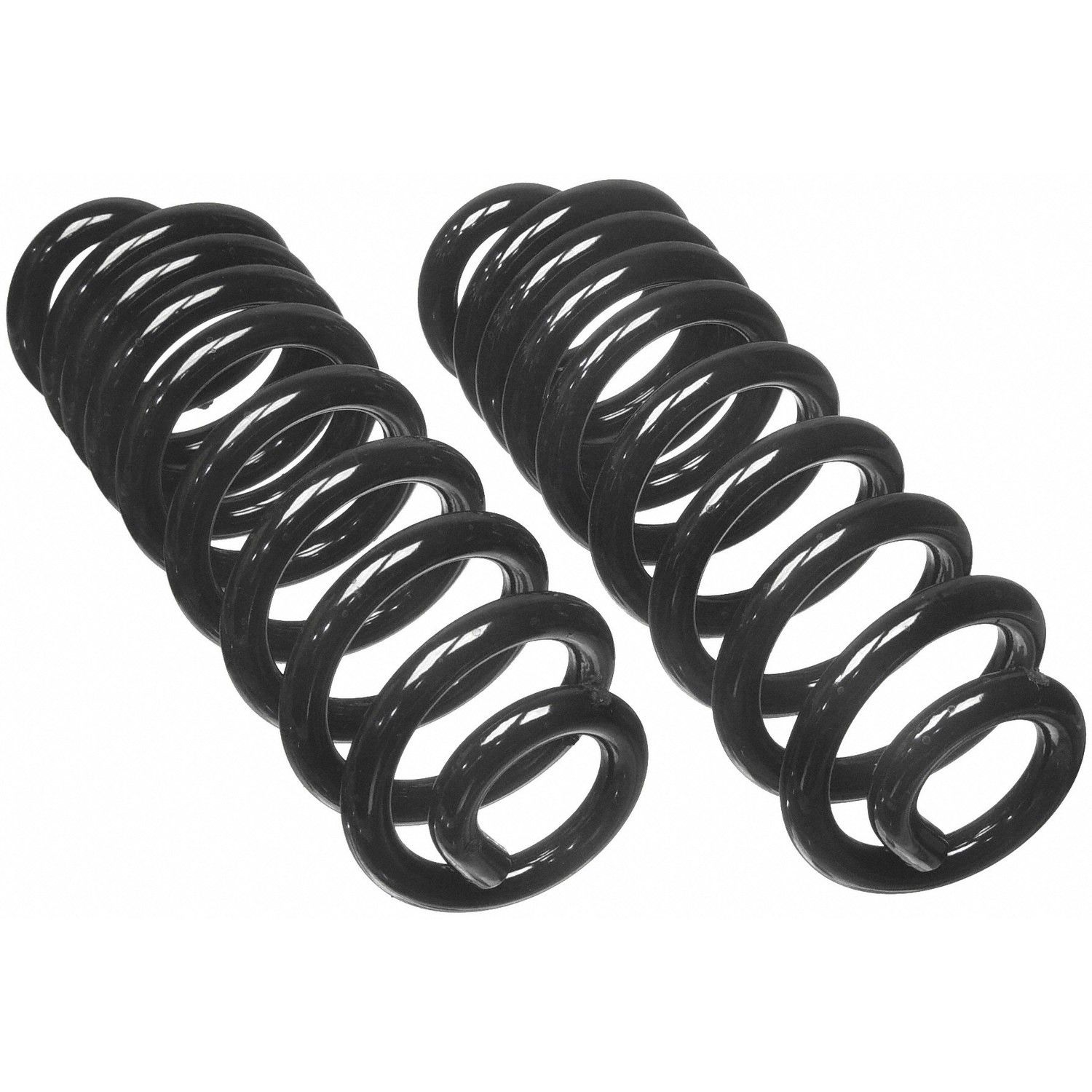

View 2

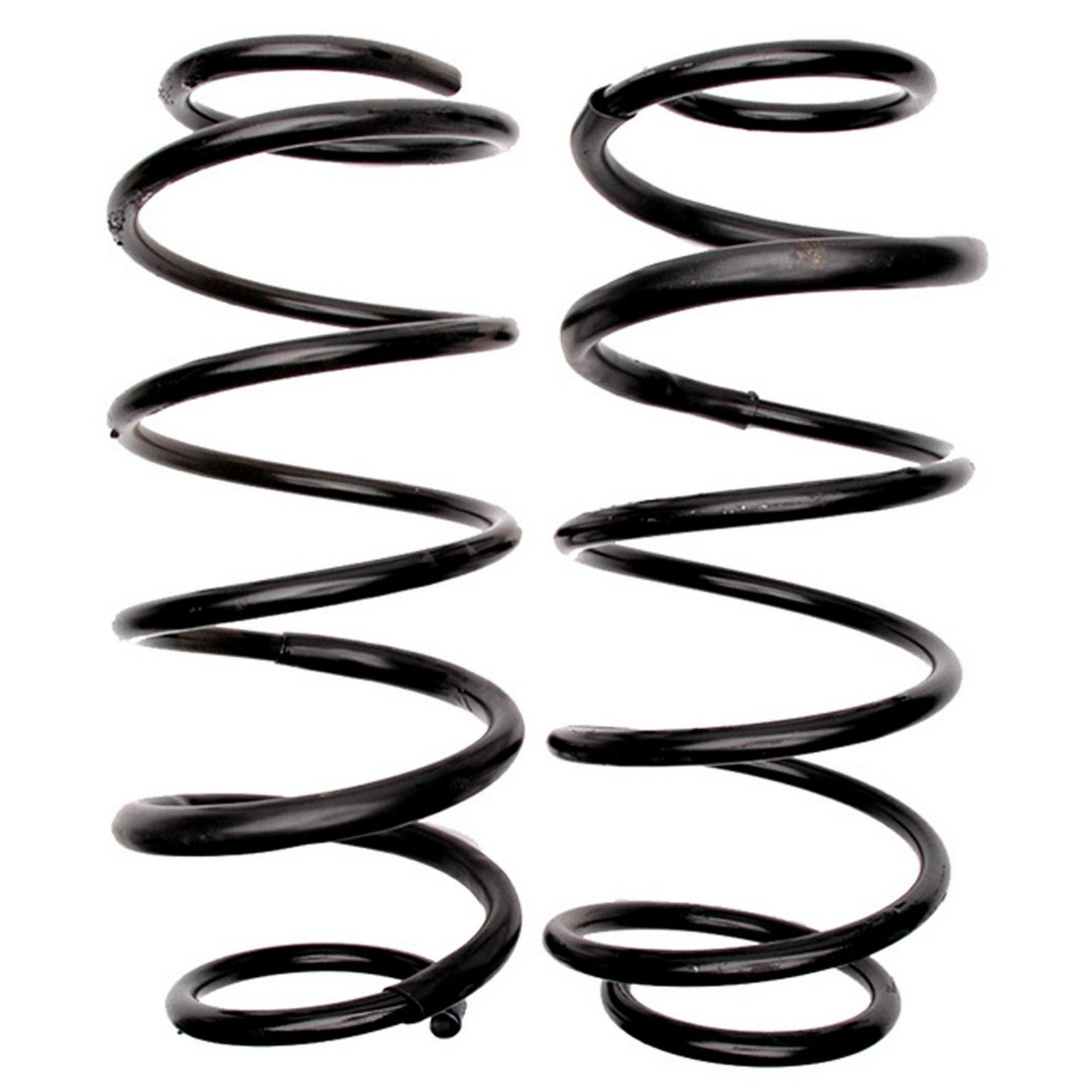

2000 - 2013 Chevrolet Impala Coil Spring Set - Front (Moog) NEW

$ 166 .02
120-DayReturns
LifetimeWarranty
100%Money-Back

Product Notes Read before buying

Position: Front
Variable Rate

By constantly introducing design enhancements that extend product life and simplify installation and replacement, MOOG has earned its reputation as the chassis industry's Problem Solver.
Brand: Moog
Condition: New
See Other Chevrolet Impala Coil Spring Sets
Wrenchy the Robot
Not sure? Ask Wrenchy — Your Parts Assistant.

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Bar Diameter Inches 0.56
Bar Diameter MM 14.30
End 1 Type Pigtail
End 2 Type Pigtail
Free Height Inches 15.75
Free Height MM 400.10
Front Spring Compressed Length 228.60, 9.00
Front Spring Outside Diameter 6.830
Front Spring Relaxed Length 15.75, 400.10
ID Inches 5.71
ID MM 145.10
Installation Height Inches 9.00
Installation Height MM 228.60
Load Lbs 776.00
Part Description Coil Spring Set
Spring Color Black
Spring Rate Lbs Per Inch 115.00
Spring Type Variable Rate
Wire Diameter 0.56, 14.30

Vehicle Fitment Guide

This part fits the following vehicles:

Chevrolet 1 model (tapclick to expand)(tapclick to hide)
Impala 2000-2013 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
50th Anniversary Edition Sedan 2008 V6 3.5L FWD Automatic
50th Anniversary Edition Sedan 2008 V6 3.5L FLEX FWD Automatic
Base Sedan 2000 - 2005 V6 3.4L FWD Automatic
Base Sedan 2000 - 2005 V6 3.8L FWD Automatic
LS Sedan 2012 - 2013 V6 3.6L FWD Automatic
LS Sedan 2012 - 2013 V6 3.6L FLEX FWD Automatic
LS Sedan 2010 - 2011 V6 3.9L FLEX FWD Automatic
LS Sedan 2006 - 2010 V6 3.5L FWD Automatic
LS Sedan 2006 - 2011 V6 3.5L FLEX FWD Automatic
LS Sedan 2000 - 2005 V6 3.8L FWD Automatic
LS Sport Sedan 2003 V6 3.8L FWD Automatic
LT Sedan 2012 - 2013 V6 3.6L FWD Automatic
LT Sedan 2012 - 2013 V6 3.6L FLEX FWD Automatic
LT Sedan 2008 - 2009 V6 3.9L FLEX FWD Automatic
LT Sedan 2006 - 2010 V6 3.5L FWD Automatic
LT Sedan 2006 - 2011 V6 3.5L FLEX FWD Automatic
LT Sedan 2006 - 2007 V6 3.9L FWD Automatic
LTZ Sedan 2012 - 2013 V6 3.6L FWD Automatic
LTZ Sedan 2012 - 2013 V6 3.6L FLEX FWD Automatic
LTZ Sedan 2008 - 2011 V6 3.9L FLEX FWD Automatic
LTZ Sedan 2006 - 2007 V6 3.9L FWD Automatic
Police Sedan 2012 - 2013 V6 3.6L FWD Automatic
Police Sedan 2012 - 2013 V6 3.6L FLEX FWD Automatic
Police Sedan 2008 - 2011 V6 3.9L FLEX FWD Automatic
Police Sedan 2006 - 2007 V6 3.9L FWD Automatic
Police Sedan 2003 - 2005 V6 3.8L FWD Automatic
SS Sedan 2006 - 2009 V8 5.3L FWD Automatic
SS Sedan 2004 - 2005 V6 3.8L Supercharged FWD Automatic
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies, in plain English.

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Lifetime Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

Returns (120 Days)

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.
By constantly introducing design enhancements that extend product life and simplify installation and replacement, MOOG has earned its reputation as the chassis industry's Problem Solver.

Interchange Parts

Brand Part Number
ACDelco 45H1139
Lesjofors 4112178
Mcquay-Norris FCS19102V
Mevotech SMS670V
Pontotoc 19102
Raybestos Brakes 587-1139
TRW Steering and Suspension Parts CC670

Fits Years: 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013

Fits Models: Impala
