Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.
| Attribute | Value |
|---|---|
| Analog Or Digital | Analog |
| Bezel Color | Black |
| Bulbs Included | Yes |

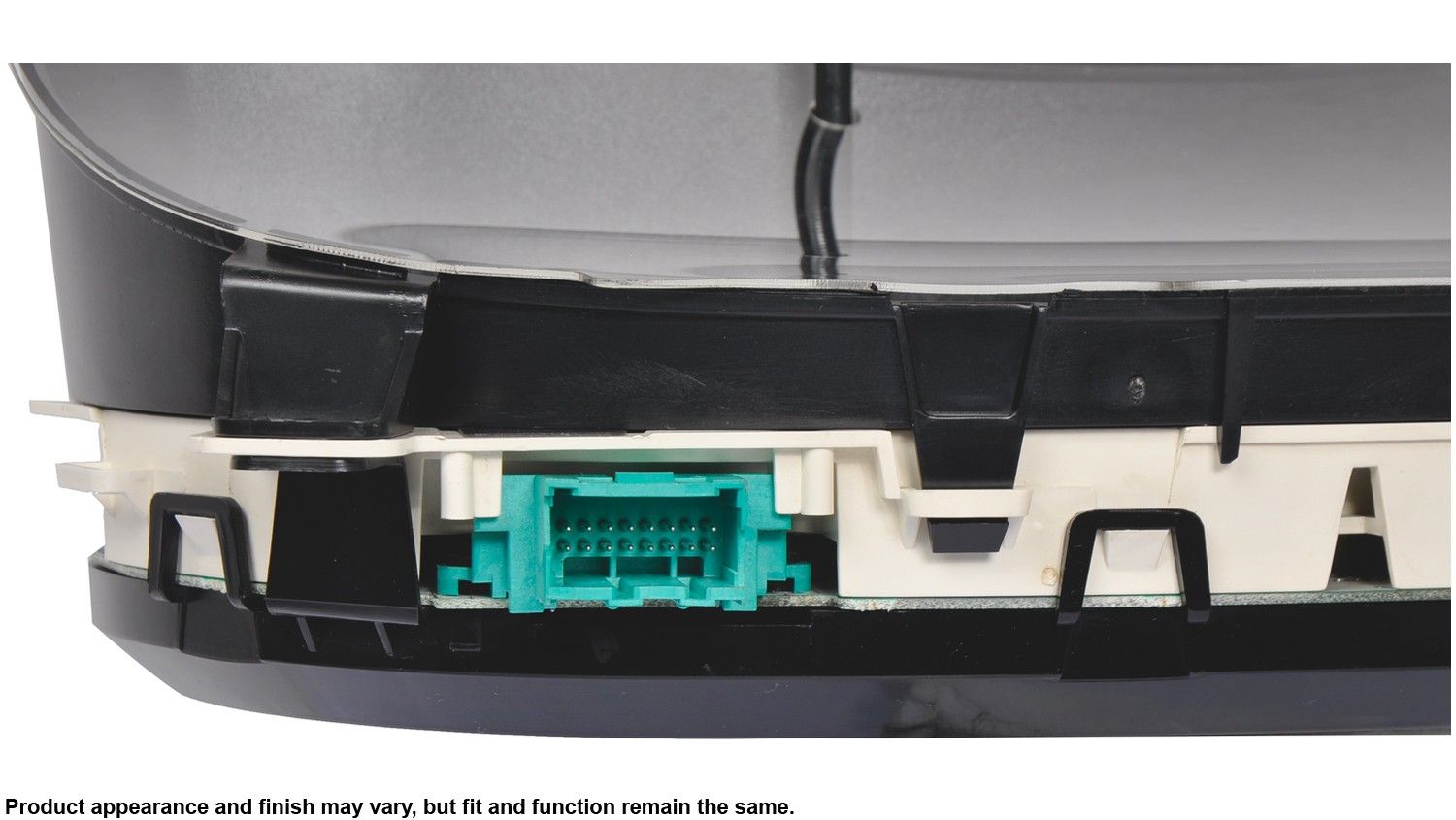

| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Contains Electronic Components | Circuit Board |
| Does It Require SDS | Yes |
| FAA A1 | Currently, We Only Remanufacture Ipcs With Analog Gauges And Integrated Driver Information Centers, If Equipped. |
| FAA A10 | Yes. The Latest Service Calibration Is Flashed Into The Ipc At The Factory Using Using An Oem Tool And Scanner. |
| FAA A11 | On-car Programming Or Relearning Is Not Necessary On Ipcs With Analog Gauges. |
| FAA A2 | There Are A Few Different Categories Of Problems That We See: 1) The Unit’s Gauges Do Not Function Properly Relative To Inputs From The Vehicle. 2) The Indicator Lights Do Not Illuminate Properly, If At All. 3) The Lens Assemblies Have Been Damaged Or Br |
| FAA A4 | The Ipc Is Disassembled 100%. Boards Are Hand Cleaned With Alcohol, And Outer Cases Are Batch Washed. |
| FAA A5 | Ipc Printed Circuit Boards Are 100% Inspected Using A Vision System Under Magnification To Detect Trace Erosions, Poor Solder Points, And Surface Mount Or Thru-hole Component Failure. |
| FAA A7 | Currently, Purchasing Ipcs Without Programming Is Not An Option. In The Future, We Hope To Offer A Remote Programming Plan. |
| FAA A8 | The Odometer Is Reset At The Factory Based On A Signed Affidavit From The Consumer That Confirms The Vin, Mileage And Engine Hours. |
| FAA A9 | Accurate Vin, Mileage Are Required And Engine Hours Are Optional. |
| FAQ Q1 | Do You Remanufacture Instrument Panel Clusters (ipcs) With Digital Displays Or Just Ones With Analog Gauges? |
| FAQ Q10 | Is Any Vehicle-specific Flash Programming Required? |
| FAQ Q11 | Is There Any On-car Programming Or A Relearn Procedure That Must Be Performed After Installation? |
| FAQ Q2 | What Are The Common Failure Modes You See? |
| FAQ Q3 | What Type Of Repairs Do You Perform? |
| FAQ Q4 | How Is The Ipc Cleaned? |
| FAQ Q5 | How Is The Ipc Inspected? |
| FAQ Q6 | How Is The Ipc Tested? |
| FAQ Q7 | Do I Have The Option Of Buying The Cluster Without Programming? |
| FAQ Q8 | Is The Odometer Reset At The Factory, Or Does The Ipc Have To Go Back To The Dealership To Set The Odometer? |
| FAQ Q9 | What Info Do I Need To Order? |
| Face Color | Black |

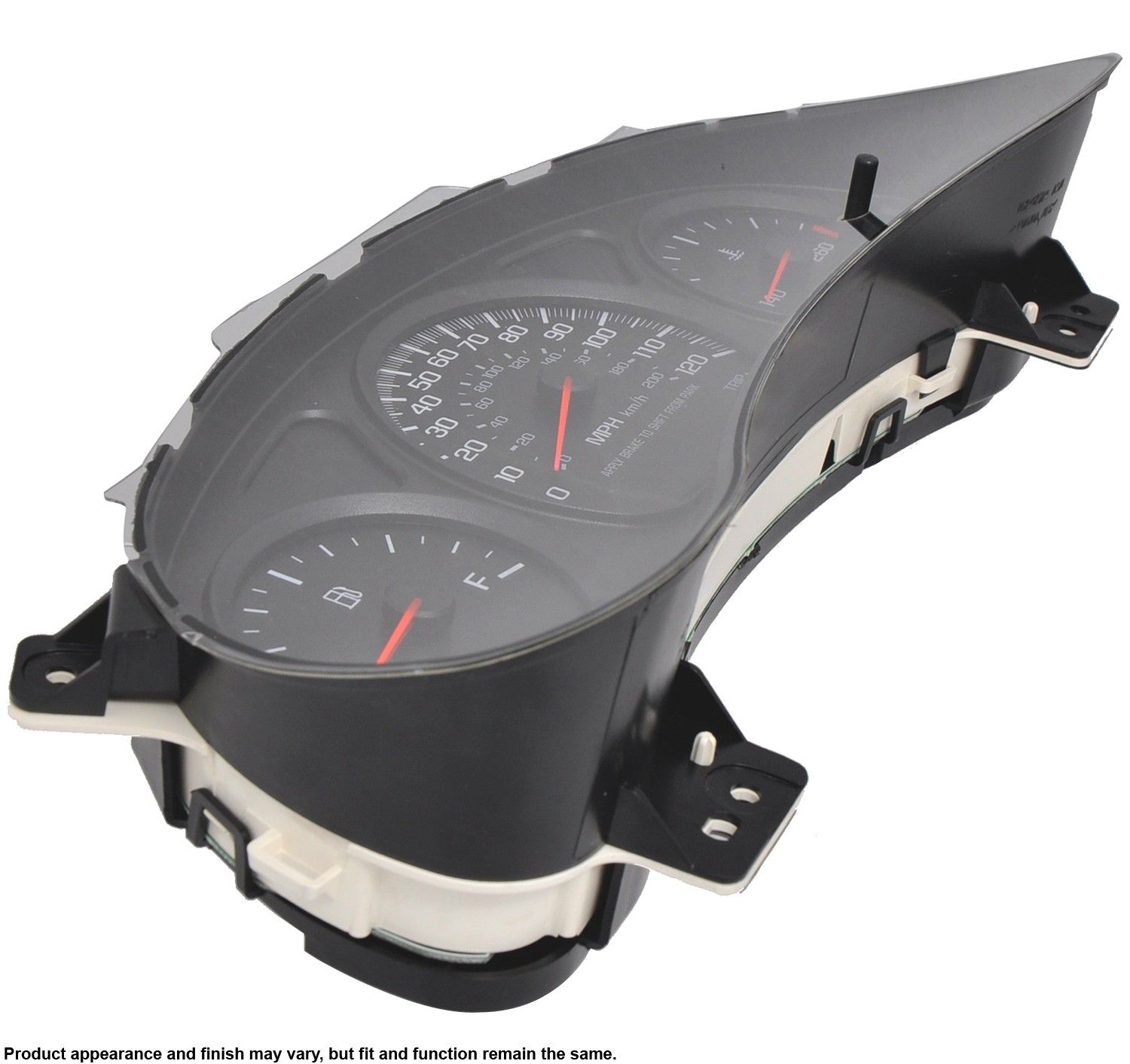

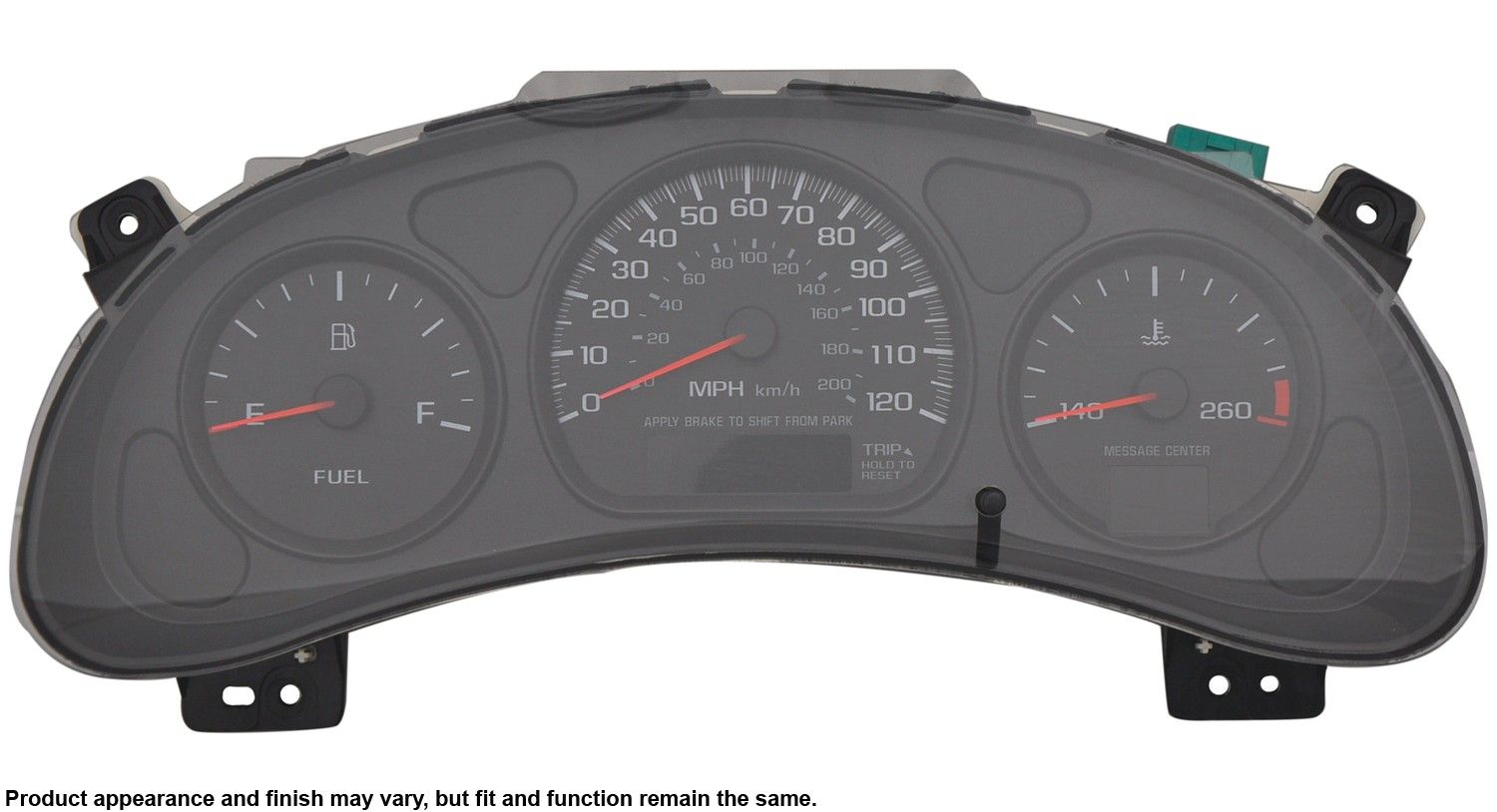

| Gauge Quantity | 3 |
| Gauge Writing Color | White |
| Grade Type | Regular |
| Illuminated | Yes |
| Is Item A Chemical | No |
| Is Or Contains A Battery | No |
| Is Or Contains A Bulb | Incandescent |
| Is Prop Sixty Five Affected | No |
| Is The Item CARB Affected | No |
| Maximum Gauge Diameter | 119.89, 4.72 |
| Minimum Gauge Diameter | 1.9, 48.26 |
| Pointer Color | Orange |
| Product Condition | Remanufactured |
| Terminal Gender | Male |
| Terminal Quantity | 25 |
| Terminal Type | Pin |
| Wiring Harness Included | No |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | Sedan | 2000 - 2005 | V6 3.4L | FWD Automatic |
| Base | Sedan | 2000 - 2005 | V6 3.8L | FWD Automatic |
| LS | Sedan | 2000 - 2005 | V6 3.8L | FWD Automatic |
| LS Sport | Sedan | 2003 | V6 3.8L | FWD Automatic |
| Police | Sedan | 2003 - 2005 | V6 3.8L | FWD Automatic |
| SS | Sedan | 2004 - 2005 | V6 3.8L Supercharged | FWD Automatic |
We offer fast, reliable shipping on all orders:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
We want you to be 100% satisfied with your purchase. That's why we offer:
| Brand | Part Number |
|---|---|
| Chevrolet | 09379401 |
| Chevrolet | 09381171 |
| Chevrolet | 09383141 |
| Chevrolet | 10306205 |
| Chevrolet | 9378321 |
Fits Years: 2000 2001 2002 2003 2004 2005
Fits Models: Impala
