| Attribute | Value |
|---|---|
| 114.3 | |
| Attribute ID (Type) | California Proposition 65 |

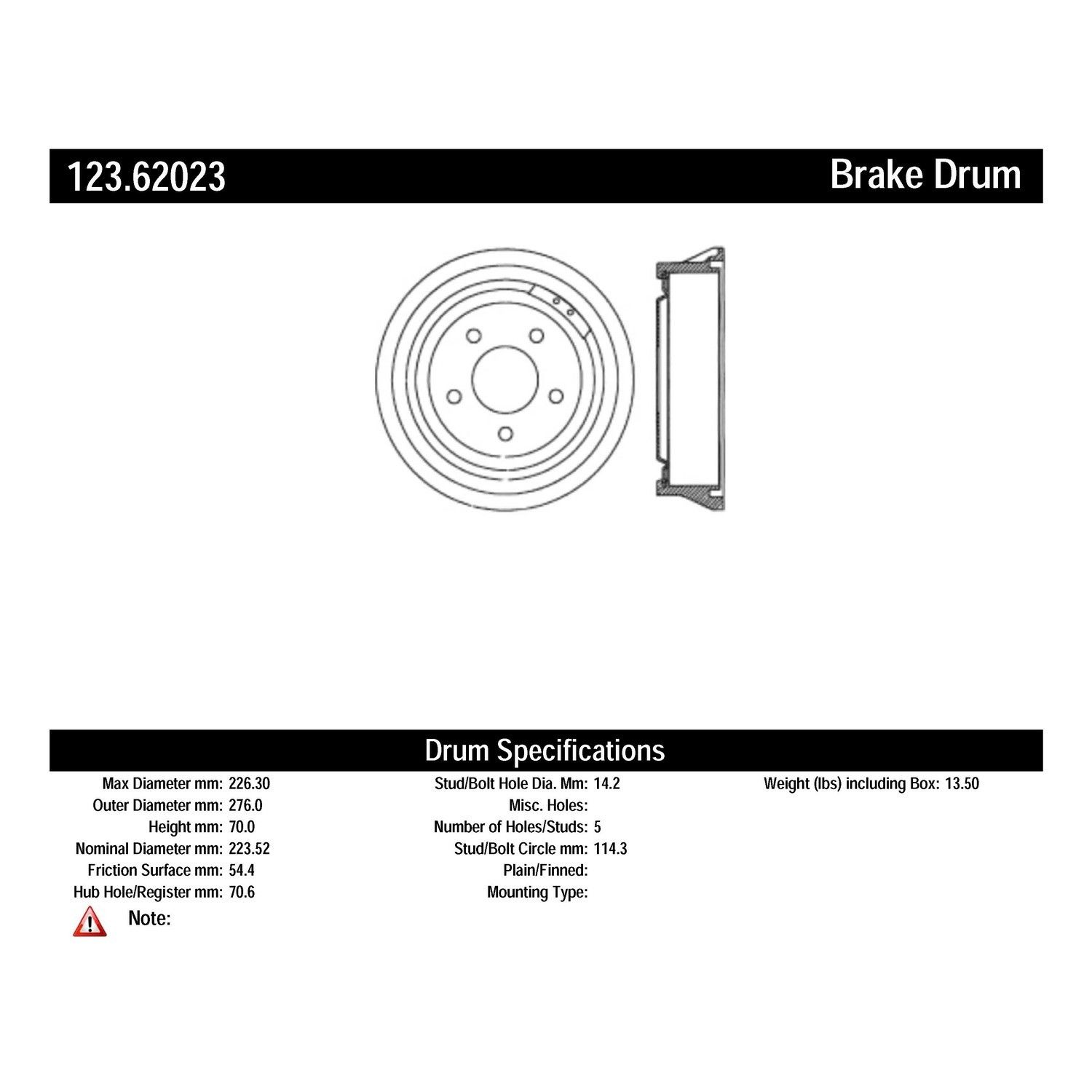

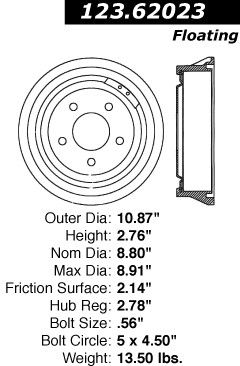

| Bolt Circle Diameter [cntrc] In | 4.500 |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Hole Quantity | 5 |
| Friction Surface Width [cntrc] In | 2.140 |
| Friction Surface Width [cntrc] Mm | 54.356 |
| Friction Surface Mm | 54.4 |
| Height [cntrc] In | 2.760 |
| Height [cntrc] Mm | 70.104 |
| Hub Hole / Register [cntrc] In | 2.780 |
| Hub Hole / Register [cntrc] Mm | 70.612 |
| Maximum Brake Diameter (Discard) | 226.30, 226.300, 8.909 |
| Mounting Hole Diameter | 0.560, 14.2, 14.224 |
| Mounting Type [cntrc] | Floating |
| Nominal Drum Diameter | 223.500, 223.52, 8.790 |
| Outer Cooling Fins | Yes |
| Product Grade [cntrc] | Standard |
| Weight [cntrc] Kgs | 6.591 |
| Weight [cntrc] Lbs | 14.500 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | Mini Passenger Van | 1997 - 2004 | V6 3.4L | FWD Automatic |
| Base | Mini Passenger Van | 1997 - 1999 | V6 3.4L | FWD Automatic |
| LS | Mini Passenger Van | 2002 - 2004 | V6 3.4L | AWD Automatic |
| LS | Mini Passenger Van | 1997 - 2005 | V6 3.4L | FWD Automatic |
| LS | Mini Passenger Van | 1997 - 1999 | V6 3.4L | FWD Automatic |
| LT | Mini Passenger Van | 2002 - 2004 | V6 3.4L | AWD Automatic |
| LT | Mini Passenger Van | 2000 - 2005 | V6 3.4L | FWD Automatic |
| Plus | Mini Passenger Van | 2000 - 2005 | V6 3.4L | FWD Automatic |
| Value | Mini Passenger Van | 2000 - 2003 | V6 3.4L | FWD Automatic |
| Warner Bros. | Mini Passenger Van | 2002 - 2003 | V6 3.4L | AWD Automatic |
| Warner Bros. | Mini Passenger Van | 2000 - 2003 | V6 3.4L | FWD Automatic |
We offer fast, reliable shipping on all orders:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
We want you to be 100% satisfied with your purchase. That's why we offer:
| Brand | Part Number |
|---|---|
| Aimco | 68020 |
| Autospecialty | AD8223E |
| AutoZone | 123.62023 |
| Bendix | 140451 |
| Bendix | PDR0451 |
| BrakeBest | 2051DGS |
| Brembo | 23015 |
| Cookie Dough Bites | ZAD8223E |
| Delco-Remy | 177331 |
| Delta | 78-36023 |
| Delta | 7836023 |
| Delta | 78836023 |
| EIS Brakes | D2051 |
| Formula Blue Hydraulic Brake Parts | E128-67-028 |
| Formula Blue Hydraulic Brake Parts | E12867028 |
| GWB | 87315 |
| IAP/Kuhltek Motorwerks | BD8939 |
| IPI | 812 |
| Midas | BD1476 |
| Mighty Distributing System | 8939 |
| Neotek Drums and Rotors | 112051 |
| OEM Part Number | 100971 |
| OEM Part Number | 18020817 |
| OEM Part Number | 18020822 |
| OEM Part Number | 18020854 |
| OEM Part Number | 18021289 |
| OEM Part Number | 18021419 |
| OEM Part Number | 18022148 |
| OEM Part Number | 18022149 |
| OEM Part Number | 18022821 |
| OEM Part Number | 18025647 |
| OEM Part Number | 18029790 |
| OEM Part Number | 22509919 |
| OEM Part Number | 25509919 |
| OEM Part Number | 25518892 |
| Pep Boys | 8939G |
| Qualitee International | D93 570 |
| Raybestos Brakes | 102051 |
| Raybestos Brakes | 2051 |
| Raybestos Brakes | 2051R |
| Sears | 19504 |
| TruckStar by Buyers | 393570 |
| TruckStar by Buyers | D93570 |
| Universal | 201392 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X21668 |
| Wagner Brake | 52-125482 |
| Wagner Brake | 52-61776 |
| Wagner Brake | 52125482 |
| Wagner Brake | 5261776 |
| Wagner Brake | BD125482 |
| Wagner Brake | BD61776 |
Fits Years: 1997 1998 1999 2000 2001 2002 2003 2004 2005
Fits Models: Venture
