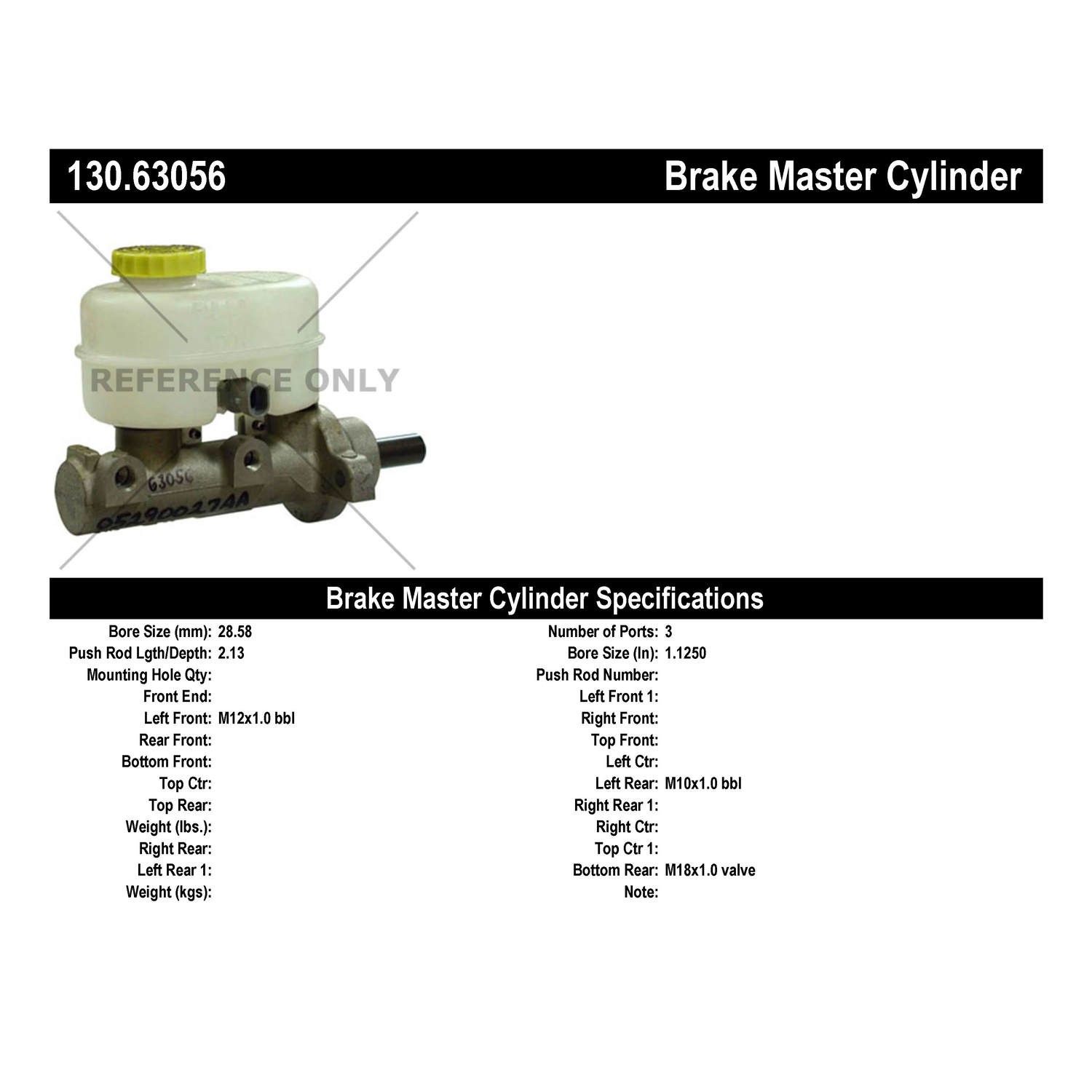

| Attribute | Value |
|---|---|
| Bleeder Hoses Included | No |
| Bore Size | 1.125, 28.575, 28.58 |
| Brake Booster Included | No |
| Brake Pressure Switch Quantity | Na |
| Brake Pressure Switch Required | No |
| Brake Pressure Switch(s) Included | Na |
| Dust Boot Included | No |
| Gasket Or Seal Included | Yes |
| Master Cylinder Bore Diameter | 1.125, 28.575 |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Port Quantity | 2, 3 |
| Primary Bore Diameter | 1.125, 28.575 |
| Primary Outlet Flare Type | Bubble, Iso |
| Primary Outlet Flare Type [cntrc] | Bubble |
| Primary Outlet Thread Diameter | 10.000 |
| Primary Outlet Thread Pitch | 1.00 |
| Primary Outlet Thread Size | M10 X 1.0, M10-1.00 |
| Publication Bore [cntrc] | 1 1/8" |
| Push Rod Included | No |
| Push Rod: Length / Depth [cntrc] In | 2.13 |
| Reservoir Included | Yes |
| Reservoir Material | Plastic |
| Reservoir Style | Removable |
| Secondary Outlet Flare Type | Bubble, Iso |
| Secondary Outlet Flare Type [cntrc] | Bubble |
| Secondary Outlet Thread Diameter | 12.000 |
| Secondary Outlet Thread Pitch | 1.00 |
| Secondary Outlet Thread Size | M12 X 1.0, M12-1.00 |
| Sensor Included | Yes |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| ACR | Coupe | 2001 - 2002 | V10 8.0L | RWD Manual |
| GTS | Coupe | 2001 - 2002 | V10 8.0L | RWD Manual |
| R/T-10 | Convertible | 2001 - 2002 | V10 8.0L | RWD Manual |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| OEM Part Number | 5290027AA |

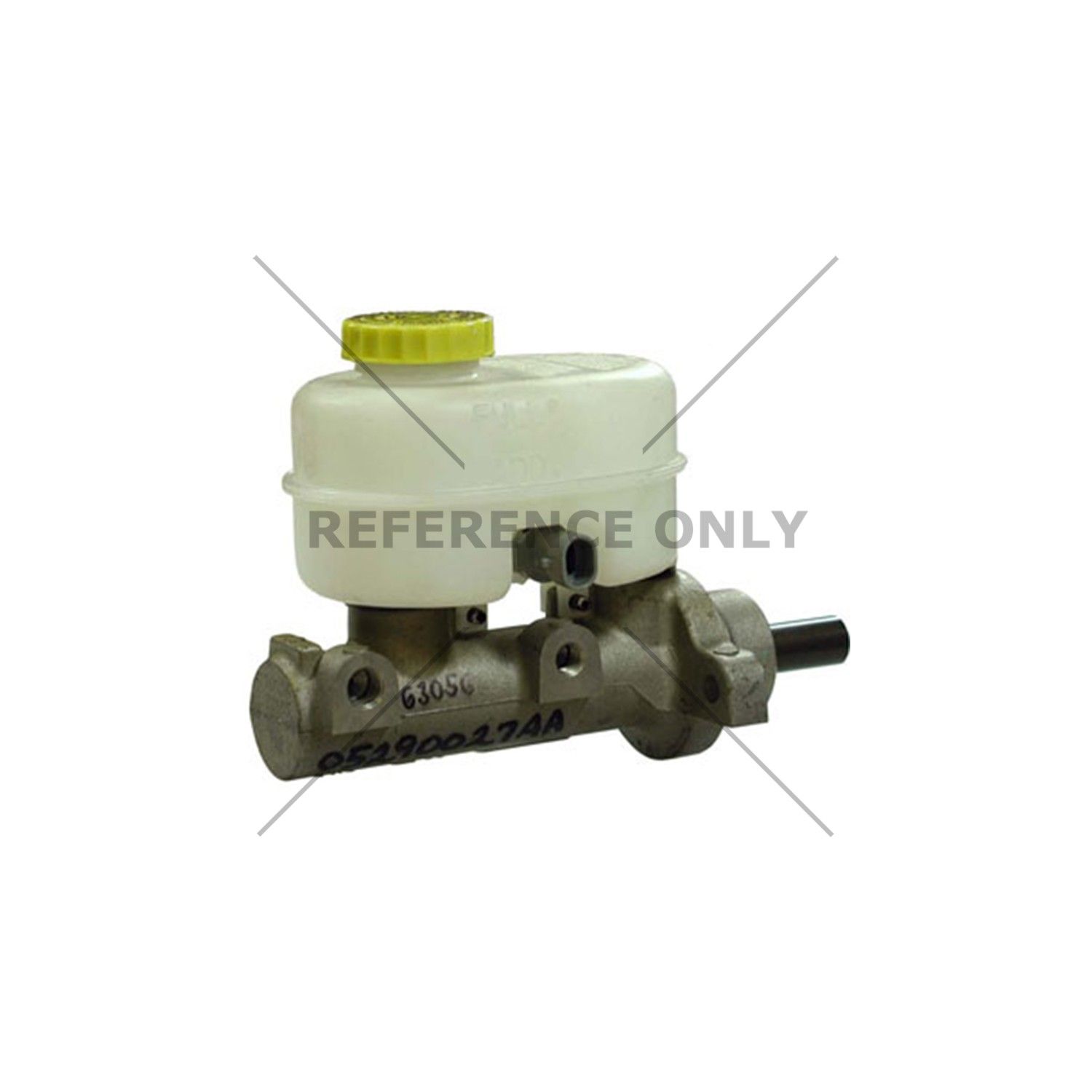

Fits Years: 2001 2002
Fits Models: Viper
