| Attribute | Value |
|---|---|
| 114.3 | |
| ABS Tone Ring Included | No |
| Attribute ID (Type) | California Proposition 65 |
| Bearings Included | No |
| Bolt Hole Quantity | 5 |
| California Proposition 65 Site [basic] | Https://www.p65warnings.ca.gov/ |
| California Proposition 65 Text [basic] | Warning: Cancer And Reproductive Harm |
| California Proposition 65 Text [cntrc] | Warning: Cancer And Reproductive Harm |

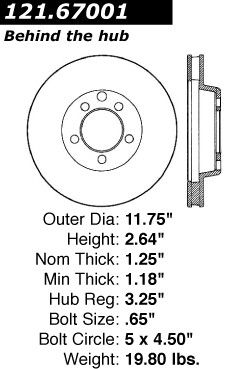

| Center Hole Diameter | 3.256, 82.700 |
| Disc Mounting [cntrc] | Behind The Hub |
| Discard Thickness | 1.180, 29.97, 29.970 |
| Hub Hole/Whl Reg Mm | 82.7 |
| Misc Holes [cntrc] | 1 |
| Mounting Bolt Hole Circle Diameter | 114.300, 4.500 |
| Mounting Bolt Hole Diameter | 0.650, 16.500 |
| Mounting Bolt Hole Quantity | 5 |
| Mounting Type | Behind The Hub |
| Nominal Thickness | 1.245, 31.62, 31.620 |
| Overall Height | 2.634, 66.900 |
| Product Grade [cntrc] | Standard |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| Vane Style | Straight |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 9.000 |
| Weight [cntrc] Lbs | 19.800 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Custom | Cab & Chassis | 1975 - 1977 | L6 3.7L | 4WD Automatic & Manual |
| Custom | Cab & Chassis | 1975 - 1977 | V8 5.2L | 4WD Automatic & Manual |
| Custom | Cab & Chassis | 1975 - 1977 | V8 5.9L | 4WD Automatic & Manual |
| Custom | Cab & Chassis | 1975 - 1977 | V8 6.6L | 4WD Automatic & Manual |
| Custom | Cab & Chassis | 1975 - 1977 | V8 7.2L | 4WD Automatic & Manual |
| Custom | Extended Cab Pickup | 1975 - 1977 | L6 3.7L | 4WD Automatic & Manual |
| Custom | Extended Cab Pickup | 1975 - 1977 | V8 5.2L | 4WD Automatic & Manual |
| Custom | Extended Cab Pickup | 1975 - 1977 | V8 5.9L | 4WD Automatic & Manual |
| Custom | Extended Cab Pickup | 1975 - 1977 | V8 6.6L | 4WD Automatic & Manual |
| Custom | Extended Cab Pickup | 1975 - 1977 | V8 7.2L | 4WD Automatic & Manual |
| Custom | Standard Cab Pickup | 1975 - 1977 | L6 3.7L | 4WD Automatic & Manual |
| Custom | Standard Cab Pickup | 1975 - 1977 | V8 5.2L | 4WD Automatic & Manual |
| Custom | Standard Cab Pickup | 1975 - 1977 | V8 5.9L | 4WD Automatic & Manual |
| Custom | Standard Cab Pickup | 1975 - 1977 | V8 6.6L | 4WD Automatic & Manual |
| Custom | Standard Cab Pickup | 1975 - 1977 | V8 7.2L | 4WD Automatic & Manual |
We offer fast, reliable shipping on all orders:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
We want you to be 100% satisfied with your purchase. That's why we offer:
| Brand | Part Number |
|---|---|
| Autospecialty | AR8701 |
| Autospecialty | AR8701E |
| Bendix | 141151 |
| Bendix | PRT1151 |
| Bendix | PRT5515 |
| Canadian Tire | 5312 |
| Casting Numbers | 210267 |
| Casting Numbers | 210267C |
| Delco-Remy | 177586 |
| Delta | 78-40001 |
| Delta | 7840001 |
| Delta | 78940001 |
| Delta | 8940001 |
| EIS Brakes | D17036 |
| Formula Blue Hydraulic Brake Parts | E126-72-006 |
| Formula Blue Hydraulic Brake Parts | E12672006 |
| GWB | 85743 |
| IAP/Kuhltek Motorwerks | BR5312 |
| IPI | 548 |
| Midas | BR1080 |
| Mighty Distributing System | 5353 |
| OEM Part Number | 3736756 |
| OEM Part Number | 3736758 |
| OEM Part Number | 4089274 |
| Pep Boys | 5312G |
| Pep Boys | 5353G |
| Raybestos Brakes | 7036 |
| Raybestos Brakes | 7036R |
| Raybestos Brakes | 76298R |
| Universal | 103120 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50178 |
| Wagner Brake | 121.67001 |
| Wagner Brake | BD60467 |
Fits Years: 1975 1976 1977
Fits Models: W100
