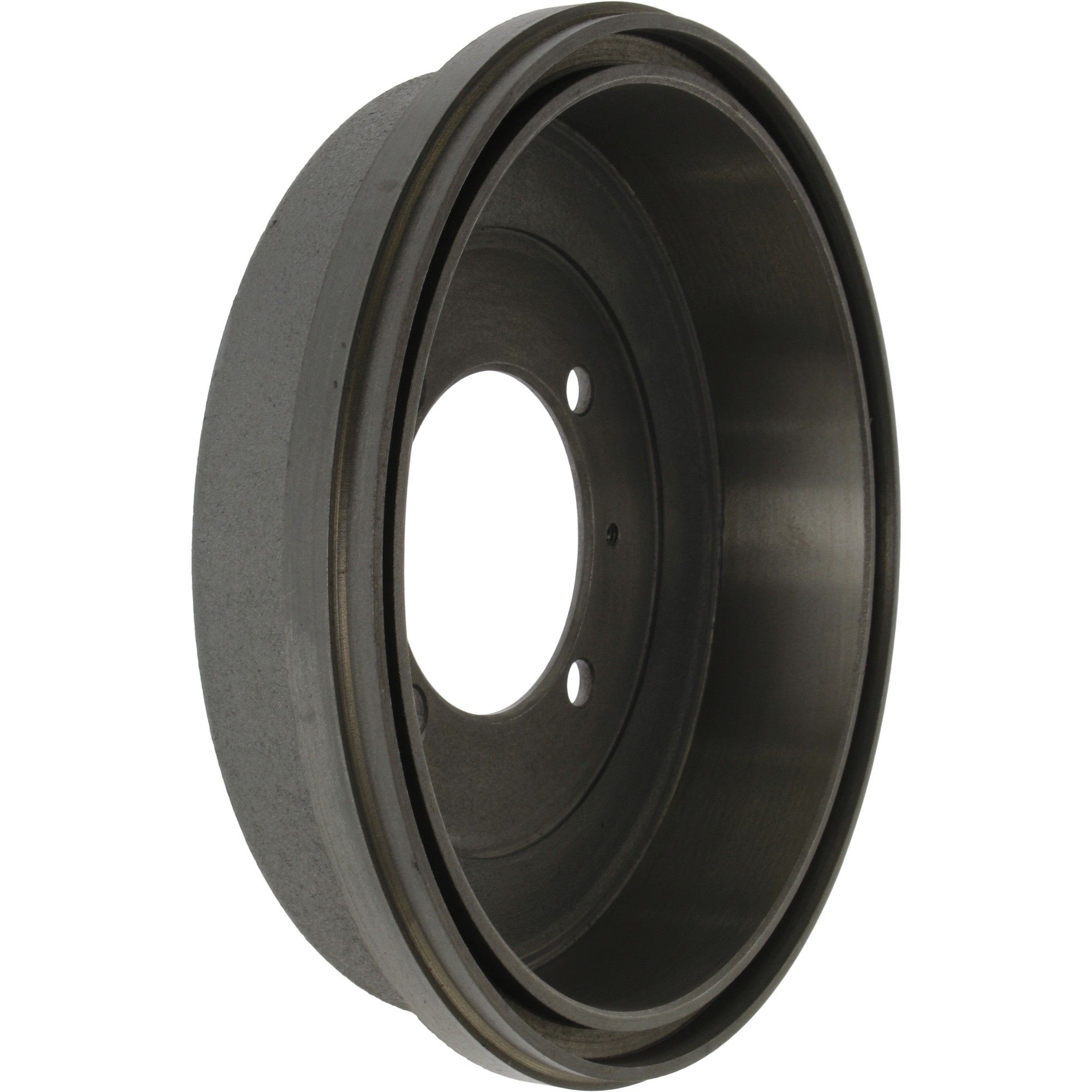

1992 - 1995 Eagle Summit Brake Drum - Rear (Centric) NEW

$ 57 .29

Product Notes

Position: Rear
⚠️ Most jobs typically require 2 of this item.

CTEK Standard Brake Drums
C-Tek brake rotors and drums offer many of the features and benefits of premium replacement parts.
Brand: Centric
Condition: New
See Other Eagle Summit Brake Drums
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

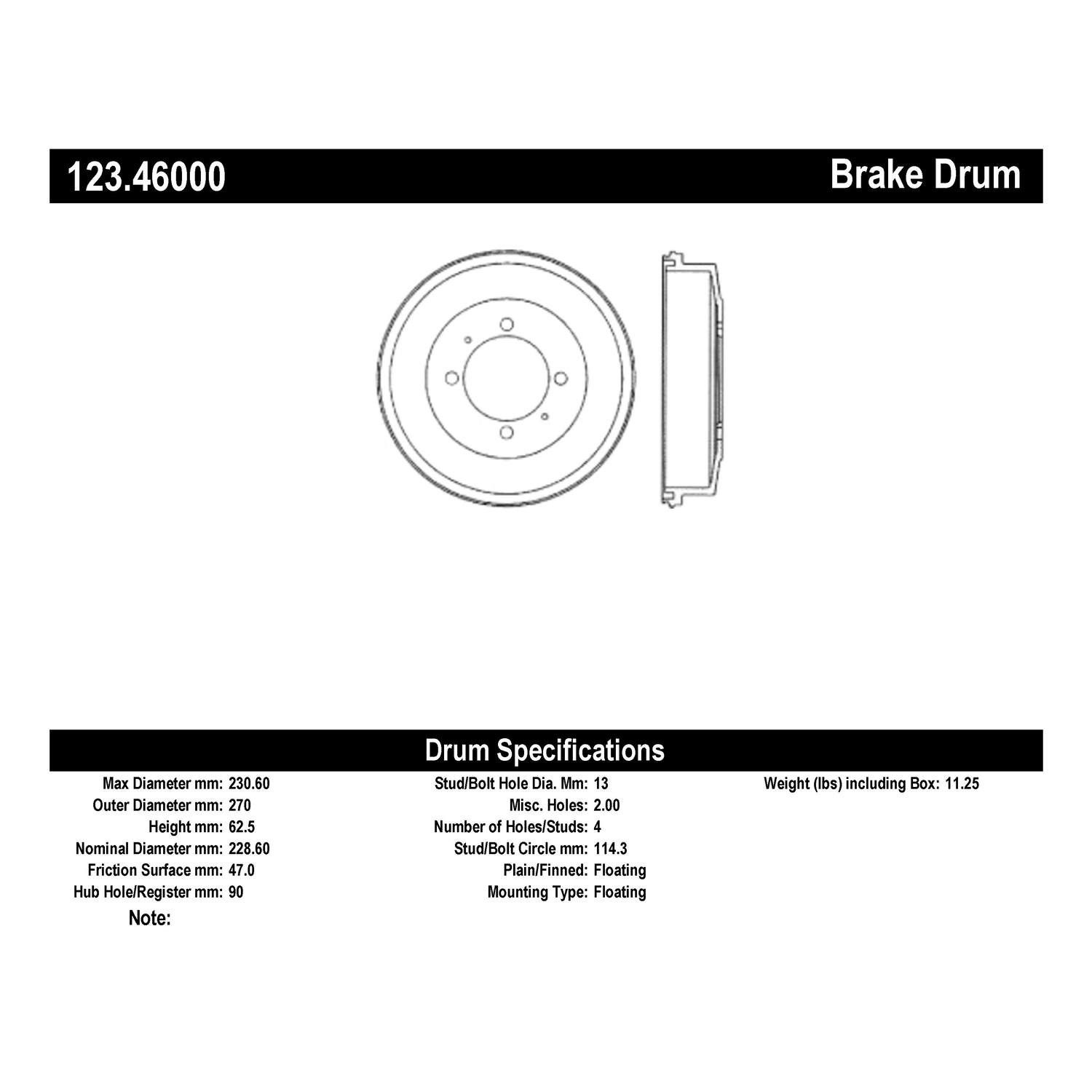

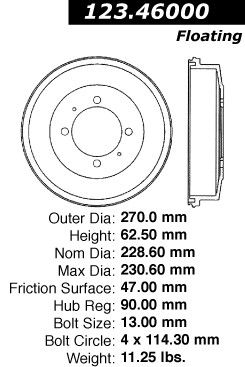

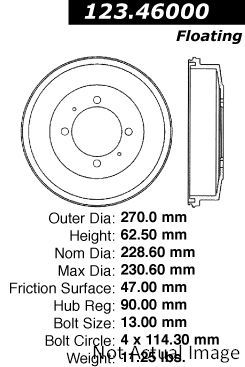

Specifications & Info


Attribute Value
114.3
Attribute ID (Type) California Proposition 65
Bolt Circle Diameter [cntrc] In 4.500
Bolt Circle Diameter [cntrc] Mm 114.300
Bolt Hole Quantity 4
Friction Surface Width [cntrc] In 1.850
Friction Surface Width [cntrc] Mm 47.000
Friction Surface Inches 1.85
Friction Surface Mm 47.0
Height [cntrc] In 2.461
Height [cntrc] Mm 62.500
Hub Hole / Register [cntrc] In 3.543
Hub Hole / Register [cntrc] Mm 90.000
Maximum Brake Diameter (Discard) 230.60, 230.600, 9.079
Misc Holes [cntrc] 2
Mounting Hole Diameter 0.512, 13, 13.000
Mounting Type [cntrc] Floating
Nominal Drum Diameter 228.60, 228.600, 9.000
Outer Cooling Fins No
Product Grade [cntrc] Standard
Weight [cntrc] Kgs 5.114
Weight [cntrc] Lbs 11.250

Vehicle Fitment Guide

This part fits the following vehicles:

Eagle 1 model (tapclick to expand)(tapclick to hide)
Summit 1992-1995 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Hatchback 1992 L4 1.5L FWD/4WD Automatic & Manual
Base Hatchback 1992 L4 1.8L FWD/4WD Automatic & Manual
Base Hatchback 1992 L4 2.4L FWD/4WD Automatic & Manual
Base Sedan 1992 L4 1.5L FWD/4WD Automatic & Manual
Base Sedan 1992 L4 1.8L FWD/4WD Automatic & Manual
Base Sedan 1992 L4 2.4L FWD/4WD Automatic & Manual
Base Wagon 1992 L4 1.5L FWD/4WD Automatic & Manual
Base Wagon 1992 - 1993 L4 1.8L 4WD Automatic & Manual
Base Wagon 1992 L4 1.8L FWD Automatic & Manual
Base Wagon 1992 - 1995 L4 2.4L 4WD Automatic
Base Wagon 1992 - 1994 L4 2.4L 4WD Manual
Base Wagon 1992 L4 2.4L FWD Automatic & Manual
DL Coupe 1993 - 1995 L4 1.5L FWD Automatic
DL Coupe 1993 - 1994 L4 1.5L FWD Manual
DL Coupe 1993 - 1995 L4 1.8L FWD Automatic
DL Coupe 1993 - 1994 L4 1.8L FWD Manual
DL Coupe 1993 - 1995 L4 2.4L FWD Automatic
DL Coupe 1993 - 1994 L4 2.4L FWD Manual
DL Sedan 1993 - 1994 L4 1.5L FWD Automatic & Manual
DL Sedan 1993 - 1994 L4 1.8L FWD Automatic & Manual
DL Sedan 1993 - 1994 L4 2.4L FWD Automatic & Manual
DL Wagon 1992 - 1995 L4 1.5L FWD Automatic
DL Wagon 1992 - 1994 L4 1.5L FWD Manual
DL Wagon 1992 - 1995 L4 1.8L FWD Automatic
DL Wagon 1992 - 1994 L4 1.8L FWD Manual
DL Wagon 1992 - 1995 L4 2.4L FWD Automatic
DL Wagon 1992 - 1994 L4 2.4L FWD Manual
ES Coupe 1993 - 1994 L4 1.5L FWD Automatic & Manual
ES Coupe 1993 - 1994 L4 1.8L FWD Automatic & Manual
ES Hatchback 1992 L4 1.5L FWD Automatic & Manual
ES Sedan 1993 - 1994 L4 1.8L FWD Automatic & Manual
ES Sedan 1992 - 1994 L4 1.5L FWD Automatic & Manual
ESi Coupe 1995 L4 1.5L FWD Automatic
ESi Coupe 1994 - 1995 L4 1.8L FWD Automatic
ESi Coupe 1994 L4 1.8L FWD Manual
ESi Sedan 1995 L4 1.5L FWD Automatic
ESi Sedan 1994 - 1995 L4 1.8L FWD Automatic
ESi Sedan 1994 L4 1.8L FWD Manual
LX Coupe 1995 L4 1.8L FWD Automatic
LX Coupe 1995 L4 2.4L FWD Automatic
LX Sedan 1994 - 1995 L4 1.8L FWD Automatic
LX Sedan 1994 L4 1.8L FWD Manual
LX Sedan 1994 - 1995 L4 2.4L FWD Automatic
LX Sedan 1994 L4 2.4L FWD Manual
LX Wagon 1992, 1994 - 1995 L4 1.8L FWD Automatic
LX Wagon 1992, 1994 L4 1.8L FWD Manual
LX Wagon 1992 - 1995 L4 2.4L FWD Automatic
LX Wagon 1992 - 1994 L4 2.4L FWD Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
C-Tek brake rotors and drums offer many of the features and benefits of premium replacement parts.

Interchange Parts

Brand Part Number
Aimco 3561
Autospecialty JBD140
Autospecialty JBD140E
Beck/Arnley 0832423
Bendix 140349
Bendix 140644
Bendix PDR0349
Bendix PDR0644
BrakeBest 9105DGS
BrakeBest 9449DGS
Brembo 21047
Delta 78816000
Delta 8816000
EIS Brakes D9105
Formula Blue Hydraulic Brake Parts E127-51-005
Formula Blue Hydraulic Brake Parts E12751005
Formula Blue Hydraulic Brake Parts E128-51-005
GWB 87289
GWB 87321
GWB 87449
IAP/Kuhltek Motorwerks BD35010
IPI 1001
Midas BD1513
Mighty Distributing System 35010
Neotek Drums and Rotors 116803
OEM Part Number 100751
OEM Part Number MA180104
OEM Part Number MA180105
OEM Part Number MB180104
OEM Part Number MB180105
OEM Part Number MB587937
Pep Boys 35010G
Pep Boys 3561G
Qualitee International 63 75 040
Raybestos Brakes 9105
Raybestos Brakes 9105R
Raybestos Brakes 9321
Raybestos Brakes 9449
Raybestos Brakes 9449R
Universal 203610
Universal 213000
VIPAR - Vehicle Indusrty Parts & Manufacturing X21825
Wagner Brake BD60376

Fits Years: 1992 1993 1994 1995

Fits Models: Summit
