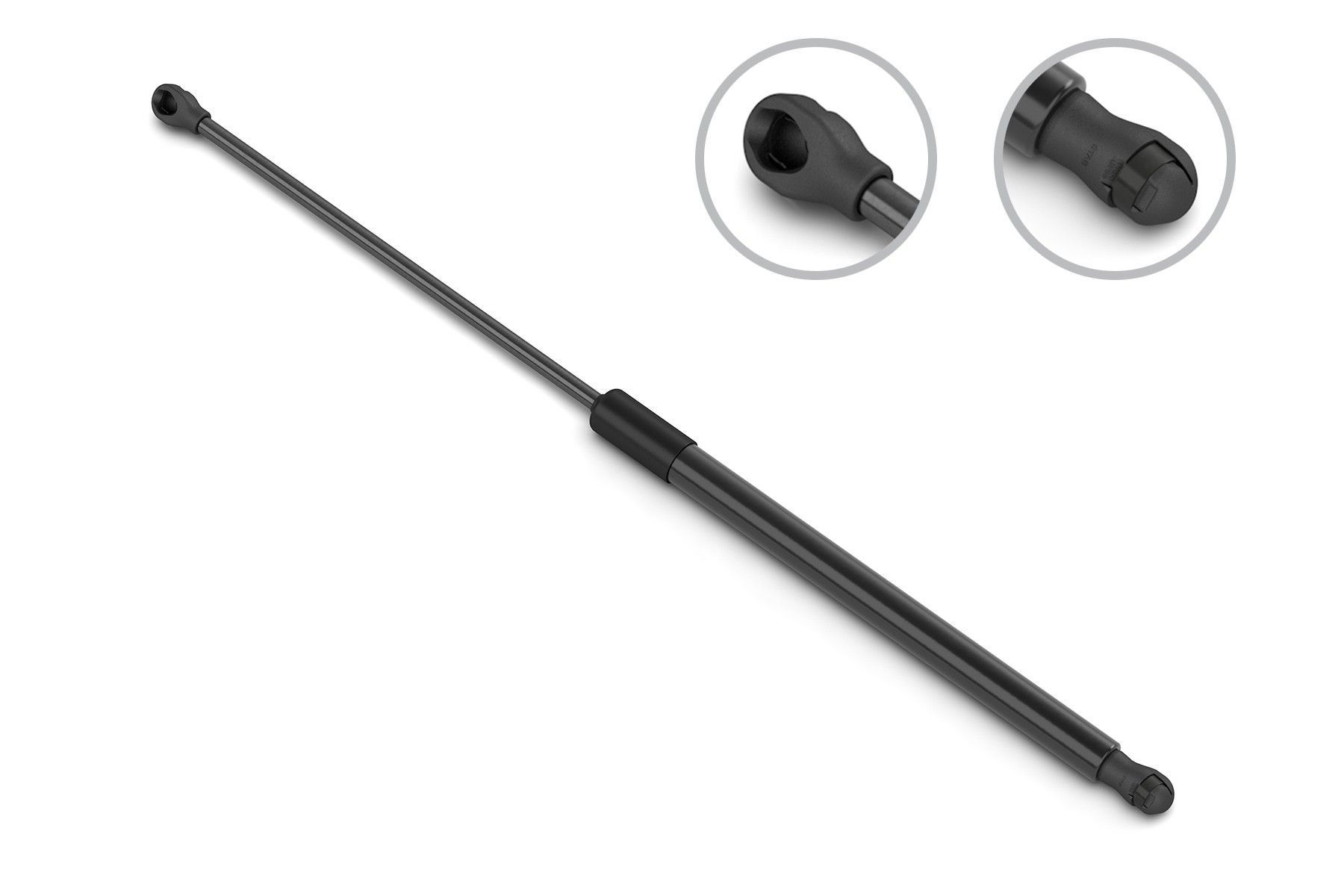

2021 - 2024 Ford Bronco Liftgate Lift Support (Stabilus) NEW

$ 46 .62
120-DayReturns
LifetimeWarranty
100%Money-Back

Product Notes Read before buying

Interstop by Stabilus - Precision Control with Dynamic Damping. Interstop by Stabilus sets a new standard in controlled motion, featuring dynamic damping technology for refined, adaptable performance. This advanced lift support utilizes a longitudinal groove-known as a velocity manifold-pressed into the tube wall, allowing gas to flow around the piston. The unique dynamic damping groove can be segmented to create predefined stopping points along the stroke, enabling precise control over extension movement. Special Coil Spring Supported Piston Package A special coil spring supported piston package is integrated into the design to reduce extension force, allowing the extension movement of the lift support to be easily stopped at desired points. Designed for Smooth Operation The groove profile is expertly crafted to ensure gentle, controlled stops with minimal impact, enhancing overall usability. Built from high-quality materials and fine-tuned for smooth, reliable function, Interstop offers OE performance and design, making it an ideal choice across industries requiring precision control, from automotive to ergonomic equipment and beyond. Why Choose Interstop? - Dynamic Damping: Continuous gas flow around the piston, controlled by a custom groove, allows precision-tuned extension. - Predefined Stopping Points: Segmented groove design enables users to stop at specific points along the stroke. - Special Coil Spring Package: Reduces extension force for easier stopping of the lift support. - Built to Last: High-quality materials and expert engineering ensure reliability and durability. Choose Interstop by Stabilus for a refined, dynamic damping solution that delivers consistent, application-specific performance and effortless control every time.
Brand: Stabilus
Condition: New
Wrenchy the Robot
Not sure? Ask WrenchyYour Parts Assistant.

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Agricultural Equipment N
CarLight Truck Y
Compressed Length 19.57, 497
Cylinder Outside Diameter 0.866
End 1 Material Nylon
End 1 Mount Diameter 0.394
End 1 Type Ball Socket
End 2 Material Nylon
End 2 Mount Diameter 0.394
End 2 Type Ball Socket
Engine Specific N
Extended Length 34.84, 885
Heavy Truck N
High Performance N
IndustrialOff Highway N
Inner Shaft Diameter 0.394
Marine N
Maximum Force 150, 34
Medium Truck N
MotorCycleRV N
Mounting Hardware Included No
NonVehicle Specific N
Personal Watercraft N
Prop 65 Affected Yes
Prop 65 Chemical Dehp
Prop 65 Warning Warning: This Product Can Expose You To Chemicals Including Di(2-ethylhexyl) Phthalate (dehp), Which Is Known To The State Of California To Cause Canc
Small Engine N
Snowmobile N
Stroke Length 15.27, 388
Transmission Specific N
Type Gas

Vehicle Fitment Guide

This part fits the following vehicles:

Ford 1 model (tapclick to expand)(tapclick to hide)
Bronco 2021-2024 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL
Body Style Years Engine Attributes
Badlands SUV 2021 - 2024 L4 2.3L Turbo 4WD Automatic & Manual
Badlands SUV 2021 - 2024 L4 2.3L Turbo 4WD Automatic & Manual
Badlands SUV 2021 L4 2.3L Turbo AWD Automatic
Badlands SUV 2021 L4 2.3L Turbo AWD Automatic
Badlands SUV 2021 - 2024 V6 2.7L Turbo 4WD Automatic & Manual
Badlands SUV 2021 - 2024 V6 2.7L Turbo 4WD Automatic & Manual
Badlands SUV 2021 V6 2.7L Turbo AWD Automatic
Badlands SUV 2021 V6 2.7L Turbo AWD Automatic
Base SUV 2021 - 2023 L4 2.3L Turbo 4WD Automatic & Manual
Base SUV 2021 - 2023 L4 2.3L Turbo 4WD Automatic & Manual
Base SUV 2021 - 2023 V6 2.7L Turbo 4WD Automatic & Manual
Base SUV 2021 - 2023 V6 2.7L Turbo 4WD Automatic & Manual
Big Bend SUV 2021 - 2024 L4 2.3L Turbo 4WD Automatic & Manual
Big Bend SUV 2021 - 2024 L4 2.3L Turbo 4WD Automatic & Manual
Big Bend SUV 2021 - 2024 V6 2.7L Turbo 4WD Automatic & Manual
Big Bend SUV 2021 - 2024 V6 2.7L Turbo 4WD Automatic & Manual
Black Diamond SUV 2021 - 2024 L4 2.3L Turbo 4WD Automatic & Manual
Black Diamond SUV 2021 - 2024 L4 2.3L Turbo 4WD Automatic & Manual
Black Diamond SUV 2021 - 2024 V6 2.7L Turbo 4WD Automatic & Manual
Black Diamond SUV 2021 - 2024 V6 2.7L Turbo 4WD Automatic & Manual
Everglades SUV 2022 - 2024 L4 2.3L Turbo 4WD Automatic
First Edition SUV 2021 V6 2.7L Turbo 4WD Automatic
First Edition SUV 2021 V6 2.7L Turbo 4WD Automatic
Heritage Edition SUV 2024 V6 2.7L Turbo 4WD Automatic & Manual
Heritage Edition SUV 2024 V6 2.7L Turbo 4WD Automatic & Manual
Heritage Edition SUV 2023 - 2024 L4 2.3L Turbo 4WD Automatic & Manual
Heritage Edition SUV 2023 - 2024 L4 2.3L Turbo 4WD Automatic & Manual
Heritage Limited Edition SUV 2023 - 2024 V6 2.7L Turbo 4WD Automatic
Heritage Limited Edition SUV 2023 - 2024 V6 2.7L Turbo 4WD Automatic
Outer Banks SUV 2021 - 2024 L4 2.3L Turbo 4WD Automatic
Outer Banks SUV 2021 - 2024 L4 2.3L Turbo 4WD Automatic
Outer Banks SUV 2021 - 2024 V6 2.7L Turbo 4WD Automatic
Outer Banks SUV 2021 - 2024 V6 2.7L Turbo 4WD Automatic
Raptor SUV 2022 - 2024 V6 3.0L Turbo 4WD Automatic
Wildtrak SUV 2021 - 2024 V6 2.7L Turbo 4WD Automatic
Wildtrak SUV 2021 - 2024 V6 2.7L Turbo 4WD Automatic
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies, in plain English.

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Lifetime Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

Returns (120 Days)

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.
Interstop by Stabilus - Precision Control with Dynamic Damping. Interstop by Stabilus sets a new standard in controlled motion, featuring dynamic damping technology for refined, adaptable performance. This advanced lift support utilizes a longitudinal groove-known as a velocity manifold-pressed into the tube wall, allowing gas to flow around the piston. The unique dynamic damping groove can be segmented to create predefined stopping points along the stroke, enabling precise control over extension movement. Special Coil Spring Supported Piston Package A special coil spring supported piston package is integrated into the design to reduce extension force, allowing the extension movement of the lift support to be easily stopped at desired points. Designed for Smooth Operation The groove profile is expertly crafted to ensure gentle, controlled stops with minimal impact, enhancing overall usability. Built from high-quality materials and fine-tuned for smooth, reliable function, Interstop offers OE performance and design, making it an ideal choice across industries requiring precision control, from automotive to ergonomic equipment and beyond. Why Choose Interstop? - Dynamic Damping: Continuous gas flow around the piston, controlled by a custom groove, allows precision-tuned extension. - Predefined Stopping Points: Segmented groove design enables users to stop at specific points along the stroke. - Special Coil Spring Package: Reduces extension force for easier stopping of the lift support. - Built to Last: High-quality materials and expert engineering ensure reliability and durability. Choose Interstop by Stabilus for a refined, dynamic damping solution that delivers consistent, application-specific performance and effortless control every time.

Interchange Parts

Brand Part Number
Stabilus 738091
Stabilus 853753

Fits Years: 2021 2022 2023 2024

Fits Models: Bronco
