1977, 1976, 1975, 1974, 1973, 1972, 1971, 1970, 1969, 1968, 1967, 1966, 1965, 1964 Ford Custom 500 Sedan Engine Harmonic Balancer
View 1
View 2

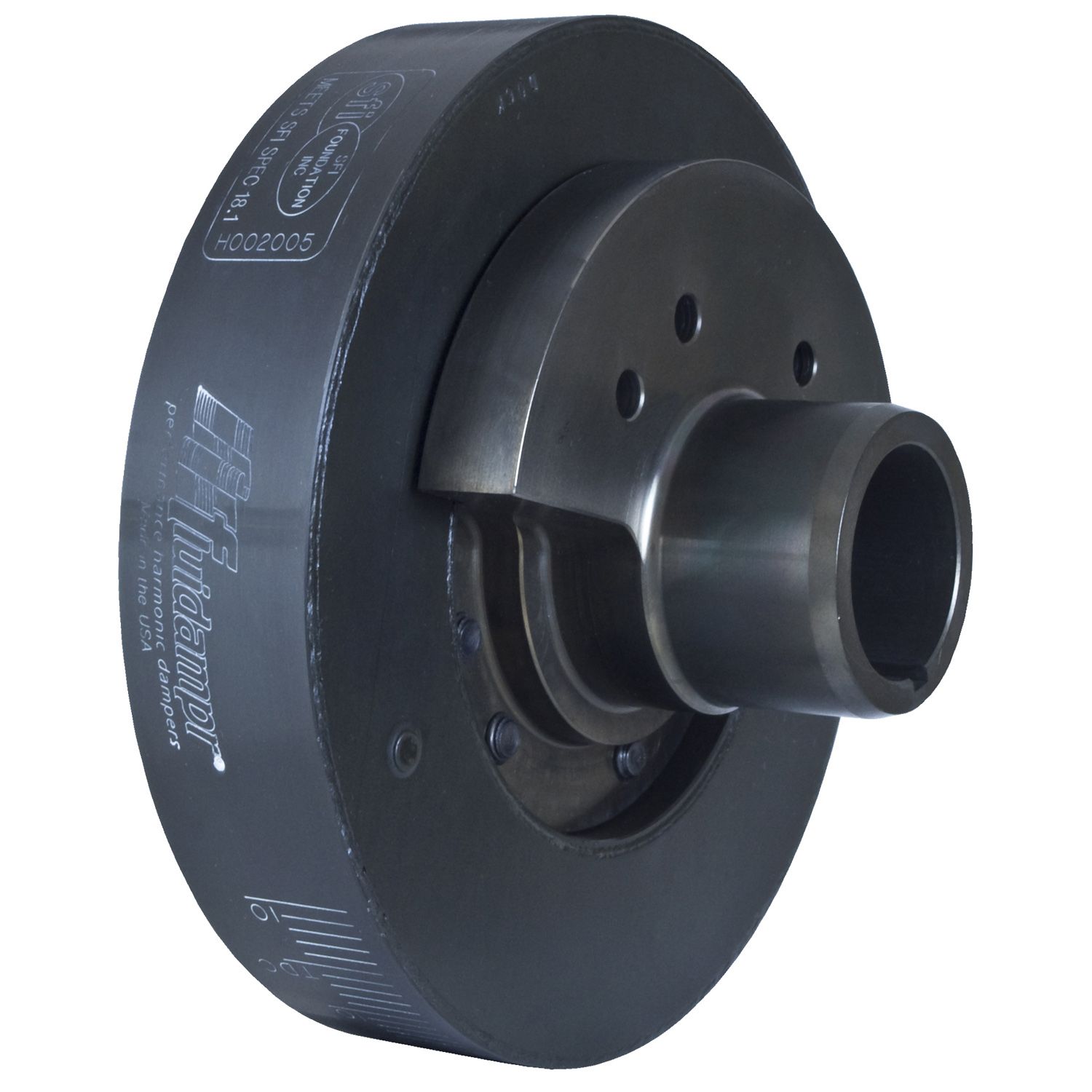

1964 - 1977 Ford Custom 500 Sedan Engine Harmonic Balancer (Fluidampr) NEW

Out of Stock
$ 518 .47

Product Notes

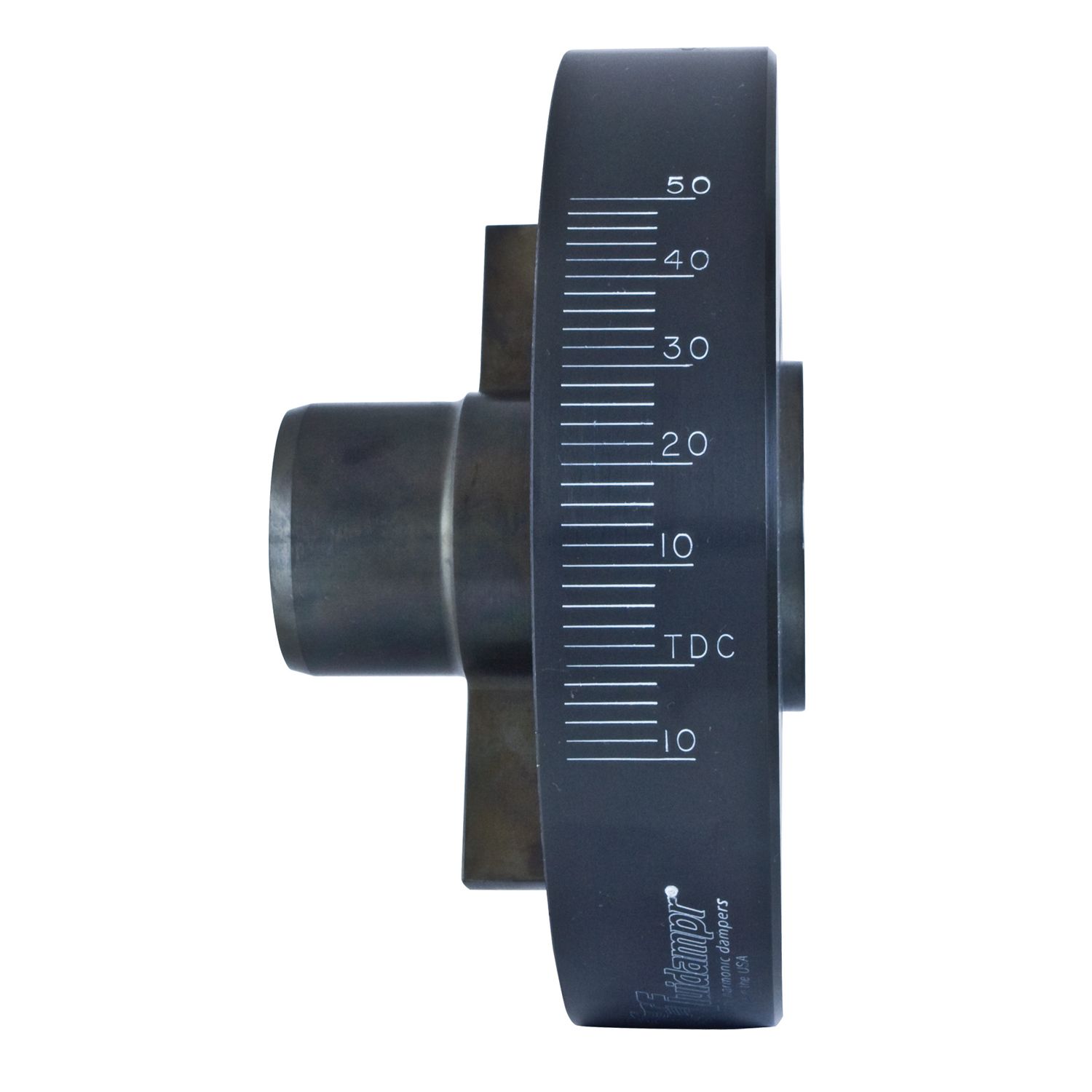

Bore Dia. Min/Max: 1.374 / 1.375 Degree Marking Range: 2 degree increments, 50 BTDC to 10 ATDC Degree Markings: Yes Engine Balance: External (28 oz) Finish: Black Zinc Keyway: Single Length: 3.34 Material: Steel Mounting Hardware Incl.: No O.D.: 6-5/8" (6.625) Safety Rating: SFI 18.1 WT. in lbs.()=Rotating weight: 12.5 (8.3 Rwt) 4 bolt standard Ford pulley bolt pattern. Externally balanced-28oz. Recommend painting with high temperature engine paint to prevent rust.

Protect your engine. Modifications can compromise your stock harmonic balancer. Install a Fluidampr performance damper early for best durability. Superior viscous damper design controls harmful torsional vibration across the entire rpm range. Reduce wear on engine components. Reduce risk of crankshaft failure. Improve timing. Unleash lost torque and horsepower. Precision CNC machined and balanced high-grade steel components. Corrosion resistant black zinc finish with engraved timing marks. No maintenance required. Trusted by leading engine builders worldwide. SFI 18.1 certified. Made in USA.
Brand: Fluidampr
Condition: New
See Other Ford Custom 500 Engine Harmonic Balancers
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Degree Marking Range 2 Degree Increments, 50 Btdc To 10 Atdc
Degree Markings Engraved
Depth 3.5
Engine Balance External (28 Oz)
Finish Black Zinc
Inside Diameter 1.3745
Keyway Type Single; (3/16")
Material Steel
Mounting Hole Quantity 1
Prop 65 (C, R, Or CR) Cr
Prop 65 Short Label Ca-prop65-label.jpg
Pulley Bolt Pattern 4 Bolt Standard Ford Pulley Pattern. Pulley Spacer (fluidampr #717656) May Be Required On Some 1975-later Engines. Custom Pulleys May Be Required On Some 1969-earlier Engines.
Safety Rating Sfi 18.1
Weight / Rotating Weight 12.6 Lbs / 8.4 Lbs

Vehicle Fitment Guide

This part fits the following vehicles:

Ford 1 model (tapclick to expand)(tapclick to hide)
Custom 500 1964-1977 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Hardtop 1975 - 1977 V8 5.8L RWD Automatic
Base Hardtop 1975 - 1977 V8 5.8L RWD Automatic
Base Hardtop 1975 - 1977 V8 6.6L RWD Automatic
Base Hardtop 1975 - 1977 V8 6.6L RWD Automatic
Base Hardtop 1975 - 1976 V8 7.5L RWD Automatic
Base Hardtop 1975 - 1976 V8 7.5L RWD Automatic
Base Sedan 1973 - 1974 V8 5.0L RWD Automatic
Base Sedan 1973 V8 5.0L RWD Manual
Base Sedan 1973 - 1974 V8 5.8L RWD Automatic
Base Sedan 1973 V8 5.8L RWD Manual
Base Sedan 1973 - 1974 V8 6.6L RWD Automatic
Base Sedan 1973 V8 6.6L RWD Manual
Base Sedan 1973 V8 7.0L RWD Automatic & Manual
Base Sedan 1973 - 1974 V8 7.5L RWD Automatic
Base Sedan 1973 V8 7.5L RWD Manual
Base Sedan 1972 - 1974 V8 7.5L RWD U/K
Base Sedan 1971 - 1974 V8 6.6L RWD U/K
Base Sedan 1968 - 1974 V8 5.0L RWD U/K
Base Sedan 1968 - 1969 V8 5.0L RWD U/K
Base Sedan 1965 - 1972 L6 3.9L RWD U/K
Base Sedan 1965 - 1969 L6 3.9L RWD U/K
Base Sedan 1965 - 1973 V8 7.0L RWD U/K
Base Sedan 1965 - 1969 V8 7.0L RWD U/K
Base Sedan 1964 V8 4.3L RWD U/K
Base Sedan 1964 V8 4.3L RWD U/K
Base Sedan 1964 - 1967 V8 4.7L RWD U/K
Base Sedan 1964 - 1967 V8 4.7L RWD U/K
Base Sedan 1964 - 1966, 1969 - 1974 V8 5.8L RWD U/K
Base Sedan 1964 - 1966, 1969 V8 5.8L RWD U/K
Base Sedan 1964, 1966 - 1971 V8 6.4L RWD U/K
Base Sedan 1964, 1966 - 1969 V8 6.4L RWD U/K
Base Wagon 1973 - 1974 V8 5.0L RWD Automatic
Base Wagon 1973 V8 5.0L RWD Manual
Base Wagon 1973 - 1974 V8 5.8L RWD Automatic
Base Wagon 1973 V8 5.8L RWD Manual
Base Wagon 1973 - 1974 V8 6.6L RWD Automatic
Base Wagon 1973 V8 6.6L RWD Manual
Base Wagon 1973 V8 7.0L RWD Automatic & Manual
Base Wagon 1973 - 1974 V8 7.5L RWD Automatic
Base Wagon 1973 V8 7.5L RWD Manual
Base Wagon 1972 - 1974 V8 7.5L RWD U/K
Base Wagon 1971 - 1974 V8 6.6L RWD U/K
Base Wagon 1969 - 1972 L6 3.9L RWD U/K
Base Wagon 1969 - 1974 V8 5.0L RWD U/K
Base Wagon 1969 - 1974 V8 5.8L RWD U/K
Base Wagon 1969 - 1971 V8 6.4L RWD U/K
Base Wagon 1969 - 1973 V8 7.0L RWD U/K
Ranch Wagon Wagon 1975 - 1977 V8 6.6L RWD Automatic
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.
