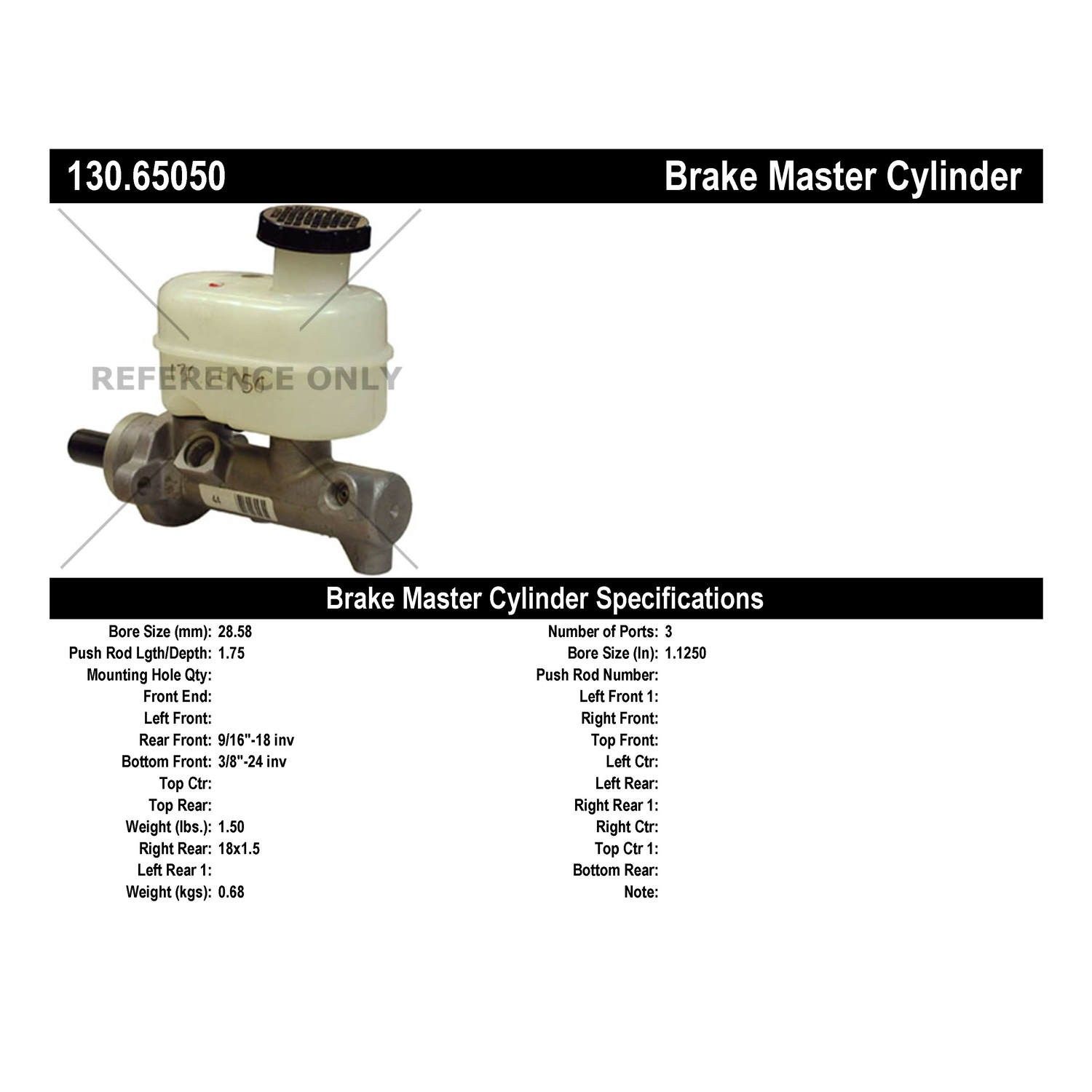

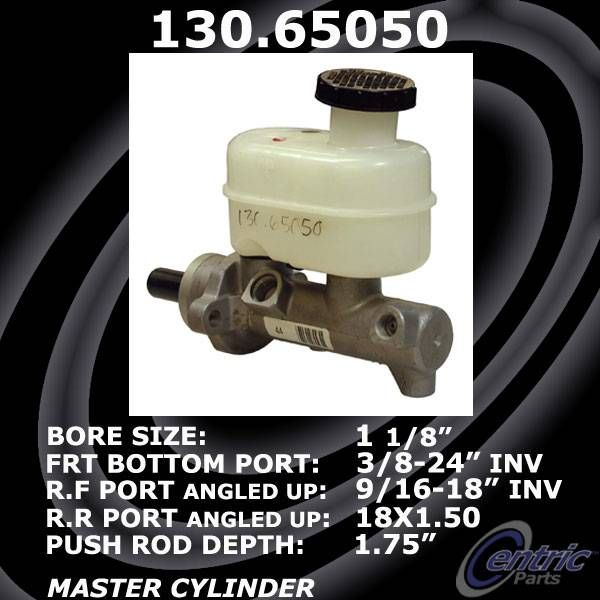

| Attribute | Value |
|---|---|
| Attribute ID (Type) | California Proposition 65 |
| Bleeder Hoses Included | No |
| Bore Size | 1.125, 28.575 |
| Boss, Nipple Or Port: Bottom [cntrc] | 3/8"-24 Inv |
| Boss, Nipple Or Port: Front, Right: #A [cntrc] | 9/16"-18 Inv |
| Boss, Nipple Or Port: Rear, Right: #A [cntrc] | M18-1.50 |
| Brake Booster Included | No |
| Brake Pressure Switch Quantity | 1 |
| Brake Pressure Switch Required | Yes |
| Brake Pressure Switch(s) Included | No |
| Cylinder Bore Dia In | 1.1250 |
| Cylinder Bore Dia Mm | 28.58 |
| Gasket Or Seal Included | Yes |
| Master Cylinder Bore Diameter | 1.125, 28.575 |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Port Quantity | 3 |
| Primary Bore Diameter | 1.125, 28.575 |
| Primary Outlet Flare Type | Open |
| Primary Outlet Flare Type [cntrc] | Open |
| Primary Outlet Thread Diameter | 18.000 |
| Primary Outlet Thread Pitch | 1.50 |
| Primary Outlet Thread Size | M18-1.50 |
| Product Grade [cntrc] | Premium |
| Publication Bore [cntrc] | 1 1/8" |
| Push Rod Included | No |
| Push Rod Lgth / Depth | 1.75 |
| Push Rod: Length / Depth [cntrc] In | 1.75 |
| Reservoir Included | Yes |
| Reservoir Material | Plastic |
| Reservoir Style | Removable |
| Secondary Outlet Flare Type | Inverted |
| Secondary Outlet Flare Type [cntrc] | Inverted |
| Secondary Outlet Thread Diameter | 0.5625 |
| Secondary Outlet Thread Size | 9/16"-18 |
| Secondary Outlet Threads Per Inch | 18 |
| Weight [cntrc] Kgs | 0.68 |
| Weight [cntrc] Lbs | 1.5 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | Standard Cargo Van | 2003 | V6 4.2L | RWD Automatic |
| Base | Standard Cargo Van | 2003 | V8 4.6L | RWD Automatic |
| Base | Standard Cargo Van | 2003 | V8 5.4L | RWD Automatic |
| XL | Standard Passenger Van | 2003 | V6 4.2L | RWD Automatic |
| XL | Standard Passenger Van | 2003 | V8 5.4L | RWD Automatic |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| Aimco | M901048 |
| Autospecialty | M85050 |
| AutoZone | NM3046 |
| Bendix | 13281 |
| Bendix | 13693 |
| Bendix | 14108 |
| CARDONE Reman | 102883 |
| CARDONE Reman | 132883 |
| Dana Auto-tech | 65-M390393 |
| Delco-Remy | 18039282 |
| Delco-Remy | 18M1256 |
| Delco-Remy | 18M813 |
| Dorman | M390393 |
| Dorman | M630045 |
| EIS Brakes | E151372 |
| EIS Brakes | E151841 |
| Formula Blue Hydraulic Brake Parts | E135-70-055 |
| Formula Blue Hydraulic Brake Parts | E13570055 |
| Midas | CM2165 |
| OEM Part Number | 1C2Z2140BA |
| OEM Part Number | 1C2Z2140BB |
| OEM Part Number | 2C2Z2140AA |
| OEM Part Number | 2C2Z2140AB |
| OEM Part Number | 3C2Z2140AA |
| OEM Part Number | F7UZ2140NB |
| OEM Part Number | F8UZ2140AB |
| OEM Part Number | YC2Z2140BA |
| Parts Plus | 2302-65050 |
| Parts Plus | 230265050 |
| Parts Plus | MC251720 |
| Qualis | ZY14108 |
| Qualitee International | 6692105 |
| Raybestos Brakes | MC390393 |
| Raybestos Brakes | MC390741 |
| Wagner Brake | F140478 |
| Wagner Brake | F140479 |
| Wagner Brake | F140578 |
| Wagner Brake | F140639 |
| Wagner Brake | MC140478 |
| Wagner Brake | MC140479 |
| Wagner Brake | MC140578 |
| Wagner Brake | MC140639 |
Fits Years: 2003
Fits Models: E-150
