2001, 2000, 1999, 1998, 1997, 1996 Ford Explorer Engine Oil Pump
View 1
View 2
View 3
View 4
View 5

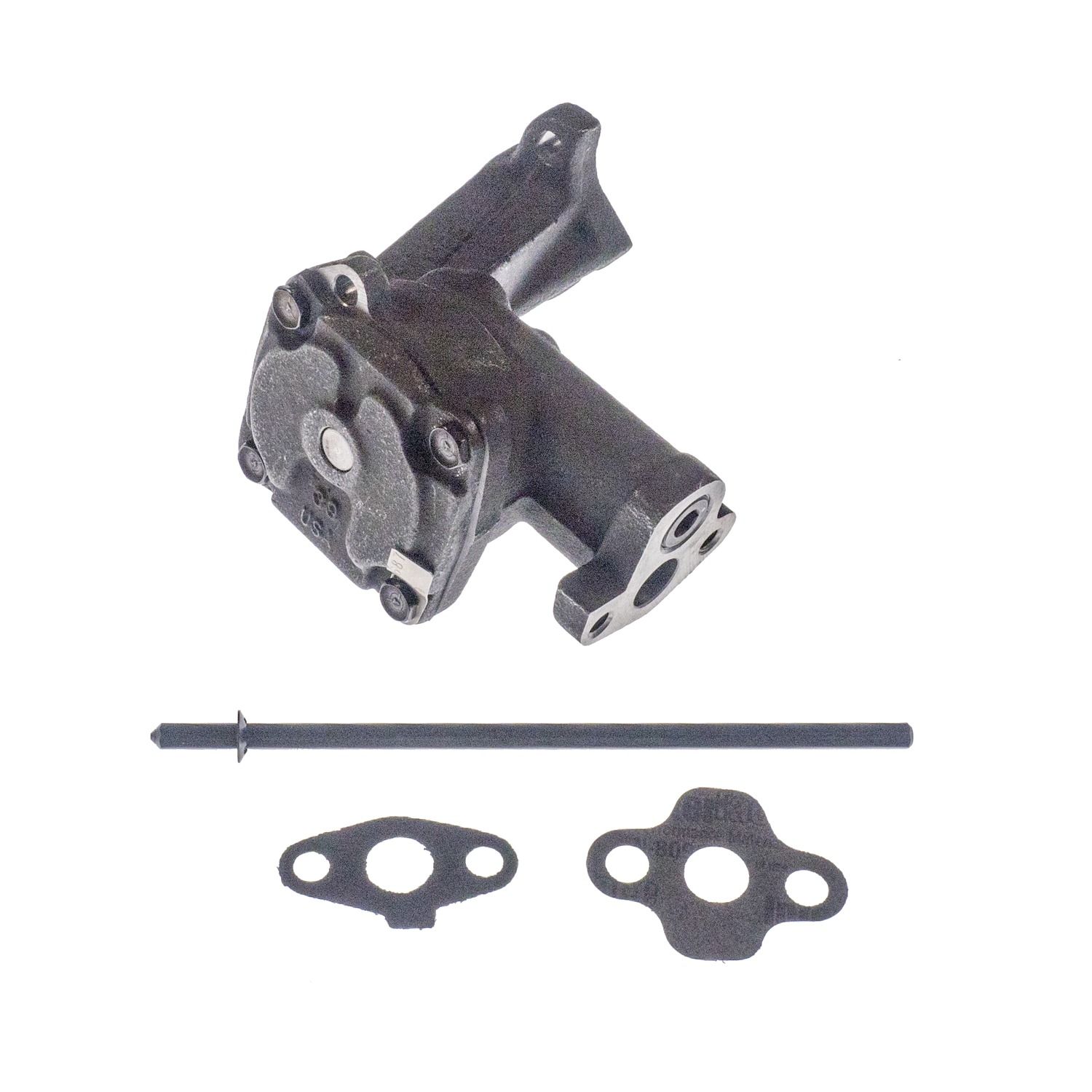

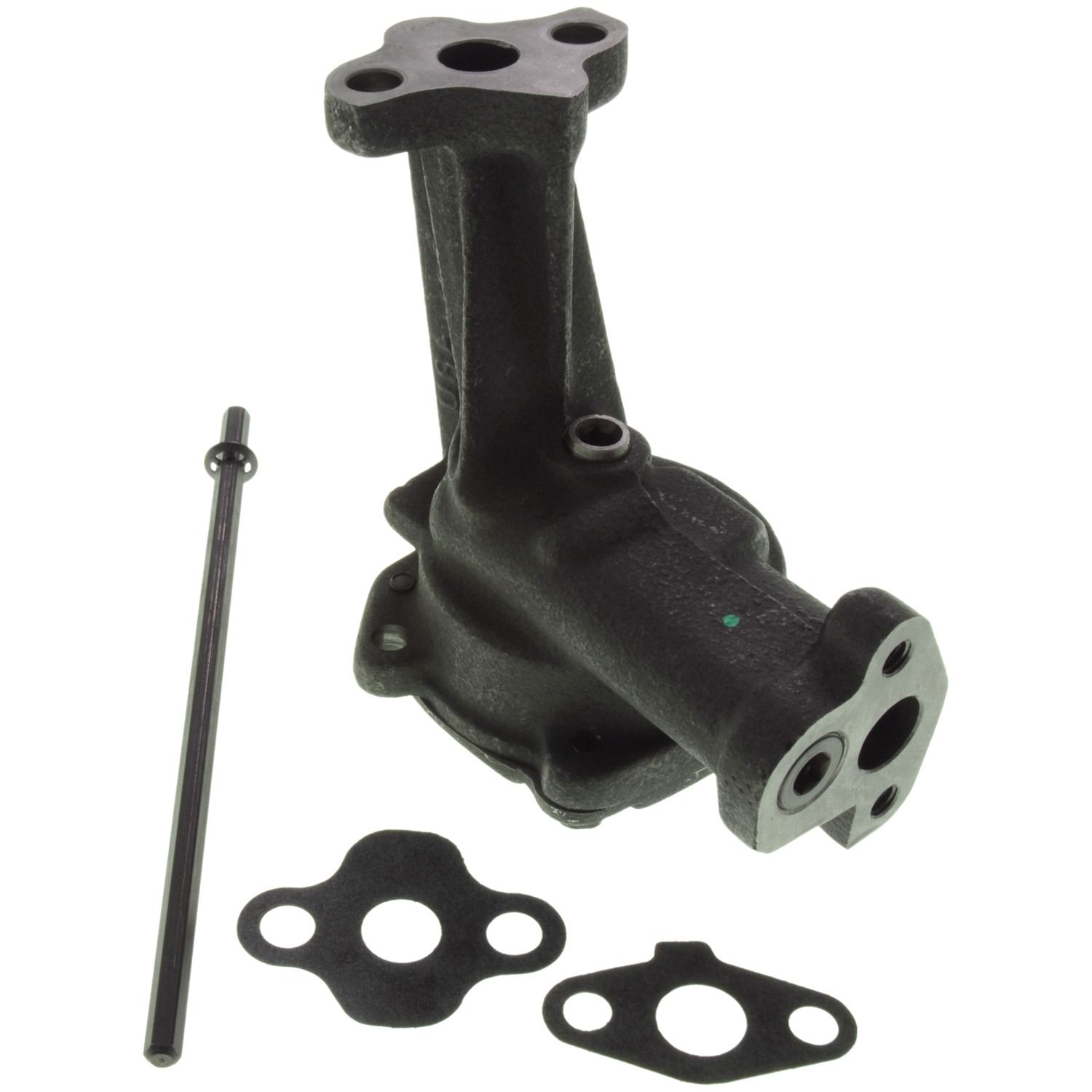

1996 - 2001 Ford Explorer Engine Oil Pump (Melling Select Performance) NEW

Out of Stock
$ 158 .42

Product Notes

Standard Volume High Performance Oil Pump Drive Shaft Extended Into Cover Adjustable Pressure Relief Valve 10 PSI Higher Pressure Relief Spring Installed Includes Optional (+20 PSI) High Pressure Spring Includes 12680 Chrome Moly Intermediate Shaft Uses 5/8 Inch Stock Bolt-On Oil Pickup Tube Includes Mounting Gaskets
Performance
Made in USA. Melling high performance oil pumps provide dependable performance every time in every application under the toughest RPM conditions. Gerotor set assembled to an extended drive shaft that allows for additional support in the cover. Supporting the drive shaft in both the housing and cover eliminates dynamic shaft deflection at increased RPM levels. The cover is doweled to the pump housing to assure alignment of shaft bores. The housing and cover are CNC machined and phosphate coated for wear and rust prevention. The relief valve has a pressure adjustable screw-in plug instead of a cup plug. Works with the original bolt-on pickup screen assemblies. Every Melling high performance oil pump is individually tested for pressure and flow under actual engine operating conditions.
Brand: Melling Select Performance
Condition: New
See Other Ford Explorer Engine Oil Pumps
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Additional Pressure Over Stock Percentage 20 Psi
Drive Type Drive Shaft
Gear Type Spur Gear
Grade Type Performance
Mounting Hole Diameter 0.380, 10.0
Oil Pump Pressure Type High Pressure
Oil Pump Type Gear
Oil Pump Volume Type Standard Volume
Pickup Tube Diameter 0.625, 16.0

Vehicle Fitment Guide

This part fits the following vehicles:

Ford 1 model (tapclick to expand)(tapclick to hide)
Explorer 1996-2001 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Eddie Bauer SUV 1997 - 2001 V6 4.0L AWD Automatic
Eddie Bauer SUV 1997 - 2001 V8 5.0L AWD Automatic
Eddie Bauer SUV 1996 - 2001 V6 4.0L RWD/4WD Automatic
Eddie Bauer SUV 1996 - 2001 V8 5.0L RWD/4WD Automatic
Limited SUV 1997 - 2001 V6 4.0L AWD Automatic
Limited SUV 1997 - 2001 V8 5.0L AWD Automatic
Limited SUV 1996 - 2001 V6 4.0L RWD/4WD Automatic
Limited SUV 1996 - 2001 V8 5.0L RWD/4WD Automatic
Postal Stripped Chassis 2000 - 2001 V6 4.0L RWD/4WD Automatic
Sport SUV 1998 - 2000 V6 4.0L RWD Automatic
Sport SUV 1996 - 2000 V6 4.0L RWD/4WD Automatic & Manual
XL SUV 1996 - 1999 V6 4.0L RWD/4WD Automatic & Manual
XL SUV 1996 - 1998 V6 4.0L RWD/4WD Automatic & Manual
XL Fleet SUV 2000 - 2001 V6 4.0L RWD/4WD Automatic & Manual
XLS SUV 2000 V6 4.0L RWD/4WD Manual
XLS SUV 2000 V8 5.0L RWD/4WD Manual
XLS SUV 1999 - 2001 V6 4.0L RWD/4WD Automatic
XLS SUV 1999 V6 4.0L AWD Automatic
XLS SUV 1999 - 2000 V8 5.0L RWD/4WD Automatic
XLS SUV 1999 V8 5.0L AWD Automatic
XLT SUV 1996 - 2001 V6 4.0L AWD/RWD/4WD Automatic
XLT SUV 1996 - 2000 V6 4.0L AWD/RWD/4WD Manual
XLT SUV 1996 - 2001 V8 5.0L AWD/RWD/4WD Automatic
XLT SUV 1996 - 2000 V8 5.0L AWD/RWD/4WD Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Made in USA. Melling high performance oil pumps provide dependable performance every time in every application under the toughest RPM conditions. Gerotor set assembled to an extended drive shaft that allows for additional support in the cover. Supporting the drive shaft in both the housing and cover eliminates dynamic shaft deflection at increased RPM levels. The cover is doweled to the pump housing to assure alignment of shaft bores. The housing and cover are CNC machined and phosphate coated for wear and rust prevention. The relief valve has a pressure adjustable screw-in plug instead of a cup plug. Works with the original bolt-on pickup screen assemblies. Every Melling high performance oil pump is individually tested for pressure and flow under actual engine operating conditions.

Interchange Parts

Brand Part Number
Melling Select Performance 10687

Fits Years: 1996 1997 1998 1999 2000 2001

Fits Models: Explorer
