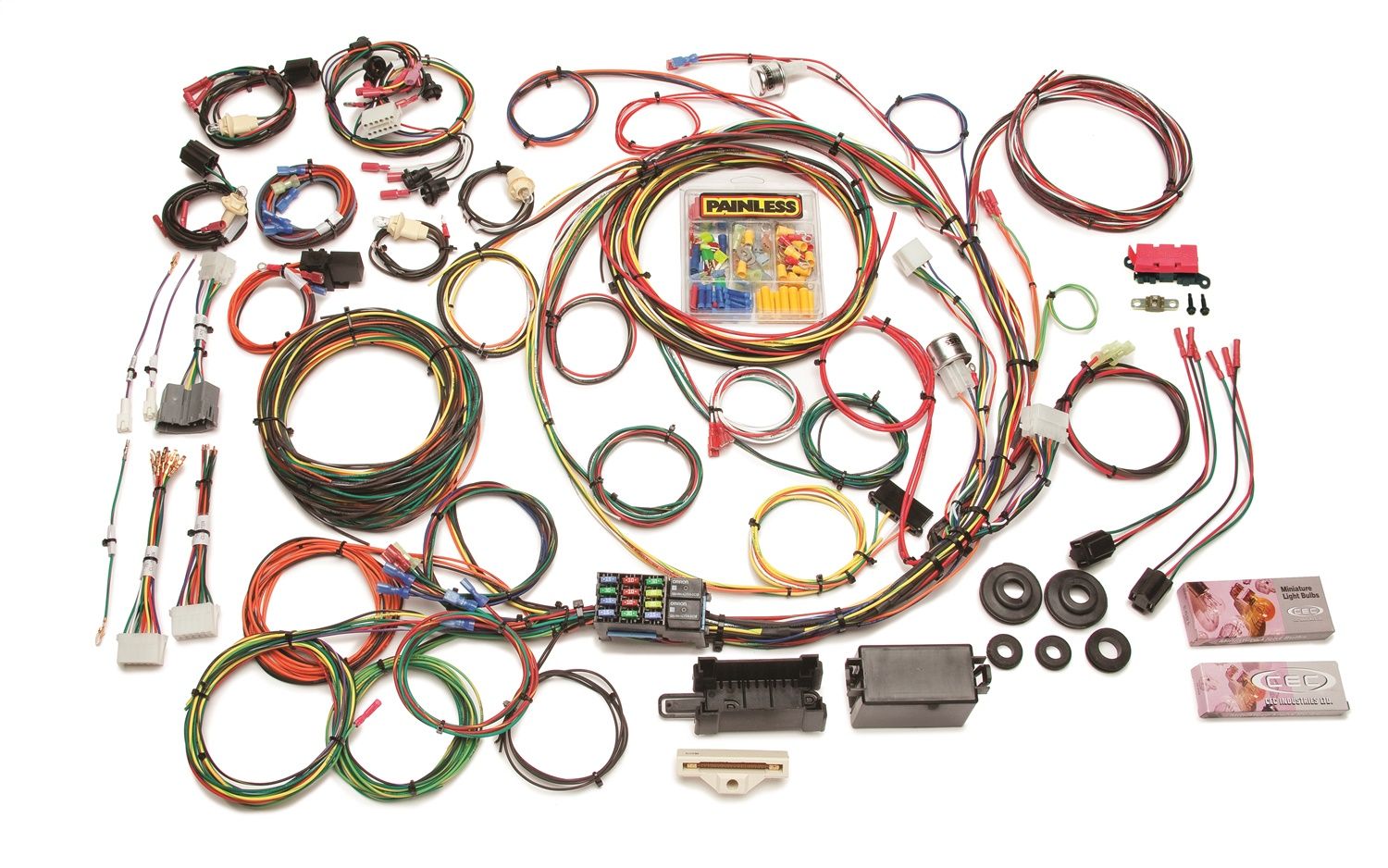

1977, 1976, 1975 Ford F-150 Chassis Wiring Harness

1975 - 1977 Ford F-150 Chassis Wiring Harness (Painless Wiring) NEW

$ 954 .95

Product Notes

12 Fuses w/Horn Relay/Accessory Relay; Maxi Fuse; For Ford Applications; w/o Switches
21 Circuit Direct Fit Harness
Painless Performance 21-Circuit 1967-1977 direct fit Ford F-series harnesses are the perfect upgrade for your Ford truck. The harnesses use many of the factory connections and are already pre-terminated. Each harness features a unique covered micro-fuse block with a 20 amp auxiliary relay circuit for accessories such as fog lights, or an electric fuel pump. Each wire is custom printed with the circuit identification as well as using Ford color codes for easy installation.
Brand: Painless Wiring
Condition: New
See Other Ford F-150 Chassis Wiring Harnesss
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
WARNING CA Proposition 65 Yes
WARNING CA Proposition 65 Message Warning: This Product Can Expose You To Lead Which Is Known To The State Of California To Cause Cancer And Birth Defects Or Other Reproductive Harm.
