| Attribute | Value |
|---|---|
| CARB EO Number | D-759-6 |
| Install Difficulty | 4 |
| Prop 65 (C, R Or CR) | Cr |
| SellingPoint01 | Direct Fit For The 2013-2018 Ford Focus St |
| SellingPoint02 | 4.3-in Thick Intercooler Design Optimized For Maximum Flow |
| SellingPoint03 | 8 Hp And 10 Lb.-ft. Of Torque Gains When Combined With Other Mishimoto Focus St Parts |
| SellingPoint04 | Optimal Core Design For Maximum Cooling Efficiency With Minimal Pressure Drop |
| SellingPoint05 | Cnc-machined Ribbed Inlet And Outlet For Secure Coupler Connections |
| SellingPoint06 | Increases Core Size By 128-percent And Fin Surface Area By 32-percent |
| SellingPoint07 | 10-percent Increase In Volume And 40-percent Increase In Flow Over Stock Cold-side Pipe |
| SellingPoint08 | 14-percent Increase In Volume And 26-percent Greater Flow Than Stock Hot-side Pipe |
| SellingPoint09 | Cold-side Pipe Has Elliptical Shape To Accommodate For Larger Mishimoto Radiator |
| SellingPoint10 | Provision For Both Us And Euro Map Sensor |
| SellingPoint11 | No Modification To Front Bumper And Retains Stock Fog Lights |
| SellingPoint12 | Pipes Available In Polished Or Wrinkle Black Powder-coating |
| SellingPoint13 | Mishimoto Lifetime Warranty |
| SellingPoint14 | N/a |
| SellingPoint15 | N/a |
| TechSpec Applications | Ford Focus St, 2013-2018 |
| TechSpec Centerline Radius | N/a |
| TechSpec Chassis Codes | C346 |
| TechSpec Core Height (in) | N/a |
| TechSpec Core Length (in) | N/a |
| TechSpec Core Thickness (in) | N/a |
| TechSpec Core Type | Bar-and-plate |
| TechSpec Engine Codes | N/a |

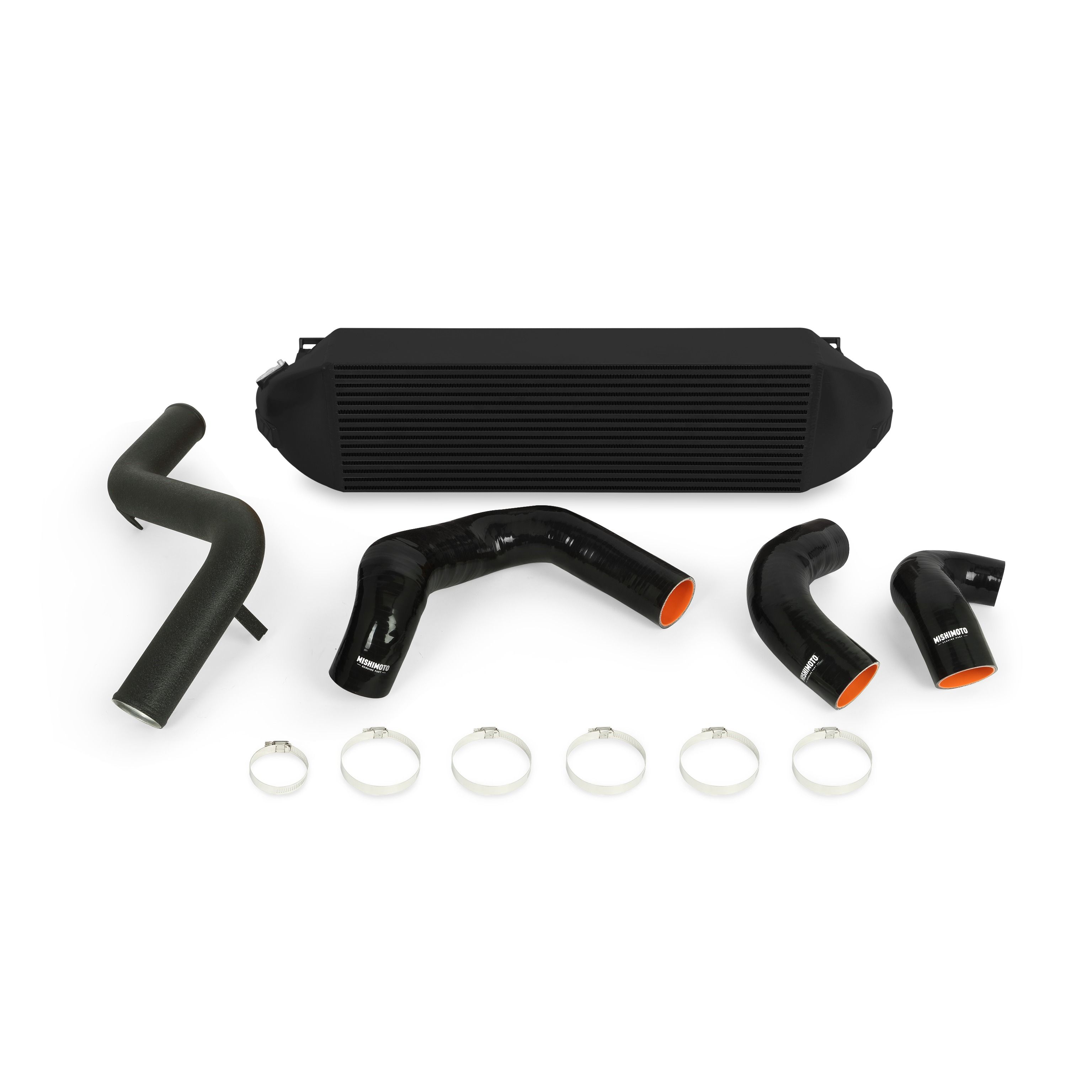

| TechSpec Includes | (1) Mishimoto Intercooler--(1) Aluminum Intercooler Pipe--(2) Silicone Couplers--(1) Silicone Pipe--(6) High Torque Worm Gear Clamps--mishimoto Lifetime Warranty |
| TechSpec Inlet (in) | 2.5 |
| TechSpec Installation Notes | 22 In-lbs (2.5nm) Recommended For All Worm Gear Clamps. These Clamps Have An Operating Range Of 18-27 In-lbs (2-3nm). Do Not Exceed The Maximum Torque Rating Of 27 In-lbs (3nm). |
| TechSpec Maximum Recommended Boost Pressure (PSI) | N/a |
| TechSpec Maximum Recommended Horsepower | N/a |
| TechSpec Note | N/a |
| TechSpec Outlet (in) | 2.5 |
| TechSpec Overall Height (in) | 8.3 |
| TechSpec Overall Length (in) | 35.7 |
| TechSpec Overall Width (in) | 7.25 |
| TechSpec Pipe Diameter | N/a |
| TechSpec Pipe Length | N/a |
| TechSpec Pipe Shape | N/a |
| TechSpec Weight (lbs) | 30 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Ambiente | Sedan | 2014 | L4 2.0L | FWD Manual |
| Electric | Hatchback | 2013 - 2018 | -- -L BATTERY EV (EV/BEV) | FWD Automatic |
| RS | Hatchback | 2017 | L4 2.3L Turbo | FWD Manual |
| RS | Hatchback | 2016 - 2018 | L4 2.3L Turbo | AWD Automatic & Manual |
| S | Sedan | 2016 - 2018 | L4 2.0L FLEX | FWD Automatic |
| S | Sedan | 2014 - 2017 | L4 2.0L | FWD Automatic |
| S | Sedan | 2013 - 2017 | L4 2.0L | FWD Manual & Automatic Dual Clutch |
| S | Sedan | 2013 - 2018 | L4 2.0L FLEX | FWD Manual & Automatic Dual Clutch |
| SE | Hatchback | 2016 - 2018 | L3 1.0L Turbo | FWD Automatic |
| SE | Hatchback | 2016 - 2018 | L4 2.0L FLEX | FWD Automatic |
| SE | Hatchback | 2015 - 2018 | L3 1.0L Turbo | FWD Manual & Automatic Dual Clutch |
| SE | Hatchback | 2015 - 2018 | L4 2.0L | FWD Automatic |
| SE | Hatchback | 2013 - 2018 | L4 2.0L | FWD Manual |
| SE | Hatchback | 2013 - 2017 | L4 2.0L | FWD Automatic Dual Clutch |
| SE | Hatchback | 2013 - 2018 | L4 2.0L FLEX | FWD Manual & Automatic Dual Clutch |
| SE | Sedan | 2016 - 2018 | L3 1.0L Turbo | FWD Automatic |
| SE | Sedan | 2016 - 2018 | L4 2.0L FLEX | FWD Automatic |
| SE | Sedan | 2015 - 2018 | L3 1.0L Turbo | FWD Manual & Automatic Dual Clutch |
| SE | Sedan | 2015 - 2018 | L4 2.0L | FWD Automatic |
| SE | Sedan | 2013 - 2018 | L4 2.0L | FWD Manual |
| SE | Sedan | 2013 - 2017 | L4 2.0L | FWD Automatic Dual Clutch |
| SE | Sedan | 2013 - 2018 | L4 2.0L FLEX | FWD Manual & Automatic Dual Clutch |
| SE Appearance | Hatchback | 2015 | L4 2.0L | FWD Automatic & Manual |
| SE Appearance | Sedan | 2015 | L4 2.0L | FWD Automatic & Manual |
| SE Luxury | Hatchback | 2016 | L4 2.0L | FWD Manual |
| SE Luxury | Sedan | 2016 | L4 2.0L | FWD Manual |
| SE Plus | Hatchback | 2013 - 2014 | L4 2.0L | FWD Manual |
| SE Plus | Sedan | 2013 - 2014 | L4 2.0L | FWD Manual |
| SEL | Hatchback | 2017 | L4 2.0L | FWD Automatic Dual Clutch |
| SEL | Hatchback | 2017 - 2018 | L4 2.0L FLEX | FWD Automatic Dual Clutch |
| SEL | Sedan | 2017 | L4 2.0L | FWD Automatic Dual Clutch |
| SEL | Sedan | 2017 - 2018 | L4 2.0L FLEX | FWD Automatic Dual Clutch |
| ST | Hatchback | 2016 - 2018 | L4 2.0L Turbo | FWD Automatic |
| ST | Hatchback | 2013 - 2018 | L4 2.0L Turbo | FWD Manual |
| Titanium | Hatchback | 2016 - 2017 | L4 2.0L | FWD Automatic |
| Titanium | Hatchback | 2016 - 2018 | L4 2.0L FLEX | FWD Automatic |
| Titanium | Hatchback | 2013 - 2017 | L4 2.0L | FWD Automatic Dual Clutch |
| Titanium | Hatchback | 2013 - 2016 | L4 2.0L | FWD Manual |
| Titanium | Hatchback | 2013 - 2018 | L4 2.0L FLEX | FWD Automatic Dual Clutch |
| Titanium | Hatchback | 2013 - 2016 | L4 2.0L FLEX | FWD Manual |
| Titanium | Sedan | 2016 - 2017 | L4 2.0L | FWD Automatic |
| Titanium | Sedan | 2016 - 2018 | L4 2.0L FLEX | FWD Automatic |
| Titanium | Sedan | 2013 - 2017 | L4 2.0L | FWD Manual & Automatic Dual Clutch |
| Titanium | Sedan | 2013 - 2018 | L4 2.0L FLEX | FWD Automatic Dual Clutch |
| Titanium | Sedan | 2013 - 2016 | L4 2.0L FLEX | FWD Manual |
| Titanium Plus | Sedan | 2013 - 2015 | L4 2.0L | FWD Manual |
| Trend | Hatchback | 2014 | L4 2.0L | FWD Manual |
| Trend | Sedan | 2014 | L4 2.0L | FWD Manual |
| Trend Sport | Hatchback | 2014 | L4 2.0L | FWD Manual |
| Trend Sport | Sedan | 2014 | L4 2.0L | FWD Manual |
