| Attribute | Value |
|---|---|
| Install Difficulty | 3 |
| SellingPoint01 | Direct Fit For The 2016-2018 Ford Focus Rs |
| SellingPoint02 | 80-percent Increase In Core Size |
| SellingPoint03 | 36-percent Increase In Internal Core Volume And 214-percent Increase In External Fin Surface Area |
| SellingPoint04 | 46-percent And 45-percent Less Pressure Drop Than Stock Cold-side And Hot-side Pipe, Respectively |
| SellingPoint05 | 31-percent And 40-percent Increase In Internal Volume Compared To Stock Cold-side And Hot-side Pipe, Respectively |
| SellingPoint06 | Designed To Not Block Off Cooling To The Ptu |
| SellingPoint07 | 7 Whp And 8 Wtq Bolt-on Power Increase With Stock Tune |
| SellingPoint08 | Intercooler Available In Sleek Silver Or Stealth Black |
| SellingPoint09 | N/a |
| SellingPoint10 | N/a |
| SellingPoint11 | N/a |
| SellingPoint12 | N/a |
| SellingPoint13 | N/a |
| SellingPoint14 | N/a |
| SellingPoint15 | N/a |
| TechSpec Applications | 2016-2018 Ford Focus Rs |
| TechSpec Centerline Radius | N/a |
| TechSpec Chassis Codes | C346 |
| TechSpec Core Height (in) | 8.3 |
| TechSpec Core Length (in) | 25.6 |
| TechSpec Core Thickness (in) | N/a |
| TechSpec Core Type | Bar-and-plate |
| TechSpec Engine Codes | 2.3l Ecoboost Gtdi I4 |

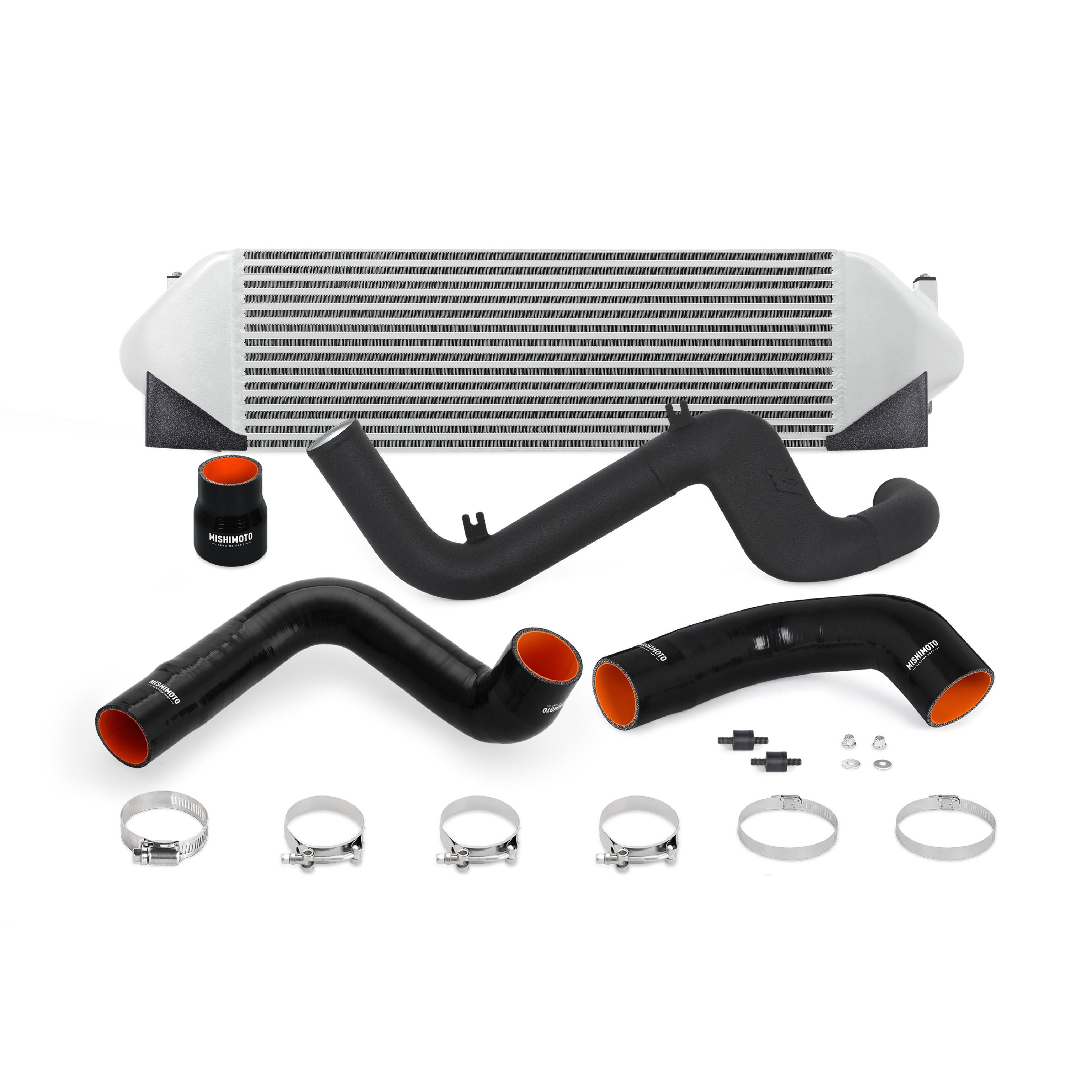

| TechSpec Includes | (1) Mishimoto Intercooler--(1) Left & Right Diversion Plate--(1) Hot-side Intercooler Pipe--(2) Silicone Couplers--(1) Wire-reinforced Silicone Hose--(4) T-bolt Clamps--(2) High-torque Worm Gear Clamps--mounting Hardware--mishimoto Lifetime Warranty |
| TechSpec Inlet (in) | 2.75 |
| TechSpec Installation Notes | 27 In-lbs (3nm) Recommended For All T-bolt And Constant-tension T-bolt Clamps. These Clamps Have An Operating Range Of 18-35 In-lbs (2-4nm). Do Not Exceed The Maximum Torque Rating Of 35 In-lbs (4nm). |
| TechSpec Maximum Recommended Boost Pressure (PSI) | N/a |
| TechSpec Maximum Recommended Horsepower | 600 |
| TechSpec Note | N/a |
| TechSpec Outlet (in) | 2.75 |
| TechSpec Overall Height (in) | N/a |
| TechSpec Overall Length (in) | N/a |
| TechSpec Overall Width (in) | N/a |
| TechSpec Pipe Diameter | N/a |
| TechSpec Pipe Length | N/a |
| TechSpec Pipe Shape | N/a |
| TechSpec Weight (lbs) | 33 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Electric | Hatchback | 2016 - 2018 | -- -L BATTERY EV (EV/BEV) | FWD Automatic |
| RS | Hatchback | 2017 | L4 2.3L Turbo | FWD Manual |
| RS | Hatchback | 2016 - 2018 | L4 2.3L Turbo | AWD Automatic & Manual |
| S | Sedan | 2016 - 2017 | L4 2.0L | FWD Automatic & Manual & Automatic Dual Clutch |
| S | Sedan | 2016 - 2018 | L4 2.0L FLEX | FWD Automatic & Manual & Automatic Dual Clutch |
| SE | Hatchback | 2016 - 2018 | L3 1.0L Turbo | FWD Automatic & Manual & Automatic Dual Clutch |
| SE | Hatchback | 2016 - 2018 | L4 2.0L | FWD Automatic & Manual |
| SE | Hatchback | 2016 - 2017 | L4 2.0L | FWD Automatic Dual Clutch |
| SE | Hatchback | 2016 - 2018 | L4 2.0L FLEX | FWD Automatic & Manual & Automatic Dual Clutch |
| SE | Sedan | 2016 - 2018 | L3 1.0L Turbo | FWD Automatic & Manual & Automatic Dual Clutch |
| SE | Sedan | 2016 - 2018 | L4 2.0L | FWD Automatic & Manual |
| SE | Sedan | 2016 - 2017 | L4 2.0L | FWD Automatic Dual Clutch |
| SE | Sedan | 2016 - 2018 | L4 2.0L FLEX | FWD Automatic & Manual & Automatic Dual Clutch |
| SE Luxury | Hatchback | 2016 | L4 2.0L | FWD Manual |
| SE Luxury | Sedan | 2016 | L4 2.0L | FWD Manual |
| SEL | Hatchback | 2017 | L4 2.0L | FWD Automatic Dual Clutch |
| SEL | Hatchback | 2017 - 2018 | L4 2.0L FLEX | FWD Automatic Dual Clutch |
| SEL | Sedan | 2017 | L4 2.0L | FWD Automatic Dual Clutch |
| SEL | Sedan | 2017 - 2018 | L4 2.0L FLEX | FWD Automatic Dual Clutch |
| ST | Hatchback | 2016 - 2018 | L4 2.0L Turbo | FWD Automatic & Manual |
| Titanium | Hatchback | 2016 - 2017 | L4 2.0L | FWD Automatic & Automatic Dual Clutch |
| Titanium | Hatchback | 2016 | L4 2.0L | FWD Manual |
| Titanium | Hatchback | 2016 - 2018 | L4 2.0L FLEX | FWD Automatic & Automatic Dual Clutch |
| Titanium | Hatchback | 2016 | L4 2.0L FLEX | FWD Manual |
| Titanium | Sedan | 2016 - 2017 | L4 2.0L | FWD Automatic & Manual & Automatic Dual Clutch |
| Titanium | Sedan | 2016 - 2018 | L4 2.0L FLEX | FWD Automatic & Automatic Dual Clutch |
| Titanium | Sedan | 2016 | L4 2.0L FLEX | FWD Manual |
