Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.
| Attribute | Value |
|---|---|
| 108 | |
| ABS Tone Ring Included | No |
| Attribute ID (Type) | California Proposition 65 |
| Bearings Included | No |
| Bolt Hole Quantity | 5 |
| California Proposition 65 Site [basic] | Https://www.p65warnings.ca.gov/ |
| California Proposition 65 Text [basic] | Warning: Cancer And Reproductive Harm |
| California Proposition 65 Text [cntrc] | Warning: Cancer And Reproductive Harm |

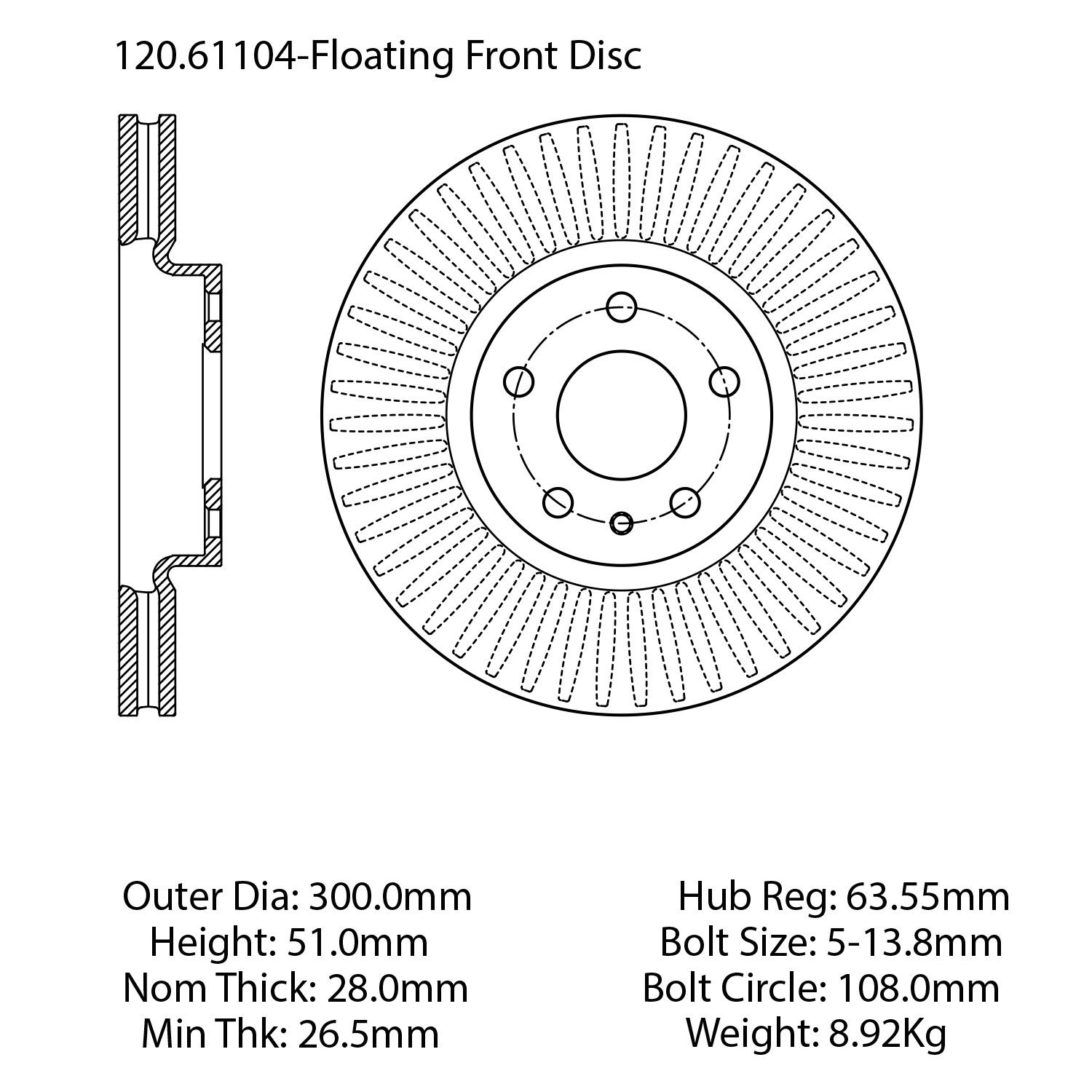

| Center Hole Diameter | 2.504, 63.600 |
| Disc Mounting [cntrc] | Floating |
| Discard Thickness | 1.043, 26.5, 26.500 |
| Hat Finish | Coated |
| Hat ID [cntrc] In | 5.508 |
| Hat ID [cntrc] Mm | 139.900 |
| Hub Hole/Whl Reg Mm | 63.6 |
| Misc Holes [cntrc] | 1 |
| Mounting Bolt Hole Circle Diameter | 108.000, 4.252 |
| Mounting Type | Floating |
| Nominal Thickness | 1.102, 28, 28.000 |
| Overall Height | 2.012, 51.100 |
| Product Grade [cntrc] | Premium |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Diameter | 0.539, 13.700 |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| Vane Style | Straight |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 9.340 |
| Weight [cntrc] Lbs | 20.550 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Advance | Sedan | 2017 | L4 2.5L | FWD Automatic |
| Energi Platinum | Sedan | 2017 - 2018 | L4 2.0L PLUG-IN HYBRID EV-GAS (PHEV) | FWD Automatic CVT |
| Energi SE | Sedan | 2013 - 2018 | L4 2.0L PLUG-IN HYBRID EV-GAS (PHEV) | FWD Automatic CVT |
| Energi SEL | Sedan | 2019 - 2020 | L4 2.0L PLUG-IN HYBRID EV-GAS (PHEV) | FWD Automatic CVT |
| Energi Titanium | Sedan | 2013 - 2020 | L4 2.0L PLUG-IN HYBRID EV-GAS (PHEV) | FWD Automatic CVT |
| Platinum | Sedan | 2017 - 2018 | L4 2.0L Turbo | AWD/FWD Automatic |
| Platinum Hybrid | Sedan | 2017 - 2018 | L4 2.0L FULL HYBRID EV-GAS (FHEV) | FWD Automatic CVT |
| S | Sedan | 2017 - 2020 | L4 2.5L FLEX | FWD Automatic |
| S | Sedan | 2013 - 2020 | L4 2.5L | FWD Automatic |
| S Hybrid | Sedan | 2014 - 2018 | L4 2.0L FULL HYBRID EV-GAS (FHEV) | FWD Automatic CVT |
| SE | Sedan | 2017 - 2020 | L4 2.5L FLEX | AWD/FWD Automatic |
| SE | Sedan | 2015 - 2020 | L4 1.5L Turbo | AWD Automatic |
| SE | Sedan | 2014 - 2020 | L4 1.5L Turbo | FWD Automatic |
| SE | Sedan | 2014 | L4 1.5L Turbo | FWD Manual |
| SE | Sedan | 2013 - 2014 | L4 1.6L Turbo | FWD Automatic & Manual |
| SE | Sedan | 2013 | L4 1.6L Turbo | AWD Automatic & Manual |
| SE | Sedan | 2013, 2015 - 2020 | L4 2.0L Turbo | AWD Automatic |
| SE | Sedan | 2013 - 2020 | L4 2.0L Turbo | FWD Automatic |
| SE | Sedan | 2013 - 2014 | L4 2.0L Turbo | FWD Manual |
| SE | Sedan | 2013 | L4 2.0L Turbo | AWD Manual |
| SE | Sedan | 2013, 2015 - 2020 | L4 2.5L | AWD Automatic |
| SE | Sedan | 2013 - 2020 | L4 2.5L | FWD Automatic |
| SE | Sedan | 2013 - 2014 | L4 2.5L | FWD Manual |
| SE | Sedan | 2013 | L4 2.5L | AWD Manual |
| SE Hybrid | Sedan | 2017 | L4 2.0L FULL HYBRID EV-GAS (FHEV) | FWD Automatic |
| SE Hybrid | Sedan | 2013 - 2020 | L4 2.0L FULL HYBRID EV-GAS (FHEV) | FWD Automatic CVT |
| SE LUX Hybrid | Sedan | 2018 - 2019 | L4 2.0L FULL HYBRID EV-GAS (FHEV) | FWD Automatic CVT |
| SE LUX Hybrid | Sedan | 2017 | L4 2.0L FULL HYBRID EV-GAS (FHEV) | FWD Automatic |
| SE Luxury | Sedan | 2015, 2017 | L4 2.0L Turbo | FWD Automatic |
| SEL | Sedan | 2019 - 2020 | L4 1.5L Turbo | AWD/FWD Automatic |
| SEL | Sedan | 2019 | L4 2.0L Turbo | AWD/FWD Automatic |
| SEL | Sedan | 2019 | L4 2.5L | AWD/FWD Automatic |
| SEL | Sedan | 2019 | L4 2.5L FLEX | AWD/FWD Automatic |
| SEL Hybrid | Sedan | 2019 - 2020 | L4 2.0L FULL HYBRID EV-GAS (FHEV) | FWD Automatic CVT |
| Sport | Sedan | 2017 - 2019 | V6 2.7L Turbo | AWD Automatic |
| Titanium | Sedan | 2013 - 2020 | L4 2.0L Turbo | AWD/FWD Automatic |
| Titanium Hybrid | Sedan | 2013 - 2020 | L4 2.0L FULL HYBRID EV-GAS (FHEV) | FWD Automatic CVT |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| Autopart International | 1407-479085 |
| AutoZone | 75014 |
| AutoZone | 75014GT |
| Carquest | YH479085 |
| Ford Genuine Parts | BBRF328 |
| Ford Genuine Parts | BRRF117 |
| Ford Genuine Parts | BRRF307 |
| Ford Genuine Parts | BRRF330 |
| IAP/Kuhltek Motorwerks | BR90116202 |
| Mighty Distributing System | 850315 |
| OEM Part Number | 2017128 |
| OEM Part Number | DG9Z-1125-C |
| OEM Part Number | DG9Z1125A |
| OEM Part Number | DG9Z1125C |
| OEM Part Number | DG9Z1125G |
| OEM Part Number | DG9Z1125GA |
| OEM Part Number | KS7Z1125A |
| Promax | 2054196 |
| Qualis | 42286 |
| Raybestos Brakes | 681014 |
| Raybestos Brakes | 681015 |
| Wagner Brake | BD180602 |
| Wagner Brake | BD180602E |
Fits Years: 2013 2014 2015 2016 2017 2018 2019 2020
Fits Models: Fusion
