2010 Ford Mustang Supercharger Kit
View 1
View 2

2010 Ford Mustang Supercharger Kit (Edelbrock) NEW

Out of Stock
$ 8,069 .95

Product Notes

Tune TVS Series: 2300 HP: 466 Torque (Ft.-lbs): 439

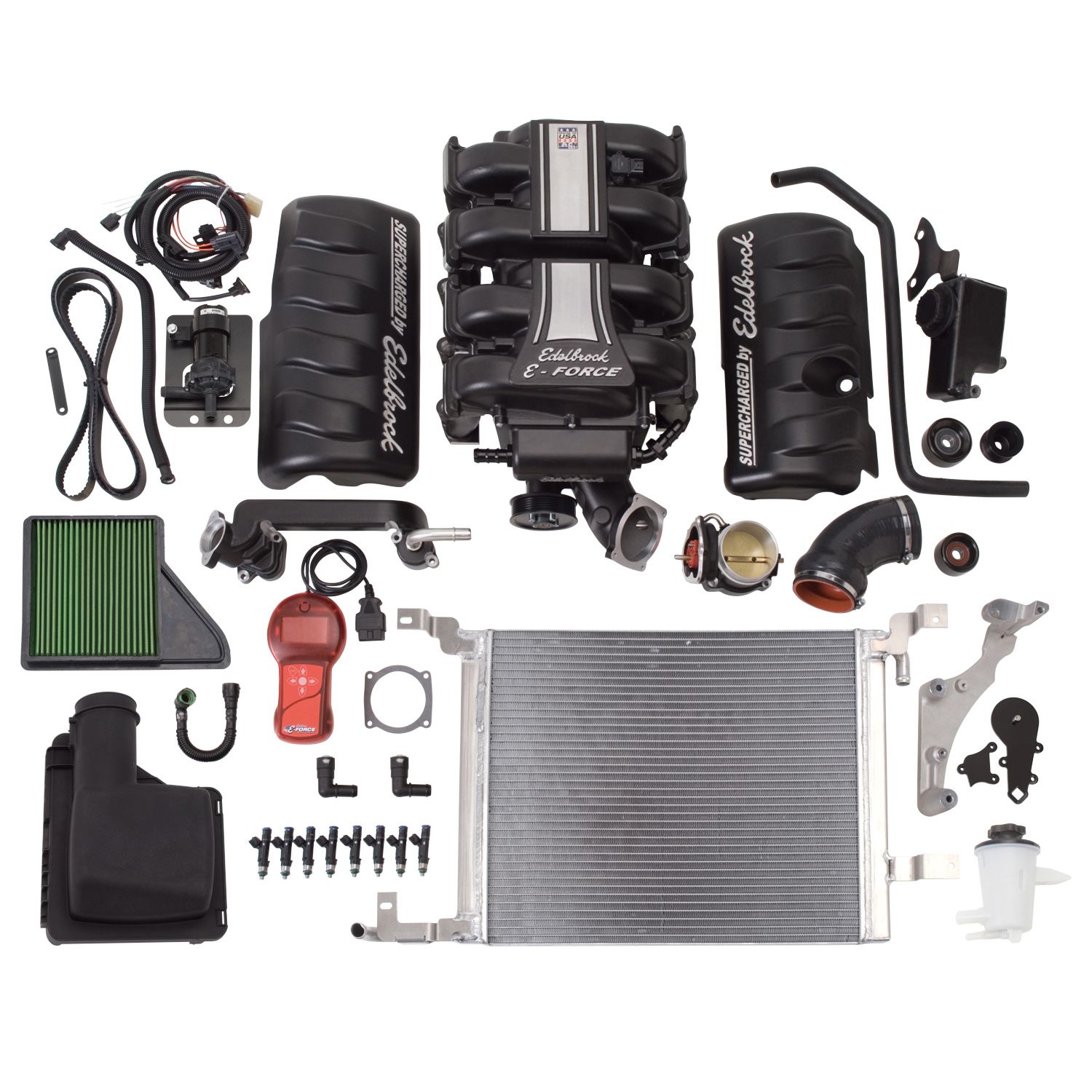

E-Force Supercharger for 2010 Mustang GT 4.6L 3V - Stage 1
The Edelbrock supercharger Stage 1 Street system part #1582 for 2010 Mustangs increases the performance of your 4.6L 3V engine to 466 horsepower and 439 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1582 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Brand: Edelbrock
Condition: New
See Other Ford Mustang Supercharger Kits
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
9040 D-215-89
Air Filter Included Yes
Calibration Yes
Center Housing Cooling Type Intercooler
Fuel Injector Type 41
Harmonic Balancer Diameter 6.67
Hose Included Yes
Internal Step Up Yes
Maximum Boost Pressure 4.75
Maximum Horsepower 466
Maximum Pressure Reading 4.75
Maximum Torque 439
Mounting Hardware Included Yes
Oil Capacity 150
Outside Pulley Diameter 3.875
Pulley Belt Width 6-rib
Quantity Kit
RGL Warning: This Product Can Expose You To Chromium, Which Is Known To The State Of California To Cause Cancer Or Birth Defects Or Other Reproductive Harm. For More Information, Visit Www.p65warnings.ca.gov.
Rotor Type Eaton Tvs 2300
System Type Stage 1 - Street System
Tensioner Included Yes
Vehicle Model F-150

Vehicle Fitment Guide

This part fits the following vehicles:

Ford 1 model (tapclick to expand)(tapclick to hide)
Mustang 2010 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Convertible 2010 V6 4.0L RWD Automatic & Manual
Base Convertible 2010 V8 4.6L RWD Automatic & Manual
Base Coupe 2010 V6 4.0L RWD Automatic & Manual
Base Coupe 2010 V8 4.6L RWD Automatic & Manual
GT Convertible 2010 V8 4.6L RWD Automatic & Manual
GT Coupe 2010 V8 4.6L RWD Automatic & Manual
Shelby Convertible 2010 V8 5.4L Supercharged RWD Manual
Shelby Coupe 2010 V8 5.4L Supercharged RWD Manual
Shelby GT500 Convertible 2010 V8 5.4L Supercharged RWD Manual
Shelby GT500 Coupe 2010 V8 5.4L Supercharged RWD Manual
