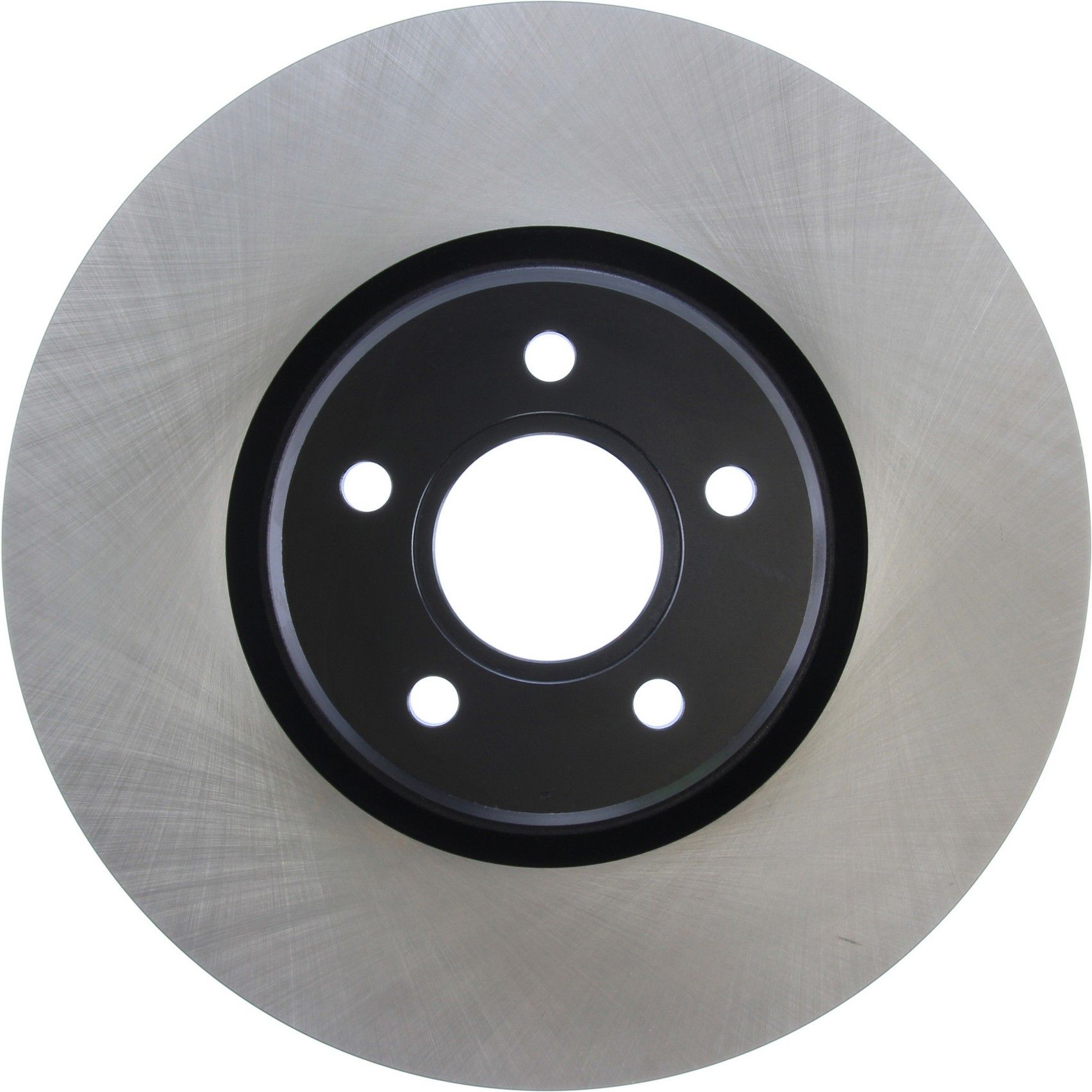

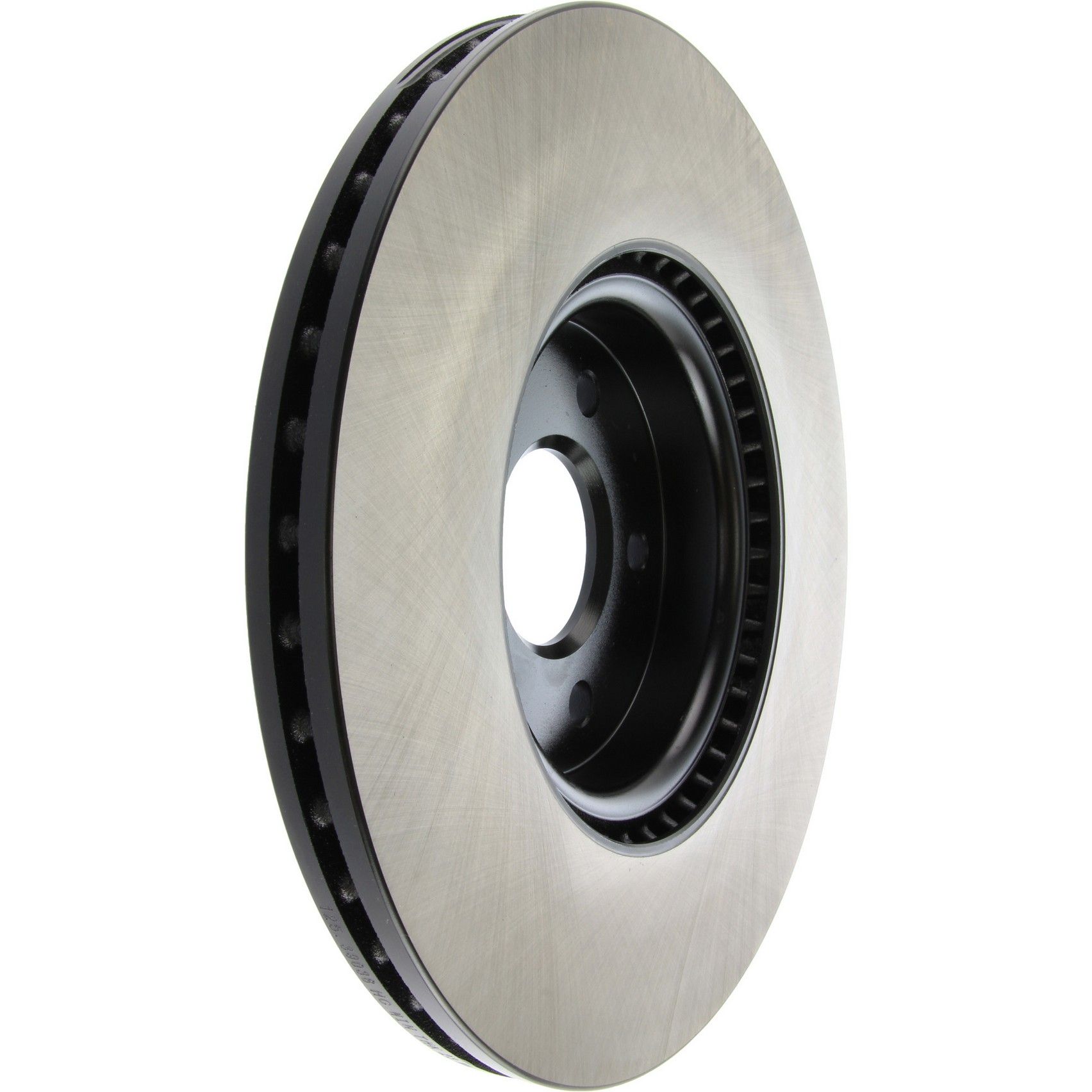

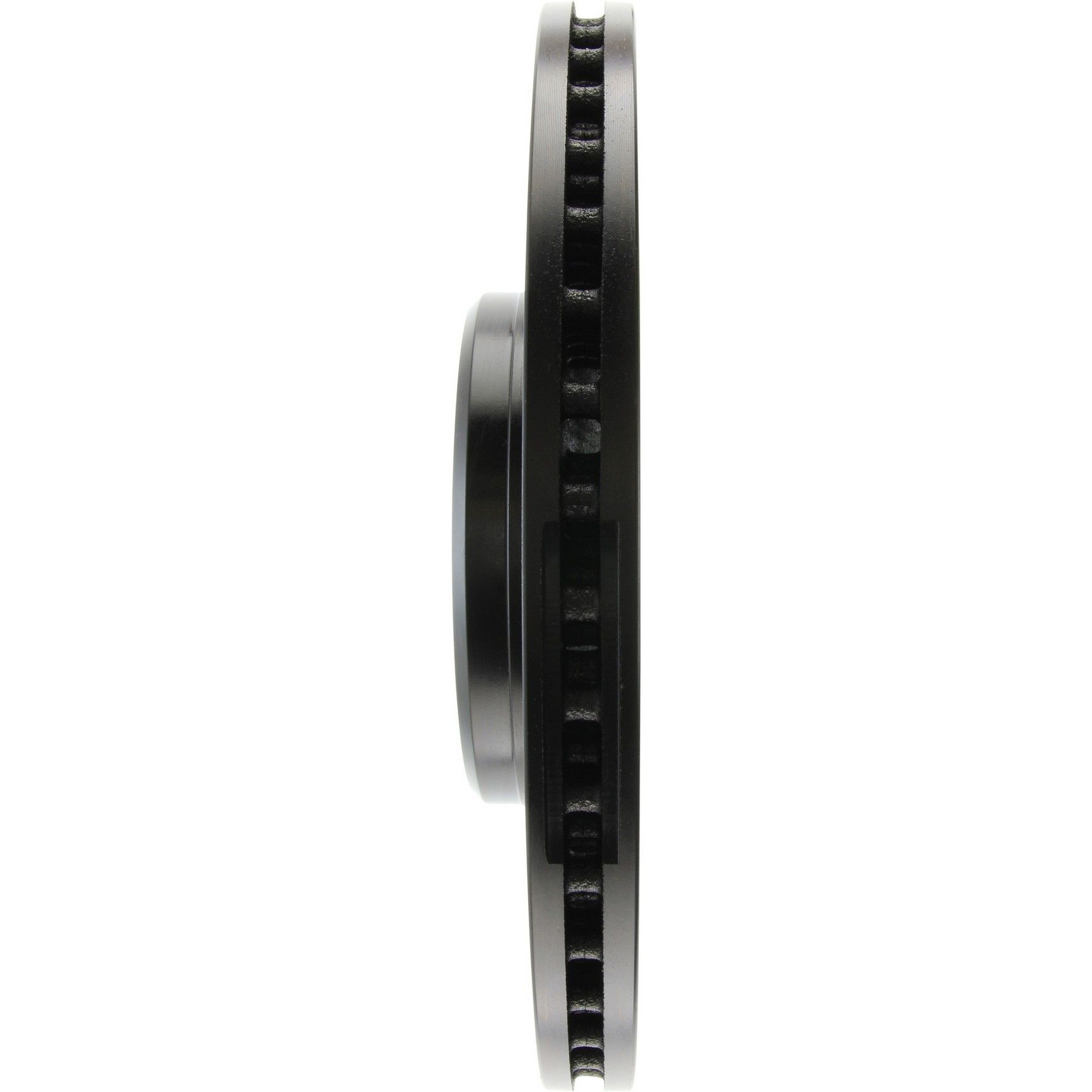

2014 - 2018 Ford Transit Connect Disc Brake Rotor - Front (Centric) NEW

$ 140 .01

Product Notes

Position: Front
⚠️ Most jobs typically require 2 of this item.
5 Lug 320mm Front Disc
Centric Premium High Carbon Alloy Disc Brake Rotors
Centric 125 Series High Carbon Alloy Brake Rotors contain an advanced metallurgy that greatly reduces the possibility of pad squeal especially with higher friction; European style brake pad compounds. Proprietary Molybdenum and Chromium alloys resist rotor cracking during high performance use or repeat stop situations. This alloy also increases the friction couple improving brake performance and stopping power. Increased Chromium and Carbon content is also more resistant to oxidation.
Brand: Centric
Condition: New
See Other Ford Transit Connect Disc Brake Rotors
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

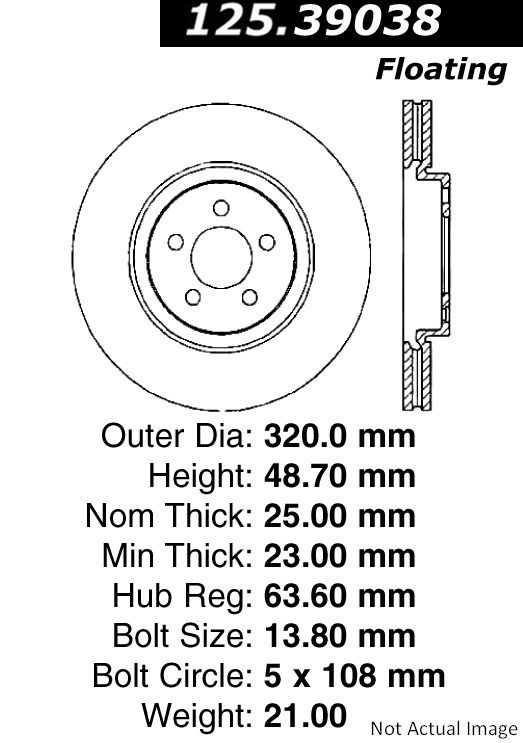

Specifications & Info


Attribute Value
108
ABS Tone Ring Included No
Attribute ID (Type) California Proposition 65
Bearings Included No
Bolt Hole Quantity 5
California Proposition 65 Site [basic] Https://www.p65warnings.ca.gov/
California Proposition 65 Text [basic] Warning: Cancer And Reproductive Harm
California Proposition 65 Text [cntrc] Warning: Cancer And Reproductive Harm
Center Hole Diameter 2.504, 63.600
Disc Mounting [cntrc] Floating
Discard Thickness 0.906, 23, 23.000
Hat Finish Coated
Hat ID [cntrc] In 5.772
Hat ID [cntrc] Mm 146.600
Hub Hole/Whl Reg Mm 63.6
Misc Holes [cntrc] 0
Mounting Bolt Hole Circle Diameter 108.000, 4.252
Mounting Type Floating
Nominal Thickness 0.984, 25, 25.000
Overall Height 1.917, 48.700
Product Grade [cntrc] Premium
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Diameter 0.543, 13.800
Stud/Lug Hole Quantity 5
Surface Type Smooth
Vane Style Pillar
Vane Style [cntrc] Straight
Weight [cntrc] Kgs 9.550
Weight [cntrc] Lbs 21.000

Vehicle Fitment Guide

This part fits the following vehicles:

Ford 1 model (tapclick to expand)(tapclick to hide)
Transit Connect 2014-2018 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Titanium Mini Passenger Van 2014 L4 1.6L Turbo FWD Automatic
Titanium Mini Passenger Van 2014 - 2018 L4 2.5L FWD Automatic
Titanium Mini Passenger Van 2014 - 2017 L4 2.5L CNG FWD Automatic
Titanium Mini Passenger Van 2014 - 2017 L4 2.5L LPG FWD Automatic
XL Mini Cargo Van 2014 - 2016 L4 1.6L Turbo FWD Automatic
XL Mini Cargo Van 2014 - 2018 L4 2.5L FWD Automatic
XL Mini Cargo Van 2014 - 2018 L4 2.5L CNG FWD Automatic
XL Mini Cargo Van 2014 - 2018 L4 2.5L LPG FWD Automatic
XL Mini Passenger Van 2014 - 2016 L4 1.6L Turbo FWD Automatic
XL Mini Passenger Van 2014 - 2018 L4 2.5L FWD Automatic
XL Mini Passenger Van 2014 - 2018 L4 2.5L CNG FWD Automatic
XL Mini Passenger Van 2014 - 2018 L4 2.5L LPG FWD Automatic
XLT Mini Cargo Van 2014 - 2016 L4 1.6L Turbo FWD Automatic
XLT Mini Cargo Van 2014 - 2018 L4 2.5L FWD Automatic
XLT Mini Cargo Van 2014 - 2018 L4 2.5L CNG FWD Automatic
XLT Mini Cargo Van 2014 - 2018 L4 2.5L LPG FWD Automatic
XLT Mini Passenger Van 2014 - 2016 L4 1.6L Turbo FWD Automatic
XLT Mini Passenger Van 2014 - 2018 L4 2.5L FWD Automatic
XLT Mini Passenger Van 2014 - 2018 L4 2.5L CNG FWD Automatic
XLT Mini Passenger Van 2014 - 2018 L4 2.5L LPG FWD Automatic
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Centric 125 Series High Carbon Alloy Brake Rotors contain an advanced metallurgy that greatly reduces the possibility of pad squeal especially with higher friction; European style brake pad compounds. Proprietary Molybdenum and Chromium alloys resist rotor cracking during high performance use or repeat stop situations. This alloy also increases the friction couple improving brake performance and stopping power. Increased Chromium and Carbon content is also more resistant to oxidation.

Interchange Parts

Brand Part Number
Autopart International 1407-516223
AutoZone 79900
AutoZone 79900GT
Carquest YH200920
Casting Numbers 3M512C375C
Casting Numbers 4N512C375C
Ferodo DDF1649
Ford Genuine Parts BRRF291
Ford Genuine Parts BRRF97
Formula Blue Hydraulic Brake Parts E130-44-043
Formula Blue Hydraulic Brake Parts E13044043
IAP/Kuhltek Motorwerks BR90099002
IAP/Kuhltek Motorwerks BR90129402
Mighty Distributing System 34349
OEM Part Number 1368548
OEM Part Number 1384290
OEM Part Number 1677434
OEM Part Number 1724956
OEM Part Number 274521
OEM Part Number 2745210
OEM Part Number 2745214
OEM Part Number 30666996
OEM Part Number 31262720
OEM Part Number 312627200
OEM Part Number 31302573
OEM Part Number 313025730
OEM Part Number 31329122
OEM Part Number 313291220
OEM Part Number 31381376
OEM Part Number 31400942
OEM Part Number 3M512C375CB
OEM Part Number 3M512C375CC
OEM Part Number 3M512C375CD
OEM Part Number 3M512C375CE
OEM Part Number CV6Z-1125-D
OEM Part Number CV6Z1125B
OEM Part Number CV6Z1125D
OEM Part Number DV6Z1125C
Pep Boys 34349G
Qualis 45440
Raybestos Brakes 980552
Raybestos Brakes 980552P
Raybestos Brakes 980552R
Wagner Brake BD126447
Wagner Brake BD180000

Fits Years: 2014 2015 2016 2017 2018

Fits Models: Transit Connect
