2020, 2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011, 2010 Ford Transit Connect Connect Disc Brake Pad Set
View 1
View 2

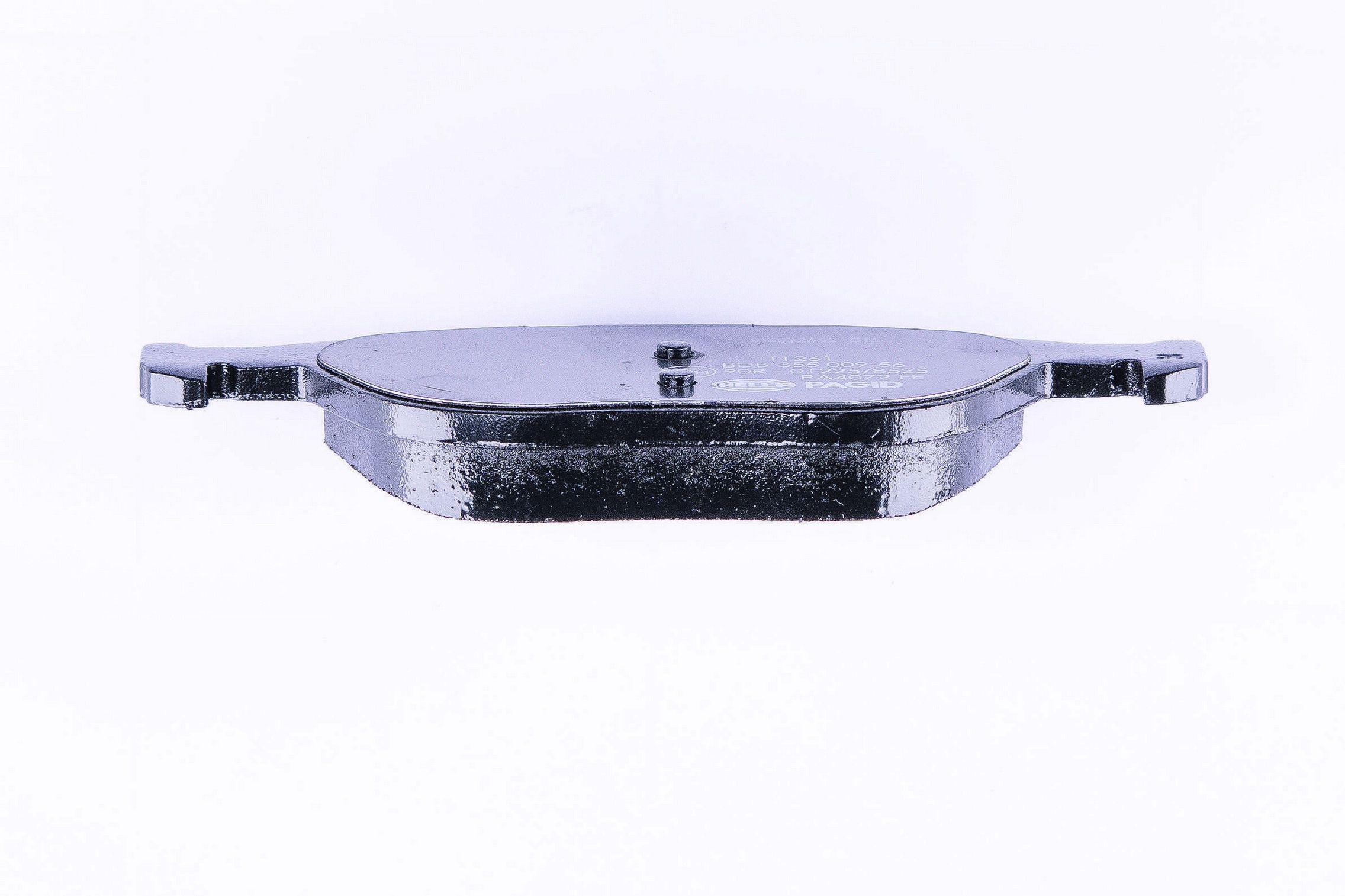

View 3

2010 - 2020 Ford Transit Connect Connect Disc Brake Pad Set - Front (Pagid) NEW

$ 65 .34

Product Notes

Position: Front
OE Formulated Friction Material
Low-Metallic Pads
The all-new HELLA PAGID CERAMIC SILVER brake pads have been developed and tested with two definitive objectives in mind – surpass OE quality standards and to meet or surpass all SAE/ECE highway standards and the individual needs of our customers.Extensive testing conducted in our in-house research and development centers confirm our CERAMIC SILVER friction material meets the highest technical demands when it comes to safety, performance, comfort, and durability.
Brand: Pagid
Condition: New
See Other Ford Transit Connect Disc Brake Pad Sets
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Abutment Clips Included No
Adhesive Backed Pad Shim Yes
Article Number Of Recommended Accessories 8dz 355 201-331
Assy/Disassy By Qualified Personnel Required! .
Brake Lubricant Included No
Brake System Teves
California Proposition 65 Required No
Chamfered Edges Yes
ECE R90 Certified Yes
Friction Material Composition Low-metallic
Grade Type Standard Replacement

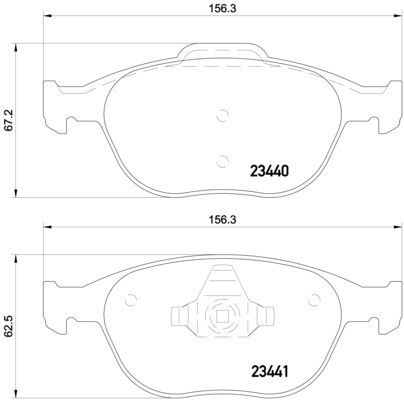

Height 1 [mm] 67,2, 67.2
Height 2 [mm] 62,5, 62.5
Inner Pad Friction Material Thickness 18.5
Inner Pad Height 67.2
Inner Pad Width 156.5
Mounting Hardware Included No
Outer Pad Friction Material Thickness 17.6
Outer Pad Height 67.2
Outer Pad Width 156.5
Pad Quantity 4
Pad Shims Included Yes
Pad Wear Sensor Included No
Prepared For Pad Wear Sensor No
Slotted No
Technical Information Number T1261
Thickness 1 [mm] 17,6, 17.6
Thickness 2 [mm] 18,5, 18.5
WVA Number 23440
Wear Warning Contact Not Prepared For Wear Indicator
Weight [kg] 1.86
Width 1 [mm] 156,3, 156.3
Width 2 [mm] 156,3, 156.3

Vehicle Fitment Guide

This part fits the following vehicles:

Ford 1 model (tapclick to expand)(tapclick to hide)
Transit Connect 2010-2020 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Electric Mini Cargo Van 2011 - 2012 -- -L BATTERY EV (EV/BEV) FWD Automatic
Electric Mini Passenger Van 2011 - 2012 -- -L BATTERY EV (EV/BEV) FWD Automatic
Titanium Mini Passenger Van 2019 - 2020 L4 2.0L FLEX FWD Automatic
Titanium Mini Passenger Van 2014 L4 1.6L Turbo FWD Automatic
Titanium Mini Passenger Van 2014 - 2018 L4 2.5L FWD Automatic
Titanium Mini Passenger Van 2014 - 2017 L4 2.5L CNG FWD Automatic
Titanium Mini Passenger Van 2014 - 2017 L4 2.5L LPG FWD Automatic
XL Mini Cargo Van 2019 - 2020 L4 2.0L FLEX FWD Automatic
XL Mini Cargo Van 2014 - 2016 L4 1.6L Turbo FWD Automatic
XL Mini Cargo Van 2014 - 2020 L4 2.5L FWD Automatic
XL Mini Cargo Van 2014 - 2020 L4 2.5L CNG FWD Automatic
XL Mini Cargo Van 2014 - 2020 L4 2.5L LPG FWD Automatic
XL Mini Cargo Van 2010 - 2013 L4 2.0L FWD Automatic
XL Mini Passenger Van 2019 - 2020 L4 2.0L FLEX FWD Automatic
XL Mini Passenger Van 2014 - 2016 L4 1.6L Turbo FWD Automatic
XL Mini Passenger Van 2014 - 2020 L4 2.5L FWD Automatic
XL Mini Passenger Van 2014 - 2020 L4 2.5L CNG FWD Automatic
XL Mini Passenger Van 2014 - 2020 L4 2.5L LPG FWD Automatic
XL Mini Passenger Van 2010, 2012 L4 2.0L FWD Automatic
XLT Mini Cargo Van 2019 - 2020 L4 2.0L FLEX FWD Automatic
XLT Mini Cargo Van 2014 - 2016 L4 1.6L Turbo FWD Automatic
XLT Mini Cargo Van 2014 - 2020 L4 2.5L FWD Automatic
XLT Mini Cargo Van 2014 - 2020 L4 2.5L CNG FWD Automatic
XLT Mini Cargo Van 2014 - 2020 L4 2.5L LPG FWD Automatic
XLT Mini Cargo Van 2010 - 2013 L4 2.0L FWD Automatic
XLT Mini Passenger Van 2019 - 2020 L4 2.0L FLEX FWD Automatic
XLT Mini Passenger Van 2014 - 2016 L4 1.6L Turbo FWD Automatic
XLT Mini Passenger Van 2014 - 2020 L4 2.5L FWD Automatic
XLT Mini Passenger Van 2014 - 2020 L4 2.5L CNG FWD Automatic
XLT Mini Passenger Van 2014 - 2020 L4 2.5L LPG FWD Automatic
XLT Mini Passenger Van 2010 - 2013 L4 2.0L FWD Automatic
XLT Premium Mini Passenger Van 2011 - 2013 L4 2.0L FWD Automatic
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
The all-new HELLA PAGID CERAMIC SILVER brake pads have been developed and tested with two definitive objectives in mind – surpass OE quality standards and to meet or surpass all SAE/ECE highway standards and the individual needs of our customers.Extensive testing conducted in our in-house research and development centers confirm our CERAMIC SILVER friction material meets the highest technical demands when it comes to safety, performance, comfort, and durability.

Interchange Parts

Brand Part Number
Akebono ACT970
AMC FO907781
Ashuki P11519
ATE 13046071862
ATE 607186
Bendix 510477
Bendix 573085B
Bendix DB1666
Bendix DB1666GCT
Bendix DB1666HD
Blue Print ADF124215
Borg & Beck BBP1739
Bosch 0 986 424 701
Bosch 0 986 495 066
Bosch 0 986 TB2 446
Bosch BP414
Brake Engineering PA1426
Brembo 07B31442
Brembo P24058
Brembo P24058N
Cifam 8225330
Delphi LP1724
DON PCP1140
Dynamic Friction Company 1214-0970-00
Dynamic Friction Company 1214-0970-01
Dynamic Friction Company 1310-0970-00
Dynamic Friction Company 1310-0970-01
Dynamic Friction Company 1311-0970-00
Dynamic Friction Company 1311-0970-01
Dynamic Friction Company 1551-0970-00
Dynamic Friction Company 1551-0970-01
Dynamic Friction Company 1600-0970-00
Dynamic Friction Company 1600-0970-01
EBC Brakes DP1444
EBC Brakes DP1641
EBC Brakes DP21641
EBC Brakes DP41641R
EBC Brakes DP81641RP1
EBC Brakes DP81641RPX
EBC Brakes DP91641
Ferodo FCP1568H
Ferodo FCP1568R
Ferodo FDB1568
Ferodo FSL1568
Ferodo FVR1568
Ferodo FVR1568W
FMSI Automotive Hardware D970
FREMAX BRAKE ROTORS AND DRUMS FBP1305
FTE 9010393
FTE BL1815A1
Girling 6115322
Hella Pagid 8DB355009561
Jurid 573085D
Jurid 573085J
Jurid 573085JC
Key Parts KBP1615
LPR 05P913
Magneti Marelli 323700000600
Magneti Marelli 323700027000
Magneti Marelli 363700201261
Magneti Marelli 363916060256
Magneti Marelli T1261MM
MaXgear 190657
MEYLE 0252344017
MEYLE 0252344017PD
Mintex MDB2272
Mintex MDB2272FR
Mintex MVK0013
NK Autoparts 222560
Optimal 12133
Optimal BP12133
PAGID Racing T8174SP2001
Quinton Hazell 7507
Quinton Hazell BP1358
Remsa 098400
Roadhouse 298400
Textar 2344004
Textar 2344017605
Textar 89015600
Textar TX0561
Tridon 811016012
TRW GDB1532
VAICO V258111
Valeo 301639
Valeo 598639
Valeo 872440
Wagner OEX970
Wagner QC970
Wagner SX970
Wagner WBP23440A
Wagner ZD970
Zimmermann 234401751

Fits Years: 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020

Fits Models: Transit Connect
