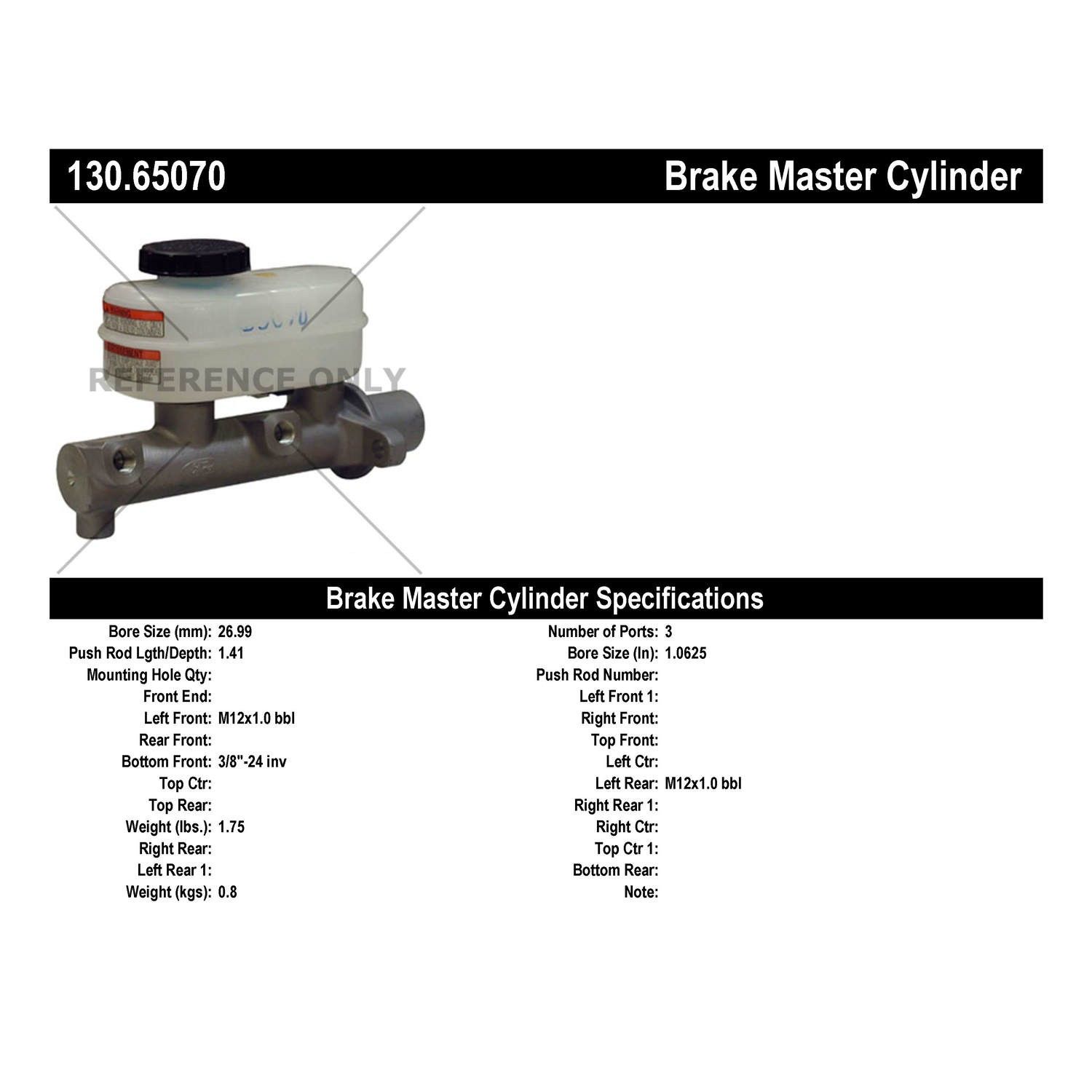

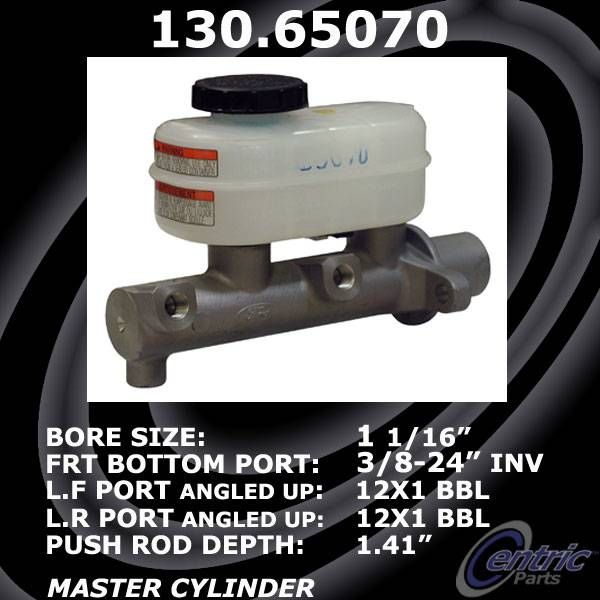

| Attribute | Value |
|---|---|
| Attribute ID (Type) | California Proposition 65 |
| Bleeder Hoses Included | No |
| Bore Size | 1.063, 26.988 |
| Boss, Nipple Or Port: Bottom [cntrc] | 3/8"-24 Inv |
| Boss, Nipple Or Port: Front, Left: #A [cntrc] | M12-1.00 Bbl |
| Boss, Nipple Or Port: Rear: #A [cntrc] | M12-1.00 Bbl |
| Brake Booster Included | No |
| Brake Pressure Switch Quantity | 1 |
| Brake Pressure Switch Required | Yes |
| Brake Pressure Switch(s) Included | No |
| Cylinder Bore Dia In | 1.0625 |
| Cylinder Bore Dia Mm | 26.99 |
| Master Cylinder Bore Diameter | 1.063, 26.988 |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Port Quantity | 3 |
| Primary Bore Diameter | 1.063, 26.988 |
| Primary Outlet Flare Type | Bubble |
| Primary Outlet Flare Type [cntrc] | Bubble |
| Primary Outlet Thread Diameter | 12.000 |
| Primary Outlet Thread Pitch | 1.00 |
| Primary Outlet Thread Size | M12-1.00 |
| Product Grade [cntrc] | Premium |
| Publication Bore [cntrc] | 1 1/16" |
| Push Rod Included | No |
| Push Rod Lgth / Depth | 1.41 |
| Push Rod: Length / Depth [cntrc] In | 1.41 |
| Reservoir Included | Yes |
| Reservoir Material | Plastic |
| Reservoir Style | Removable |
| Secondary Outlet Flare Type | Bubble |
| Secondary Outlet Flare Type [cntrc] | Bubble |
| Secondary Outlet Thread Diameter | 12.000 |
| Secondary Outlet Thread Pitch | 1.00 |
| Secondary Outlet Thread Size | M12-1.00 |
| Weight [cntrc] Kgs | 0.8 |
| Weight [cntrc] Lbs | 1.75 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| 3.0L | Mini Passenger Van | 1999 | V6 3.0L | FWD Automatic |
| Base | Mini Cargo Van | 1999 - 2000 | V6 3.0L | FWD Automatic |
| Base | Mini Cargo Van | 1999 - 2003 | V6 3.8L | FWD Automatic |
| Base | Mini Passenger Van | 2003 | V6 3.8L | FWD Automatic |
| Base | Mini Passenger Van | 1999 - 2000 | V6 3.0L | FWD Automatic |
| Base | Mini Passenger Van | 1999 - 2003 | V6 3.8L | FWD Automatic |
| LX | Mini Passenger Van | 1999 - 2003 | V6 3.8L | FWD Automatic |
| LX | Mini Passenger Van | 1999 - 2003 | V6 3.8L | FWD Automatic |
| LX Plus | Mini Passenger Van | 1999 - 2002 | V6 3.8L | FWD Automatic |
| Limited | Mini Passenger Van | 2000 - 2003 | V6 3.8L | FWD Automatic |
| SE | Mini Passenger Van | 1999 - 2000 | V6 3.0L | FWD Automatic |
| SE | Mini Passenger Van | 1999 - 2003 | V6 3.8L | FWD Automatic |
| SE Sport | Mini Passenger Van | 2001 - 2002 | V6 3.8L | FWD Automatic |
| SEL | Mini Passenger Van | 1999 - 2000 | V6 3.0L | FWD Automatic |
| SEL | Mini Passenger Van | 1999 - 2003 | V6 3.8L | FWD Automatic |
| Sport | Mini Passenger Van | 2003 | V6 3.8L | FWD Automatic |
We offer fast, reliable shipping on all orders:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
We want you to be 100% satisfied with your purchase. That's why we offer:
| Brand | Part Number |
|---|---|
| Aimco | M901133 |
| Autospecialty | M85068 |
| AutoZone | NM4044 |
| Bendix | 13548 |
| CARDONE Reman | 103006 |
| CARDONE Reman | 133006 |
| Delco-Remy | 18M975 |
| Dorman | M630258 |
| Formula Blue Hydraulic Brake Parts | E135-70-075 |
| Formula Blue Hydraulic Brake Parts | E13570075 |
| OEM Part Number | XF2Z2140CA |
| OEM Part Number | XF2Z2140CB |
| Parts Plus | 2302-65070 |
| Parts Plus | 230265070 |
| Parts Plus | MC500170 |
| Qualis | ZY13548 |
| Raybestos Brakes | MC390573 |
| Wagner Brake | F140086 |
| Wagner Brake | F140087 |
| Wagner Brake | MC140087 |
Fits Years: 1999 2000 2001 2002 2003
Fits Models: Windstar
