1991, 1990, 1989, 1988, 1987 GMC Jimmy Chassis Engine Camshaft and Lifter Kit
View 1
View 2

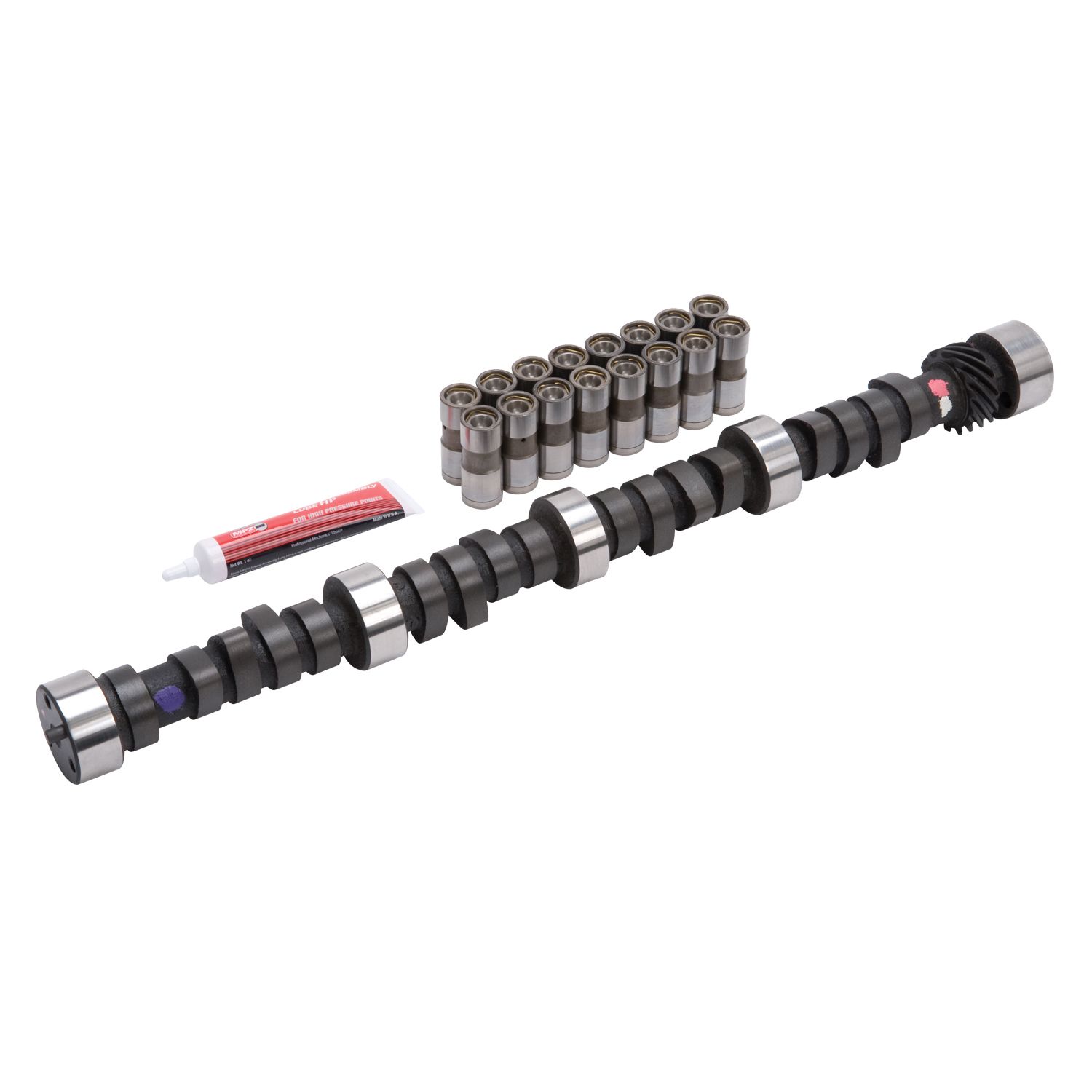

1987 - 1991 GMC Jimmy Chassis Engine Camshaft and Lifter Kit (Edelbrock) NEW

Out of Stock
$ 322 .95
120-DayReturns
LifetimeWarranty
100%Money-Back

Product Notes Read before buying

Off-Idle to 5500rpm Adv. Dur. at 0.050 Int/Exh 194/214 Deg Lift at Valve Int/Exh 0.398/0.442 in. Lobe Seps 112 Deg. Intake Center Line 107 Deg. CARB E.O. D-215-19 Non Roller Applications~ Idle Vacuum at 1000 RPM - 16 inch~ 50 State Legal~ Produces 245 ft.-lbs. When Matched w/3712 Intake And Stock Heads
Performer-Plus Camshaft Kit

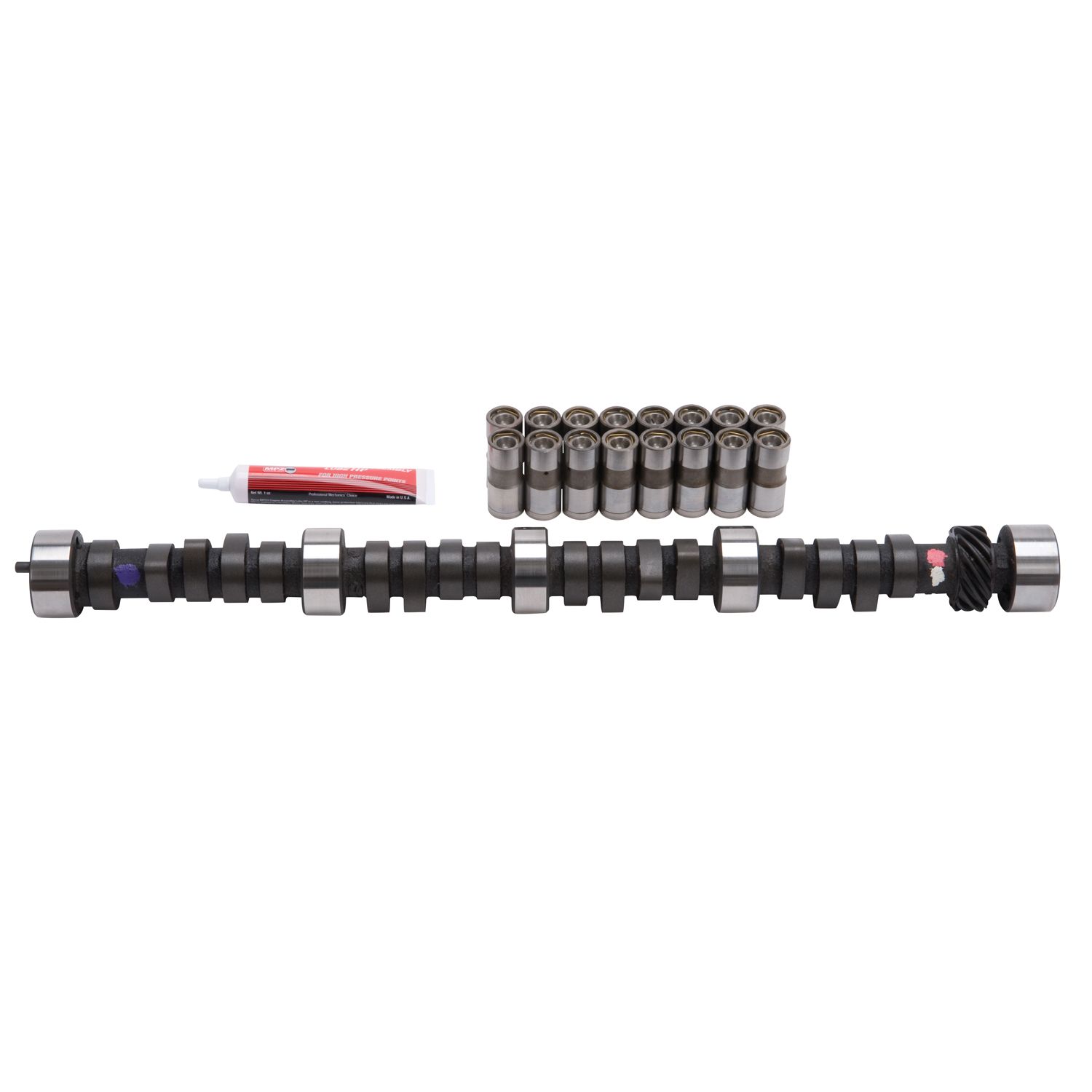

Edelbrock part #3702 Performer-Plus camshaft is designed for small-block Chevy 305-350 T.B.I & LG-4 V-8 applications. This Edelbrock cam kit produced 245 ft-lbs. of torque when used with #3701 intake and stock iron cylinder heads on a 350 engine. The camshaft will produce optimum torque from the low-end to the mid-range, Performer-Plus camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. This Performer-Plus is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. All camshafts include flat tappet lifters, assembly lube and instructions. Camshaft Specifications: - Duration @ .050 Intake: 194 degrees - Duration @ .050 Exhaust: 214 degrees - Lift @ Valve Intake: .398" - Lift @ Valve Exhaust: .442" - Lobe Separation: 112 Degrees - Intake Centerline: 107 Degrees - Idle Vacuum @ 1000 RPM's: 16
Brand: Edelbrock
Condition: New
See Other GMC Jimmy Engine Camshaft and Lifter Kits
Wrenchy the Robot
Not sure? Ask Wrenchy — Your Parts Assistant.

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
9040 D-215-19
Advertised Exhaust Duration 264
Advertised Intake Duration 244
Cam Type Cast
Computer Controlled Compatible Yes
Exhaust Valve Lift 0.442
Grade Type Performance
Intake Duration .050 Inch Lift 194
Intake Valve Lift 0.398
Lifter Materials Hardened Steel
Lifter Type Hydraulic
Lobe Separation 112
RGL Warning: This Product Can Expose You To Chromium, Which Is Known To The State Of California To Cause Cancer Or Birth Defects Or Other Reproductive Harm. For More Information, Visit Www.p65warnings.ca.gov.

Vehicle Fitment Guide

This part fits the following vehicles:

GMC 1 model (tapclick to expand)(tapclick to hide)
Jimmy 1987-1991 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base SUV 1987 V8 5.0L 4WD Automatic & Manual
Base SUV 1987 - 1991 V8 5.7L 4WD Automatic & Manual
Base SUV 1987 - 1991 V8 6.2L DIESEL 4WD Automatic & Manual
Sierra Classic SUV 1987 V8 5.0L 4WD Automatic & Manual
Sierra Classic SUV 1987 - 1990 V8 5.7L 4WD Automatic & Manual
Sierra Classic SUV 1987 - 1990 V8 6.2L DIESEL 4WD Automatic & Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies, in plain English.

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Lifetime Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

Returns (120 Days)

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.
Edelbrock part #3702 Performer-Plus camshaft is designed for small-block Chevy 305-350 T.B.I & LG-4 V-8 applications. This Edelbrock cam kit produced 245 ft-lbs. of torque when used with #3701 intake and stock iron cylinder heads on a 350 engine. The camshaft will produce optimum torque from the low-end to the mid-range, Performer-Plus camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. This Performer-Plus is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. All camshafts include flat tappet lifters, assembly lube and instructions. Camshaft Specifications: - Duration @ .050 Intake: 194 degrees - Duration @ .050 Exhaust: 214 degrees - Lift @ Valve Intake: .398" - Lift @ Valve Exhaust: .442" - Lobe Separation: 112 Degrees - Intake Centerline: 107 Degrees - Idle Vacuum @ 1000 RPM's: 16

Fits Years: 1987 1988 1989 1990 1991

Fits Models: Jimmy
