2005, 2004, 2003, 2002, 2001, 2000, 1999, 1998 GMC Jimmy Steering Tie Rod End
View 1
View 2
View 3

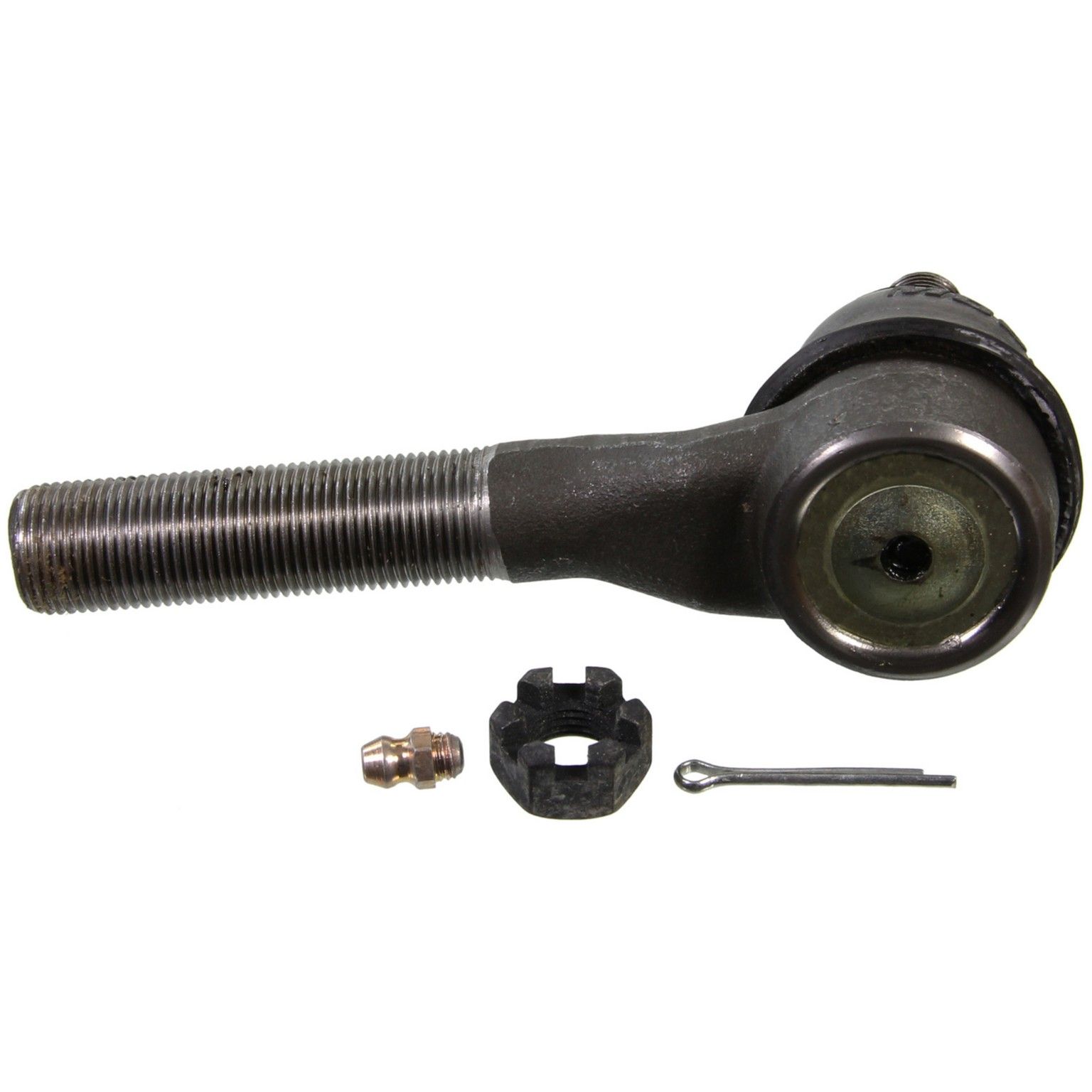

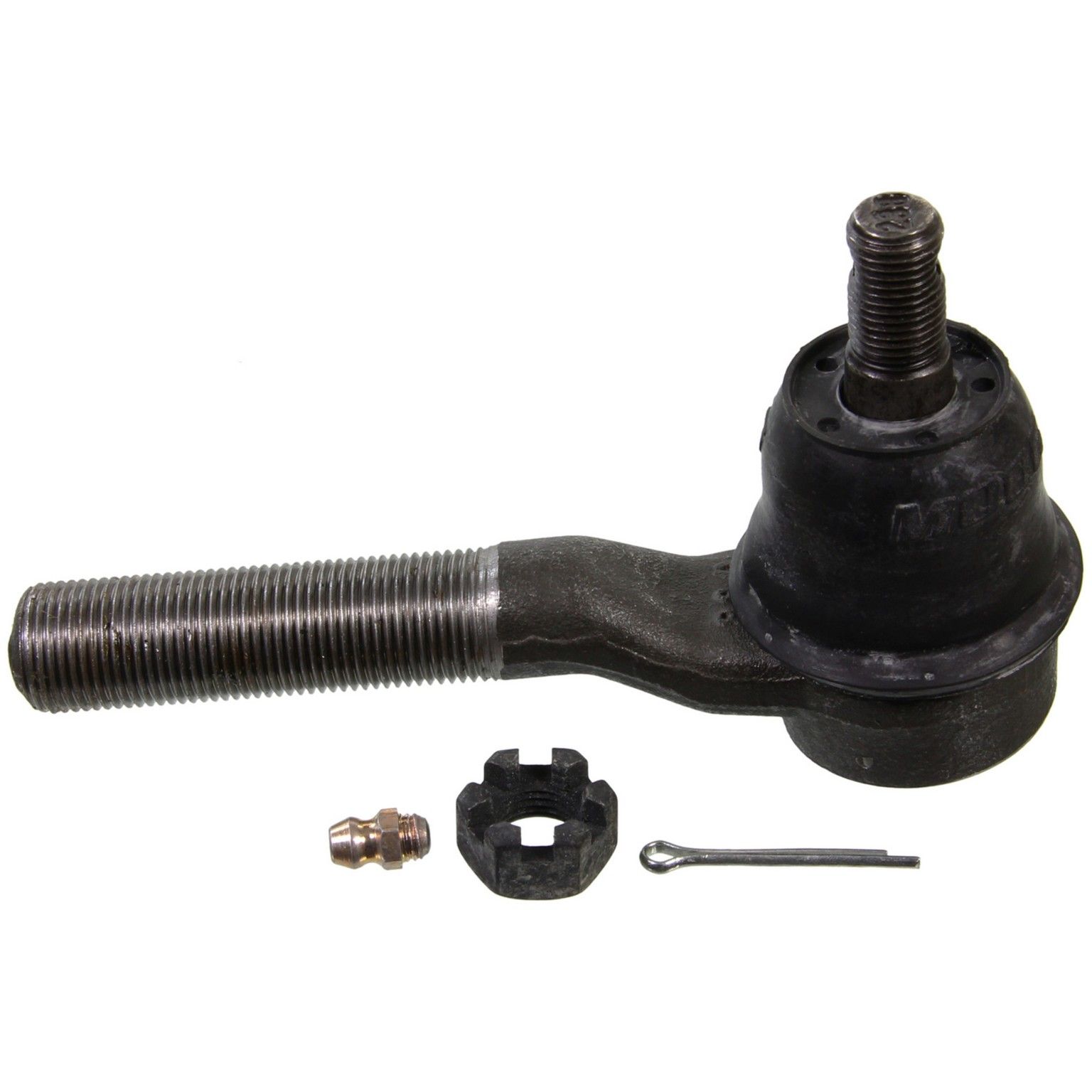

1998 - 2005 GMC Jimmy Steering Tie Rod End - Front Inner (Moog) NEW

$ 65 .34

Product Notes

Position: Front Inner
⚠️ Most jobs typically require 2 of this item.
Offset Tie Rod End Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces

Backed by superior materials and rigorous testing, MOOG inner tie rod ends deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.
Brand: Moog
Condition: New
See Other GMC Jimmy Steering Tie Rod Ends
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
End 1 Thread Direction Counterclockwise
End 1 Threads Per Inch 18
End 2 Thread Diameter 12.0
End 2 Thread Pitch 1.3
Length Stud Center To End 4.530
Part Description Steering Tie Rod End

Vehicle Fitment Guide

This part fits the following vehicles:

GMC 1 model (tapclick to expand)(tapclick to hide)
Jimmy 1998-2005 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base SUV 2005 V6 4.3L 4WD Automatic & Manual
Diamond Edition SUV 2000 - 2001 V6 4.3L RWD/4WD Automatic & Manual
Envoy SUV 1999 - 2000 V6 4.3L AWD Automatic & Manual
Envoy SUV 1998 - 2000 V6 4.3L 4WD Automatic & Manual
Envoy SUV 1998 - 1999 V6 4.3L RWD Automatic & Manual
SL SUV 1999 V6 4.3L AWD Automatic & Manual
SL SUV 1999 V6 4.3L AWD Automatic & Manual
SL SUV 1998 - 1999 V6 4.3L RWD/4WD Automatic & Manual
SL SUV 1998 - 1999, 2001 V6 4.3L RWD/4WD Automatic & Manual
SLE SUV 1999 - 2000 V6 4.3L AWD Automatic & Manual
SLE SUV 1998 - 2001 V6 4.3L RWD/4WD Automatic & Manual
SLS SUV 1999 V6 4.3L AWD Automatic & Manual
SLS SUV 1998 - 2005 V6 4.3L 4WD Automatic
SLS SUV 1998 - 2004 V6 4.3L RWD Automatic
SLS SUV 1998, 2002 - 2004 V6 4.3L RWD/4WD Automatic
SLS SUV 1998 - 2001, 2005 V6 4.3L 4WD Manual
SLS SUV 1998 - 2001 V6 4.3L RWD Manual
SLS SUV 1998 V6 4.3L RWD/4WD Manual
SLT SUV 1999 - 2000 V6 4.3L AWD Automatic & Manual
SLT SUV 1998 - 2001 V6 4.3L RWD/4WD Automatic & Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Backed by superior materials and rigorous testing, MOOG inner tie rod ends deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.

Interchange Parts

Brand Part Number
ACDelco 46A0222A
Beck/Arnley 101-7647
Delphi TA5426
Dorman - Premium TI91220XL
Duralast ES3584
General Motors 12471301
Isuzu 8124713010
MAS Industries T3584
MAS Industries TI91220
Mcquay-Norris ES2072L
Mevotech MES3584
Mevotech Original Grade GES3584
NAPA Chassis Parts 2692479
Raybestos Brakes 401-1222
TRW Steering and Suspension Parts JTE1347

Fits Years: 1998 1999 2000 2001 2002 2003 2004 2005

Fits Models: Jimmy
