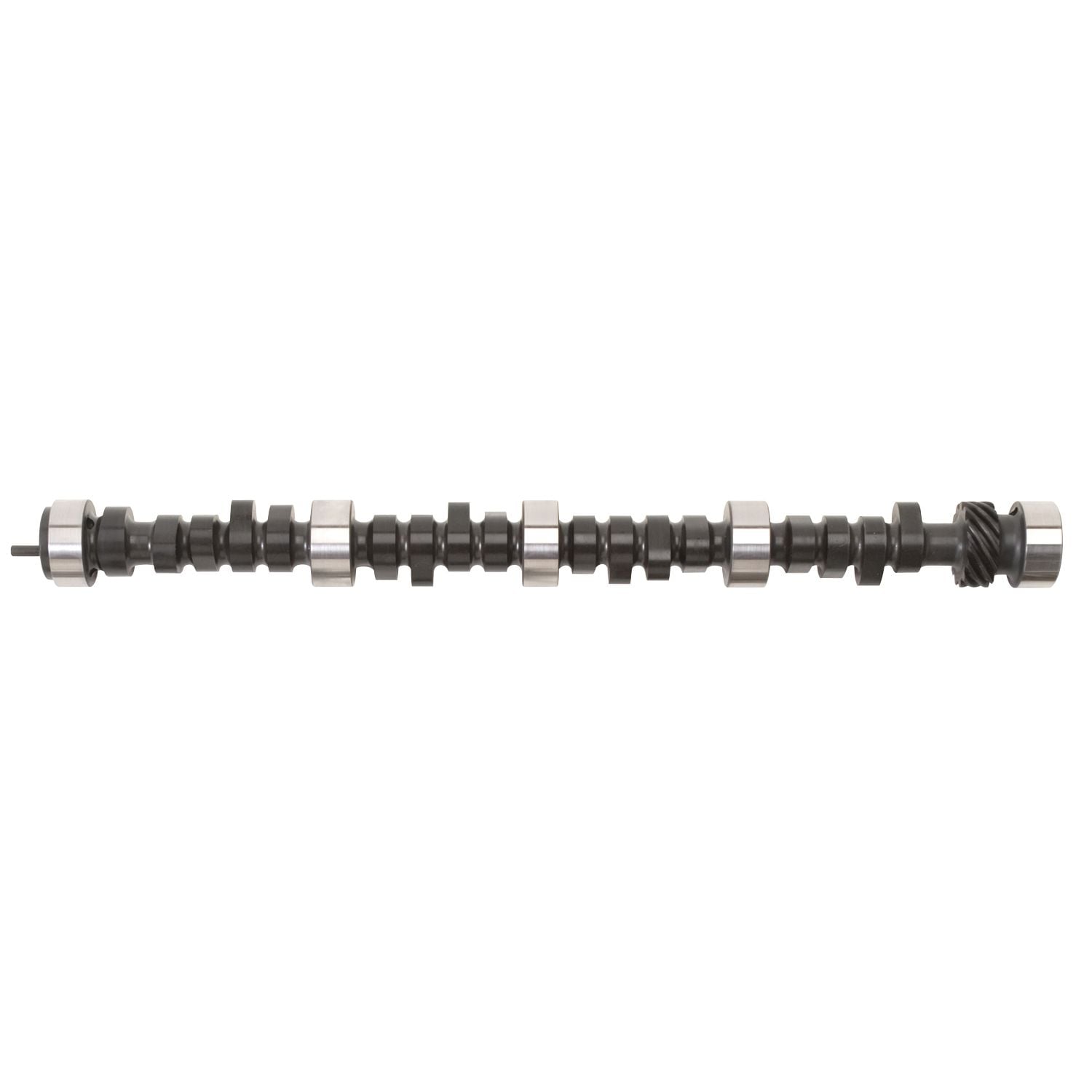

1991, 1990, 1989, 1988, 1987 GMC Jimmy Chassis Engine Camshaft

1987 - 1991 GMC Jimmy Chassis Engine Camshaft (Edelbrock) NEW

Out of Stock
$ 595 .95

Product Notes

Hyd Roller; 1500-5500rpm; Adv. Dur. 280 Int/290 Exh; Valve Lift 0.462 Int/0.479 Exh; Lobe Angle 112 deg.;Not Legal For Sale Or Use On Vehicles Registered In CA Engine Swaps~ Not Legal For Use On Pollution Controlled Vehicles
Rollin Thunder Camshaft
Edelbrock Rollin' Thunder Camshaft #2209 is designed for 265-350 Chevy V8 engines from 1987-Later and produce optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 408HP and 450 Ft Lbs or Torque when paired with Pro-Flo XT EFI system #3528 and Performer RPM E-Tec cylinder heads #60975 on a 383 c.i.d. engine using stock hydraulic roller lifters and pushrods. Camshaft specifications: - Intake duration: 212 Degrees - Exhaust duration: 222 Degrees - Intake lift: .462" - Exhaust lift: .479" - Lobe separation: 112 Degree - Intake Center Line: 107 Degree - Vacuum: 16
Brand: Edelbrock
Condition: New
See Other GMC Jimmy Engine Camshafts
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Cam Type Roller
Computer Controlled Compatible Yes
Engine Make/Size Chevy Small Block (262-400)
Exh. Duration @ .050 In. (Deg) 222
Exh. Duration Advertised (Deg) 290
Exhaust Valve Lift 0.479 In.
Exhaust Valve Lift With Factory Rocker Arm Ratio 0.479
Intake Duration @ 0.050 In. 212 Degree
Intake Duration Advertised 280
Intake Duration At .050 Inch Lift 212
Intake Valve Lift 0.462 In.
Intake Valve Lift With Factory Rocker Arm Ratio 0.462
Lifter Type Hydraulic Roller, Roller
Lobe Separation 112
RGL Warning: This Product Can Expose You To Chromium, Which Is Known To The State Of California To Cause Cancer Or Birth Defects Or Other Reproductive Harm. For More Information, Visit Www.p65warnings.ca.gov.
RPM Range 1500-5500
Usage Street/performance
WARNING CA Proposition 65 Yes
WARNING CA Proposition 65 Message Warning: This Product Can Expose You To Chromium; Which Is Known To The State Of California To Cause Cancer Or Birth Defects Or Other Reproductive Harm. For More Information; Visit Www.p65warnings.ca.gov.

Vehicle Fitment Guide

This part fits the following vehicles:

GMC 1 model (tapclick to expand)(tapclick to hide)
Jimmy 1987-1991 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base SUV 1987 V8 5.0L 4WD Automatic & Manual
Base SUV 1987 - 1991 V8 5.7L 4WD Automatic & Manual
Base SUV 1987 - 1991 V8 6.2L DIESEL 4WD Automatic & Manual
Sierra Classic SUV 1987 V8 5.0L 4WD Automatic & Manual
Sierra Classic SUV 1987 - 1990 V8 5.7L 4WD Automatic & Manual
Sierra Classic SUV 1987 - 1990 V8 6.2L DIESEL 4WD Automatic & Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Edelbrock Rollin' Thunder Camshaft #2209 is designed for 265-350 Chevy V8 engines from 1987-Later and produce optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 408HP and 450 Ft Lbs or Torque when paired with Pro-Flo XT EFI system #3528 and Performer RPM E-Tec cylinder heads #60975 on a 383 c.i.d. engine using stock hydraulic roller lifters and pushrods. Camshaft specifications: - Intake duration: 212 Degrees - Exhaust duration: 222 Degrees - Intake lift: .462" - Exhaust lift: .479" - Lobe separation: 112 Degree - Intake Center Line: 107 Degree - Vacuum: 16

Fits Years: 1987 1988 1989 1990 1991

Fits Models: Jimmy
