1972, 1971, 1970 GMC Jimmy Drive Axle Shaft Universal Joint
View 1
View 2
View 3
View 4
View 5
View 6

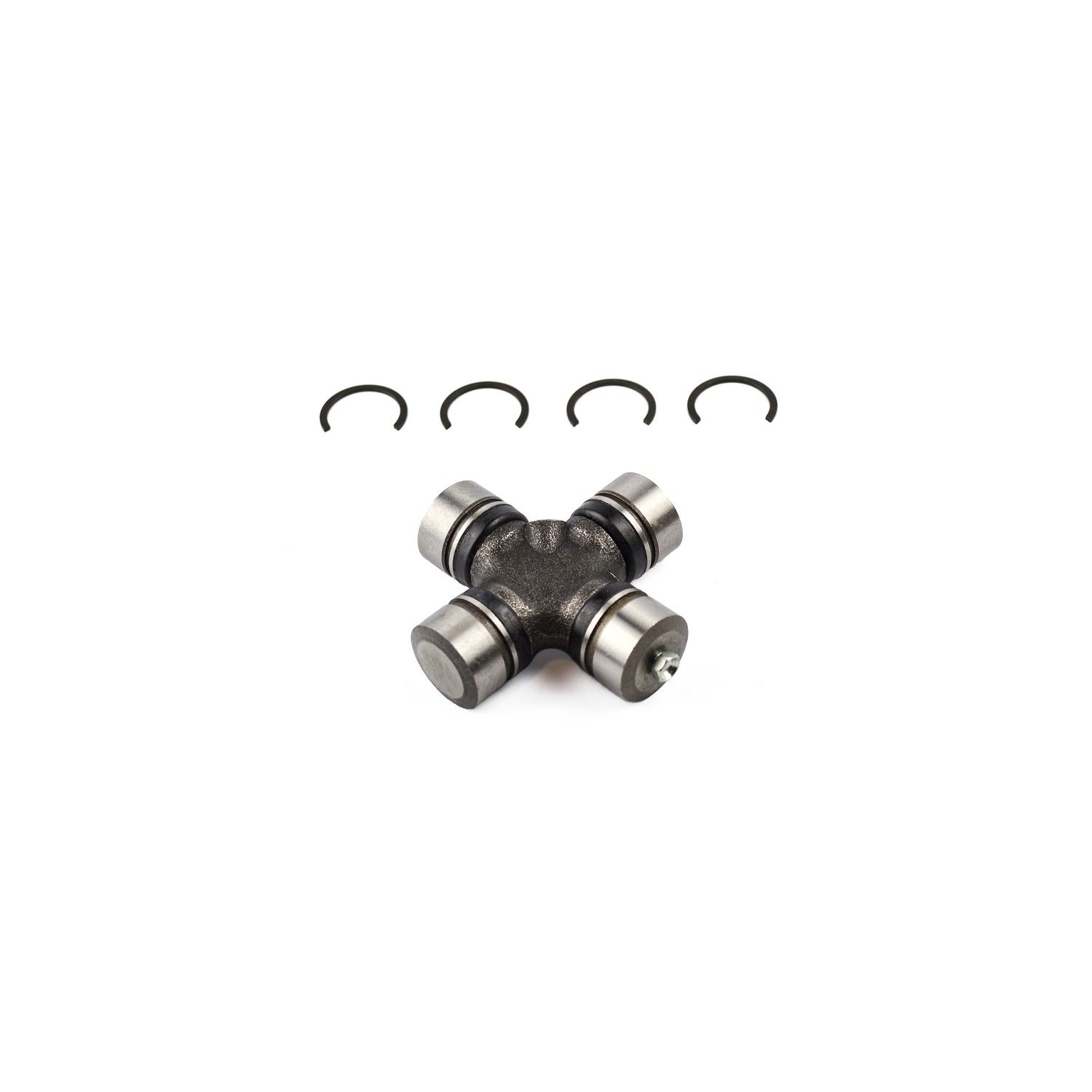

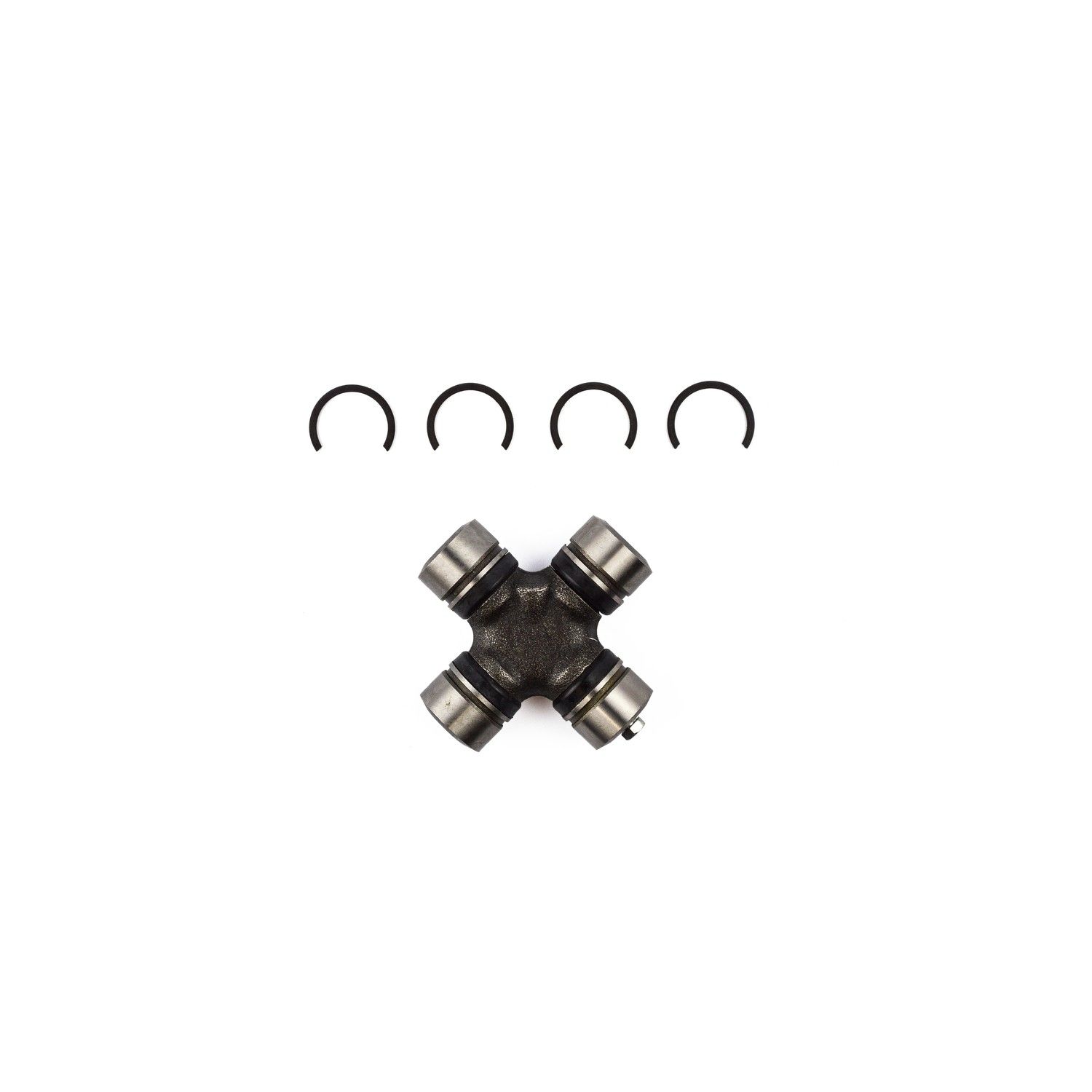

1970 - 1972 GMC Jimmy Drive Axle Shaft Universal Joint - Front Axle at Wheels (Dana Spicer Chassis) NEW

Out of Stock
$ 55 .70

Product Notes

Position: Front Axle at Wheels
⚠️ Most jobs typically require 2 of this item.

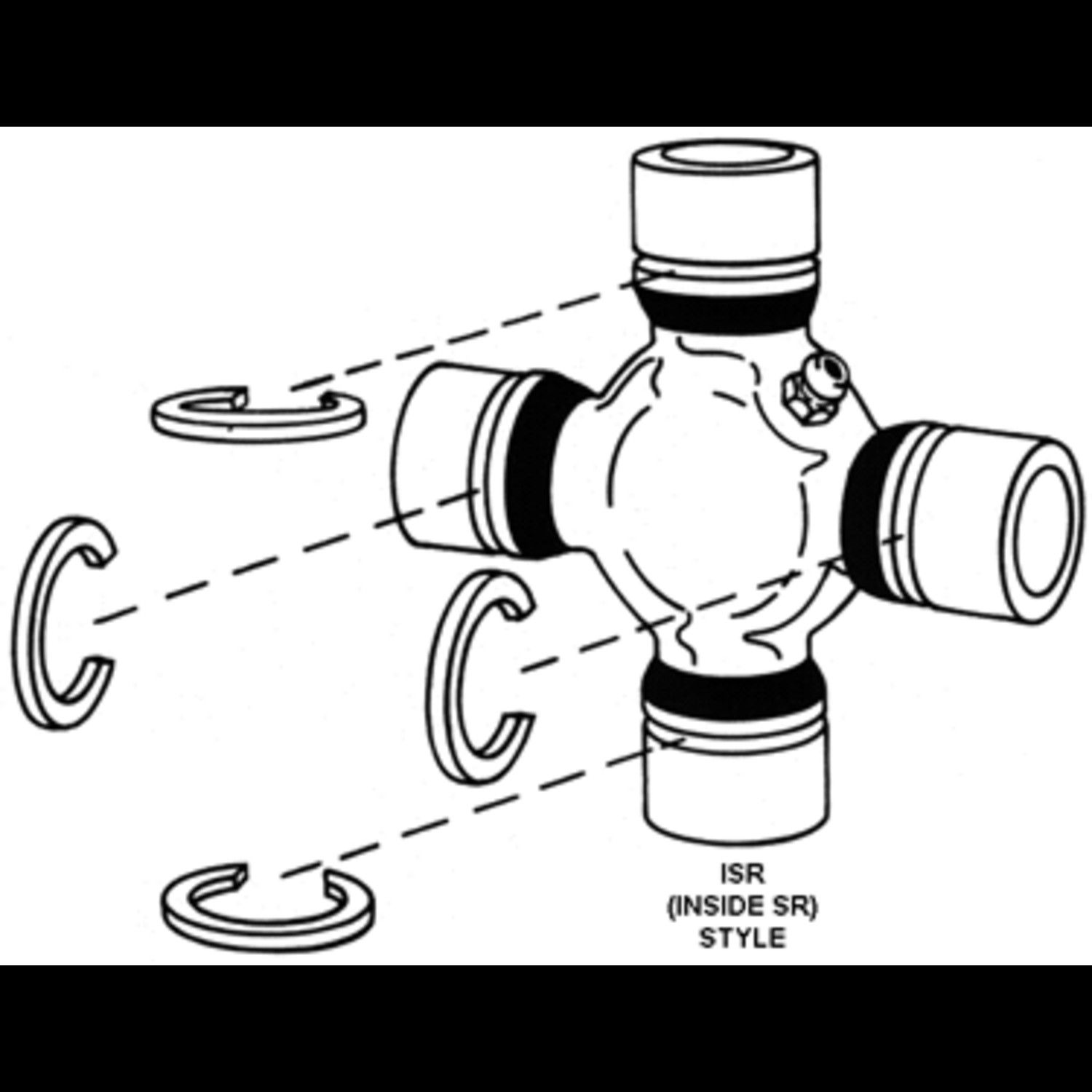

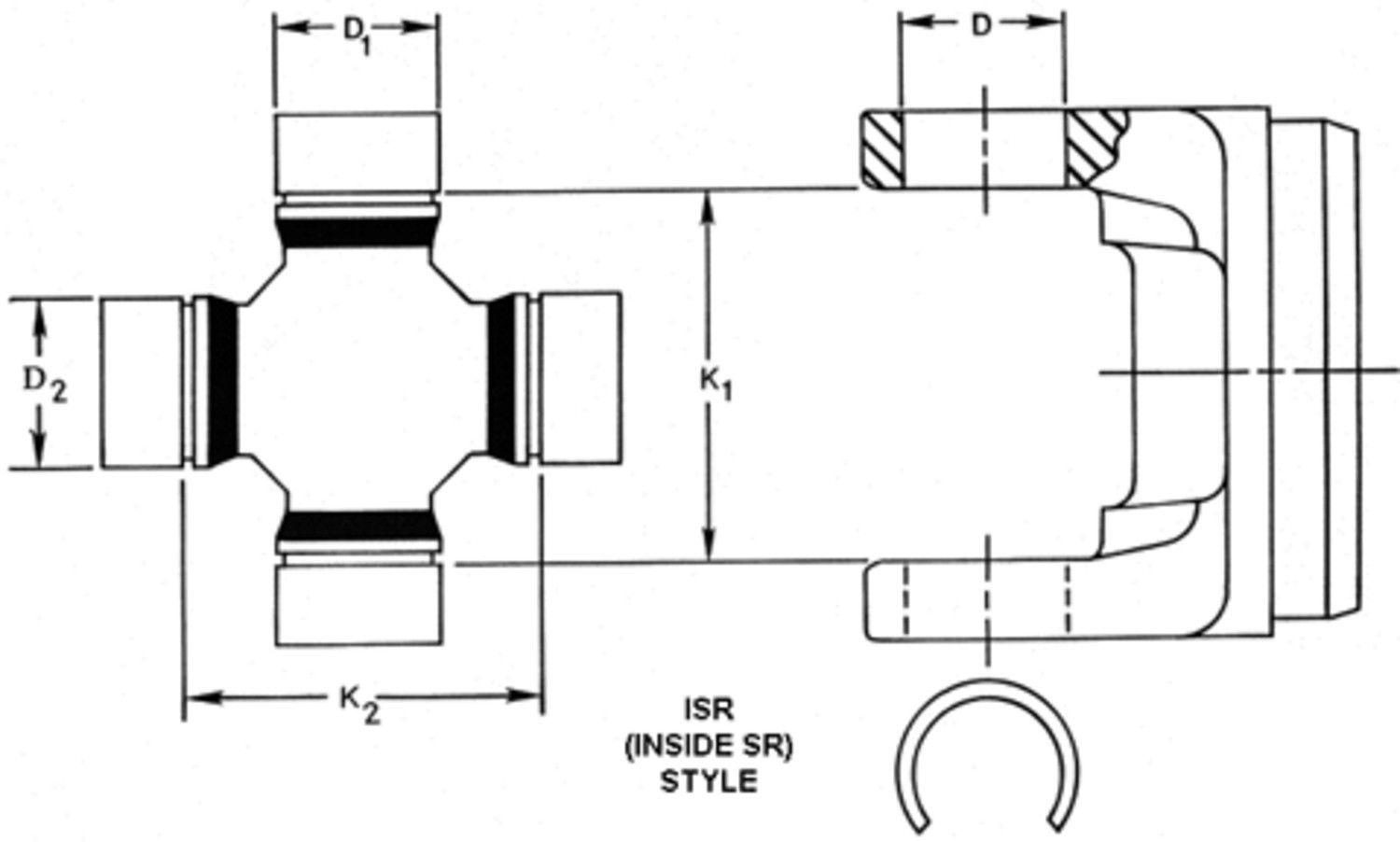

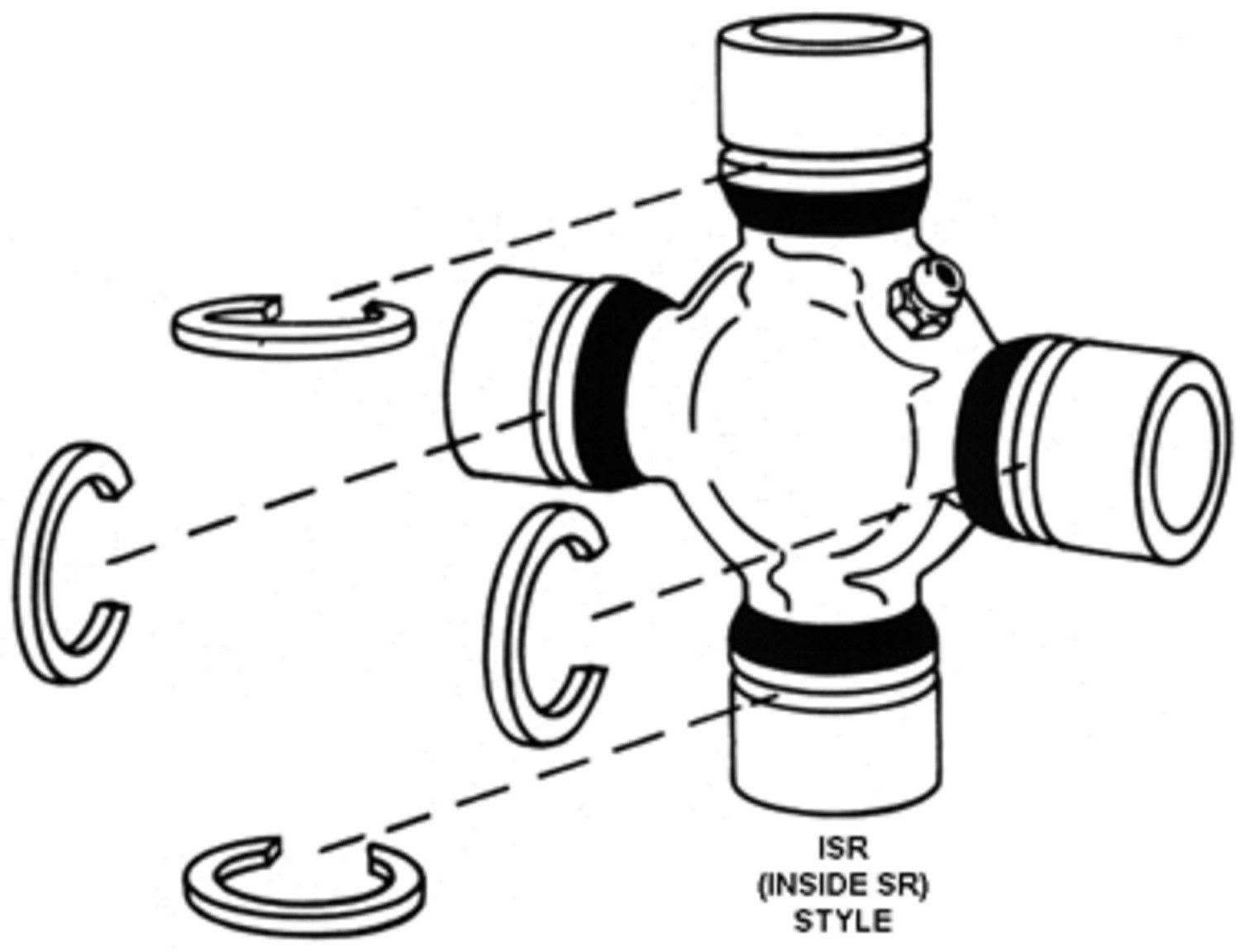

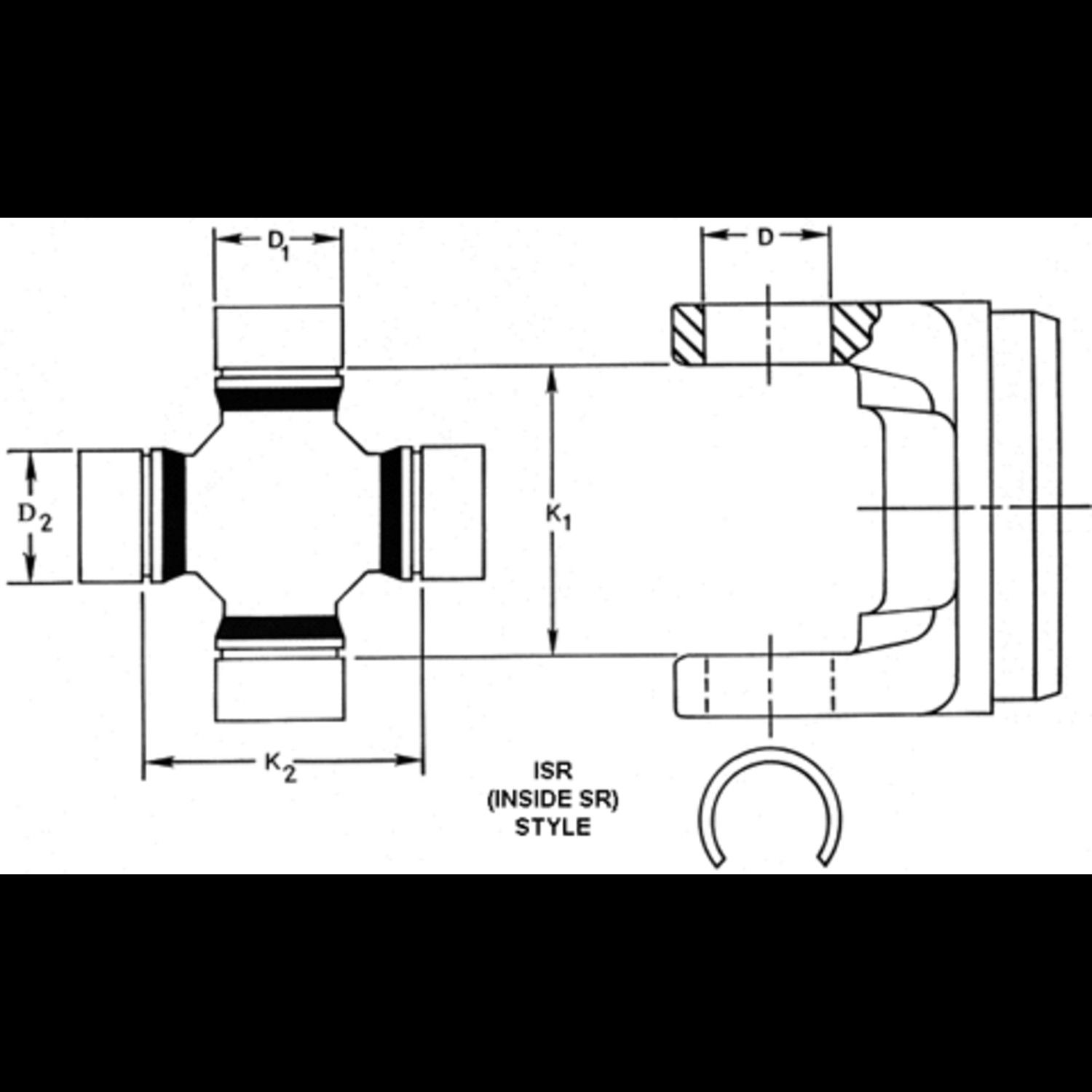

with Inside Snap Rings with Wheel Joints Inside Snap Ring Dimension of 2.188in Non-Greasable with Cap Diameter 1.062in
FSFT
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
Brand: Dana Spicer Chassis
Condition: New
See Other GMC Jimmy Drive Axle Shaft Universal Joints
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Bearing Cap Diameter (1) 1.062
Bearing Cap Diameter (2) 1.062
Greaseable N
OEM Mfg Spicer
OEM Series 1310wj
Prop 65 Yes
SR(1)Brng Cap To Brng Cap(OSR) 2.188
SR(2)Brng Cap To Brng Cap(OSR) 2.188
Type Isr Style

Vehicle Fitment Guide

This part fits the following vehicles:

GMC 1 model (tapclick to expand)(tapclick to hide)
Jimmy 1970-1972 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base SUV 1970 - 1972 L6 4.1L RWD/4WD Automatic & Manual & U/K
Base SUV 1970 - 1972 L6 4.8L RWD/4WD Automatic & Manual & U/K
Base SUV 1970 - 1972 V8 5.0L RWD/4WD Automatic & Manual & U/K
Base SUV 1970 - 1972 V8 5.7L RWD/4WD Automatic & Manual & U/K
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

Interchange Parts

Brand Part Number
ACDelco 45U0125
International Harvester IHC SD15260X
Meritor CP260X
Navistar DS15260X
Navistar FLT15260X
Precision 365
Precision 378
S&S Truck Parts S-7030
SKF 1-0174
SKF 1-0175
SKF UJ365
SKF UJ378
Spicer 5-260X

Fits Years: 1970 1971 1972
