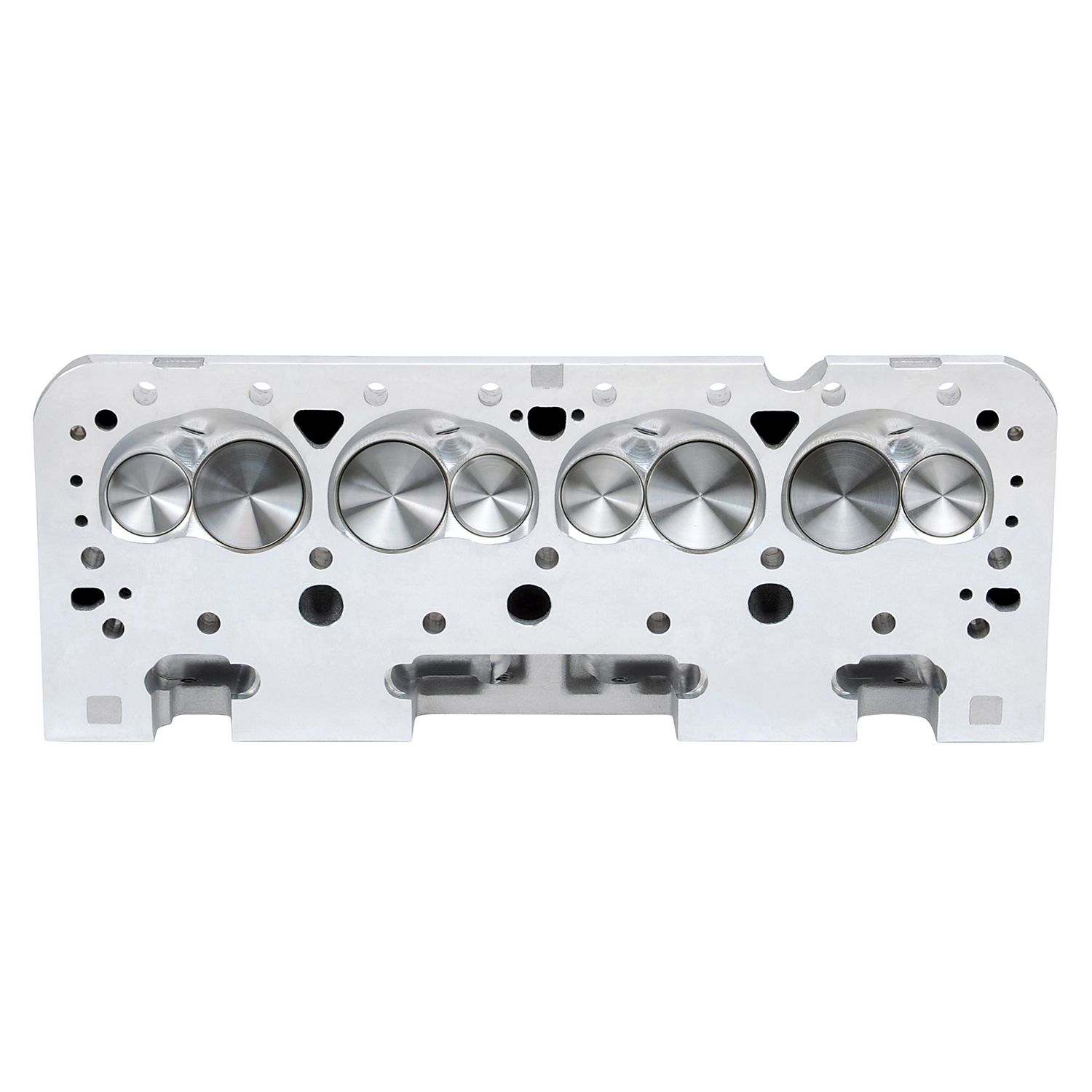

1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978, 1977, 1976, 1975, 1974, 1973, 1972, 1971, 1970 GMC Jimmy Engine Cylinder Head
View 1

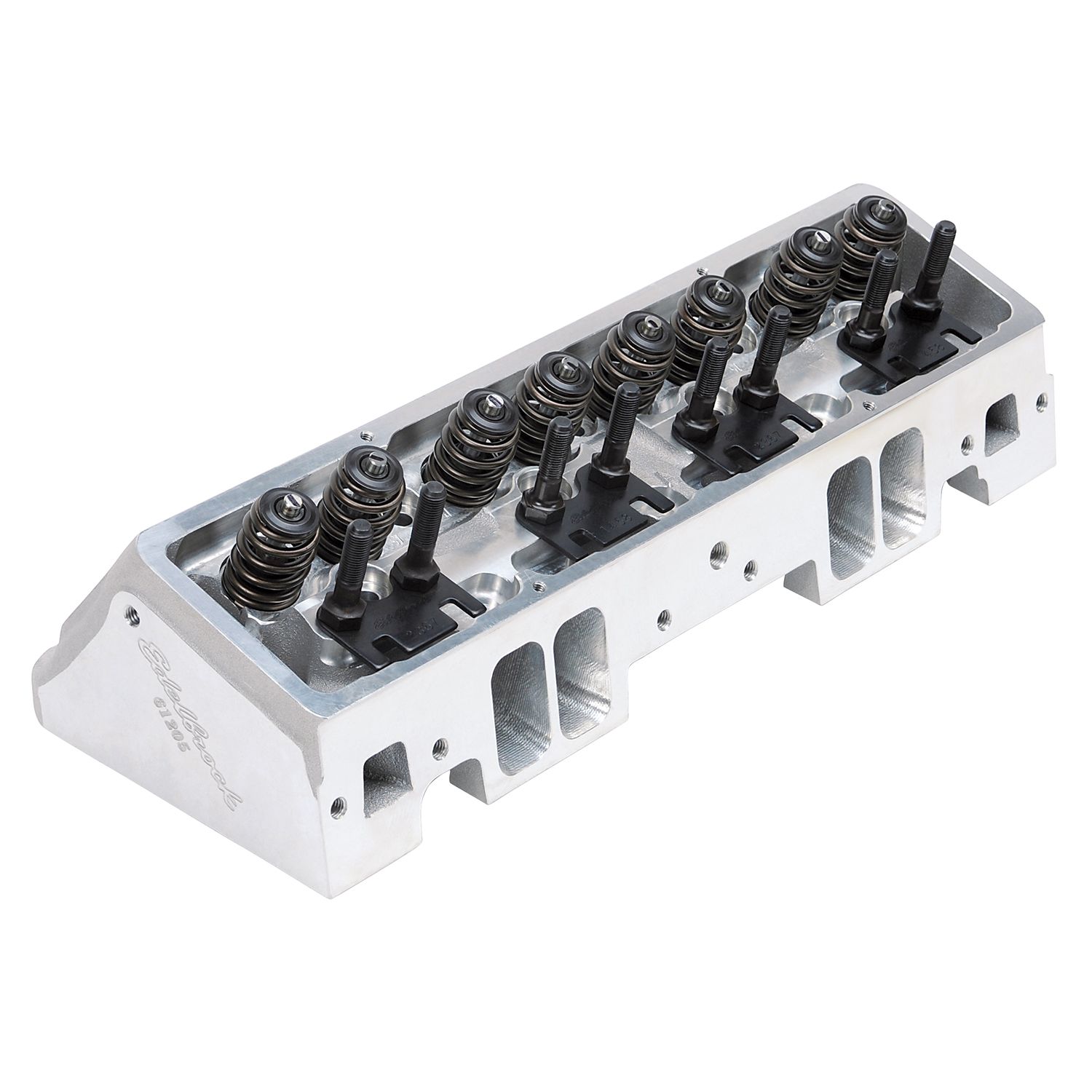

View 2

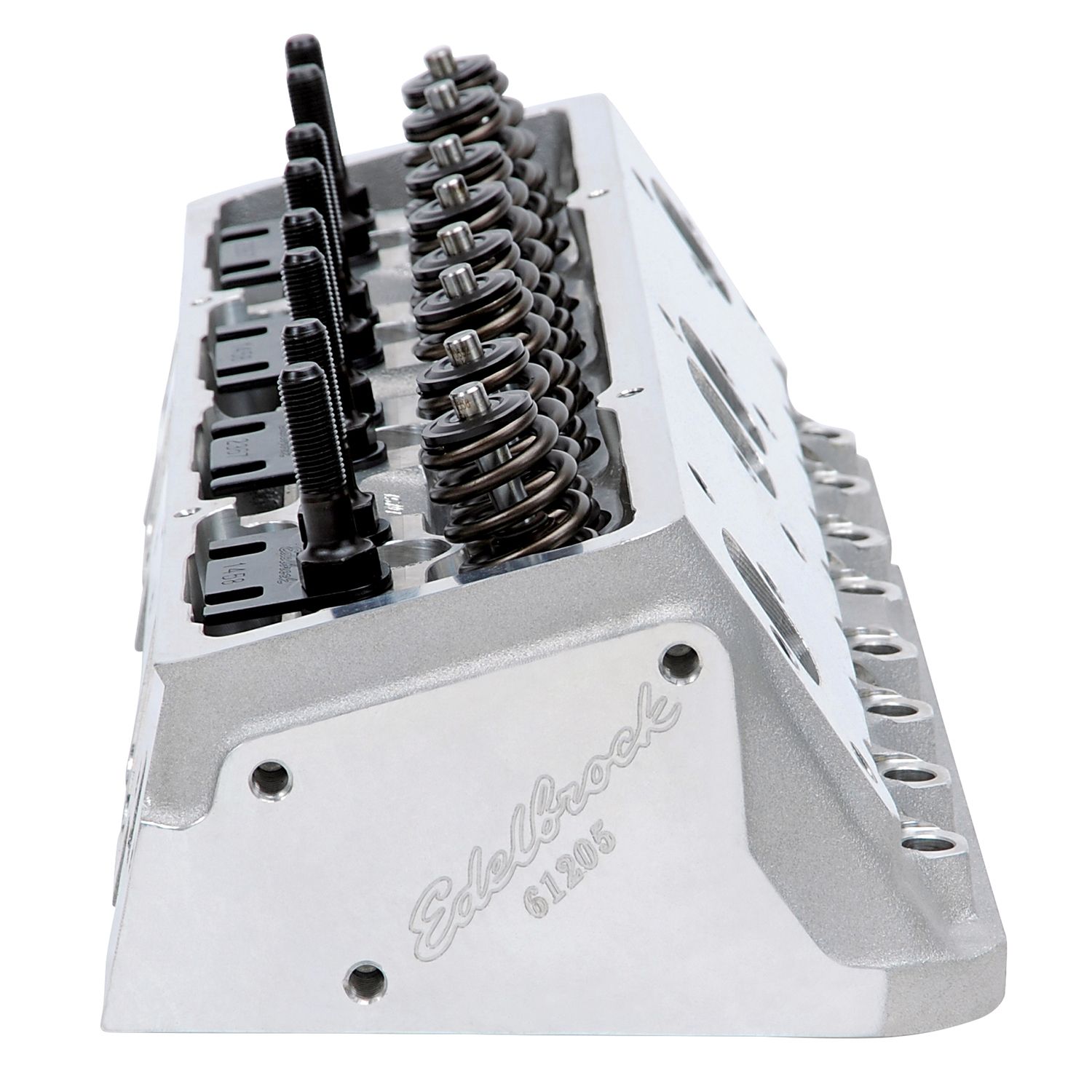

View 3

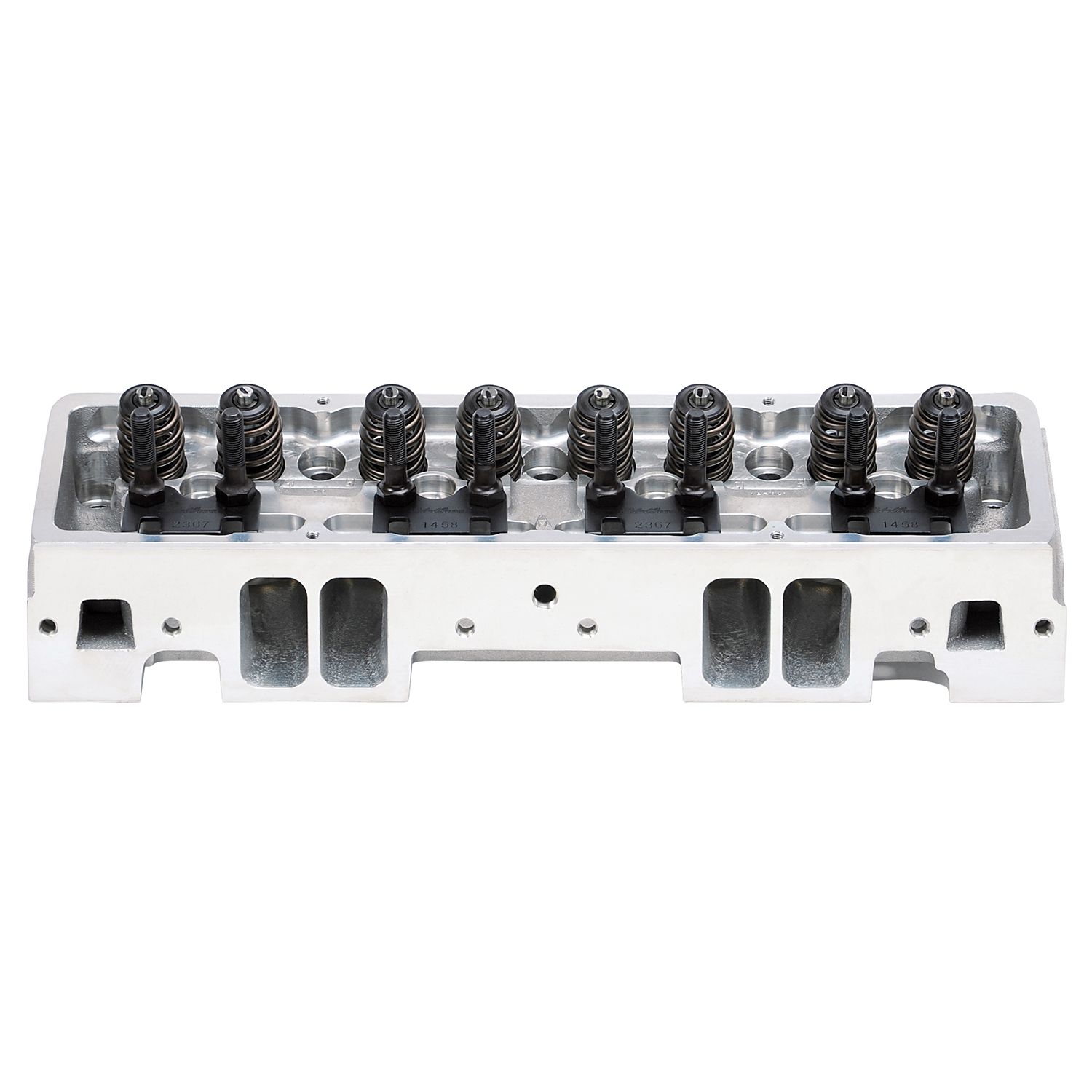

View 4

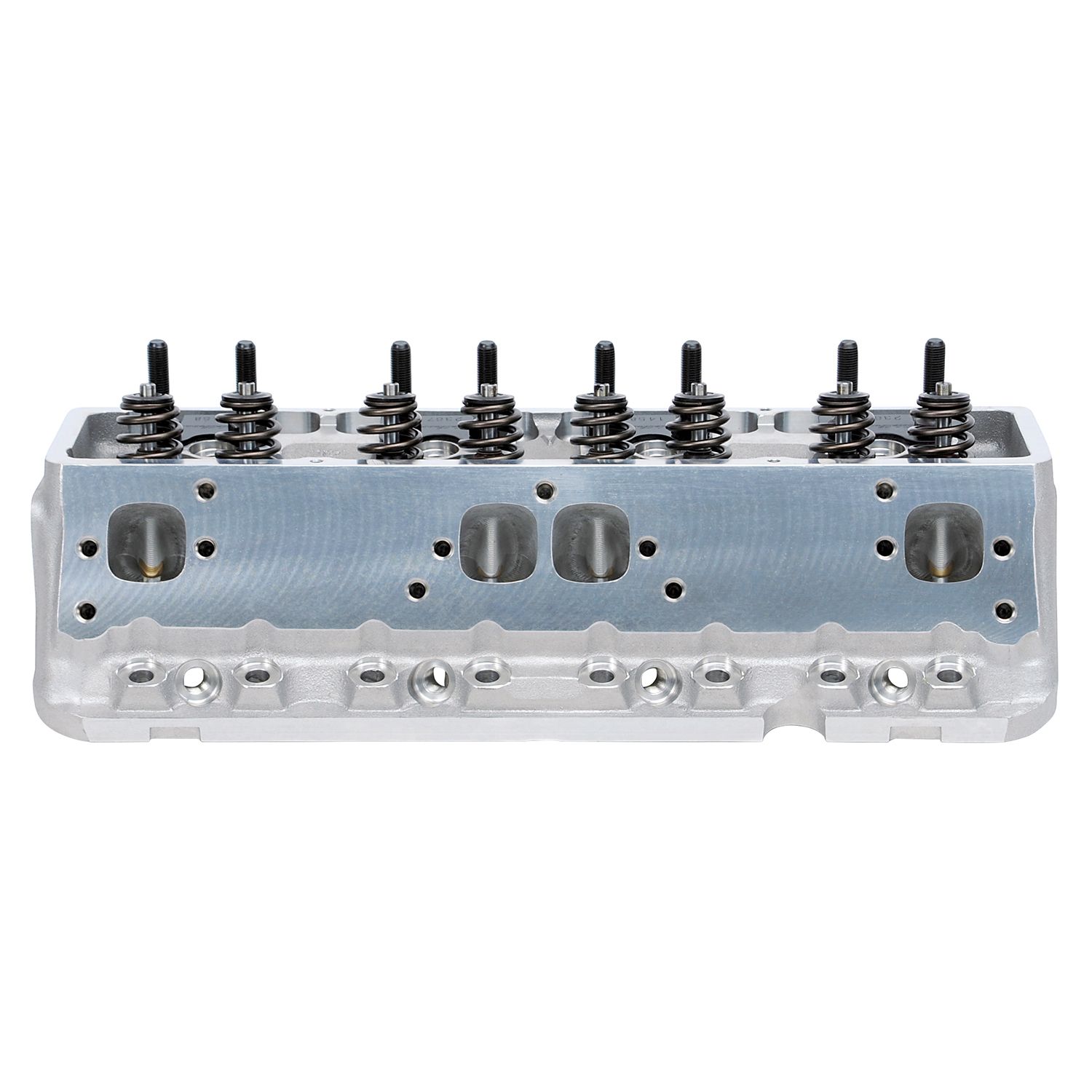

View 5

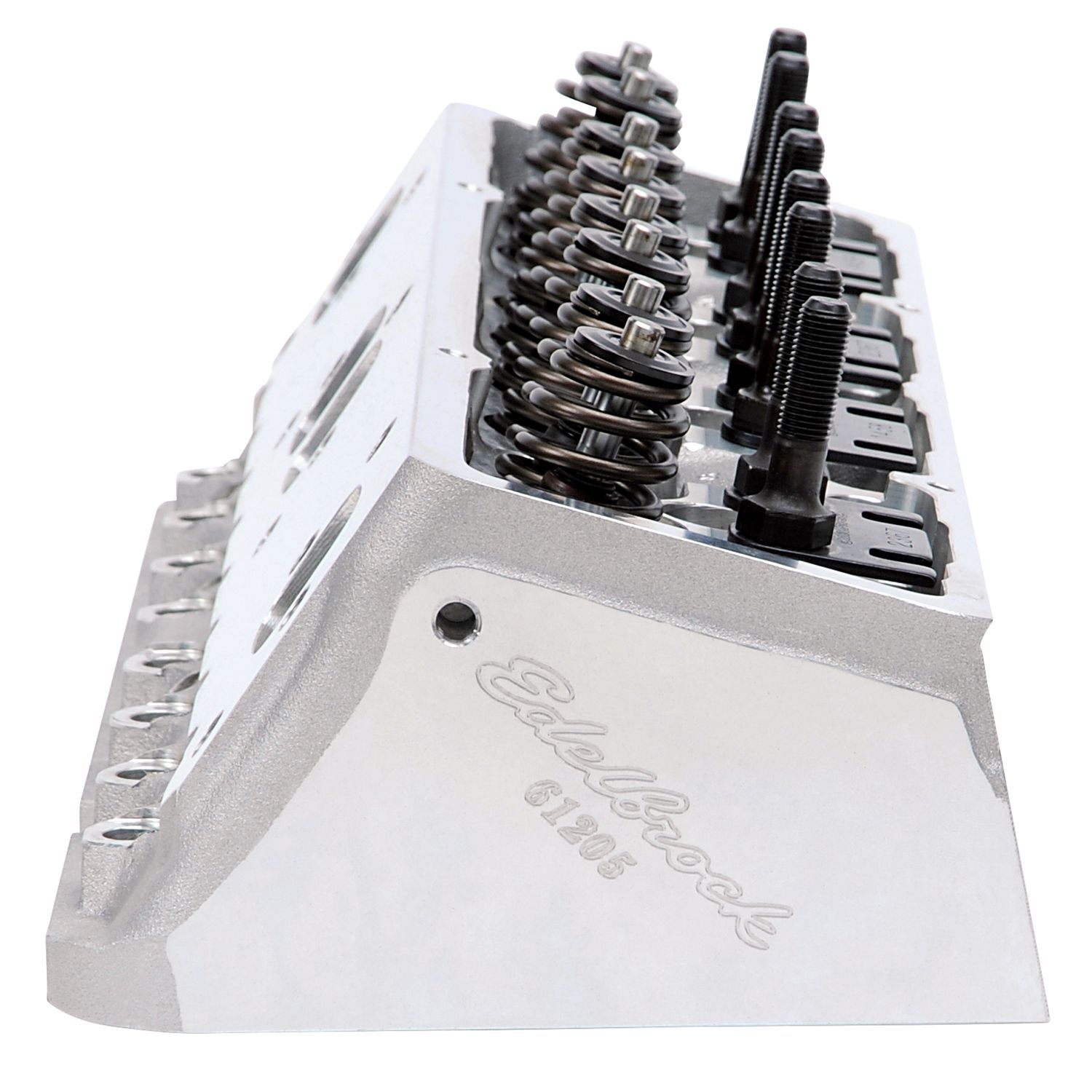

View 6

1970 - 1986 GMC Jimmy Engine Cylinder Head (Edelbrock) NEW

Out of Stock
$ 1,642 .50

Product Notes

Complete 225cc/88cc Int./Exh. Port Vol. 500-600HP Std. Intake Flange +0.200 Exh. Port Angled Plug 68cc Chamber Vol. Single Legal For Use On Pre-Pollution Controlled Vehicles To Use Stock Rockers 0.100 in. Longer Than Stock Pushrods Required~ Pushrods Pn9629 Recommended For Flat Tappet Cams Only~ SB Chevy Heads Not Used on Engine w/Less Than 4 in. Bore~ Equipped w/Springs For Use in Hydraulic Roller Camshaft Apps
E-CNC Cylinder Head
The Edelbrock part #61205 Small Block Chevy E-CNC 225 cylinder head offers the ultimate performance. This cylinder head is fully CNC ported for maximum horsepower and torque, making them ideal for high-performance's street and racing applications. They also feature high-quality lightweight valve springs and heavy duty hardware for maximum lift. E-CNC S/B CHEVY FEATURES: - Features fully CNC machined intake ports, combustion chambers and exhaust ports for improved performance - Maintains the stock 23deg valve angle and intake flange bolt pattern for use with 1986 and earlier intake manifolds - Delivers up to 30-60 horsepower over Performer RPM cylinder head - #61205 & #61209 features 7/16" studs and angled spark plugs - Ideal for high Performance's street and racing applications
Brand: Edelbrock
Condition: New
See Other GMC Jimmy Engine Cylinder Heads
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
CNC Ported Yes
Camshaft Type Hydraulic Roller
Combustion Chamber Volume 64
Construction Type Complete
Deck Thickness 0.5625
EGR Port No
Exhaust Port Location +.200
Exhaust Runner Volume 88
Exhaust Valve Diameter 1.60
Family E-cnc
Grade Type Performance
Guide Material Manganese Bronze
Guide Plate Material Hardened Steel
Guide Plates Included Yes
Head Casting Number N/a
Horsepower 500-600
Intake Runner Volume 225
Intake Valve Diameter 2.10
Push Rod Diameter (suggested) 0.3125
Quantity Sold Individually
RGL Warning: This Product Can Expose You To Lead, Which Is Known To The State Of California To Cause Cancer Or Birth Defects Or Other Reproductive Harm. For More Information, Visit Www.p65warnings.ca.gov.
Retainer Included No
Rocker Arm Stud Diameter 0.4375
Rotor Center Bore Inside Diameter Angled
Seat Angle Exhaust 45 Deg/intake 45
Seat Material Ductile Iron
Valve Angle 23
Valve Included Yes
Valve Spring Diameter 1.34
Valve Spring Maximum Lift 0.680
Valve Springs Included Yes
Valve Stem Diameter 0.3110

Vehicle Fitment Guide

This part fits the following vehicles:

GMC 1 model (tapclick to expand)(tapclick to hide)
Jimmy 1970-1986 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base SUV 1982 - 1986 V8 6.2L DIESEL 4WD Automatic & Manual
Base SUV 1982 - 1984 V8 6.2L DIESEL RWD Automatic & Manual
Base SUV 1975 - 1979 V8 6.6L RWD/4WD Automatic & Manual
Base SUV 1973 - 1974, 1976 V8 7.4L RWD/4WD Automatic & Manual
Base SUV 1973 - 1974 V8 7.4L RWD/4WD U/K
Base SUV 1970 - 1982 L6 4.1L RWD/4WD Automatic & Manual
Base SUV 1970 - 1974 L6 4.1L RWD/4WD U/K
Base SUV 1970 - 1974 L6 4.8L RWD/4WD Automatic & Manual & U/K
Base SUV 1970 - 1973, 1977 - 1986 V8 5.0L 4WD Automatic & Manual
Base SUV 1970 - 1973, 1977 - 1984 V8 5.0L RWD Automatic & Manual
Base SUV 1970 - 1973 V8 5.0L RWD/4WD U/K
Base SUV 1970 - 1986 V8 5.7L 4WD Automatic & Manual
Base SUV 1970 - 1984 V8 5.7L RWD Automatic & Manual
Base SUV 1970 - 1974 V8 5.7L RWD/4WD U/K
High Sierra SUV 1982 - 1985 V8 6.2L DIESEL 4WD Automatic & Manual
High Sierra SUV 1982 - 1984 V8 6.2L DIESEL RWD Automatic & Manual
High Sierra SUV 1977 - 1985 V8 5.0L 4WD Automatic & Manual
High Sierra SUV 1977 - 1984 V8 5.0L RWD Automatic & Manual
High Sierra SUV 1976 V8 7.4L RWD/4WD Automatic & Manual
High Sierra SUV 1975 - 1982 L6 4.1L RWD/4WD Automatic & Manual
High Sierra SUV 1975 - 1985 V8 5.7L 4WD Automatic & Manual
High Sierra SUV 1975 - 1984 V8 5.7L RWD Automatic & Manual
High Sierra SUV 1975 - 1979 V8 6.6L RWD/4WD Automatic & Manual
Sierra Classic SUV 1982 - 1986 V8 6.2L DIESEL 4WD Automatic & Manual
Sierra Classic SUV 1982 - 1984 V8 6.2L DIESEL RWD Automatic & Manual
Sierra Classic SUV 1978 - 1984 V8 5.0L RWD Automatic & Manual
Sierra Classic SUV 1977 - 1986 V8 5.0L 4WD Automatic & Manual
Sierra Classic SUV 1976 V8 7.4L RWD/4WD Automatic & Manual
Sierra Classic SUV 1975 - 1982 L6 4.1L 4WD Automatic & Manual
Sierra Classic SUV 1975 - 1976, 1978 - 1982 L6 4.1L RWD Automatic & Manual
Sierra Classic SUV 1975 - 1986 V8 5.7L 4WD Automatic & Manual
Sierra Classic SUV 1975 - 1976, 1978 - 1984 V8 5.7L RWD Automatic & Manual
Sierra Classic SUV 1975 - 1979 V8 6.6L 4WD Automatic & Manual
Sierra Classic SUV 1975 - 1976, 1978 - 1979 V8 6.6L RWD Automatic & Manual
Sierra Grande SUV 1982 V8 6.2L DIESEL RWD/4WD Automatic & Manual
Sierra Grande SUV 1977 - 1982 V8 5.0L RWD/4WD Automatic & Manual
Sierra Grande SUV 1976 V8 7.4L RWD/4WD Automatic & Manual
Sierra Grande SUV 1975 - 1982 L6 4.1L RWD/4WD Automatic & Manual
Sierra Grande SUV 1975 - 1982 V8 5.7L RWD/4WD Automatic & Manual
Sierra Grande SUV 1975 - 1979 V8 6.6L RWD/4WD Automatic & Manual
Silverado SUV 1986 V8 5.0L 4WD Automatic & Manual
Silverado SUV 1986 V8 5.7L 4WD Automatic & Manual
Silverado SUV 1986 V8 6.2L DIESEL 4WD Automatic & Manual
Street Coupe SUV 1982 V8 6.2L DIESEL RWD Automatic & Manual
Street Coupe SUV 1978 - 1982 L6 4.1L RWD Automatic & Manual
Street Coupe SUV 1978 - 1982 V8 5.0L RWD Automatic & Manual
Street Coupe SUV 1978 - 1982 V8 5.7L RWD Automatic & Manual
Street Coupe SUV 1978 - 1979 V8 6.6L RWD Automatic & Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.
