1991, 1990, 1989, 1988, 1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978, 1977, 1976, 1975, 1974, 1973, 1972, 1971, 1970 GMC Jimmy 1500 Suspension Shock Absorber
View 1
View 2
View 3
View 4
View 5
View 6

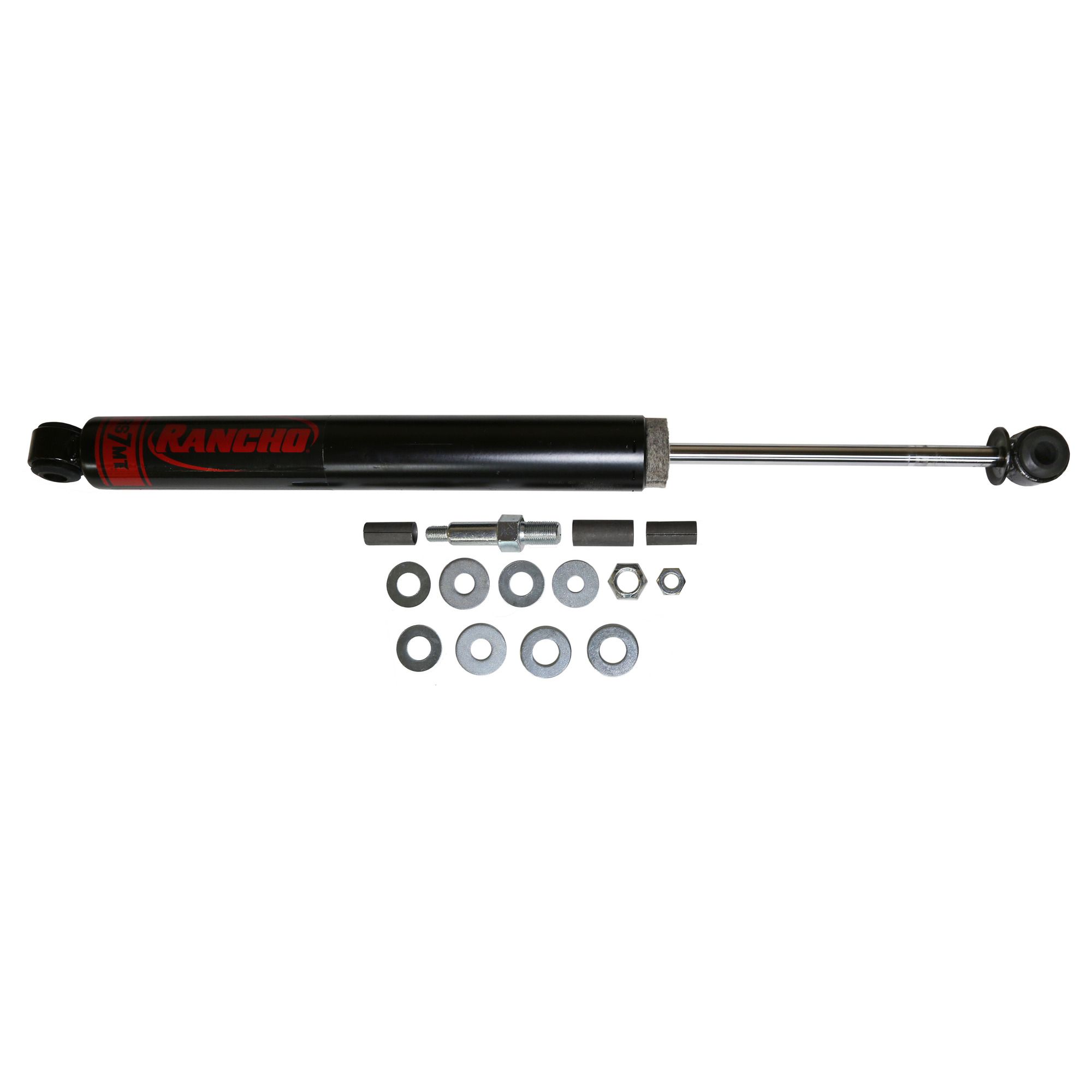

1970 - 1991 GMC Jimmy 1500 Suspension Shock Absorber - Rear (Rancho) NEW

Out of Stock
$ 114 .64

Product Notes

Position: Rear
⚠️ Most jobs typically require 2 of this item.
with Rancho Suspension System with Rear Raised Height 4.0 (in)
RS7MT
Application tuned for precision on-road and off-road handling, Rancho® RS7MT® monotube shocks are highly effective in the dissipation of heat, making them ideal for extreme off-road use and larger wheel and tire packages. RS7MT shocks feature an integrated dirt wiper sealing system that keeps dirt and debris out, hardened piston rod that resists scuffs and corrosion plus an internal rebound bumper to smooth out your ride on any terrain.
Brand: Rancho
Condition: New
See Other GMC Jimmy Suspension Shock Absorbers
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Active Or Passive Suspension Passive
Adjustable Compression No
Adjustable Damping No
Adjustable Rebound No
Adjustable Ride Height No
Air Adjustable No
Air Ride Suspension No
Bearing Plate Included No
Bladder Heavy Duty Crimping Rings Included No
Bladder Sleeve(s) Included No
Bladder(s) Included No
Body Color Black
Body Diameter 1.97
Body Material Steel
Boot Included No
Coil Over Springs Included No
Coil Spring Insulator(s) Included No
Compressed Length 16.65, 422.9
Cylinder Color Black
Cylinder Finish Painted
Cylinder Material Steel
Cylinder Outside Diameter 1.97
Dust Shield Included No
Extended Length 25.7, 652.8
Gas Charged Yes
Grade Type Performance
Hydraulic Lockout No
Includes Bump Stop No
Internal Construction Type Single Tube
Internal Rebound Bumper Yes
Internal Rebound Spring No
Lower Mount Code L1
Lower Mount Type Loop Bushing Mount - 5/8" Bushing Id X 1.5/16" Bushing Oal
Maximum Ride Height Lowering Distance 0
Maximum Ride Height Raising Distance 0
Mounting Hardware Included Yes
Parts Pack(s) P00913, P00915
Remote Reservoir No
Rod Diameter 0.5511811023622047, 14
Self Leveling No
Shaft Material Chromed
Shock Absorber Body End Measuring Point Center Of Loop
Shock Absorber Bore Size 1.8110236220472442, 46
Shock Absorber Rod End Measuring Point Center Of Loop
Shock Stroke 229.9, 9.05
Spring Included No
Spring Isolators Included No
Spring Seat Included No
Strut Mount Insulator(s) Included No
Travel Length 229.9, 9.05
Upper Mount Code L1
Upper Mount Type Loop Bushing Mount - 5/8" Bushing Id X 1.5/16" Bushing Oal
Valving Type Progressive

Vehicle Fitment Guide

This part fits the following vehicles:

GMC 1 model (tapclick to expand)(tapclick to hide)
Jimmy 1970-1991 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base SUV 1982 - 1991 V8 6.2L DIESEL 4WD Automatic & Manual
Base SUV 1982 - 1984 V8 6.2L DIESEL RWD Automatic & Manual
Base SUV 1975 - 1979 V8 6.6L RWD/4WD Automatic & Manual
Base SUV 1973 - 1974, 1976 V8 7.4L RWD/4WD Automatic & Manual
Base SUV 1973 - 1974 V8 7.4L RWD/4WD U/K
Base SUV 1970 - 1982 L6 4.1L RWD/4WD Automatic & Manual
Base SUV 1970 - 1974 L6 4.1L RWD/4WD U/K
Base SUV 1970 - 1974 L6 4.8L RWD/4WD Automatic & Manual & U/K
Base SUV 1970 - 1973, 1977 - 1987 V8 5.0L 4WD Automatic & Manual
Base SUV 1970 - 1973, 1977 - 1984 V8 5.0L RWD Automatic & Manual
Base SUV 1970 - 1973 V8 5.0L RWD/4WD U/K
Base SUV 1970 - 1991 V8 5.7L 4WD Automatic & Manual
Base SUV 1970 - 1984 V8 5.7L RWD Automatic & Manual
Base SUV 1970 - 1974 V8 5.7L RWD/4WD U/K
High Sierra SUV 1982 - 1985 V8 6.2L DIESEL 4WD Automatic & Manual
High Sierra SUV 1982 - 1984 V8 6.2L DIESEL RWD Automatic & Manual
High Sierra SUV 1977 - 1985 V8 5.0L 4WD Automatic & Manual
High Sierra SUV 1977 - 1984 V8 5.0L RWD Automatic & Manual
High Sierra SUV 1976 V8 7.4L RWD/4WD Automatic & Manual
High Sierra SUV 1975 - 1982 L6 4.1L RWD/4WD Automatic & Manual
High Sierra SUV 1975 - 1985 V8 5.7L 4WD Automatic & Manual
High Sierra SUV 1975 - 1984 V8 5.7L RWD Automatic & Manual
High Sierra SUV 1975 - 1979 V8 6.6L RWD/4WD Automatic & Manual
Sierra Classic SUV 1982 - 1990 V8 6.2L DIESEL 4WD Automatic & Manual
Sierra Classic SUV 1982 - 1984 V8 6.2L DIESEL RWD Automatic & Manual
Sierra Classic SUV 1978 - 1984 V8 5.0L RWD Automatic & Manual
Sierra Classic SUV 1977 - 1987 V8 5.0L 4WD Automatic & Manual
Sierra Classic SUV 1976 V8 7.4L RWD/4WD Automatic & Manual
Sierra Classic SUV 1975 - 1982 L6 4.1L 4WD Automatic & Manual
Sierra Classic SUV 1975 - 1976, 1978 - 1982 L6 4.1L RWD Automatic & Manual
Sierra Classic SUV 1975 - 1990 V8 5.7L 4WD Automatic & Manual
Sierra Classic SUV 1975 - 1976, 1978 - 1984 V8 5.7L RWD Automatic & Manual
Sierra Classic SUV 1975 - 1979 V8 6.6L 4WD Automatic & Manual
Sierra Classic SUV 1975 - 1976, 1978 - 1979 V8 6.6L RWD Automatic & Manual
Sierra Grande SUV 1982 V8 6.2L DIESEL RWD/4WD Automatic & Manual
Sierra Grande SUV 1977 - 1982 V8 5.0L RWD/4WD Automatic & Manual
Sierra Grande SUV 1976 V8 7.4L RWD/4WD Automatic & Manual
Sierra Grande SUV 1975 - 1982 L6 4.1L RWD/4WD Automatic & Manual
Sierra Grande SUV 1975 - 1982 V8 5.7L RWD/4WD Automatic & Manual
Sierra Grande SUV 1975 - 1979 V8 6.6L RWD/4WD Automatic & Manual
Silverado SUV 1986 V8 5.0L 4WD Automatic & Manual
Silverado SUV 1986 V8 5.7L 4WD Automatic & Manual
Silverado SUV 1986 V8 6.2L DIESEL 4WD Automatic & Manual
Street Coupe SUV 1982 V8 6.2L DIESEL RWD Automatic & Manual
Street Coupe SUV 1978 - 1982 L6 4.1L RWD Automatic & Manual
Street Coupe SUV 1978 - 1982 V8 5.0L RWD Automatic & Manual
Street Coupe SUV 1978 - 1982 V8 5.7L RWD Automatic & Manual
Street Coupe SUV 1978 - 1979 V8 6.6L RWD Automatic & Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Application tuned for precision on-road and off-road handling, Rancho® RS7MT® monotube shocks are highly effective in the dissipation of heat, making them ideal for extreme off-road use and larger wheel and tire packages. RS7MT shocks feature an integrated dirt wiper sealing system that keeps dirt and debris out, hardened piston rod that resists scuffs and corrosion plus an internal rebound bumper to smooth out your ride on any terrain.

Interchange Parts

Brand Part Number
Bilstein 24016186
Bilstein 24187084

Fits Years: 1970 1971 1972 1973 1974 1975 1976 1977 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991

Fits Models: Jimmy
