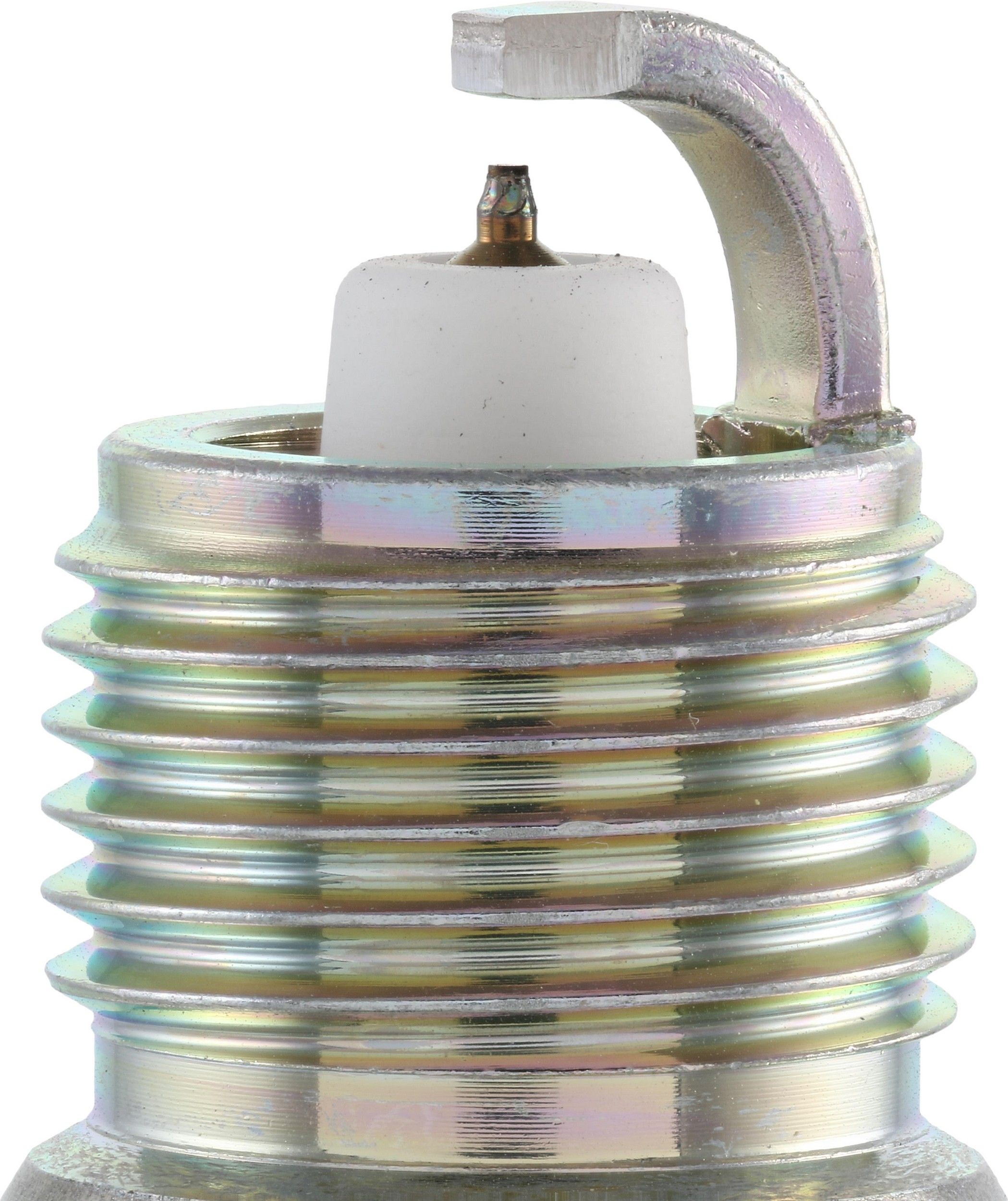

1995, 1994, 1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985 GMC Safari Spark Plug
View 1

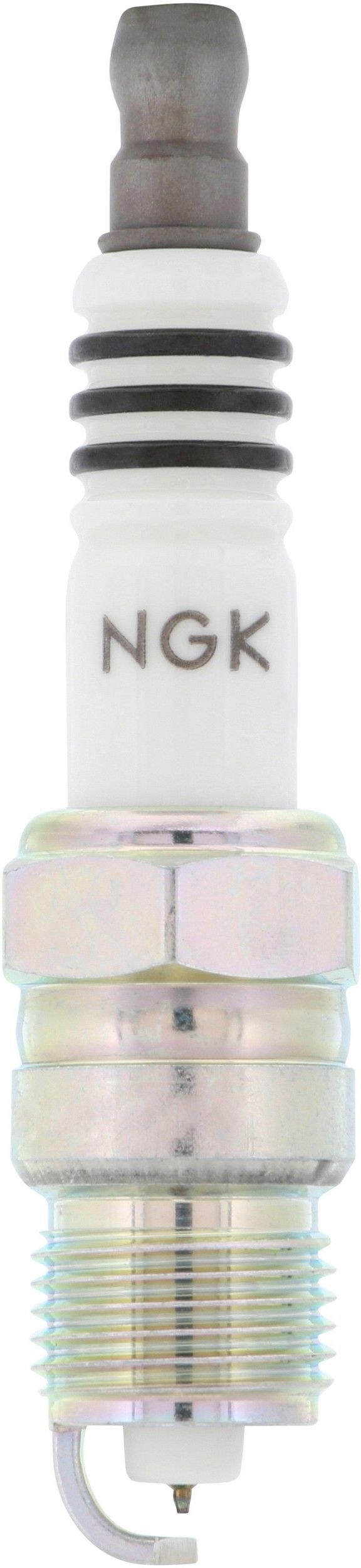

View 2

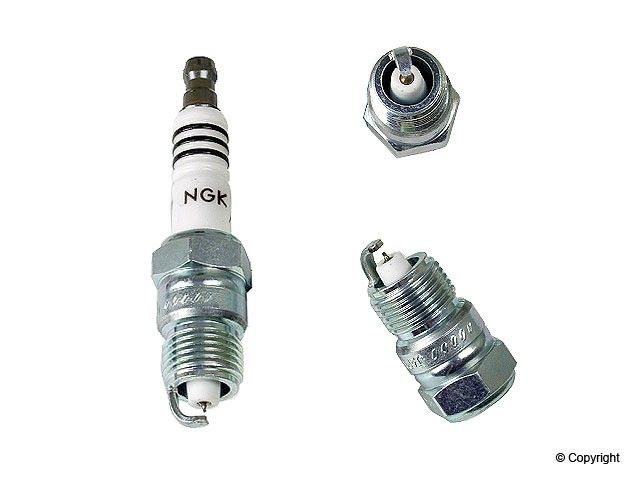

View 3

1985 - 1995 GMC Safari Spark Plug (NGK) NEW

Out of Stock
$ 11 .85

Product Notes

⚠️ Most jobs typically require 8 of this item.
Gap 0.044"
Iridium IX Spark Plug
NGK Iridium IX spark plugs are specifically designed for the performance enthusiast. Iridium IX provides outstanding acceleration, high fuel efficiency and durability. NGK Iridium IX plugs offer extreme ignitability and exceptional anti-fouling. Tapered cut ground electrode provides improved starting, idling and throttle response. The Iridium fine wire center electrode's durability is six times harder than platinum. Iridium alloy's extremely high melting point is perfect for today's engines. For even greater performance consider upgrading to an NGK Ruthenium HX plug.
Brand: NGK
Condition: New
See Other GMC Safari Spark Plugs
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Center Electrode Core Material Copper
Center Electrode Design Fine Wire
Center Electrode Insulator Tip Projection 0.16, 4.0
Center Electrode Projection Mid Projection
Center Electrode Tip Material Iridium
Electrical Terminal Type Non-removable Nut
Grade Type Performance
Ground Configuration J-gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Taper Cut
Ground Electrode Tip Material Nickel
Hex Size 5/8" (16mm)
Insulator Height 2.07, 52.5
Insulator Material Ceramic
Manufacturer Heat Range 5
Material Grade Iridium
Part Number Ur5ix
Pre Gap Size .040, 1.0
Reach 0.460, 11.2
Resistance 5000.0
Resistor Type Yes
Seat Type Tapered
Service Number Ur5ix
Short Style Spark Plug No
Skirt No
Skirt Length 0.0
Stock Number 7177
Thread Diameter 0.551, 14.0
Washer Included No

Vehicle Fitment Guide

This part fits the following vehicles:

GMC 1 model (tapclick to expand)(tapclick to hide)
Safari 1985-1995 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base Extended Cargo Van 1990 L4 2.5L AWD/RWD Automatic
Base Extended Cargo Van 1990 - 1994 V6 4.3L AWD/RWD Automatic
Base Extended Passenger Van 1991 - 1995 V6 4.3L AWD/RWD Automatic
Base Standard Cargo Van 1990 L4 2.5L AWD Automatic
Base Standard Cargo Van 1990 - 1994 V6 4.3L AWD Automatic
Base Standard Cargo Van 1985 - 1990 L4 2.5L RWD Automatic
Base Standard Cargo Van 1985 - 1989 L4 2.5L RWD Manual
Base Standard Cargo Van 1985 - 1994 V6 4.3L RWD Automatic
Base Standard Cargo Van 1985 - 1989 V6 4.3L RWD Manual
Base Standard Passenger Van 1991 - 1994 V6 4.3L AWD/RWD Automatic
GT Extended Passenger Van 1993 V6 4.3L RWD Automatic
SL Extended Cargo Van 1995 V6 4.3L AWD/RWD Automatic
SL Standard Passenger Van 1985 L4 2.5L RWD Automatic & Manual
SL Standard Passenger Van 1985 - 1987 V6 4.3L RWD Automatic & Manual
SLE Extended Passenger Van 1990 - 1995 V6 4.3L AWD/RWD Automatic
SLE Standard Passenger Van 1990 - 1994 V6 4.3L AWD Automatic
SLE Standard Passenger Van 1985 L4 2.5L RWD Automatic & Manual
SLE Standard Passenger Van 1985 - 1994 V6 4.3L RWD Automatic
SLE Standard Passenger Van 1985 - 1989 V6 4.3L RWD Manual
SLT Extended Passenger Van 1990 - 1995 V6 4.3L AWD/RWD Automatic
SLT Standard Passenger Van 1990 - 1994 V6 4.3L AWD Automatic
SLT Standard Passenger Van 1987 - 1994 V6 4.3L RWD Automatic
SLT Standard Passenger Van 1987 - 1989 V6 4.3L RWD Manual
SLX Extended Passenger Van 1990, 1994 - 1995 V6 4.3L AWD/RWD Automatic
SLX Standard Passenger Van 1990, 1994 V6 4.3L AWD Automatic
SLX Standard Passenger Van 1985 L4 2.5L RWD Automatic & Manual
SLX Standard Passenger Van 1985 - 1990, 1994 V6 4.3L RWD Automatic
SLX Standard Passenger Van 1985 - 1989 V6 4.3L RWD Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
NGK Iridium IX spark plugs are specifically designed for the performance enthusiast. Iridium IX provides outstanding acceleration, high fuel efficiency and durability. NGK Iridium IX plugs offer extreme ignitability and exceptional anti-fouling. Tapered cut ground electrode provides improved starting, idling and throttle response. The Iridium fine wire center electrode's durability is six times harder than platinum. Iridium alloy's extremely high melting point is perfect for today's engines. For even greater performance consider upgrading to an NGK Ruthenium HX plug.

Interchange Parts

Brand Part Number
ACDelco 1
ACDelco 10
ACDelco 2
Autolite XP24
Autolite XP24DP2
Autolite XP25
Autolite XP25DP2
Bosch 4448
Bosch 4502
Bosch H8BP
Bosch HGR9BQI
Champion Spark Plug V12YC
DENSO Auto Parts 4716
DENSO Auto Parts 5330
DENSO Auto Parts 7177
DENSO Auto Parts IFT16
DENSO Auto Parts ITF16
DENSO Auto Parts ITF20TT
Motorcraft AF42
Motorcraft ASF32P
Motorcraft SP501

Fits Years: 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995

Fits Models: Safari
