2017, 2016, 2015, 2014, 2013, 2012, 2011, 2010 GMC Terrain Hood Lift Support

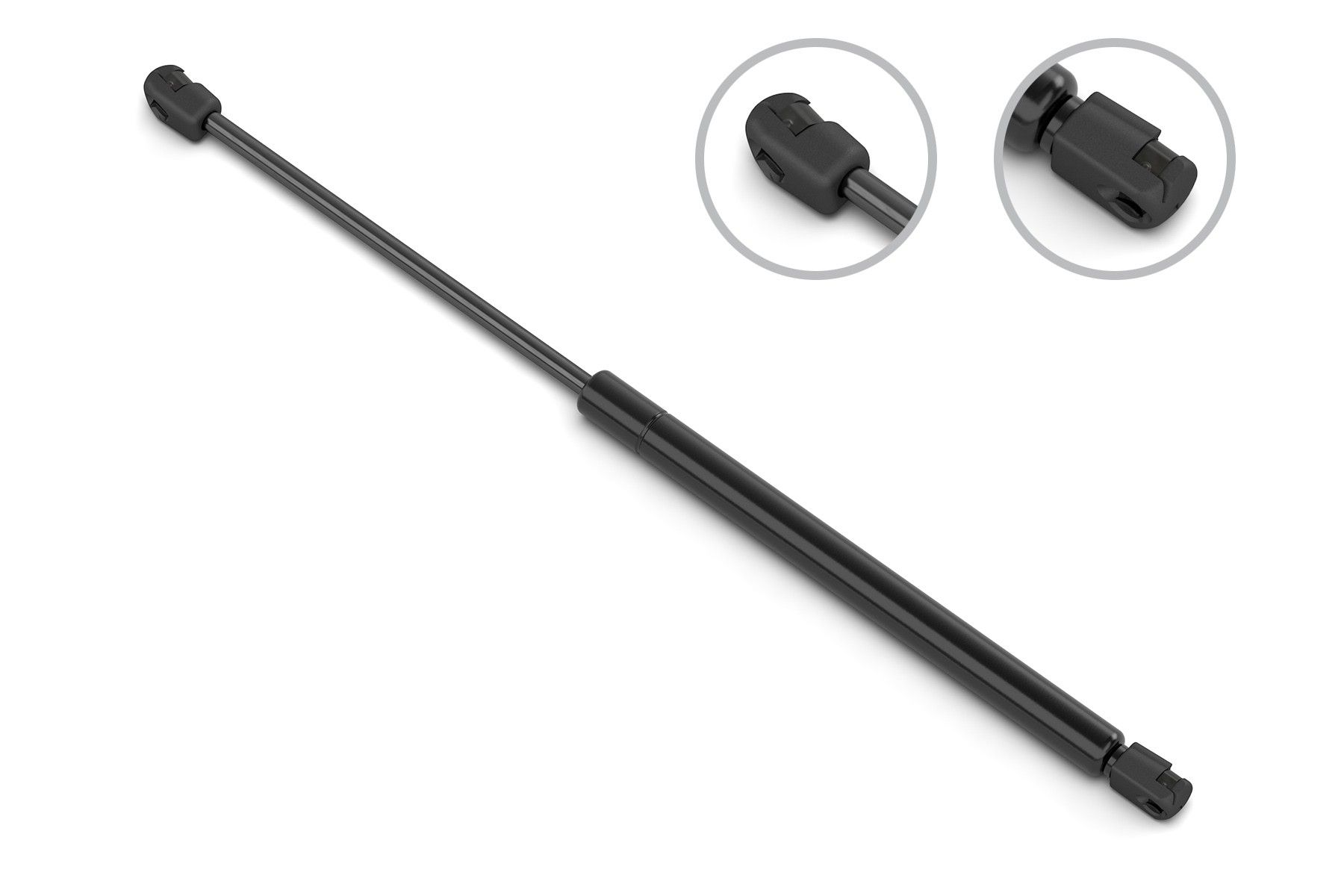

2010 - 2017 GMC Terrain Hood Lift Support (Stabilus) NEW

$ 30 .65
120-DayReturns
LifetimeWarranty
100%Money-Back

Product Notes Read before buying

⚠️ Most jobs typically require 2 of this item.

Lift-O-Mat by Stabilus - Precision Motion with Controlled Damping The Lift-O-Mat by Stabilus combines advanced hydraulic damping with precise motion control to deliver smooth, dependable performance. Using an innovative oil channeling system, Lift-O-Mat adjusts its damping according to an oil column that flows through a patented labyrinth piston. This unique design allows each Lift-O-Mat to be finely tuned for its application, with damping speeds determined by customized oil viscosities and labyrinth piston configurations. Built for Professionals Engineered with high-quality materials and stabilized by a precision seal-guide system, Lift-O-Mat is crafted to withstand demanding applications with durability and reliable operation. This lift support is the ideal solution for applications requiring smooth, controlled lifting and lowering, making it a trusted choice across automotive, furniture, and ergonomic equipment industries. Why Choose Lift-O-Mat? - Precision Damping: Achieve consistent motion control with custom-tuned oil viscosities and labyrinth piston designs. - High-Quality Build: High-grade materials and a proprietary seal-guide system ensure performance and durability. - Application-Specific Engineering: Every Lift-O-Mat is designed to meet the exact requirements of its application, delivering reliability you can trust. Choose Lift-O-Mat by Stabilus for hydraulic damping that provides a refined, controlled user experience.
Brand: Stabilus
Condition: New
See Other GMC Terrain Hood Lift Supports
Wrenchy the Robot
Not sure? Ask Wrenchy — Your Parts Assistant.

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Agricultural Equipment N
CarLight Truck Y
Compressed Length 14.92, 379
Cylinder Outside Diameter 0.748, 19
End 1 Material Nylon
End 1 Mount Diameter 0.394, 10.0
End 1 Type Ball Socket
End 2 Material Nylon
End 2 Mount Diameter 0.315, 8.0
End 2 Type Ball Socket
Engine Specific N
Extended Length 23.11, 587
Heavy Truck N
High Performance N
IndustrialOff Highway N
Inner Shaft Diameter 0.315
Marine N
Maximum Force 440, 99
Medium Truck N
MotorCycleRV N
Mounting Hardware Included No
NonVehicle Specific N
Personal Watercraft N
Prop 65 Affected Yes
Prop 65 Chemical Dehp
Prop 65 Warning Warning: This Product Can Expose You To Chemicals Including Di(2-ethylhexyl) Phthalate (dehp), Which Is Known To The State Of California To Cause Canc
Small Engine N
Snowmobile N
Stroke Length 208, 8.19
Transmission Specific N
Type Gas

Vehicle Fitment Guide

This part fits the following vehicles:

GMC 1 model (tapclick to expand)(tapclick to hide)
Terrain 2010-2017 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Denali SUV 2013 - 2017 L4 2.4L AWD/FWD Automatic
Denali SUV 2013 - 2017 L4 2.4L FLEX AWD/FWD Automatic
Denali SUV 2013 - 2017 V6 3.6L AWD/FWD Automatic
Denali SUV 2013 - 2015, 2017 V6 3.6L FLEX AWD/FWD Automatic
SL SUV 2015 - 2017 L4 2.4L FWD Automatic
SL SUV 2015 - 2017 L4 2.4L FLEX FWD Automatic
SLE SUV 2013 - 2017 V6 3.6L AWD/FWD Automatic
SLE SUV 2013 - 2015, 2017 V6 3.6L FLEX AWD/FWD Automatic
SLE SUV 2012 - 2017 L4 2.4L FLEX AWD/FWD Automatic
SLE SUV 2011 - 2012 V6 3.0L FLEX AWD/FWD Automatic
SLE SUV 2010 - 2017 L4 2.4L AWD/FWD Automatic
SLE SUV 2010, 2012 V6 3.0L AWD/FWD Automatic
SLT SUV 2013 - 2017 V6 3.6L AWD/FWD Automatic
SLT SUV 2013 - 2015, 2017 V6 3.6L FLEX AWD/FWD Automatic
SLT SUV 2012 - 2017 L4 2.4L FLEX AWD/FWD Automatic
SLT SUV 2011 - 2012 V6 3.0L FLEX AWD/FWD Automatic
SLT SUV 2010 - 2017 L4 2.4L AWD/FWD Automatic
SLT SUV 2010 - 2012 V6 3.0L FWD Automatic
SLT SUV 2010, 2012 V6 3.0L AWD Automatic
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies, in plain English.

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Lifetime Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

Returns (120 Days)

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.
Lift-O-Mat by Stabilus - Precision Motion with Controlled Damping The Lift-O-Mat by Stabilus combines advanced hydraulic damping with precise motion control to deliver smooth, dependable performance. Using an innovative oil channeling system, Lift-O-Mat adjusts its damping according to an oil column that flows through a patented labyrinth piston. This unique design allows each Lift-O-Mat to be finely tuned for its application, with damping speeds determined by customized oil viscosities and labyrinth piston configurations. Built for Professionals Engineered with high-quality materials and stabilized by a precision seal-guide system, Lift-O-Mat is crafted to withstand demanding applications with durability and reliable operation. This lift support is the ideal solution for applications requiring smooth, controlled lifting and lowering, making it a trusted choice across automotive, furniture, and ergonomic equipment industries. Why Choose Lift-O-Mat? - Precision Damping: Achieve consistent motion control with custom-tuned oil viscosities and labyrinth piston designs. - High-Quality Build: High-grade materials and a proprietary seal-guide system ensure performance and durability. - Application-Specific Engineering: Every Lift-O-Mat is designed to meet the exact requirements of its application, delivering reliability you can trust. Choose Lift-O-Mat by Stabilus for hydraulic damping that provides a refined, controlled user experience.

Interchange Parts

Brand Part Number
GMC 20865435
GMC 23408397
Stabilus 486865
Stabilus 487104
Stabilus 706025

Fits Years: 2010 2011 2012 2013 2014 2015 2016 2017

Fits Models: Terrain
