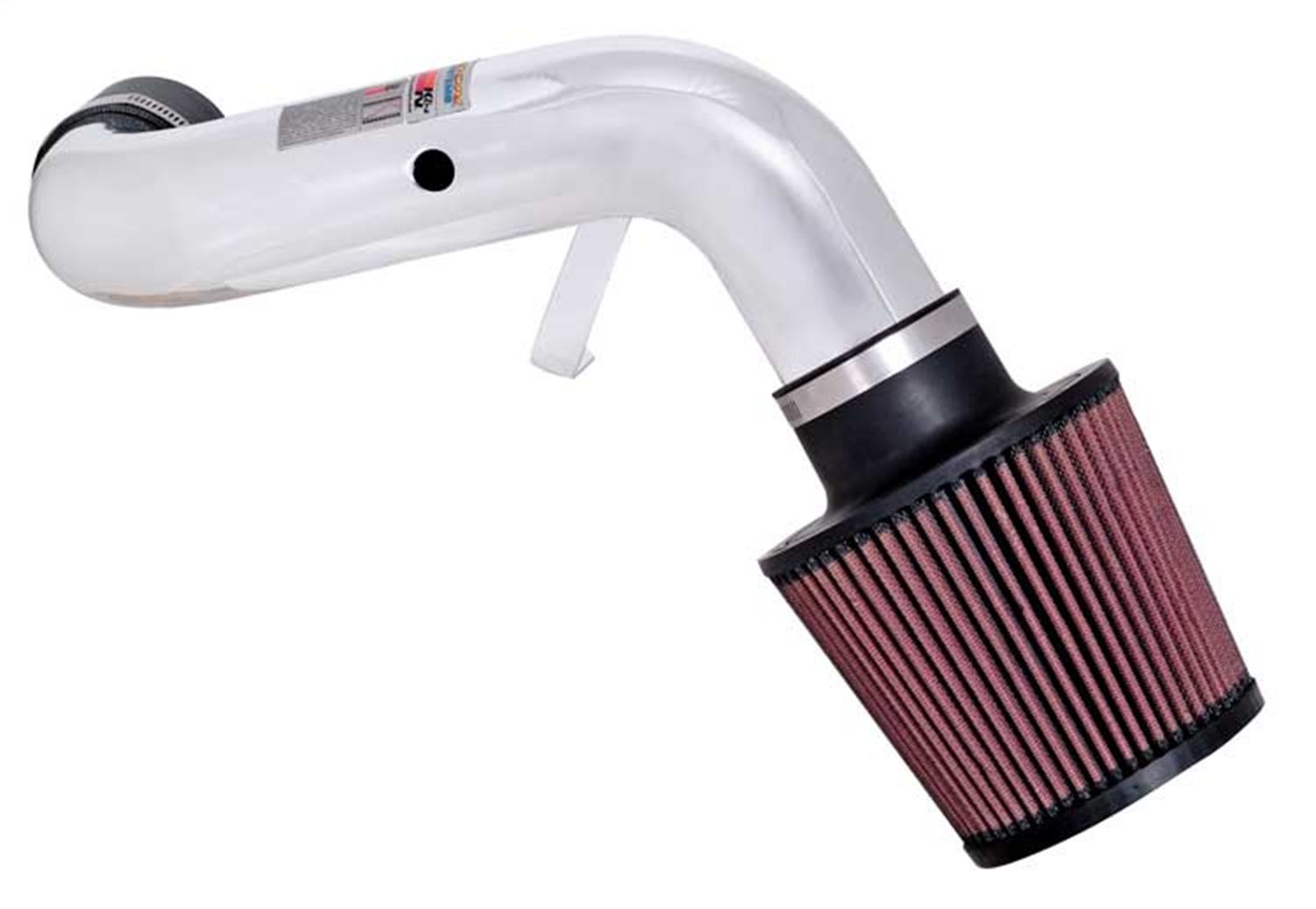

2005, 2004, 2003, 2002 Honda Civic Air Intake Kit
View 1
View 2
View 3
View 4
View 5
View 6
View 7
View 8
View 9
View 10

2002 - 2005 Honda Civic Air Intake Kit (K&N) NEW

$ 419 .99
120-DayReturns
LifetimeWarranty
100%Money-Back

Product Notes Read before buying

Red; Incl. Air Filter/Tubing; Estimated Horsepower Gain 10.48 HP At 7014 RPM;CARB E.O. D-269-38 69 Series - Metal Intake Kit For Sport Compact & Sports Car
Typhoon Short Ram Cold Air Induction Kit

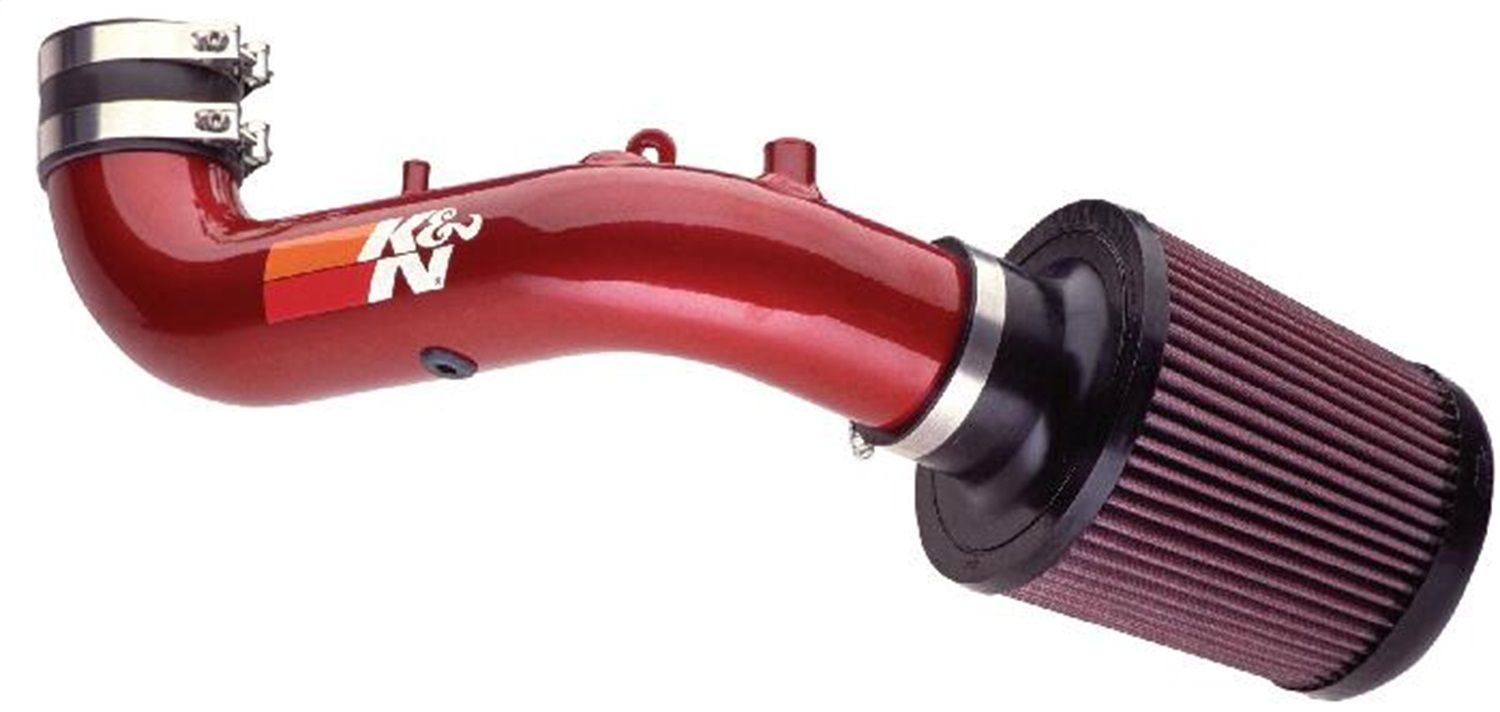

The K&N 69-1009TR Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Acura RSX Type-S and Honda Civic VI or SI models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothes and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-1009TR air intake comes with a black rubber topped K&N high-flow air filter that installs into the previous air box space. Air is directed through the intake tube into the engine's throttle body for a guaranteed power gain. The intake tube has an attractive red powder-coat finish that's made to last and it accommodates the factory air temperature sensor, crank case vent hose and idle air bypass control thermal valve hose. The large cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the vehicle applications and specific CARB status for each vehicle and air intake.
Brand: K&N
Condition: New
See Other Honda Civic Air Intake Kits
Wrenchy the Robot
Not sure? Ask Wrenchy — Your Parts Assistant.

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Air Box Included No
Air Filter Element Washable Yes
Air Filter Height 6.500 In. (165mm)
Air Filter Large End Diameter 6.000 In. (152mm)
Air Filter Outlet Length 2.000 In. (51mm)
Air Filter Outlet Shape Round
Air Filter Outlet Width 2.750 In. (70mm)
Clamp Color Natural
Clamp Material Stainless Steel
Clamp Quantity 6
Clamp Style Regular
Coupler Color Black
Couplers Included 1
Estimated Horse Power Gain 10.48 Hp @ 7014 Rpm
Filter Color Red
Filter Material Cotton Gauze
Horse Power Increase 10 Hp
Intake Pipe Color Red
Intake Pipe Inlet Length 22.000 In. (559mm)
Intake Pipe Inlet Shape Round
Intake Pipe Inlet Width 2.750 In. (70mm)
Intake Pipe Material Aluminum
Intake Pipe Outlet Length 22.000 In. (559mm)
Intake Pipe Outlet Shape Round
Intake Pipe Outlet Width 2.750 In. (70mm)
Item Weight 5.900 Lbs. (2.7 Kg)
Mass Air Flow Sensor Included Mass Air Flow Sensor Adapter Included When Required
Mounting Hardware Included Yes
Oil Included Filter Is Pre-oiled
Package Material Paperboard
Package Type Box
Prop 65 (C, R Or CR) Cr
Prop 65 Warning Label Https://www.knfilters.com/images/l/prop65.jpg
RPM 7014
Replacement Filter Ru-4870
System Type Short Ram
TUV Approved (Europe) No
WARNING CA Proposition 65 Yes

Vehicle Fitment Guide

This part fits the following vehicles:

Honda 1 model (tapclick to expand)(tapclick to hide)
Civic 2002-2005 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
DX Coupe 2002 - 2004 L4 1.7L FWD Automatic & Manual
DX Sedan 2002 - 2005 L4 1.7L FWD Automatic & Manual
EX Coupe 2002 - 2005 L4 1.7L FWD Automatic & Manual
EX Sedan 2002 - 2005 L4 1.7L FWD Automatic & Manual
EX Special Edition Coupe 2005 L4 1.7L FWD Automatic & Manual
EX Special Edition Sedan 2005 L4 1.7L FWD Automatic & Manual
GX Sedan 2002 - 2005 L4 1.7L CNG FWD Automatic CVT
HX Coupe 2002 - 2005 L4 1.7L FWD Automatic CVT & Manual
Hybrid Sedan 2003 - 2005 L4 1.3L FULL HYBRID EV-GAS (FHEV) FWD Automatic CVT & Manual
LX Coupe 2002 - 2005 L4 1.7L FWD Automatic & Manual
LX Sedan 2002 - 2005 L4 1.7L FWD Automatic & Manual
LX Special Edition Coupe 2005 L4 1.7L FWD Automatic & Manual
LX Special Edition Sedan 2005 L4 1.7L FWD Automatic & Manual
Reverb Coupe 2005 L4 1.7L FWD Automatic & Manual
Reverb Sedan 2005 L4 1.7L FWD Automatic & Manual
Si Coupe 2002 - 2005 L4 1.7L FWD Manual
Si Hatchback 2002 - 2005 L4 2.0L FWD Manual
Si Sedan 2002 - 2005 L4 1.7L FWD Manual
SiR Hatchback 2002 - 2004 L4 2.0L FWD Manual
Value Package Coupe 2004 - 2005 L4 1.7L FWD Automatic & Manual
Value Package Sedan 2004 - 2005 L4 1.7L FWD Automatic & Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies, in plain English.

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Lifetime Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

Returns (120 Days)

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.
The K&N 69-1009TR Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Acura RSX Type-S and Honda Civic VI or SI models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothes and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-1009TR air intake comes with a black rubber topped K&N high-flow air filter that installs into the previous air box space. Air is directed through the intake tube into the engine's throttle body for a guaranteed power gain. The intake tube has an attractive red powder-coat finish that's made to last and it accommodates the factory air temperature sensor, crank case vent hose and idle air bypass control thermal valve hose. The large cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the vehicle applications and specific CARB status for each vehicle and air intake.

Fits Years: 2002 2003 2004 2005

Fits Models: Civic
