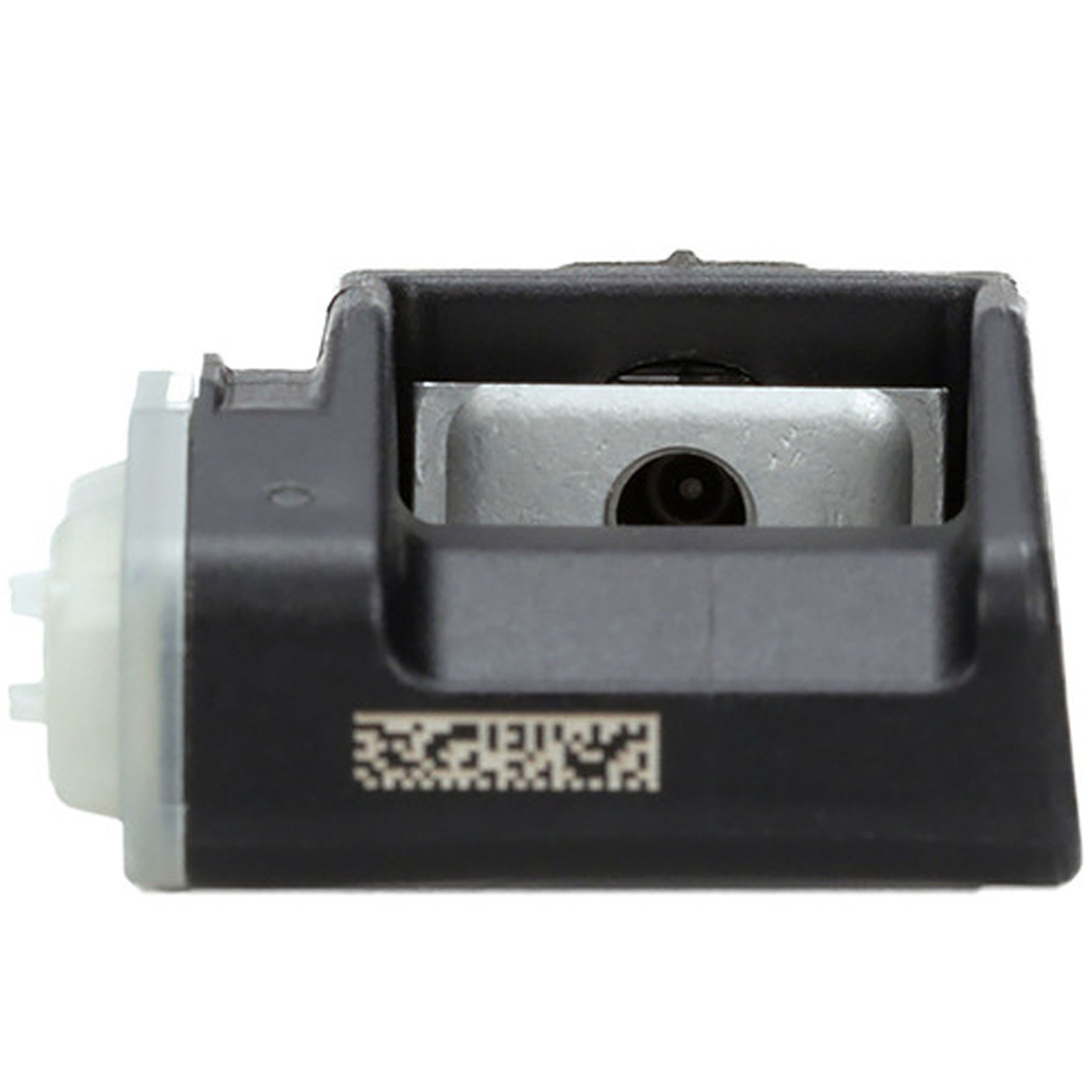

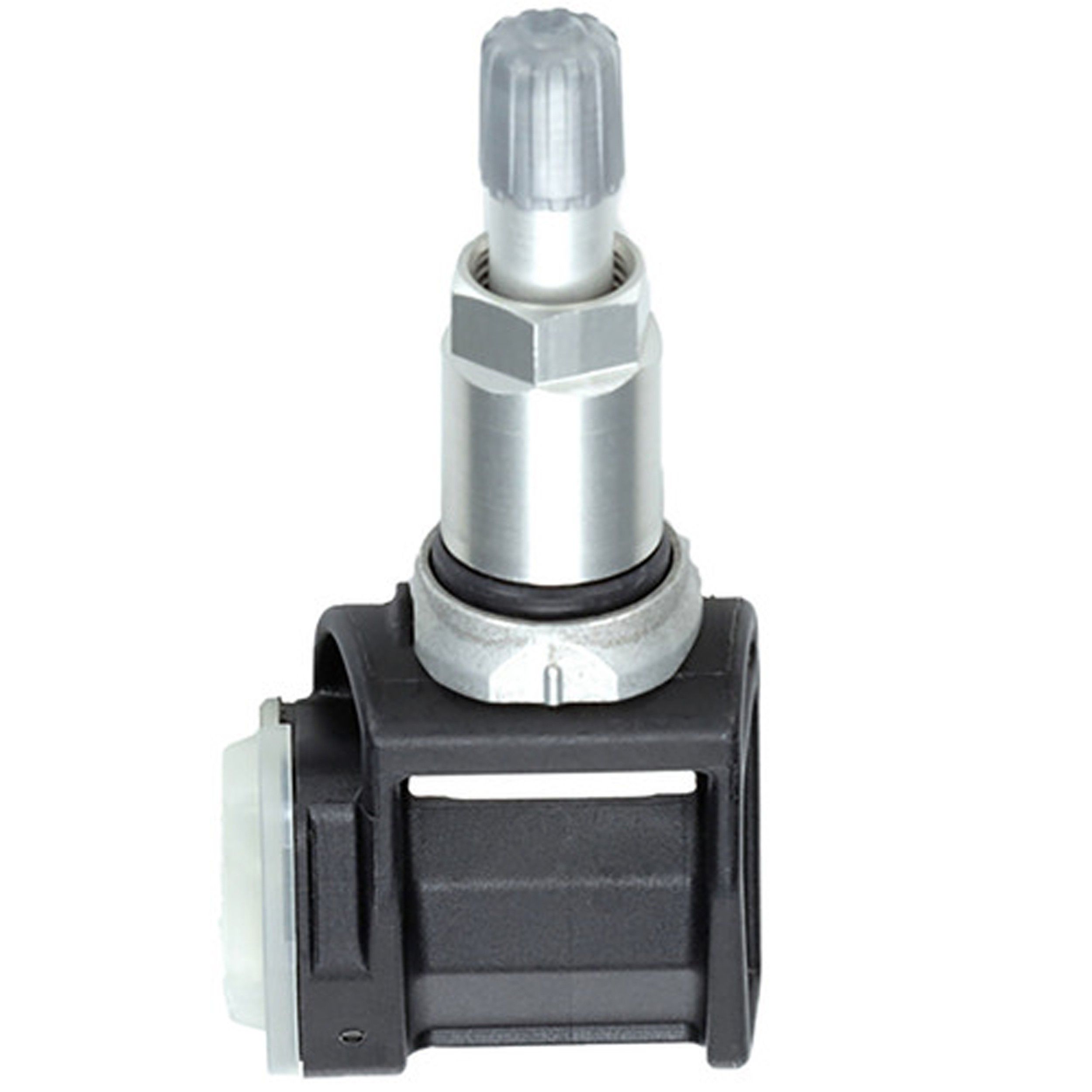

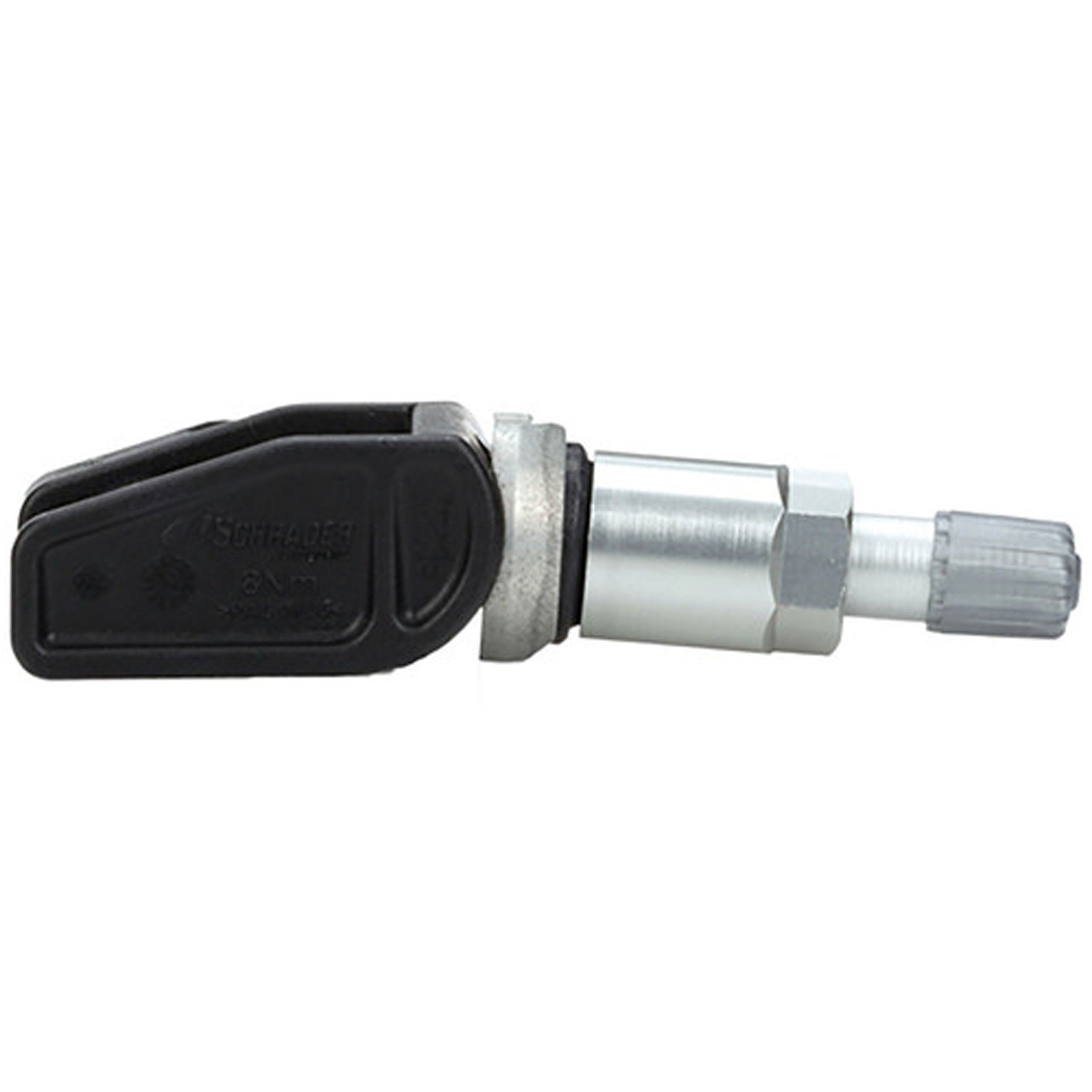

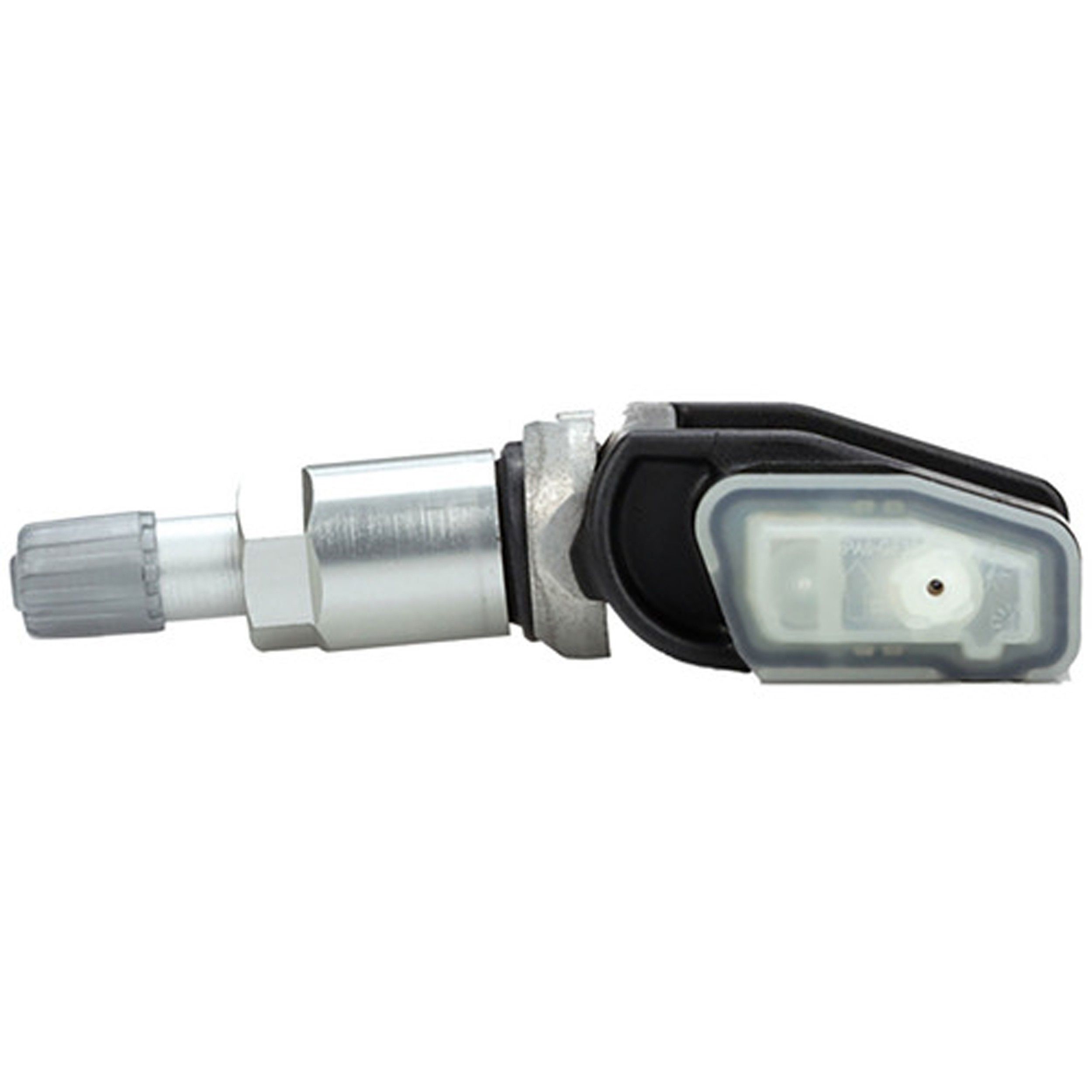

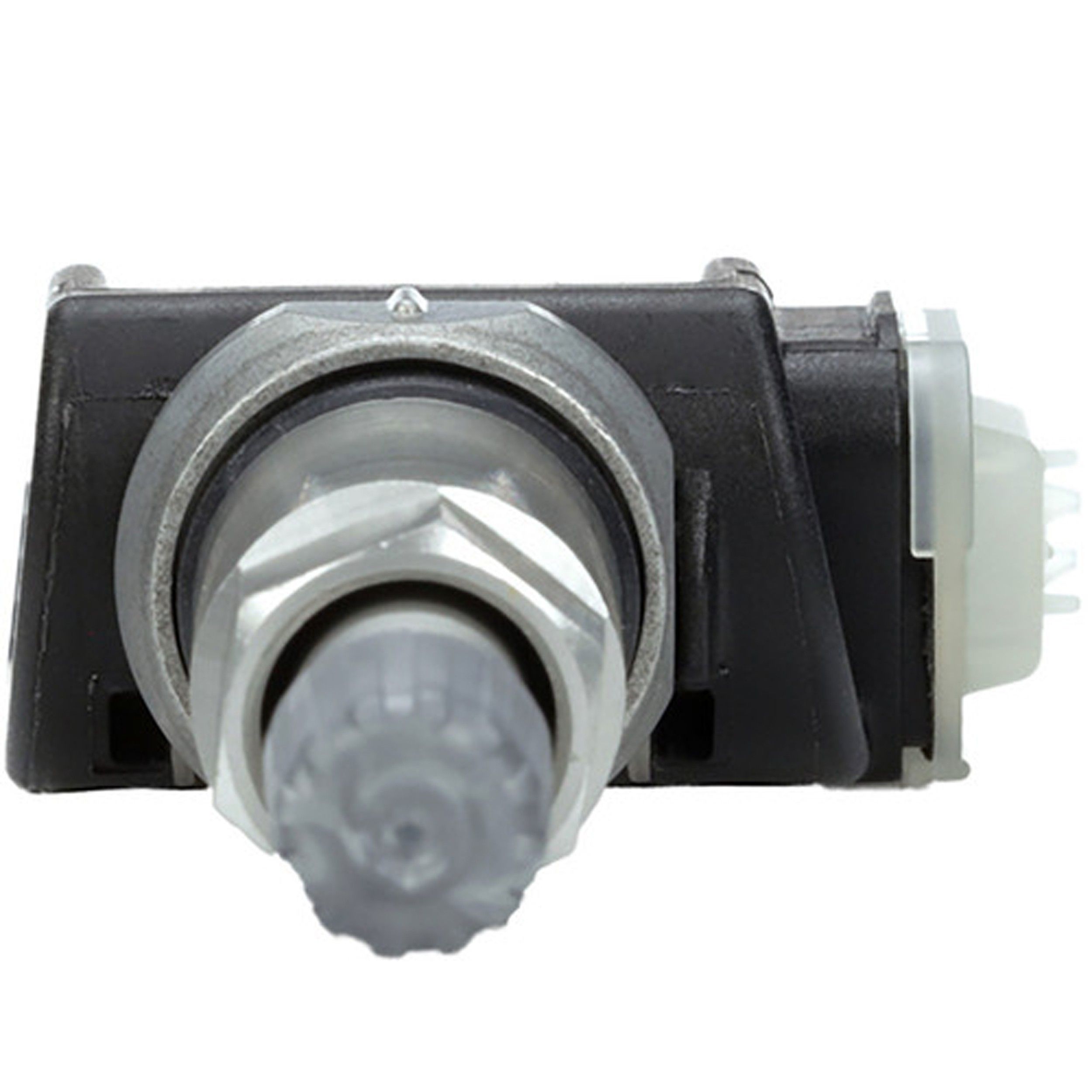

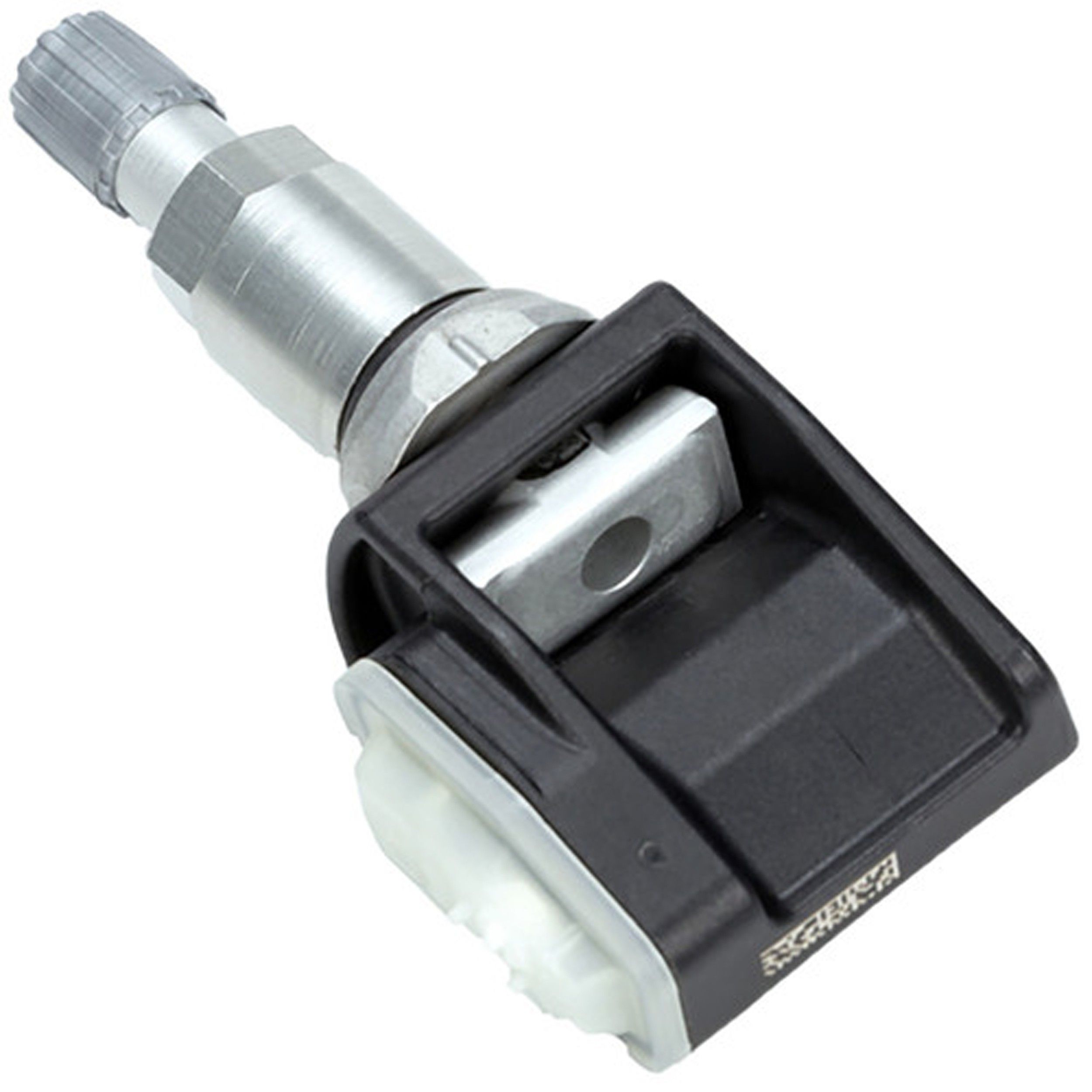

2008, 2007, 2006, 2005, 2004, 2003 Honda Pilot Tire Pressure Monitoring System (TPMS) Sensor
View 1
View 2
View 3
View 4
View 5
View 6

2003 - 2008 Honda Pilot Tire Pressure Monitoring System (TPMS) Sensor (Schrader) NEW

$ 45 .77

Product Notes

⚠️ Most jobs typically require 4 of this item.
Supersession (ACES) Replaces 28849 Mounting Method: Clamp-in Torque: Nut torque = 71in-lbs, 8Nm; Valve core torque = 3.5 in-lbs, 0.4Nm Max Speed Rating: 130 Max Pressure Rating: 102 Frequency: 315.0 MHz Housing Material: Plastic With Mounting Hardware Pre-Programmed Not Programmable Valve Included Valve Cap Not Included Valve Core Material: Nickel Plated Valve Material: Aluminum Valve Color: Silver Valve Stem Not Included Washer Not Included Includes 1 TPMS sensor w/ nut Replaces ~28981, 28982~ Quantity Included: 1

Schrader is a pioneer in TPMS, a vehicle safety feature that is now standard on all cars and light trucks sold in the U.S. Schrader’s direct TPMS technology can be found in over 50 percent of global OEM vehicle platforms.
Brand: Schrader
Condition: New
See Other Honda Pilot Tire Pressure Monitoring System (TPMS) Sensors
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
California Prop 65 Warning Label (Text) Warning: This Product Can Expose You To Chemicals Including Lead, Which Is Known To The State Of California To Cause Cancer And Birth Defects And Other Reproductive Harm. For More Information, Go To Www.p65warnings.ca.gov
Frequency 315mhz
Frequency (MHz) 315 Mhz
Manufacturer Warranty 2 Years
Mounting Hardware Included Yes
Mounting Method Clamp-in
Programmable Yes
Valve Color Silver
Valve Material Aluminum

Vehicle Fitment Guide

This part fits the following vehicles:

Honda 1 model (tapclick to expand)(tapclick to hide)
Pilot 2003-2008 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
EX SUV 2006 - 2008 V6 3.5L FWD Automatic
EX SUV 2003 - 2008 V6 3.5L AWD Automatic
EX-L SUV 2006 - 2008 V6 3.5L FWD Automatic
EX-L SUV 2004 - 2008 V6 3.5L AWD Automatic
LX SUV 2006 - 2008 V6 3.5L FWD Automatic
LX SUV 2003 - 2008 V6 3.5L AWD Automatic
SE-L SUV 2008 V6 3.5L AWD Automatic
Special Edition SUV 2008 V6 3.5L AWD/FWD Automatic
Value Package SUV 2008 V6 3.5L AWD/FWD Automatic
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Schrader is a pioneer in TPMS, a vehicle safety feature that is now standard on all cars and light trucks sold in the U.S. Schrader’s direct TPMS technology can be found in over 50 percent of global OEM vehicle platforms.

Interchange Parts

Brand Part Number
Dill Air Control 1057
Dill Air Control 1059
Dorman 974-037
Dorman 974-058
Echlin Ignition Parts 921025
Echlin Ignition Parts 921169C
Honda 06421-S3V-A02
Honda 06421-S3V-A03
Honda 06421-S3V-A04
Honda 06421-S9V-A01
Honda 06421-S9V-A03
Honda 06421-SHJ-A53
Honda 06421-SHJ-A54
Honda 51839114
Standard Motor Products TPM46
Standard Motor Products TPM47
Standard Motor Products TPM47A
Standard Motor Products TPM48

Fits Years: 2003 2004 2005 2006 2007 2008

Fits Models: Pilot
