| Attribute | Value |
|---|---|
| 110 | |
| ABS Tone Ring Included | No |
| Attribute ID (Type) | California Proposition 65 |
| Bearings Included | No |
| Bolt Hole Quantity | 6 |
| California Proposition 65 Site [basic] | Https://www.p65warnings.ca.gov/ |
| California Proposition 65 Text [basic] | Warning: Cancer And Reproductive Harm |
| California Proposition 65 Text [cntrc] | Warning: Cancer And Reproductive Harm |

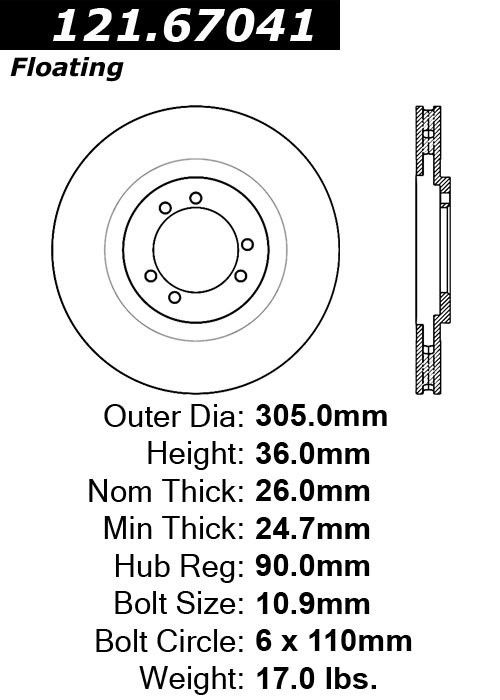

| Center Hole Diameter | 3.547, 90.100 |
| Disc Mounting [cntrc] | Behind The Hub |
| Discard Thickness | 0.972, 24.69, 24.690 |
| Hub Hole/Whl Reg Mm | 90.1 |
| Misc Holes [cntrc] | 0 |
| Mounting Bolt Hole Circle Diameter | 110.000, 4.331 |
| Mounting Bolt Hole Diameter | 0.433, 11.000 |
| Mounting Bolt Hole Quantity | 6 |
| Mounting Type | Behind The Hub |
| Nominal Thickness | 1.031, 26.2, 26.200 |
| Overall Height | 1.417, 36.000 |
| Product Grade [cntrc] | Standard |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| Vane Style | Pillar |
| Vane Style [cntrc] | Pillar |
| Weight [cntrc] Kgs | 7.730 |
| Weight [cntrc] Lbs | 17.000 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Alpha | SUV | 2006 | V8 6.6L DIESEL Turbo | 4WD Automatic |
| Base | SUV | 2002 - 2004 | V8 6.5L DIESEL Turbo | 4WD Automatic |
| Base | SUV | 2002 - 2003 | V8 6.5L DIESEL Turbo | 4WD Automatic |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| Bendix | PRT5333 |
| Canadian Tire | 121.67041 |
| Formula Blue Hydraulic Brake Parts | E126-72-046 |
| Mighty Distributing System | 5702 |
| OEM Part Number | 06002218 |
| OEM Part Number | 6002218 |
| Pep Boys | 5702G |
| Raybestos Brakes | 56946R |
Fits Years: 2002 2003 2004 2006
