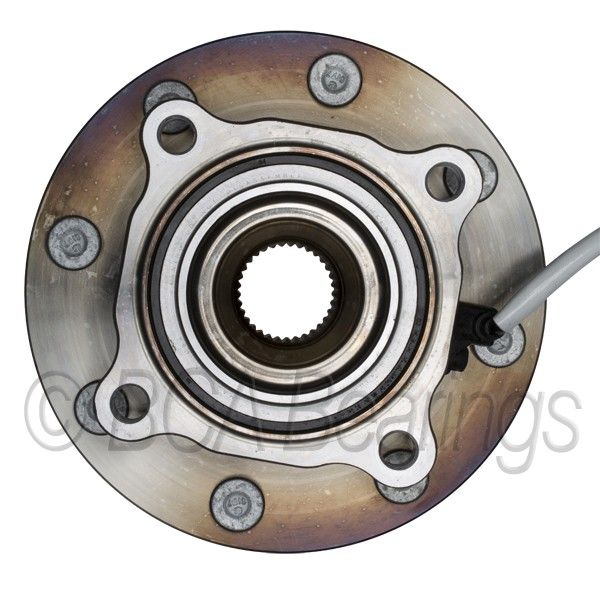

| Attribute | Value |
|---|---|
| Anti Lock Braking System | Yes |

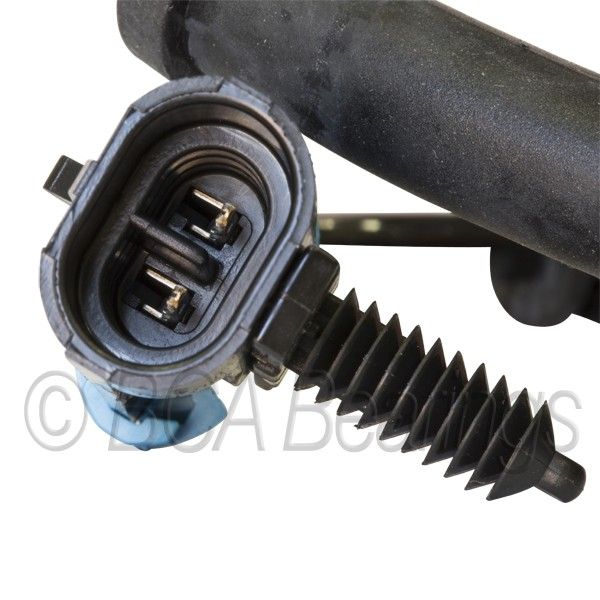

| Anti Lock Braking System Type | Tone Ring With Sensor |
| Bearing Generation | Gen 3 |
| Bearing Type | Taper |
| Bolt Circle Diameter | 165.1, 6.5 |
| Brake Pilot Diameter | 118.1, 4.641 |
| Drive Type | Driven |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter | 199.4, 7.85 |
| Flange Included | Yes |
| Flange Offset | 2.297, 58.4 |
| Flange Quantity | 2 |
| Flange Shape | Rectangular |
| Knuckle Bolt Circle Diameter | 140, 5.51 |
| Knuckle Bolt Hole Size | 0.55, 14 |
| Knuckle Bolt Thread Pitch | 1.5 |
| Knuckle Pilot Hole Diameter | 105.8, 4.165 |
| Spline Quantity | 33 |
| Weight | 16.579, 7.52 |
| Wheel Pilot Diameter | 116.7, 4.594 |
| Wheel Stud Size | 0.55, 14 |
| Wheel Stud Thread Pitch | 1.5 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Adventure | Crew Cab Pickup | 2005 - 2006 | V8 6.0L | AWD Automatic |
| Adventure | SUV | 2005, 2007 | V8 6.0L | AWD Automatic |
| Base | Crew Cab Pickup | 2005 - 2007 | V8 6.0L | 4WD Automatic |
| Base | SUV | 2003 - 2007 | V8 6.0L | 4WD Automatic |
| Luxury | SUV | 2005 - 2007 | V8 6.0L | AWD Automatic |
| Special Edition | SUV | 2007 | V8 6.0L | AWD Automatic |
We offer fast, reliable shipping on all orders:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
We want you to be 100% satisfied with your purchase. That's why we offer:
| Brand | Part Number |
|---|---|
| ACDelco | FW164 |
| ACDelco | FW166 |
| ACDelco | FW338 |
| Autopart International | 141102599 |
| Autopart International | 1411424892 |
| Autopart International | 141149088 |
| Carquest | 94-424892 |
| Centric Parts | 402.66005 |
| Centric Parts | 402.66005E |
| Centric Parts | 407.66008 |
| Centric Parts | 407.66008E |
| Drive Tech America | NT515058 |
| DuraGo | 29515058 |
| DuraGo | 29515086 |
| DuraGo | 29515088 |
| FAG CA - Archived | 102019 |
| General Motors | 15042868 |
| General Motors | 15064670 |
| General Motors | 15104582 |
| General Motors | 15104907 |
| General Motors | 15112408 |
| General Motors | 15112409 |
| General Motors | 15112411 |
| General Motors | 15115915 |
| General Motors | 15225750 |
| General Motors | 15225751 |
| General Motors | 15225770 |
| General Motors | 15753476 |
| General Motors | 15936732 |
| General Motors | 15946732 |
| General Motors | 26083838 |
| General Motors | 89059056 |
| General Motors | 89059057 |
| General Motors | 89059059 |
| General Motors | 89059060 |
| GMB | 7300231 |
| GMB | 7300338 |
| GSP | 106058 |
| GSP | 106086 |
| Magneti Marelli | 1AMH515058 |
| Magneti Marelli | 1AMH515086 |
| Mevotech | H515058 |
| Mevotech | H515086 |
| Mevotech | H515088 |
| Mevotech | TXF515058 |
| MPA | WH515058 |
| Power Train | PT515058 |
| Precision Bearing | 515058 |
| Precision Bearing | 515086 |
| Raybestos Brakes | 715058 |
| Raybestos Brakes | 715086 |
| Raybestos Brakes | 715088 |
| Schaeffler | FW786 |
| Schaeffler | FW788 |
| SKF | BR930416 |
| SKF | BR930626 |
| SKF | BR931000 |
| Timken | SP580304 |
| Timken | SP580305 |
| Timken | SP580306 |
| Timken | SP580310 |
Fits Years: 2003 2004 2005 2006 2007
Fits Models: H2
