| Attribute | Value |
|---|---|
| 108 | |
| ABS Tone Ring Included | No |
| Attribute ID (Type) | California Proposition 65 |
| Bearings Included | No |
| Bolt Hole Quantity | 6 |
| Bolt Thread Pitch | 1.250 |
| California Proposition 65 Site [basic] | Https://www.p65warnings.ca.gov/ |
| California Proposition 65 Text [basic] | Warning: Cancer And Reproductive Harm |
| California Proposition 65 Text [cntrc] | Warning: Cancer And Reproductive Harm |

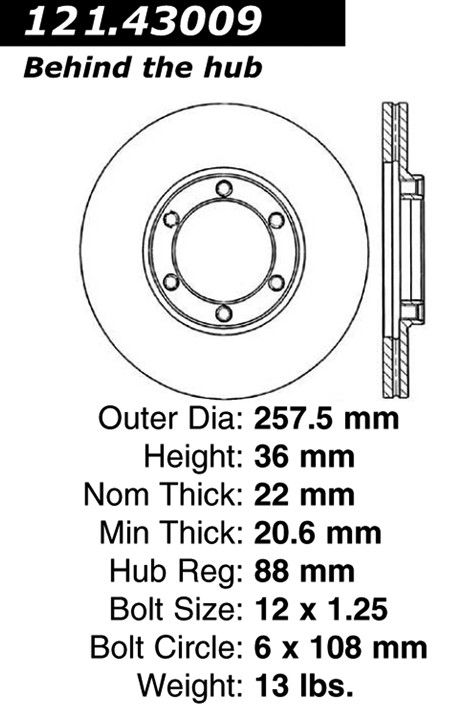

| Center Hole Diameter | 3.465, 88.000 |
| Disc Mounting [cntrc] | Behind The Hub |
| Discard Thickness | 0.811, 20.6, 20.600 |
| Hub Hole/Whl Reg Mm | 88 |
| Misc Holes [cntrc] | 0 |
| Mounting Bolt Hole Circle Diameter | 108.000, 4.252 |
| Mounting Bolt Hole Diameter | 12.000 |
| Mounting Bolt Hole Quantity | 6 |
| Mounting Type | Behind The Hub |
| Nominal Thickness | 0.866, 22.000 |
| Overall Height | 1.417, 36.000 |
| Product Grade [cntrc] | Standard |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| Vane Style | Straight |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 5.910 |
| Weight [cntrc] Lbs | 13.000 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| 1 Ton | Standard Cab Pickup | 1991 | L4 2.3L | RWD Manual |
| 1 Ton | Standard Cab Pickup | 1988 - 1992 | L4 2.6L | RWD Manual |
| LS | Extended Cab Pickup | 1991 | V6 3.1L | RWD/4WD Automatic & Manual |
| LS | Extended Cab Pickup | 1988 - 1991 | L4 2.3L | RWD/4WD Automatic & Manual |
| LS | Extended Cab Pickup | 1988 - 1992 | L4 2.6L | RWD/4WD Automatic & Manual |
| LS | Standard Cab Pickup | 1991 | V6 3.1L | RWD/4WD Automatic & Manual |
| LS | Standard Cab Pickup | 1988 - 1991 | L4 2.3L | RWD/4WD Automatic & Manual |
| LS | Standard Cab Pickup | 1988 - 1991 | L4 2.6L | RWD/4WD Automatic & Manual |
| S | Extended Cab Pickup | 1991 - 1994 | V6 3.1L | RWD/4WD Automatic & Manual |
| S | Extended Cab Pickup | 1989 - 1994 | L4 2.3L | RWD/4WD Automatic & Manual |
| S | Extended Cab Pickup | 1989 - 1994 | L4 2.6L | RWD/4WD Automatic & Manual |
| S | Standard Cab Pickup | 1991 - 1994 | V6 3.1L | RWD/4WD Automatic & Manual |
| S | Standard Cab Pickup | 1989 - 1995 | L4 2.3L | RWD/4WD Manual |
| S | Standard Cab Pickup | 1989 - 1994 | L4 2.3L | RWD/4WD Automatic |
| S | Standard Cab Pickup | 1988 - 1995 | L4 2.6L | RWD/4WD Manual |
| S | Standard Cab Pickup | 1988 - 1994 | L4 2.6L | RWD/4WD Automatic |
| XS | Extended Cab Pickup | 1989 | L4 2.3L | RWD/4WD Manual |
| XS | Extended Cab Pickup | 1989 - 1990 | L4 2.6L | RWD/4WD Manual |
| XS | Standard Cab Pickup | 1989 | L4 2.3L | RWD/4WD Manual |
| XS | Standard Cab Pickup | 1989 - 1990 | L4 2.6L | RWD/4WD Manual |
We offer fast, reliable shipping on all orders:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
We want you to be 100% satisfied with your purchase. That's why we offer:
| Brand | Part Number |
|---|---|
| Aimco | 63225 |
| Autopar - Archived | FR09065 |
| Autospecialty | JBR329 |
| Autospecialty | JBR329E |
| Beck/Arnley | 0802262 |
| Beck/Arnley | 0832262 |
| Bendix | 141673 |
| Bendix | PRT1673 |
| Bradi | 1.0406.2.4 |
| Bradi | 1040624 |
| Brembo | 25346 |
| Brembo | A6017 |
| Delta | 8908019 |
| EIS Brakes | D17255 |
| Ferodo | DDF385 |
| Formula Blue Hydraulic Brake Parts | E125-48-014 |
| Formula Blue Hydraulic Brake Parts | E12548014 |
| Formula Blue Hydraulic Brake Parts | E126-48-014 |
| Formula Blue Hydraulic Brake Parts | E12648014 |
| Girling | DF3049 |
| GWB | 86007 |
| IAP/Kuhltek Motorwerks | BR3233 |
| Interbrakes | OP251V |
| IPI | 228 |
| LuK | BFR133610 |
| Midas | BR1639 |
| Mighty Distributing System | 3233 |
| Neotek Drums and Rotors | 106505 |
| OEM Part Number | 569801 |
| OEM Part Number | 894172376 |
| OEM Part Number | 8941723760 |
| OEM Part Number | 8941723761 |
| OEM Part Number | 8941733440 |
| OEM Part Number | 8941733441 |
| OEM Part Number | 8941733450 |
| OEM Part Number | 8943619270 |
| OEM Part Number | 8943619271 |
| OEM Part Number | 8943716121 |
| OEM Part Number | 8943724350 |
| OEM Part Number | 8970455380 |
| OEM Part Number | 94172376 |
| OEM Part Number | 94361927 |
| OEM Part Number | 94372435 |
| OEM Part Number | 9557710 |
| OEM Part Number | 9941723761 |
| OEM Part Number | 9943619271 |
| Pep Boys | 3233G |
| Qualitee International | 64 73 110 |
| Qualitee International | 6473110 |
| Qualitee International | R73 110 |
| Raybestos Brakes | 1096007 |
| Raybestos Brakes | 1096007R |
| Raybestos Brakes | 96007 |
| Raybestos Brakes | 96007R |
| Raybestos Brakes | 96007RGS |
| Universal | 126330 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50481 |
| Wagner Brake | 121.43009 |
| Wagner Brake | 52-61800 |
| Wagner Brake | 5261800 |
| Wagner Brake | BD61800 |
Fits Years: 1988 1989 1990 1991 1992 1993 1994 1995
Fits Models: Pickup
