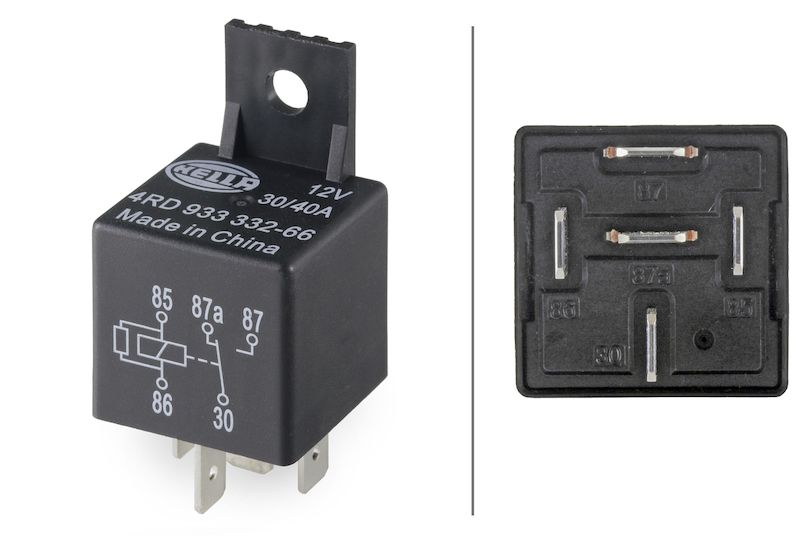

1989, 1988, 1987 Jeep Cherokee A/C Clutch Relay
View 1

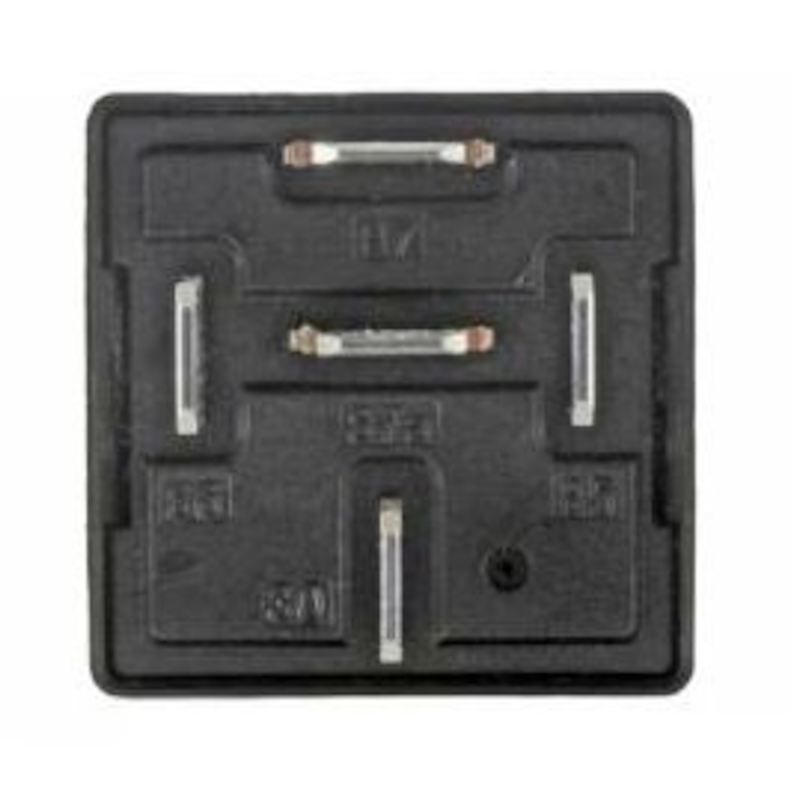

View 2
View 3

1987 - 1989 Jeep Cherokee A/C Clutch Relay (Hella) NEW

$ 14 .84
120-DayReturns
LifetimeWarranty
100%Money-Back

Product Notes Read before buying

12V - 5-Pin Connector - Wiring Diagram: W2 - Plug: B1 - Changeover Contact - Color: Black - with Holder

HELLA Relay's manage key electrical circuits including central locking, lighting, and engine cooling fans. It is compatible with various 12V systems using a 4-pin connector for reliable operation. Our relay's ensure consistent performance for essential automotive functions.
Brand: Hella
Condition: New
See Other Jeep Cherokee A/C Clutch Relaies
Wrenchy the Robot
Not sure? Ask Wrenchy — Your Parts Assistant.

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Assy/Disassy By Qualified Personnel Required! .
California Proposition 65 Required No
Capacitive Load [A] 20, 30
Capacity At 12V 30/40a
Color Black
Combi Switch Function Changeover Contact
IP Rating Ip54
Inductive Load [A] 5
Number Of Pins 5
Ohmic Load [A] 20, 30
Plug Type ID B1
Protection Type (IP Code) 54
Temperature Range [°C] 80
Temperature Range [°F] 176.00
Voltage 12.00
Wiring Diagram W2

Vehicle Fitment Guide

This part fits the following vehicles:

Jeep 1 model (tapclick to expand)(tapclick to hide)
Cherokee 1987-1989 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base SUV 1987 L4 2.1L DIESEL Turbo RWD/4WD Automatic & Manual
Base SUV 1987 L4 2.1L DIESEL Turbo RWD/4WD Automatic & Manual
Base SUV 1987 - 1989 L4 2.5L RWD/4WD Automatic & Manual
Base SUV 1987 - 1989 L4 2.5L RWD/4WD Automatic & Manual
Base SUV 1987 - 1989 L6 4.0L RWD/4WD Automatic & Manual
Base SUV 1987 - 1989 L6 4.0L RWD/4WD Automatic & Manual
Chief SUV 1987 L4 2.1L DIESEL Turbo RWD/4WD Automatic & Manual
Chief SUV 1987 L4 2.1L DIESEL Turbo RWD/4WD Automatic & Manual
Chief SUV 1987 - 1988 L4 2.5L RWD/4WD Automatic & Manual
Chief SUV 1987 - 1988 L4 2.5L RWD/4WD Automatic & Manual
Chief SUV 1987 - 1988 L6 4.0L RWD/4WD Automatic & Manual
Chief SUV 1987 - 1988 L6 4.0L RWD/4WD Automatic & Manual
Laredo SUV 1987 L4 2.1L DIESEL Turbo RWD/4WD Automatic & Manual
Laredo SUV 1987 L4 2.1L DIESEL Turbo RWD/4WD Automatic & Manual
Laredo SUV 1987 - 1989 L4 2.5L RWD/4WD Automatic & Manual
Laredo SUV 1987 - 1989 L4 2.5L RWD/4WD Automatic & Manual
Laredo SUV 1987 - 1989 L6 4.0L RWD/4WD Automatic & Manual
Laredo SUV 1987 - 1989 L6 4.0L RWD/4WD Automatic & Manual
Limited SUV 1988 - 1989 L6 4.0L 4WD Automatic & Manual
Limited SUV 1987 - 1989 L6 4.0L 4WD Automatic & Manual
Pioneer SUV 1987 L4 2.1L DIESEL Turbo RWD/4WD Automatic & Manual
Pioneer SUV 1987 L4 2.1L DIESEL Turbo RWD/4WD Automatic & Manual
Pioneer SUV 1987 - 1989 L4 2.5L RWD/4WD Automatic & Manual
Pioneer SUV 1987 - 1989 L4 2.5L RWD/4WD Automatic & Manual
Pioneer SUV 1987 - 1989 L6 4.0L RWD/4WD Automatic & Manual
Pioneer SUV 1987 - 1989 L6 4.0L RWD/4WD Automatic & Manual
Sport SUV 1989 L4 2.5L RWD/4WD Automatic & Manual
Sport SUV 1989 L6 4.0L RWD/4WD Automatic & Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies, in plain English.

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Lifetime Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.

Returns (120 Days)

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.
HELLA Relay's manage key electrical circuits including central locking, lighting, and engine cooling fans. It is compatible with various 12V systems using a 4-pin connector for reliable operation. Our relay's ensure consistent performance for essential automotive functions.

Interchange Parts

Brand Part Number
ACDelco 12088504
ACDelco 14093107
ACDelco 15-8264
ACDelco C1748A
ACDelco D1714A
ACDelco D1737C
Airtex Engine Management 1R1264
Airtex Engine Management 1R1610
Bosch 0 332 209 138
Case IH 139 026 A2
Case IH 1987 420 C2
John Deere AL 15 0015
Massey Ferguson 3 615 652 M1
Volvo 872300
Volvo 872300-0

Fits Years: 1987 1988 1989

Fits Models: Cherokee
