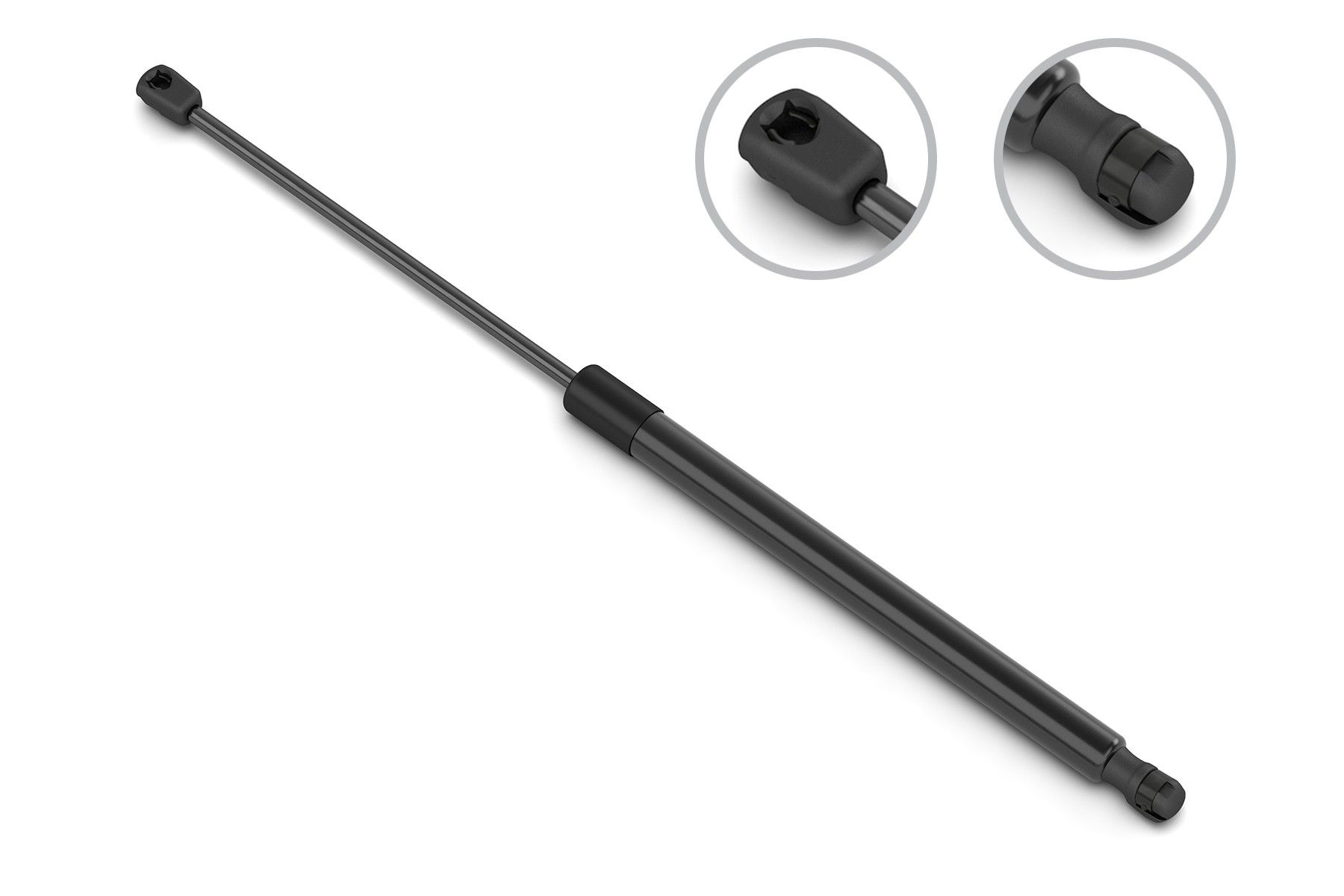

2019, 2018, 2017, 2016, 2015, 2014 Jeep Cherokee Liftgate Lift Support

2014 - 2019 Jeep Cherokee Liftgate Lift Support (Stabilus) NEW

$ 38 .95

Product Notes

⚠️ Most jobs typically require 2 of this item.
w/o Power Liftgate With Temperature Compensating Valve for increased hold force in cold weather.

Lift-O-Mat by Stabilus - Precision Control with Dynamic Damping. The Lift-O-Mat by Stabilus sets a new standard in controlled motion, leveraging dynamic damping for refined, adaptable performance. Instead of an oil column, this advanced lift support utilizes a longitudinal groove, called a velocity manifold, pressed into the tube wall. This design allows gas to flow around the piston, with the groove depth and geometry precisely controlling extension speed to match specific application requirements. Innovative Temperature Compensation: The Lift-O-Mat includes a Temperature Compensating Valve (TCV) inside the tube, managed by a temperature-sensitive bi-metal valve. This valve adjusts gas force based on environmental conditions: in cold weather, it allows extra gas force for enhanced performance, while in warm conditions, it locks away excess force for stability. Smooth, Reliable Operation: The expertly crafted groove gradually narrows toward the end of the stroke, providing a gentle, controlled stop with minimal impact. Made from high-quality materials and tuned for smooth function, the Lift-O-Mat offers OE-level performance and design, making it a versatile choice across industries like automotive and ergonomic equipment. Why Choose Lift-O-Mat? - Dynamic Damping: Gas flows continuously around the piston, regulated by a custom groove for precise extension control. - Highly Tunable: Groove depth and geometry can be customized for each application. - Temperature Compensation: The TCV ensures consistent operation across temperature changes. - Built to Last: Made from durable materials and engineered for long-lasting reliability. Choose Lift-O-Mat by Stabilus for a dynamic damping solution that ensures smooth performance, precise control, and a gentle stop, tailored to your application.
Brand: Stabilus
Condition: New
See Other Jeep Cherokee Liftgate Lift Supports
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Agricultural Equipment N
CarLight Truck Y
Compressed Length 17.15, 435.5
Cylinder Outside Diameter 0.866
End 1 Material Nylon
End 1 Mount Diameter 0.394, 10.0
End 1 Type Ball Socket
End 2 Material Nylon
End 2 Mount Diameter 0.394, 10.0
End 2 Type Ball Socket
Engine Specific N
Extended Length 25.02, 635.5
Heavy Truck N
High Performance N
IndustrialOff Highway N
Inner Shaft Diameter 0.394
Marine N
Maximum Force 128, 570
Medium Truck N
MotorCycleRV N
Mounting Hardware Included No
NonVehicle Specific N
Personal Watercraft N
Prop 65 Affected Yes
Prop 65 Chemical Dehp
Prop 65 Warning Warning: This Product Can Expose You To Chemicals Including Di(2-ethylhexyl) Phthalate (dehp), Which Is Known To The State Of California To Cause Canc
Small Engine N
Snowmobile N
Stroke Length 200, 7.87
Transmission Specific N
Type Gas

Vehicle Fitment Guide

This part fits the following vehicles:

Jeep 1 model (tapclick to expand)(tapclick to hide)
Cherokee 2014-2019 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
75th Anniversary SUV 2016 L4 2.4L AWD/FWD Automatic
75th Anniversary SUV 2016 V6 3.2L AWD/FWD Automatic
Altitude SUV 2019 L4 2.0L Turbo AWD/FWD Automatic
Altitude SUV 2018 - 2019 L4 2.4L AWD/FWD Automatic
Altitude SUV 2018 - 2019 V6 3.2L AWD/FWD Automatic
High Altitude SUV 2019 L4 2.0L Turbo AWD/FWD Automatic
High Altitude SUV 2018 - 2019 L4 2.4L AWD/FWD Automatic
High Altitude SUV 2018 - 2019 V6 3.2L AWD/FWD Automatic
Latitude SUV 2014 - 2019 L4 2.4L AWD/FWD Automatic
Latitude SUV 2014 - 2019 V6 3.2L AWD/FWD Automatic
Latitude Plus SUV 2019 L4 2.0L Turbo AWD/FWD Automatic
Latitude Plus SUV 2018 - 2019 L4 2.4L AWD/FWD Automatic
Latitude Plus SUV 2018 - 2019 V6 3.2L AWD/FWD Automatic
Limited SUV 2019 L4 2.0L Turbo AWD/FWD Automatic
Limited SUV 2014 - 2019 L4 2.4L AWD/FWD Automatic
Limited SUV 2014 - 2019 V6 3.2L AWD/FWD Automatic
Limited Plus SUV 2017 L4 2.4L FWD Automatic
Limited Premium SUV 2014 L4 2.4L FWD Automatic
North SUV 2019 L4 2.0L Turbo AWD/FWD Automatic
North SUV 2014 - 2019 L4 2.4L AWD/FWD Automatic
North SUV 2014 - 2019 V6 3.2L AWD/FWD Automatic
Overland SUV 2019 L4 2.0L Turbo AWD/FWD Automatic
Overland SUV 2018 V6 3.2L 4WD Automatic
Overland SUV 2016 - 2018 L4 2.4L AWD/FWD Automatic
Overland SUV 2016 - 2019 V6 3.2L AWD/FWD Automatic
Sport SUV 2014 - 2019 L4 2.4L AWD/FWD Automatic
Sport SUV 2014 - 2019 V6 3.2L AWD/FWD Automatic
Trailhawk SUV 2019 L4 2.0L Turbo AWD/4WD Automatic
Trailhawk SUV 2014 - 2018 L4 2.4L AWD Automatic
Trailhawk SUV 2014, 2017 - 2019 V6 3.2L 4WD Automatic
Trailhawk SUV 2014 - 2019 V6 3.2L AWD Automatic
Trailhawk Elite SUV 2019 L4 2.0L Turbo AWD/4WD Automatic
Trailhawk Elite SUV 2019 V6 3.2L AWD/4WD Automatic
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Lift-O-Mat by Stabilus - Precision Control with Dynamic Damping. The Lift-O-Mat by Stabilus sets a new standard in controlled motion, leveraging dynamic damping for refined, adaptable performance. Instead of an oil column, this advanced lift support utilizes a longitudinal groove, called a velocity manifold, pressed into the tube wall. This design allows gas to flow around the piston, with the groove depth and geometry precisely controlling extension speed to match specific application requirements. Innovative Temperature Compensation: The Lift-O-Mat includes a Temperature Compensating Valve (TCV) inside the tube, managed by a temperature-sensitive bi-metal valve. This valve adjusts gas force based on environmental conditions: in cold weather, it allows extra gas force for enhanced performance, while in warm conditions, it locks away excess force for stability. Smooth, Reliable Operation: The expertly crafted groove gradually narrows toward the end of the stroke, providing a gentle, controlled stop with minimal impact. Made from high-quality materials and tuned for smooth function, the Lift-O-Mat offers OE-level performance and design, making it a versatile choice across industries like automotive and ergonomic equipment. Why Choose Lift-O-Mat? - Dynamic Damping: Gas flows continuously around the piston, regulated by a custom groove for precise extension control. - Highly Tunable: Groove depth and geometry can be customized for each application. - Temperature Compensation: The TCV ensures consistent operation across temperature changes. - Built to Last: Made from durable materials and engineered for long-lasting reliability. Choose Lift-O-Mat by Stabilus for a dynamic damping solution that ensures smooth performance, precise control, and a gentle stop, tailored to your application.

Interchange Parts

Brand Part Number
Stabilus 151537
Stabilus 151776
Stabilus 161575
Stabilus 161814
Stabilus 298073
Stabilus 498337
Stabilus 498576
Stabilus 509570
Stabilus 752394
Stabilus 752633
Stabilus 758608
Stabilus 760281
Stabilus 764105
Stabilus 764344
Stabilus 781557
Stabilus 781796
Stabilus 782035
Stabilus 782274
Stabilus 782752
Stabilus 782991
Stabilus 907505
Stabilus 907744
Stabilus 915870
Stabilus 916109
Stabilus 932122
Stabilus 932600

Fits Years: 2014 2015 2016 2017 2018 2019

Fits Models: Cherokee
