| Attribute | Value |
|---|---|

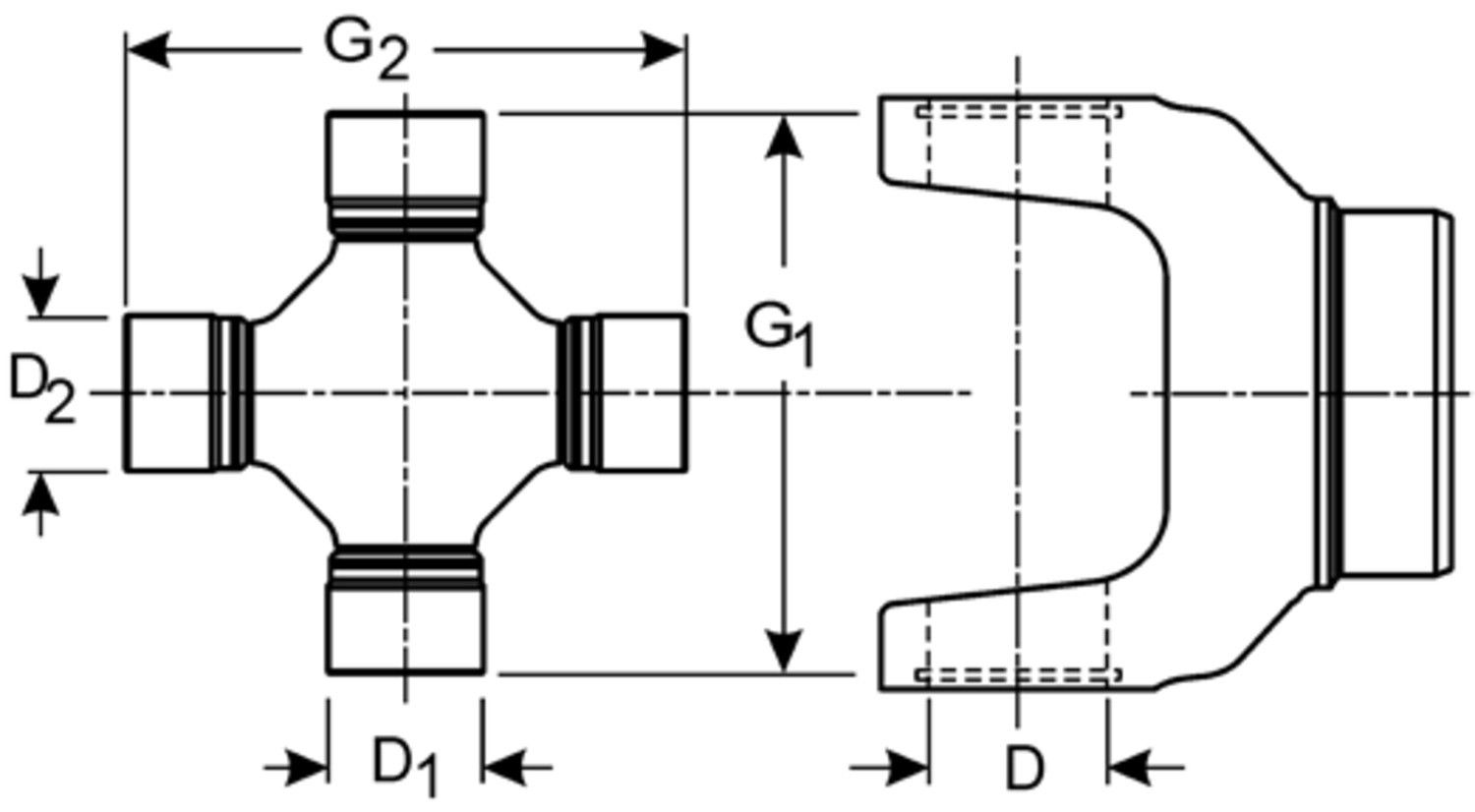

| Bearing Cap Diameter (1) | 1.062 |
| Bearing Cap Diameter (2) | 1.062 |
| Bearing Cap Diameter A (mm) | 26.975 |
| Bearing Cap Diameter B (mm) | 26.975 |
| Bearing Cap Finish | Ground |
| Bearing Cap Type | Round |
| Bearing Cap Type A | Osr |
| Bearing Cap Type B | Osr |
| Coating Type | None |
| Grease Fitting Location | One Straight Lube Fitting In Cross |
| Grease Type | N.l.g.i. Grade 2 |
| Grease Zerk Included | Y |
| Greaseable | Y |
| Length A (In) | 3.219 |
| Length A (mm) | 81.8 |
| Length B (In) | 3.219 |
| Length B (mm) | 81.8 |
| Material | Steel |
| Model Number | Spicer 1310/spl22 |
| Mounting Hardware Included | N |
| OEM Mfg | Spicer |
| OEM Series | 1310 |
| Pre Greased | N |
| Prop 65 | No |
| SR(1)Brng Cap To Brng Cap(OSR) | 3.219 |
| SR(2)Brng Cap To Brng Cap(OSR) | 3.219 |
| Seal Color/Finish | Black |
| Seal Material | Rubber |
| Snap Ring Included | Y |
| Snap Ring Type | External |
| Type | Osr Style |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | SUV | 2003 - 2005 | V8 4.6L | AWD/RWD Automatic |
| Luxury | SUV | 2004 - 2005 | V8 4.6L | RWD Automatic |
| Premier | SUV | 2005 | V8 4.6L | AWD/RWD Automatic |
| Ultimate | SUV | 2004 | V8 4.6L | AWD Automatic |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| ACDelco | 45U0107 |
| ACDelco | 45U0111 |
| ACDelco | 45U0121 |
| ACDelco | 45U0145 |
| ACDelco | 45U0150 |
| ACDelco | 45U0170 |
| Allison Transmission | 02362830 |
| Badger | 8307-2198 |
| Broderson | 33390014 |
| Capacity | 031468 |
| Caterpillar | 055-0737 |
| Caterpillar | 1569454 |
| Caterpillar | 9C-4537 |
| Chrysler | 04723072 |
| Chrysler | 3555556193 |
| Chrysler | 4723072 |
| Chrysler | 4728937 |
| Chrysler | 4746936 |
| Chrysler | 4882 793 |
| Chrysler | 4882793 |
| Chrysler | 5010832AA |
| Chrysler | 5014062AA |
| Chrysler | 5015694AA |
| Chrysler | 5015694AB |
| Chrysler | 5161766AA |
| Chrysler | 83503115 |
| Chrysler | J0994173 |
| Chrysler | J3202655 |
| Chrysler | J4485624 |
| Chrysler | J4487436 |
| Chrysler | J4488016 |
| Chrysler | J8126614 |
| Chrysler | J8130297 |
| Clarke | 998267 |
| Cusco Fab | DR014073 |
| Daimler Truck North America | 874026 |
| Daimler Truck North America | SP 5 153X |
| Daimler Truck North America | SP 5 153XHP |
| Dana Commercial Vehicle Service Parts | 2104-5153X |
| Dana Commercial Vehicle Service Parts | 5-153X25 |
| Dana Commercial Vehicle Service Parts | 5-153XB400 |
| Dana Commercial Vehicle Service Parts | 5-153XSB |
| Dana Commercial Vehicle Service Parts | 5-278X |
| Dana Commercial Vehicle Service Parts | 5-419X |
| Dana Commercial Vehicle Service Parts | 5-477X |
| Dana Commercial Vehicle Service Parts | 5-511X |
| Dana Commercial Vehicle Service Parts | DT153 |
| Dana Commercial Vehicle Service Parts | DT200 |
| Dana Commercial Vehicle Service Parts | SP5153X |
| Flexible Truck | 10-5573-00001 |
| General Motors | 8-89040-339-0 |
| General Motors | 8-97020-279-0 |
| General Motors | 8-97182-165-0 |
| General Motors | 8-97185-603-0 |
| General Motors | 8-97353-169-0 |
| General Motors | 8-97353-170-0 |
| General Motors | 8-97359-258-0 |
| General Motors | 8890403390 |
| General Motors | 89040339 |
| General Motors | 8970202790 |
| General Motors | 8971821650 |
| General Motors | 8971856030 |
| General Motors | 8973531690 |
| General Motors | 8973531700 |
| General Motors | 8973592580 |
| Hyster | 278085 |
| INFINITI | 371263S525 |
| INFINITI | 371263S526 |
| Ingersoll Rand | 82149667 |
| International Harvester IHC | 5153X |
| International Harvester IHC | 645573R91 |
| International Harvester IHC | D5153X |
| International Harvester IHC | D5278X |
| International Harvester IHC | D5419X |
| International Harvester IHC | D5477X |
| International Harvester IHC | D5511X |
| International Harvester IHC | E5153X |
| International Harvester IHC | SB5153X |
| International Harvester IHC | SD5153X |
| International Harvester IHC | ZJU5153X |
| Isuzu | 8973531691 |
| Jlg | 83072198 |
| John Deere | 840789200 |
| John Deere | AT54901 |
| Mazda | ZZL0-25-060 |
| Mazda | ZZL025060 |
| Mazda | ZZL1-25-060 |
| Mazda | ZZL125060 |
| Mazda | ZZL2-25-060 |
| Mazda | ZZL2-25-060A |
| Mazda | ZZL225060 |
| Mazda | ZZL225060A |
| Mazda | ZZM1-25-060 |
| Mazda | ZZM125060 |
| McNeilus | 13DS20 |
| Mercedes-Benz | 163 410 10 01 |
| Mercedes-Benz | 1634101001 |
| Mercedes-Benz | A 163 410 10 01 |
| Mercedes-Benz | A1634101001 |
| Meritor | CP1200X |
| Midwest | 5-153XR |
| MOOG Chassis Products | 250 |
| Motor Coach Industries | 06-06-1242 |
| Motor Coach Industries | 71718 |
| Navistar | 121406R92 |
| Navistar | 5153X25 |
| Navistar | 5200X |
| Navistar | 5278X |
| Navistar | 5419X |
| Navistar | 5477X |
| Navistar | 5511X |
| Navistar | DS5153X |
| Navistar | E211297X |
| Navistar | E5200X |
| Navistar | E5278X |
| Navistar | E5419X |
| Navistar | E5477X |
| Navistar | E5511X |
| Navistar | SB5153X25 |
| Navistar | SD5153X25 |
| Navistar | ZJU5200X |
| Neoplan | SP15153X |
| New Holland Construction | D26204 |
| New Holland Construction | D70629 |
| Nissan | 37125-EB70A |
| Nissan | 37125EB70A |
| Nissin | 37126-3S525 |
| Nissin | 37126-3S526 |
| Paccar Parts | 5-153X |
| Peterbilt | 13-DS-20 |
| Peterbilt | 3519121 |
| Polaris | 500562 |
| Polaris | 500562-A |
| Precision | 269 |
| Precision | 280 |
| Precision | 329 |
| Precision | 369 |
| Precision | 379 |
| Precision | 380 |
| Rockwell International | CP 153X |
| SKF | 1-0153 |
| SKF | 1-0153G |
| SKF | 1-0154 |
| SKF | 1-0200 |
| SKF | 1-0278 |
| SKF | 2-0785 |
| SKF | UJ269 |
| SKF | UJ280 |
| SKF | UJ369 |
| SKF | UJ379 |
| SKF | UJ380 |
| Suzuki | 27210-82Z00 |
| Suzuki | 27210-82Z01 |
| Suzuki | 2721082Z00 |
| Suzuki | 2721082Z01 |
| SVL | 15-153X |
| Terex | 051025Z1546 |
| Terex | 051025Z3207 |
| Terex | 2362830 |
| Terex | 27692 |
| Toyota | 04371-04010 |
| Toyota | 04371-04020 |
| Toyota | 04371-0C010 |
| Toyota | 0437104010 |
| Toyota | 0437104020 |
| Toyota | 043710C010 |
| Vermeer | 15347-001 |
| Vermeer | 16132-001-1 |
| Volvo | 231189 |
| Volvo | SHP5153X |
| Volvo | SP 5153X |
Fits Years: 2003 2004 2005
Fits Models: Aviator
