| Attribute | Value |
|---|---|
| 108.00 | |
| ABS Tone Ring Included | No |
| Assy/Disassy By Qualified Personnel Required! | . |
| Balancing Type | Mill Balancing |
| Bearings Included | No |

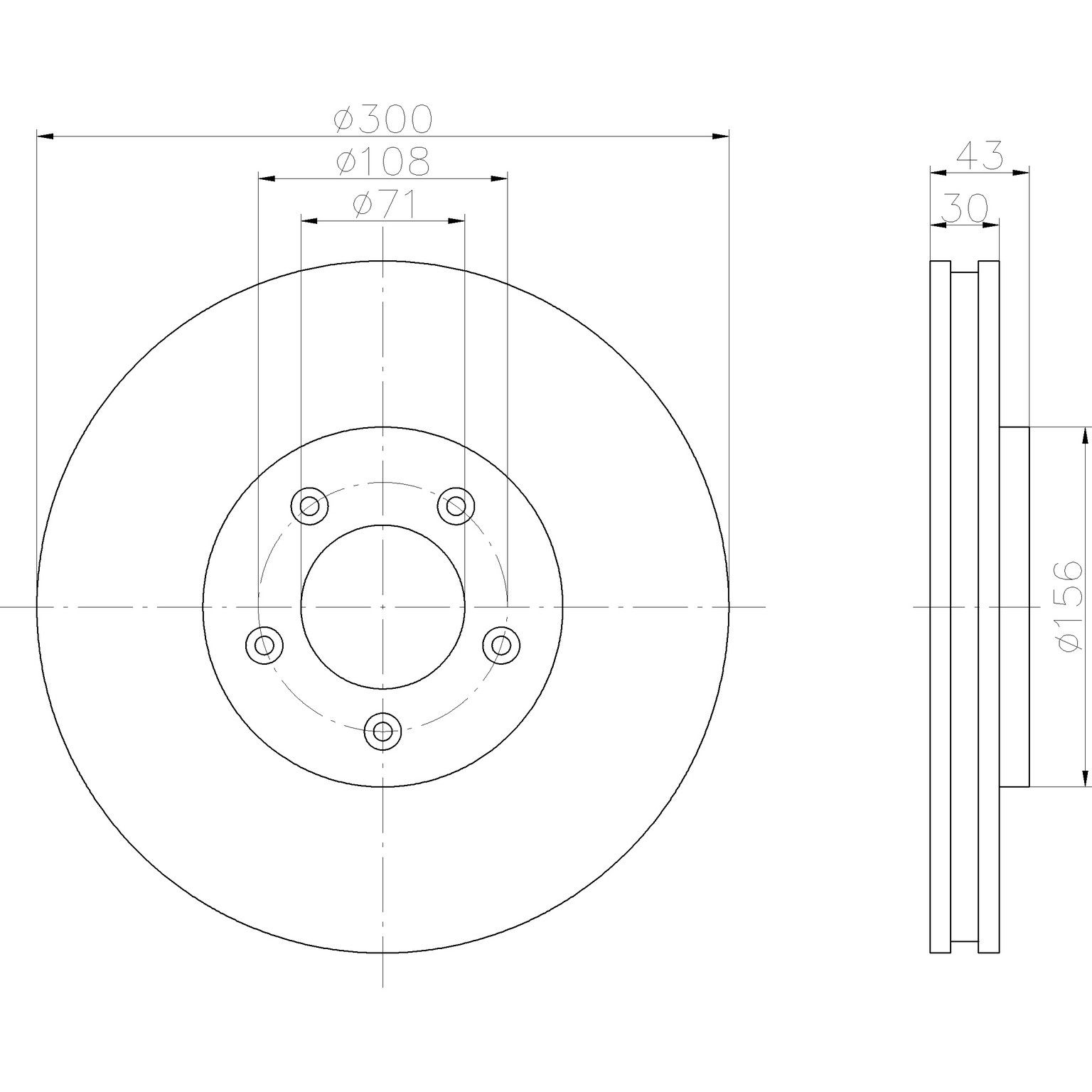

| Bolt Hole Circle Ø [in] | 4.25 |
| Bolt Hole Circle Ø [mm] | 108 |
| Bolt Hole Quantity | 5 |
| Brake Disc Thickness [in] | 1.18 |
| Brake Disc Thickness [mm] | 30 |
| Brake Disc Type | Internally Vented |
| California Proposition 65 Required | No |
| Center Hole Diameter | 120.0 |
| Centering Diameter [in] | 2.80 |
| Color | Silver |
| Colour | Silver |
| Construction | Full Cast |
| Directional Or Non Directional Brake Surface | Non-directional |
| Disc Finish | Coated |
| Discard Thickness | 28.00 |
| Grade Type | Standard Replacement |
| Hat Finish | Coated |
| Height [in] | 1.69 |
| Hole Arrangement / Number | 05/05 |
| Hole Arrangement/Number | 05/05 |
| Inside Diameter | 71.0 |
| Machining | High-carbon |
| Material | Gray Cast Iron |
| Minimum Thickness [in] | 1.10 |
| Minimum Thickness [mm] | 28 |
| Mounting Bolt Hole Circle Diameter | 108.00 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 30.00 |
| Outer Diameter [in] | 11.81 |
| Overall Height | 43.00 |
| Rust Resistant Coating | Yes |
| Solid Or Vented Type Rotor | Vented |
| Surface | Coated |
| Surface Type | Smooth |
| Technical Information Number | 50990pro_hc_na |
| Weight [kg] | 8,0 |
| Weight [lb] | 17.64 |
| Weight [lbs] | 17.64 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Appearance | Sedan | 2005 | V6 3.0L | RWD Automatic |
| Base | Sedan | 2000 - 2005 | V6 3.0L | RWD Automatic |
| Base | Sedan | 2000 - 2002 | V6 3.0L | RWD Manual |
| Base | Sedan | 2000 - 2004 | V8 3.9L | RWD Automatic |
| Base | Sedan | 2000 - 2002 | V8 3.9L | RWD Manual |
| Convenience | Sedan | 2004 - 2005 | V6 3.0L | RWD Automatic |
| LSE | Sedan | 2001 - 2003 | V6 3.0L | RWD Automatic |
| LSE | Sedan | 2001 - 2002 | V6 3.0L | RWD Manual |
| LSE | Sedan | 2001 - 2003 | V8 3.9L | RWD Automatic |
| LSE | Sedan | 2001 - 2002 | V8 3.9L | RWD Manual |
| Luxury | Sedan | 2005 | V6 3.0L | RWD Automatic |
| Plus | Sedan | 2004 - 2005 | V6 3.0L | RWD Automatic |
| Premium | Sedan | 2005 | V6 3.0L | RWD Automatic |
| Premium Sport | Sedan | 2003 | V8 3.9L | RWD Automatic |
| Sport | Sedan | 2000 - 2006 | V8 3.9L | RWD Automatic |
| Sport Premium | Sedan | 2004 - 2006 | V8 3.9L | RWD Automatic |
| Ultimate | Sedan | 2005 | V8 3.9L | RWD Automatic |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| Akebono | BN0846 |
| Akebono | BN0846E |
| AMC | FO2885 |
| ATE | 24013001201 |
| ATE | 430120 |
| Bendix | 520798 |
| Bendix | 562145B |
| Blue Print | ADJ134342 |
| Borg & Beck | BBD5909S |
| Bosch | 0986478778 |
| Brake Engineering | DI955990 |
| Brembo | 09791010 |
| Brembo | 09791011 |
| Brembo | 09791014 |
| Cifam | 8001097C |
| Delphi | BG3511 |
| EBC Brakes | D950 |
| EBC Brakes | GD950 |
| EBC Brakes | USR950 |
| Febi-Bilstein | 44127 |
| Ferodo | DDF1107 |
| Ferodo | DDF11071 |
| Ferodo | DDF1107C |
| Ferodo | DDF1107CD |
| FREMAX BRAKE ROTORS AND DRUMS | BD4088 |
| FTE | 9071105 |
| FTE | BS5119 |
| Girling | 6041051 |
| Hella Pagid | 50990PROHCNA |
| Hella Pagid | 8DD355122132 |
| Jaguar | XR85 8130 |
| Jaguar | XR858130 |
| Japan Parts | DI0335 |
| Japan Parts | DI0335C |
| Jurid | 562145J |
| Jurid | 562145J1 |
| Jurid | 562145JC |
| Key Parts | KBD5909S |
| LPR | J1001V |
| METELLI | 231097C |
| MEYLE | 18155210010PD |
| Mintex | MDC1066 |
| NK Autoparts | 201223 |
| NK Autoparts | 311223 |
| NK Autoparts | 341223 |
| Optimal | BS8186 |
| Optimal | BS8186C |
| PAGID Racing | 50990 |
| PAGID Racing | 50990PRO |
| Remsa | 683610 |
| SBS | 1815201223 |
| SBS | 1815311223 |
| SBS | 1815341223 |
| Textar | 92099000 |
| Textar | 92099003 |
| Textar | 92099005 |
| Textar | 98200099001 |
| Tridon | 8120101153C |
| TRW | DF4105 |
| TRW Steering and Suspension Parts | DF4105S |
| VAICO | V5480002 |
| Valeo | 197356 |
| Zimmermann | 290226100 |
| Zimmermann | 290226120 |
| Zimmermann | 290226152 |
| Zimmermann | 290226170 |
| Zimmermann | 290226172 |
| Zimmermann | 290226175 |
Fits Years: 2000 2001 2002 2003 2004 2005 2006
Fits Models: LS
