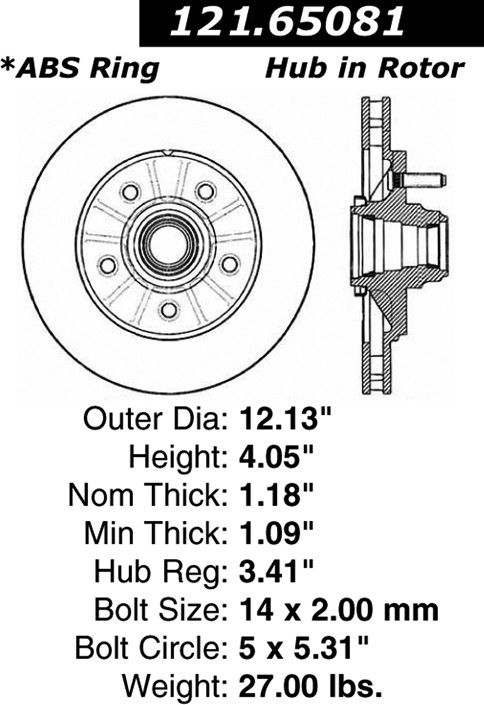

| Attribute | Value |
|---|---|
| 135 | |
| ABS Tone Ring Included | Yes |
| Attribute ID (Type) | California Proposition 65 |
| Bearings Included | No |
| Bolt Hole Quantity | 5 |
| Bolt Thread Pitch | 2.000 |
| California Proposition 65 Site [basic] | Https://www.p65warnings.ca.gov/ |
| California Proposition 65 Text [cntrc] | Warning: Cancer And Reproductive Harm |
| Center Hole Diameter | 3.413, 86.700 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Discard Thickness | 1.091, 27.7, 27.700 |
| Hub Hole/Whl Reg Mm | 86.7 |
| Inner Bearing # [cntrc] | 410.91018 |
| Inner Seal # [cntrc] | 417.65000 |
| Misc Holes [cntrc] | 0 |
| Mounting Bolt Hole Circle Diameter | 135.000, 5.315 |
| Mounting Type | Hub & Rotor |
| Nominal Thickness | 1.181, 30, 30.000 |
| Outer Bearing # [cntrc] | 410.91012 |
| Overall Height | 102.900, 4.051 |
| Product Grade [cntrc] | Standard |
| Rotor Outside Diameter | 12.126, 308.000 |
| Solid Or Vented Type Rotor | Vented |
| Stud Thread Diameter | 14.000 |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| Vane Style | Pillar |
| Vane Style [cntrc] | Pillar |
| Weight [cntrc] Kgs | 12.270 |
| Weight [cntrc] Lbs | 27.000 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | SUV | 2000 - 2002 | V8 5.4L | RWD/4WD Automatic |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| Autospecialty | AR8584E |
| Bendix | 145303 |
| Bendix | PRT5303 |
| Formula Blue Hydraulic Brake Parts | E126-70-086 |
| Formula Blue Hydraulic Brake Parts | E12670086 |
| IAP/Kuhltek Motorwerks | BR54091 |
| Mighty Distributing System | 54091 |
| Pep Boys | 54091G |
| Raybestos Brakes | 1066984 |
| Raybestos Brakes | 66984 |
| Raybestos Brakes | 66984R |
| Sears | 19686 |
| TruckStar by Buyers | 492305 |
| TruckStar by Buyers | PR92305 |
| TruckStar by Buyers | R92305 |
| Wagner Brake | 52-125689 |
| Wagner Brake | 52125689 |
Fits Years: 2000 2001 2002
Fits Models: Navigator
