2018, 2017, 2016, 2015 Lincoln Navigator Engine Cylinder Head Gasket
View 1
View 2
View 3

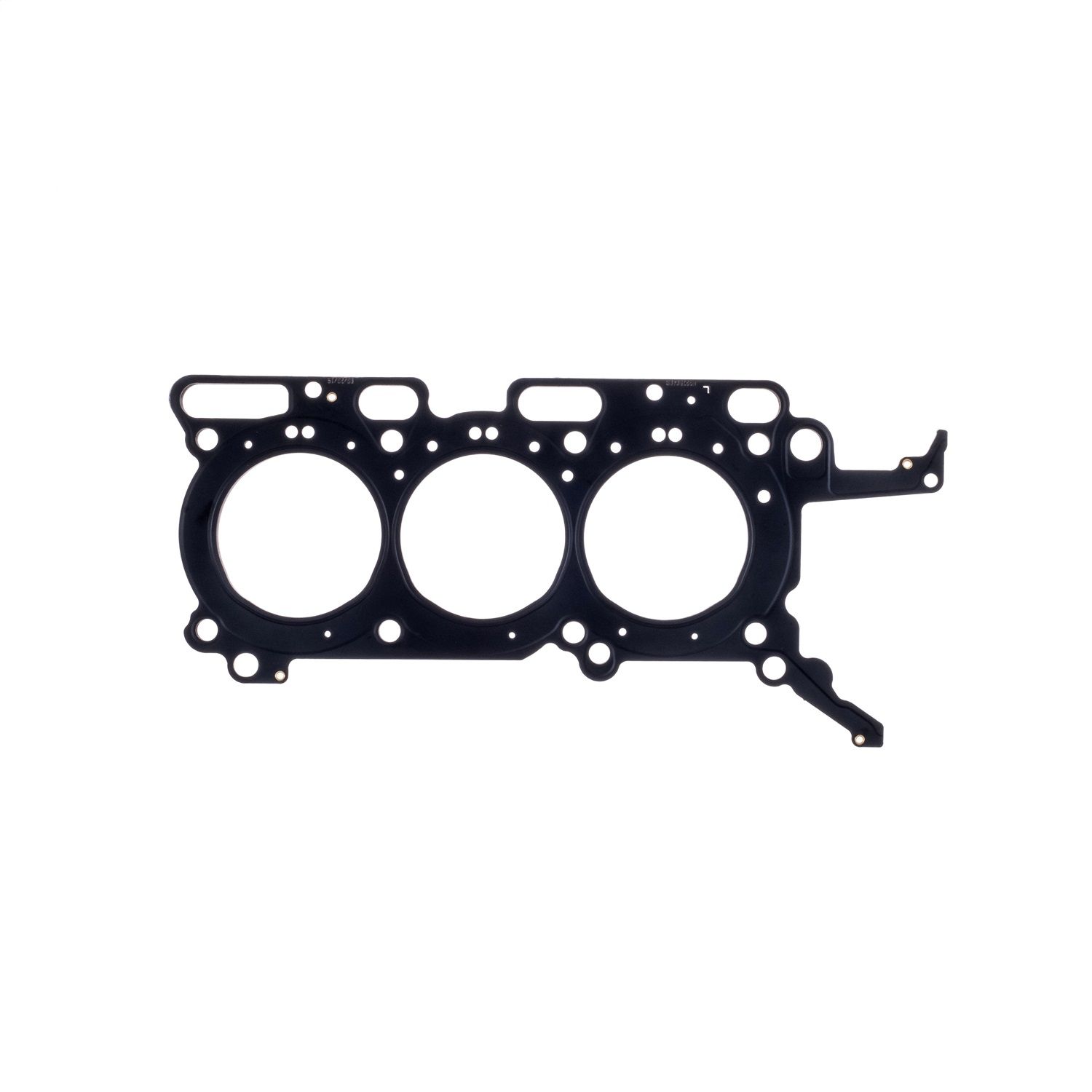

2015 - 2018 Lincoln Navigator Engine Cylinder Head Gasket - Left (Cometic Gasket) NEW

$ 96 .30

Product Notes

Position: Left (Driver Side)
0.040 in. Multi-Layer Steel; 92.5mm Bore; Left Hand Side
Cylinder Head Gasket
Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.040". Left Side. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Brand: Cometic Gasket
Condition: New
See Other Lincoln Navigator Engine Cylinder Head Gaskets
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Engine Make/Size Ford 3.5l Eco-boost
WARNING CA Proposition 65 Yes
WARNING CA Proposition 65 Message The State Of California Has Determined That Certain Chemicals Used In The Manufacture Of This Product Have Been Known To Cause Cancer And Birth Defects. For More Information; Visit Www.p65warnings.ca.gov

Vehicle Fitment Guide

This part fits the following vehicles:

Lincoln 1 model (tapclick to expand)(tapclick to hide)
Navigator 2015-2018 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base SUV 2015 - 2016 V6 3.5L Turbo AWD Automatic
Base SUV 2015 V6 3.5L Turbo RWD/4WD Automatic
Black Label SUV 2018 V6 3.5L Turbo 4WD Automatic
L SUV 2015 V6 3.5L Turbo AWD/RWD/4WD Automatic
L Black Label SUV 2018 V6 3.5L Turbo 4WD Automatic
L Reserve SUV 2016 - 2018 V6 3.5L Turbo 4WD Automatic
L Reserve SUV 2016 - 2017 V6 3.5L Turbo RWD Automatic
L Reserve SUV 2015 V6 3.5L Turbo AWD Automatic
L Select SUV 2016 - 2018 V6 3.5L Turbo RWD/4WD Automatic
Premiere SUV 2018 V6 3.5L Turbo RWD/4WD Automatic
Reserve SUV 2016 - 2018 V6 3.5L Turbo 4WD Automatic
Reserve SUV 2016 - 2017 V6 3.5L Turbo RWD Automatic
Reserve SUV 2015 V6 3.5L Turbo AWD Automatic
Select SUV 2016 - 2018 V6 3.5L Turbo RWD/4WD Automatic
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.
