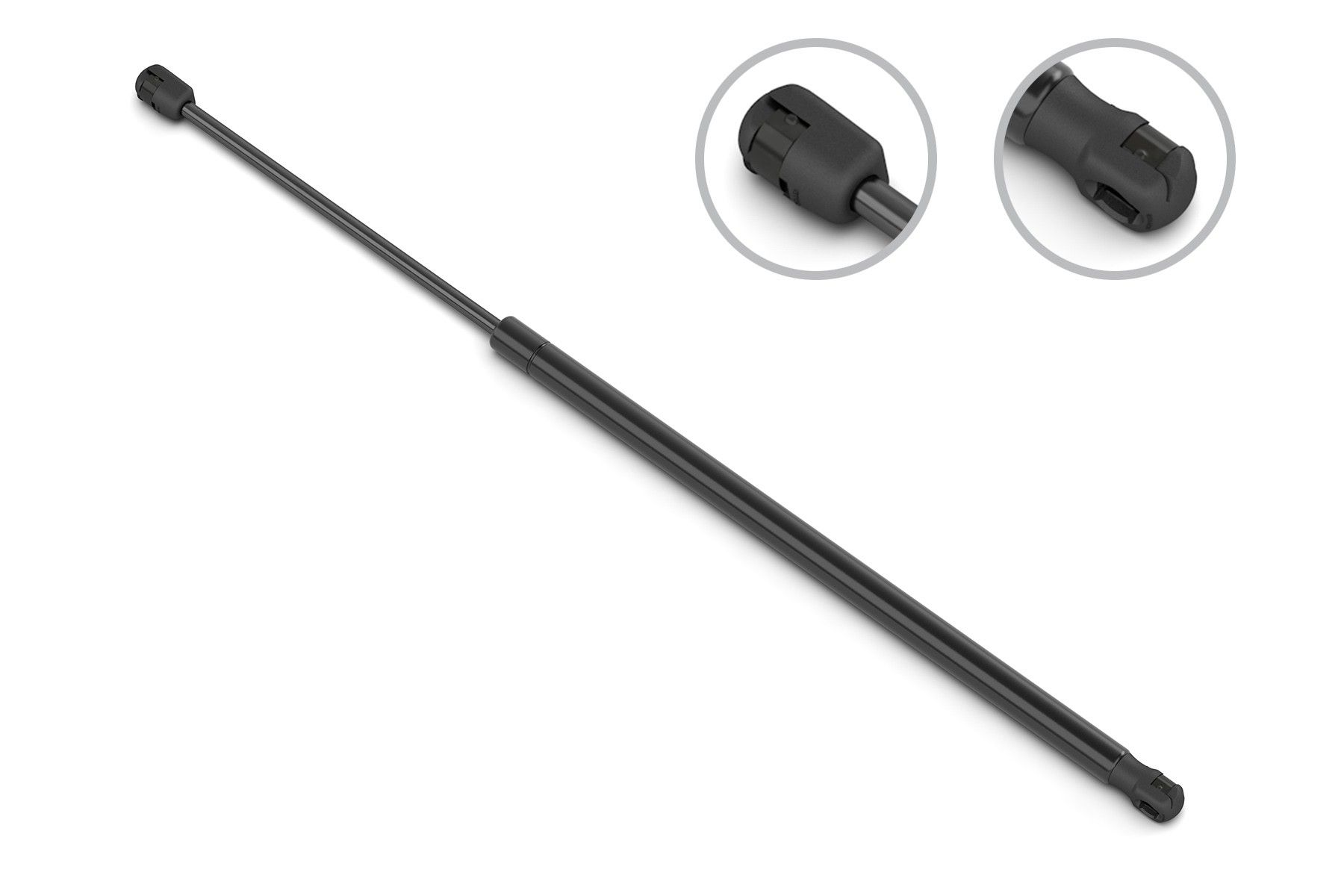

2008, 2007, 2006, 2005, 2004, 2003 Mazda 6 Trunk Lid Lift Support

2003 - 2008 Mazda 6 Trunk Lid Lift Support (Stabilus) NEW

$ 30 .03

Product Notes

⚠️ Most jobs typically require 2 of this item.
w/o Spoiler

Lift-O-Mat by Stabilus - Precision Control with Dynamic Damping. The Lift-O-Mat by Stabilus sets a new standard in controlled motion, featuring dynamic damping technology for refined, adaptable performance. Instead of relying on an oil column, this advanced lift support utilizes a longitudinal groove-known as a velocity manifold-pressed into the tube wall, allowing gas to flow around the piston. The groove depth and geometry control extension speed and are highly tunable to meet the specific requirements of any application. Designed for Smooth Operation The groove profile is expertly crafted to gradually narrow toward the end of the stroke, ensuring a gentle, controlled stop with minimal impact. Built from high-quality materials and fine-tuned for smooth, reliable function, the Lift-O-Mat offers OE performance and design, making it an ideal choice across industries requiring precision control, from automotive to ergonomic equipment and beyond. Why Choose Lift-O-Mat? - Dynamic Damping: Continuous gas flow around the piston, controlled by a custom groove, allows precision-tuned extension. - Highly Tunable: Groove depth and geometry can be tailored to achieve optimal performance for each application. - Built to Last: High-quality materials and expert engineering ensure reliability and durability. Choose Lift-O-Mat by Stabilus for a refined, dynamic damping solution that delivers consistent, application-specific performance and a smooth, gentle stop every time.
Brand: Stabilus
Condition: New
See Other Mazda 6 Trunk Lid Lift Supports
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Agricultural Equipment N
CarLight Truck Y
Compressed Length 191, 7.52
Cylinder Outside Diameter 0.709, 18
End 1 Material Nylon
End 1 Mount Diameter 0.394, 10.0
End 1 Type Ball Socket
End 2 Material Nylon
End 2 Mount Diameter 0.394, 10.0
End 2 Type Ball Socket
Engine Specific N
Extended Length 11.30, 287
Heavy Truck N
High Performance N
IndustrialOff Highway N
Inner Shaft Diameter 0.315
Marine N
Maximum Force 108, 480
Medium Truck N
MotorCycleRV N
Mounting Hardware Included No
NonVehicle Specific N
Personal Watercraft N
Prop 65 Affected Yes
Prop 65 Chemical Dehp
Prop 65 Warning Warning: This Product Can Expose You To Chemicals Including Di(2-ethylhexyl) Phthalate (dehp), Which Is Known To The State Of California To Cause Canc
Small Engine N
Snowmobile N
Stroke Length 3.78, 96
Transmission Specific N
Type Gas

Vehicle Fitment Guide

This part fits the following vehicles:

Mazda 1 model (tapclick to expand)(tapclick to hide)
6 2003-2008 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
GS Hatchback 2008 L4 2.3L FWD Automatic & Manual
GS Sedan 2008 L4 2.3L FWD Automatic & Manual
GT Hatchback 2008 L4 2.3L FWD Automatic & Manual
GT Sedan 2008 L4 2.3L FWD Automatic & Manual
Mazdaspeed Sedan 2006 - 2007 L4 2.3L Turbo AWD Manual
S Hatchback 2004 - 2008 V6 3.0L FWD Automatic & Manual
S Sedan 2003 - 2008 V6 3.0L FWD Automatic & Manual
S Wagon 2004 - 2007 V6 3.0L FWD Automatic & Manual
i Hatchback 2004 - 2008 L4 2.3L FWD Automatic & Manual
i Sedan 2003 - 2008 L4 2.3L FWD Automatic & Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Lift-O-Mat by Stabilus - Precision Control with Dynamic Damping. The Lift-O-Mat by Stabilus sets a new standard in controlled motion, featuring dynamic damping technology for refined, adaptable performance. Instead of relying on an oil column, this advanced lift support utilizes a longitudinal groove-known as a velocity manifold-pressed into the tube wall, allowing gas to flow around the piston. The groove depth and geometry control extension speed and are highly tunable to meet the specific requirements of any application. Designed for Smooth Operation The groove profile is expertly crafted to gradually narrow toward the end of the stroke, ensuring a gentle, controlled stop with minimal impact. Built from high-quality materials and fine-tuned for smooth, reliable function, the Lift-O-Mat offers OE performance and design, making it an ideal choice across industries requiring precision control, from automotive to ergonomic equipment and beyond. Why Choose Lift-O-Mat? - Dynamic Damping: Continuous gas flow around the piston, controlled by a custom groove, allows precision-tuned extension. - Highly Tunable: Groove depth and geometry can be tailored to achieve optimal performance for each application. - Built to Last: High-quality materials and expert engineering ensure reliability and durability. Choose Lift-O-Mat by Stabilus for a refined, dynamic damping solution that delivers consistent, application-specific performance and a smooth, gentle stop every time.

Interchange Parts

Brand Part Number
Mazda GJ6A-56-930C
Mazda GJ6A56930C
Mazda GK2A-56-930E
Mazda GK2A56930E
Mazda GK2C-56-930D
Mazda GK2C56930D
Mercury 3M8154404C26BF
Mercury 6N7354406A10AB
Stabilus 0483RD
Stabilus 174749
Stabilus 4115WE
Stabilus 5611RB
Stabilus 5612RX
Stabilus 9699VA

Fits Years: 2003 2004 2005 2006 2007 2008

Fits Models: 6
